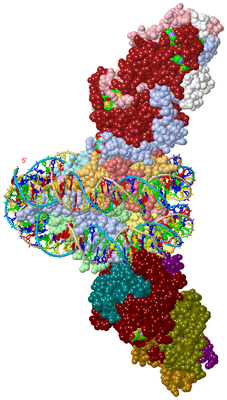

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  SAGA DUB MODULE UBP8/SGF11/SUS1/SGF73 BOUND TO UBIQITINATED NUCLEOSOME

Authors :  M. Morgan, C. Wolberger
Date :  17 May 15  (Deposition) - 24 Feb 16  (Release) - 09 Mar 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.82
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,a,b,c,d,e,f,g,h,i,j,k,l,m,n
Biol. Unit 1:  A,B,C,D,E,F,G,H,I,J,U,V,W,X,Y,Z,a,b,c,d  (1x)
Biol. Unit 2:  K,L,M,N,O,P,Q,R,S,T,e,f,g,h,i,j,k,l,m,n  (1x)
Keywords :  Dub, Deubiquitinase, Usp, Chromatin, Eraser, Nucleosome, Modified Histone, Macromolecular Complex, Hydrolase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. T. Morgan, M. Haj-Yahya, A. E. Ringel, P. Bandi, A. Brik, C. Wolberge
Structural Basis For Histone H2B Deubiquitination By The Saga Dub Module.
Science V. 351 725 2016
PubMed-ID: 26912860  |  Reference-DOI: 10.1126/SCIENCE.AAC5681

(-) Compounds

Molecule 1 - HISTONE H3.2
    ChainsA, E, K, O
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 2 - HISTONE H4
    ChainsB, F, L, P
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 3 - HISTONE H2A TYPE 1
    ChainsC, G, M, Q
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 4 - HISTONE H2B 1.1
    ChainsD, H, N, R
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355
    SynonymH2B1.1

Molecule 5 - DNA (145-MER)
    ChainsI, S
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism ScientificSYNTHETIC CONSTRUCT
    Organism Taxid32630

Molecule 6 - DNA (145-MER)
    ChainsJ, T
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    Organism ScientificSYNTHETIC CONSTRUCT
    Organism Taxid32630

Molecule 7 - UBIQUITIN CARBOXYL-TERMINAL HYDROLASE 8
    ChainsU, Z, e, j
    EC Number3.4.19.12
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneUBP8, YMR223W, YM9959.05
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid559292
    StrainATCC 204508 / S288C
    SynonymDEUBIQUITINATING ENZYME 8,UBIQUITIN THIOESTERASE 8, UBIQUITIN-SPECIFIC-PROCESSING PROTEASE 8

Molecule 8 - TRANSCRIPTION AND MRNA EXPORT FACTOR SUS1
    ChainsV, a, f, k
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneSUS1, YBR111W-A
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid559292
    StrainATCC 204508 / S288C

Molecule 9 - SAGA-ASSOCIATED FACTOR 11
    ChainsW, b, g, l
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneSGF11, SCY_5678
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE (STRAIN YJM789)
    Organism Taxid307796
    StrainYJM789

Molecule 10 - POLYUBIQUITIN-B
    ChainsX, c, h, m
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneUBB
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

Molecule 11 - SAGA-ASSOCIATED FACTOR 73
    ChainsY, d, i, n
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneSGF73, YGL066W
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid559292
    StrainATCC 204508 / S288C
    Synonym73 KDA SAGA-ASSOCIATED FACTOR,SAGA HISTONE ACETYLTRANSFERASE COMPLEX 73 KDA SUBUNIT

 Structural Features

(-) Chains, Units

  12345678910111213141516171819202122232425262728293031323334353637383940
Asymmetric Unit ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmn
Biological Unit 1 (1x)ABCDEFGHIJ          UVWXYZabcd
Biological Unit 2 (1x)          KLMNOPQRST          efghijklmn

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 32)

Asymmetric Unit (1, 32)
No.NameCountTypeFull Name
1ZN32Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (32, 32)

Asymmetric Unit (32, 32)
No.NameEvidenceResiduesDescription
01AC1SOFTWARECYS U:46 , CYS U:49 , CYS U:68 , HIS U:73binding site for residue ZN U 501
02AC2SOFTWARECYS U:60 , CYS U:63 , HIS U:77 , HIS U:83binding site for residue ZN U 502
03AC3SOFTWARECYS U:4 , HIS U:6 , CYS U:96 , CYS U:99binding site for residue ZN U 503
04AC4SOFTWAREHIS U:170 , CYS U:174 , CYS U:182 , CYS U:185binding site for residue ZN U 504
05AC5SOFTWAREHIS U:250 , CYS U:271 , CYS U:273 , HIS U:276binding site for residue ZN U 505
06AC6SOFTWARECYS U:289 , CYS U:292 , CYS U:336 , CYS U:339binding site for residue ZN U 506
07AC7SOFTWARECYS W:73 , ASN W:75 , CYS W:76 , CYS W:92binding site for residue ZN W 101
08AC8SOFTWARECYS Y:78 , CYS Y:81 , HIS Y:93 , CYS Y:98binding site for residue ZN Y 201
09AC9SOFTWARECYS Z:289 , GLY Z:291 , CYS Z:292 , CYS Z:339binding site for residue ZN Z 501
10AD1SOFTWARECYS Z:271 , GLU Z:272 , CYS Z:273 , HIS Z:276binding site for residue ZN Z 502
11AD2SOFTWAREHIS Z:170 , CYS Z:174 , CYS Z:182 , CYS Z:185binding site for residue ZN Z 503
12AD3SOFTWARECYS Z:4 , HIS Z:6 , CYS Z:96 , CYS Z:99binding site for residue ZN Z 504
13AD4SOFTWARECYS Z:60 , CYS Z:63 , HIS Z:77 , HIS Z:83binding site for residue ZN Z 505
14AD5SOFTWARECYS Z:46 , CYS Z:49 , CYS Z:68 , HIS Z:71 , HIS Z:73binding site for residue ZN Z 506
15AD6SOFTWARECYS b:73 , ASN b:75 , CYS b:76 , HIS b:88 , CYS b:92binding site for residue ZN b 101
16AD7SOFTWARECYS d:78 , CYS d:81 , HIS d:93 , CYS d:98binding site for residue ZN d 201
17AD8SOFTWARECYS e:46 , CYS e:49 , CYS e:68 , HIS e:73binding site for residue ZN e 501
18AD9SOFTWARECYS e:60 , CYS e:63 , HIS e:77 , HIS e:83binding site for residue ZN e 502
19AE1SOFTWARECYS e:4 , HIS e:6 , CYS e:96 , CYS e:99binding site for residue ZN e 503
20AE2SOFTWAREHIS e:170 , CYS e:174 , CYS e:182 , CYS e:185binding site for residue ZN e 504
21AE3SOFTWAREHIS e:250 , CYS e:271 , CYS e:273 , HIS e:276binding site for residue ZN e 505
22AE4SOFTWARECYS e:289 , GLY e:291 , CYS e:292 , ASN e:295 , CYS e:336 , CYS e:339binding site for residue ZN e 506
23AE5SOFTWARECYS g:73 , CYS g:76 , HIS g:88 , CYS g:92binding site for residue ZN g 101
24AE6SOFTWARECYS i:78 , CYS i:81 , HIS i:93 , CYS i:98binding site for residue ZN i 201
25AE7SOFTWARECYS j:289 , CYS j:292 , CYS j:336 , CYS j:339binding site for residue ZN j 501
26AE8SOFTWAREHIS j:250 , CYS j:271 , CYS j:273 , HIS j:276binding site for residue ZN j 502
27AE9SOFTWAREHIS j:170 , CYS j:174 , CYS j:182 , CYS j:185binding site for residue ZN j 503
28AF1SOFTWARECYS j:4 , HIS j:6 , PHE j:85 , CYS j:96binding site for residue ZN j 504
29AF2SOFTWARECYS j:60 , CYS j:63 , HIS j:77 , HIS j:83binding site for residue ZN j 505
30AF3SOFTWARECYS j:46 , CYS j:49 , CYS j:68 , HIS j:73binding site for residue ZN j 506
31AF4SOFTWARECYS l:73 , ASN l:75 , CYS l:76 , HIS l:88 , CYS l:92binding site for residue ZN l 101
32AF5SOFTWARECYS n:78 , CYS n:81 , HIS n:93 , CYS n:98binding site for residue ZN n 201

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1d:78 -d:98
2n:78 -n:98

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Asn U:199 -Thr U:200
2Asn U:295 -Ser U:296
3Glu W:66 -Ser W:67
4Asn Z:199 -Thr Z:200
5Asn Z:295 -Ser Z:296
6Glu b:66 -Ser b:67
7Asn e:199 -Thr e:200
8Asn e:295 -Ser e:296
9Glu g:66 -Ser g:67
10Asn j:199 -Thr j:200
11Asn j:295 -Ser j:296
12Glu l:66 -Ser l:67

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZUX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZUX)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZUX)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:97

               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4zux A  38 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 134
                                    47        57        67        77        87        97       107       117       127

Chain B from PDB  Type:PROTEIN  Length:83

               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------- Transcript
                 4zux B  20 KVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    29        39        49        59        69        79        89        99

Chain C from PDB  Type:PROTEIN  Length:103

               SCOP domains ------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh...hhhhhhhhhhhh....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 4zux C  16 TRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPK 118
                                    25        35        45        55        65        75        85        95       105       115

Chain D from PDB  Type:PROTEIN  Length:95

               SCOP domains ----------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 4zux D  28 KTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 122
                                    37        47        57        67        77        87        97       107       117

Chain E from PDB  Type:PROTEIN  Length:97

               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4zux E  39 HRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA 135
                                    48        58        68        78        88        98       108       118       128

Chain F from PDB  Type:PROTEIN  Length:78

               SCOP domains ------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------ Transcript
                 4zux F  25 NIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    34        44        54        64        74        84        94

Chain G from PDB  Type:PROTEIN  Length:105

               SCOP domains --------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhh....hhhhhhhhhhhh....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 4zux G  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPK 118
                                    23        33        43        53        63        73        83        93       103       113

Chain H from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zux H  29 TRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSA 121
                                    38        48        58        68        78        88        98       108       118

Chain I from PDB  Type:DNA  Length:145

                 4zux I -72 ATCAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

Chain J from PDB  Type:DNA  Length:145

                 4zux J -72 ATCGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

Chain K from PDB  Type:PROTEIN  Length:97

               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4zux K  38 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 134
                                    47        57        67        77        87        97       107       117       127

Chain L from PDB  Type:PROTEIN  Length:83

               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------- Transcript
                 4zux L  20 KVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    29        39        49        59        69        79        89        99

Chain M from PDB  Type:PROTEIN  Length:103

               SCOP domains ------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh...hhhhhhhhhhhh....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 4zux M  16 TRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPK 118
                                    25        35        45        55        65        75        85        95       105       115

Chain N from PDB  Type:PROTEIN  Length:95

               SCOP domains ----------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 4zux N  28 KTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 122
                                    37        47        57        67        77        87        97       107       117

Chain O from PDB  Type:PROTEIN  Length:97

               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4zux O  39 HRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA 135
                                    48        58        68        78        88        98       108       118       128

Chain P from PDB  Type:PROTEIN  Length:78

               SCOP domains ------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------ Transcript
                 4zux P  25 NIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    34        44        54        64        74        84        94

Chain Q from PDB  Type:PROTEIN  Length:105

               SCOP domains --------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhh...hhhhhhhhhhhh....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 4zux Q  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPK 118
                                    23        33        43        53        63        73        83        93       103       113

Chain R from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zux R  29 TRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSA 121
                                    38        48        58        68        78        88        98       108       118

Chain S from PDB  Type:DNA  Length:145

                 4zux S -72 ATCAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

Chain T from PDB  Type:DNA  Length:145

                 4zux T -72 ATCGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

Chain U from PDB  Type:PROTEIN  Length:447

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh............eeee.....eee...hhhhhhhhhhh..eeee.....eee....ee...hhhhhhhhhhhhhhhhhhhee..................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhhhhh.................eeeeeeee........eeeeeee..eeee.....hhhhhhhhhhh.ee.................eeeeeeee...eeeeeee.eee.....eee.........eee.hhhh......eeeeeeeeeeeeee..eeeeeeeee.....eeeee..eeeeehhhhhh.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zux U   0 AMSICPHIQQVFQNEKSKDGVLKTCNAARYILNHSVPKEKFLNTMKCGTCHEINSGATFMCLQCGFCGCWNHSHFLSHSKQIGHIFGINSNNGLLFCFKCEDYIGNIDLINDAILAKYWDDVCTKTMVPSMERRDGLSGLINMGSTAFMSSILQCLIHNPYFIRHSMSQIHSNNCKVRSPDKCFSCALDKIVHELYGALNTSTNRQTGFIYLLTCAWKINQNLAGYSQQDAHEFWQFIINQIHQSYVLDLPNNNKQCECIVHTVFEGSLESSIVCPGCQNNSKTTIDPFLDLSLDIKDKKKLYECLDSFHKKEQLKDFNYHCGECNSTQDAIKQLGIHKLPSVLVLQLKRFEHLLNGSNRKLDDFIEFPTYLNMKNYCSTKVPDIIYELIGIVSHKGTVNEGHYIAFCKISGGQWFKFNDSMVSSISQEEVLKEQAYLLFYTIRQVN 471
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199||     217       227       237       247       257 ||    274       284       294       304       314       324       334       344       354       364       374       384       394|      414       424       434       444       454       464
                                                                                                                                                                                                                                  200|                                               259|                                                                                                                            394|
                                                                                                                                                                                                                                   209                                                267                                                                                                                             405

Chain V from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 4zux V   5 TAQLKSQIQQYLVESGNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLEEIV  93
                                    14        24        34        44        54        64        74        84

Chain W from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........................eeee....eeee..hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                 4zux W   6 ITIDSISNGILNNLLTTLIQDIVARETTQQQLLKTRYPDLRSYYFDPNGSLDINGLQKQQESSQYIHCENCGRDVSANRLAAHLQRCLSR  95
                                    15        25        35        45        55        65        75        85        95

Chain X from PDB  Type:PROTEIN  Length:76

               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....eeeee.....hhhhhhhhhhhhhh......eeee..ee......hhhhh.....eeeee...ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 4zux X   1 MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG  76
                                    10        20        30        40        50        60        70

Chain Y from PDB  Type:PROTEIN  Length:82

               SCOP domains ---------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh.....hhhhhhhhhhhh.......hhhhhhhhh................eeee.....eee..hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                 4zux Y  11 IKPKVIEEYSPSNDSWKSLMSSAKDTPLQYDHMNRESLKKYFNPNAQLIEDPLDKPIQYRVCEKCGKPLALTAIVDHLENHC  98
                                    20|       36        46        56        66        76        86        96
                                    20|
                                     27

Chain Z from PDB  Type:PROTEIN  Length:451

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh............eeee.....eee...hhhhhhhhhhh..eeee.....eee....ee...hhhhhhhhhhhhhhhhhhhee..................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhhhhhh................eeeeeeee........eeeeeee..eee......hhhhhhhhhhh.ee......ee....ee...eeeeeeee...eeeeee..eee.....eee.........eee.hhhh..........eeeeeeeeeeeee....eeeeeeeee...eeeeee..eeeeehhhhhh.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zux Z   0 AMSICPHIQQVFQNEKSKDGVLKTCNAARYILNHSVPKEKFLNTMKCGTCHEINSGATFMCLQCGFCGCWNHSHFLSHSKQIGHIFGINSNNGLLFCFKCEDYIGNIDLINDAILAKYWDDVCTKTMVPSMERRDGLSGLINMGSTAFMSSILQCLIHNPYFIRHSMSQIHSNNCKVRSPDKCFSCALDKIVHELYGALNTSTNRQTGFIYLLTCAWKINQNLAGYSQQDAHEFWQFIINQIHQSYVLDLPNNNKQCECIVHTVFEGSLESSIVCPGCQNNSKTTIDPFLDLSLDIKDKKKLYECLDSFHKKEQLKDFNYHCGECNSTQDAIKQLGIHKLPSVLVLQLKRFEHLLNGSNRKLDDFIEFPTYLNMKNYCSTKEKGKVPDIIYELIGIVSHKGTVNEGHYIAFCKISGGQWFKFNDSMVSSISQEEVLKEQAYLLFYTIRQVN 471
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199||     217       227       237       247       257 ||    274       284       294       304       314       324       334       344       354       364       374       384       394  ||   410       420       430       440       450       460       470
                                                                                                                                                                                                                                  200|                                               259|                                                                                                                               397|
                                                                                                                                                                                                                                   209                                                267                                                                                                                                404

Chain a from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                 4zux a   5 TAQLKSQIQQYLVESNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLEEIVDT  95
                                    14    ||  25        35        45        55        65        75        85        95
                                         19|
                                          21

Chain b from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........................eee......eee..hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 4zux b   7 TIDSISNGILNNLLTTLIQDIVARETTQQQLLKTRYPDLRSYYFDPNGSLDINGLQKQQESSQYIHCENCGRDVSANRLAAHLQRCLSR  95
                                    16        26        36        46        56        66        76        86

Chain c from PDB  Type:PROTEIN  Length:76

               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....eeeee.....hhhhhhhhhhhhhh......eeee..ee......hhhhh.....eeeee...ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 4zux c   1 MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG  76
                                    10        20        30        40        50        60        70

Chain d from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhh......hhhhhhhhhhhh.......hhhhhhhhh................eeee.....eee..hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 4zux d   5 DAEIKGIKPKVIEEYSGPSNDSWKSLMSSAKDTPLQYDHMNRESLKKYFNPNAQLIEDPLDKPIQYRVCEKCGKPLALTAIVDHLENHC  98
                                    14     || 29        39        49        59        69        79        89
                                          20|
                                           26

Chain e from PDB  Type:PROTEIN  Length:453

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh............eeee.....eee...hhhhhhhhhhh..eeee.....eee....ee...hhhhhhhhhhhhhhhhhhhee..................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh........hhhhhhh.eeeeeeee........eeeeeee..eee......hhhhhhhhhhh.ee......ee....ee...eeeeeeee...eeeeee..eee.....eee.........eee.hhhh............eeeeeeeeeeeeee..eeeeeeeee.....eeeee..eeeeehhhhhh...eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zux e   0 AMSICPHIQQVFQNEKSKDGVLKTCNAARYILNHSVPKEKFLNTMKCGTCHEINSGATFMCLQCGFCGCWNHSHFLSHSKQIGHIFGINSNNGLLFCFKCEDYIGNIDLINDAILAKYWDDVCTKTMVPSMERRDGLSGLINMGSTAFMSSILQCLIHNPYFIRHSMSQIHSNNCKVRSPDKCFSCALDKIVHELYGALNTSTNRQTGFIYLLTCAWKINQNLAGYSQQDAHEFWQFIINQIHQSYVLDLPNNNKQCECIVHTVFEGSLESSIVCPGCQNNSKTTIDPFLDLSLDIKDKKKLYECLDSFHKKEQLKDFNYHCGECNSTQDAIKQLGIHKLPSVLVLQLKRFEHLLNGSNRKLDDFIEFPTYLNMKNYCSTKEKENGKVPDIIYELIGIVSHKGTVNEGHYIAFCKISGGQWFKFNDSMVSSISQEEVLKEQAYLLFYTIRQVN 471
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199||     217       227       237       247       257 ||    274       284       294       304       314       324       334       344       354       364       374       384       394  ||   408       418       428       438       448       458       468
                                                                                                                                                                                                                                  200|                                               259|                                                                                                                               397|
                                                                                                                                                                                                                                   209                                                267                                                                                                                                402

Chain f from PDB  Type:PROTEIN  Length:85

               SCOP domains ------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                 4zux f  10 SQIQQYLVEGNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLEEIVDT  95
                                    20        30        40        50        60        70        80        90
                                   18|
                                    20

Chain g from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........................eee......eee..hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                 4zux g   6 ITIDSISNGILNNLLTTLIQDIVARETTQQQLLKTRYPDLRSYYFDPNGSLDINGLQKQQESSQYIHCENCGRDVSANRLAAHLQRCLSR  95
                                    15        25        35        45        55        65        75        85        95

Chain h from PDB  Type:PROTEIN  Length:76

               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....eeeee.....hhhhhhhhhhhhhh......eeee..ee......hhhhh.....eeeee...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 4zux h   1 MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG  76
                                    10        20        30        40        50        60        70

Chain i from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhh......hhhhhhhhhhhh.......hhhhhhhhh................eeee.....eee..hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 4zux i   5 DAEIKGIKPKVIEEYSGPSNDSWKSLMSSAKDTPLQYDHMNRESLKKYFNPNAQLIEDPLDKPIQYRVCEKCGKPLALTAIVDHLENHC  98
                                    14     || 29        39        49        59        69        79        89
                                          20|
                                           26

Chain j from PDB  Type:PROTEIN  Length:447

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...........eeee.....eee...hhhhhhhhhhh..eeee.....eee....ee...hhhhhhhhhhhhhhhhhhhee..................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhhhhhh................eeeeeeee........eeeeeee..eee......hhhhhhhhhhh.ee......ee....ee...eeeeeeee...eeeeee..eee.....eee.........eee.hhhh.......eeeeeeeeeeeee....eeeeeeee.....eeeee..eeeeehhhhhh.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zux j   0 AMSICPHIQQVFQNEKSKDGVLKTCNAARYILNHSVPKEKFLNTMKCGCHEINSGATFMCLQCGFCGCWNHSHFLSHSKQIGHIFGINSNNGLLFCFKCEDYIGNIDLINDAILAKYWDDVCTKTMVPSMERRDGLSGLINMGSTAFMSSILQCLIHNPYFIRHSMSQIHSNNCKVRSPDKCFSCALDKIVHELYGALNTSTNRQTGFIYLLTCAWKINQNLAGYSQQDAHEFWQFIINQIHQSYVLDLPNNNKQCECIVHTVFEGSLESSIVCPGCQNNSKTTIDPFLDLSLDIKDKKKLYECLDSFHKKEQLKDFNYHCGECNSTQDAIKQLGIHKLPSVLVLQLKRFEHLLNGSNRKLDDFIEFPTYLNMKNYCSTGKVPDIIYELIGIVSHKGTVNEGHYIAFCKISGGQWFKFNDSMVSSISQEEVLKEQAYLLFYTIRQVN 471
                                     9        19        29        39       |50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200|      218       228       238       248       258||     275       285       295       305       315       325       335       345       355       365       375       385       404       414       424       434       444       454       464
                                                                          47|                                                                                                                                                    200|                                               259|                                                                                                                            394|
                                                                           49                                                                                                                                                     209                                                267                                                                                                                             404

Chain k from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                 4zux k   5 TAQLKSQIQQYLVESGNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLE  90
                                    14        24        34        44        54        64        74        84

Chain l from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........................eeee....eeee..hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zux l   3 EETITIDSISNGILNNLLTTLIQDIVARETTQQQLLKTRYPDLRSYYFDPNGSLDINGLQKQQESSQYIHCENCGRDVSANRLAAHLQRCLSR  95
                                    12        22        32        42        52        62        72        82        92

Chain m from PDB  Type:PROTEIN  Length:76

               SCOP domains ---------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....eeeee.....hhhhhhhhhhhhhh......eeee..ee......hhhhh.....eeeee...ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 4zux m   1 MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG  76
                                    10        20        30        40        50        60        70

Chain n from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhh...hhhhhhhhhhhh.......hhhhhhhhh................eeee.....eee..hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                 4zux n   5 DAEIKGIKPKVIEEYSNDSWKSLMSSAKDTPLQYDHMNRESLKKYFNPNAQLIEDPLDKPIQYRVCEKCGKPLALTAIVDHLENHC  98
                                    14     || 32        42        52        62        72        82        92
                                          20|
                                           29

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZUX)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZUX)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZUX)

(-) Gene Ontology  (138, 206)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    AD1  [ RasMol ]  +environment [ RasMol ]
    AD2  [ RasMol ]  +environment [ RasMol ]
    AD3  [ RasMol ]  +environment [ RasMol ]
    AD4  [ RasMol ]  +environment [ RasMol ]
    AD5  [ RasMol ]  +environment [ RasMol ]
    AD6  [ RasMol ]  +environment [ RasMol ]
    AD7  [ RasMol ]  +environment [ RasMol ]
    AD8  [ RasMol ]  +environment [ RasMol ]
    AD9  [ RasMol ]  +environment [ RasMol ]
    AE1  [ RasMol ]  +environment [ RasMol ]
    AE2  [ RasMol ]  +environment [ RasMol ]
    AE3  [ RasMol ]  +environment [ RasMol ]
    AE4  [ RasMol ]  +environment [ RasMol ]
    AE5  [ RasMol ]  +environment [ RasMol ]
    AE6  [ RasMol ]  +environment [ RasMol ]
    AE7  [ RasMol ]  +environment [ RasMol ]
    AE8  [ RasMol ]  +environment [ RasMol ]
    AE9  [ RasMol ]  +environment [ RasMol ]
    AF1  [ RasMol ]  +environment [ RasMol ]
    AF2  [ RasMol ]  +environment [ RasMol ]
    AF3  [ RasMol ]  +environment [ RasMol ]
    AF4  [ RasMol ]  +environment [ RasMol ]
    AF5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn U:199 - Thr U:200   [ RasMol ]
    Asn U:295 - Ser U:296   [ RasMol ]
    Asn Z:199 - Thr Z:200   [ RasMol ]
    Asn Z:295 - Ser Z:296   [ RasMol ]
    Asn e:199 - Thr e:200   [ RasMol ]
    Asn e:295 - Ser e:296   [ RasMol ]
    Asn j:199 - Thr j:200   [ RasMol ]
    Asn j:295 - Ser j:296   [ RasMol ]
    Glu W:66 - Ser W:67   [ RasMol ]
    Glu b:66 - Ser b:67   [ RasMol ]
    Glu g:66 - Ser g:67   [ RasMol ]
    Glu l:66 - Ser l:67   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4zux
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  H2A1_XENLA | P06897
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H2B11_XENLA | P02281
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H32_XENLA | P84233
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H4_XENLA | P62799
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  SGF11_YEAS7 | A6ZWK1
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  SGF11_YEAST | Q03067
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  SGF73_YEAST | P53165
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  SUS1_YEAST | Q6WNK7
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  UBB_HUMAN | P0CG47
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  UBP8_YEAST | P50102
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.19.12
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  H2A1_XENLA | P06897
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H2B11_XENLA | P02281
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H32_XENLA | P84233
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H4_XENLA | P62799
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SGF11_YEAS7 | A6ZWK1
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SGF11_YEAST | Q03067
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SGF73_YEAST | P53165
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SUS1_YEAST | Q6WNK7
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  UBB_HUMAN | P0CG47
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  UBP8_YEAST | P50102
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        H2A1_XENLA | P068971aoi 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2fj7 2nzd 3b6f 3b6g 3c1b 3c1c 3kuy 3kwq 3lja 3mnn 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4j8u 4j8v 4j8w 4j8x 4ld9 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 5cp6 5dnm 5dnn 5e5a 5f99 5g2e 5hq2 5mlu 5nl0
        H2B11_XENLA | P022811aoi 1f66 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2nzd 3b6f 3b6g 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mnn 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4j8u 4j8v 4j8w 4j8x 4kgc 4kha 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 5cp6 5dnm 5dnn 5e5a 5f99 5g2e 5hq2 5nl0 5x0x 5x0y
        H32_XENLA | P842331f66 1kx3 1kx4 1kx5 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2hue 2io5 2nzd 3b6f 3b6g 3c1b 3c1c 3gv6 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mnn 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4eo5 4j8u 4j8v 4j8w 4j8x 4kgc 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 5bs7 5bsa 5cp6 5dnm 5dnn 5e5a 5f99 5hq2 5kgf 5mlu 5nl0 5x0x 5x0y
        H4_XENLA | P627991aoi 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2hue 2io5 2nzd 3b6f 3b6g 3c1b 3c1c 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mnn 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4eo5 4j8u 4j8v 4j8w 4j8x 4kgc 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 4zbj 5bs7 5bsa 5cp6 5dnm 5dnn 5e5a 5f99 5hq2 5kgf 5mlu 5nl0 5x0x 5x0y
        SGF11_YEAS7 | A6ZWK14wa6
        SGF11_YEAST | Q030672lo2 3kik 3kjl 3m99 3mhh 3mhs 4fip 4fjc 4fk5 4wa6
        SGF73_YEAST | P531652lo3 3m99 3mhh 3mhs 4fip 4fjc 4fk5 4w4u 4wa6
        SUS1_YEAST | Q6WNK73fwb 3fwc 3kik 3kjl 3m99 3mhh 3mhs 4c31 4fip 4fjc 4fk5 4mbe 4wa6
        UBB_HUMAN | P0CG471c3t 1cmx 1d3z 1f9j 1fxt 1g6j 1gjz 1nbf 1q5w 1s1q 1sif 1tbe 1ubi 1ubq 1ud7 1uzx 1xd3 1yx5 1yx6 1zo6 2ayo 2bgf 2den 2fuh 2g45 2gbj 2gbk 2gbm 2gbn 2gbr 2hth 2ibi 2j7q 2jf5 2jzz 2k6d 2k8b 2k8c 2kdf 2khw 2kjh 2klg 2kn5 2kox 2ktf 2kwu 2kwv 2l0f 2l0t 2mbb 2mro 2msg 2n13 2nr2 2o6v 2ojr 2pe9 2pea 2w9n 2wdt 2xew 2xk5 2y5b 2zcb 3a33 3by4 3c0r 3dvg 3dvn 3eec 3efu 3ehv 3h7p 3h7s 3hm3 3i3t 3ifw 3ihp 3jsv 3jvz 3jw0 3k9p 3kvf 3kw5 3ldz 3mhs 3mtn 3n30 3n32 3n3k 3nhe 3nob 3ns8 3o65 3oj3 3oj4 3ons 3phd 3ptf 3zlz 3znh 4uel 4uf6 4whv 4wlr 4wur 4wzp 4xof 4zfr 4zft 4zpz 5bnb 5caw 5cra 5cvm 5cvn 5cvo 5d0k 5d0m 5dfl 5dk8 5e6j 5edv 5emz 5eya 5gjq 5go7 5go8 5gob 5goc 5god 5gog 5goh 5goi 5goj 5gok 5ibk 5ifr 5j8p 5jbv 5jby 5jg6 5jp3 5jtj 5jtv 5k9p 5kgf 5khy 5l8h 5l8w 5l9t 5ln1 5lrv 5lrw 5lrx 5m93 5mnj 5n2w 5n38 5nl5 5nlj 5nvg 5tof 5tog 5ulf 5ulh 5ulk 5v1y 5v1z 5vey 5vf0 5w46 5x3m 5x3n 5x3o 5xbo 5xdp 5xk4 5xk5
        UBP8_YEAST | P501023m99 3mhh 3mhs 4fip 4fjc 4fk5 4wa6

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4ZUX)
