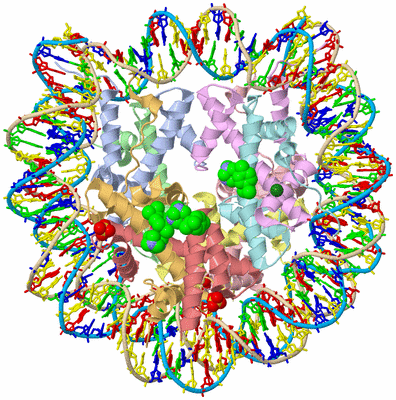

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

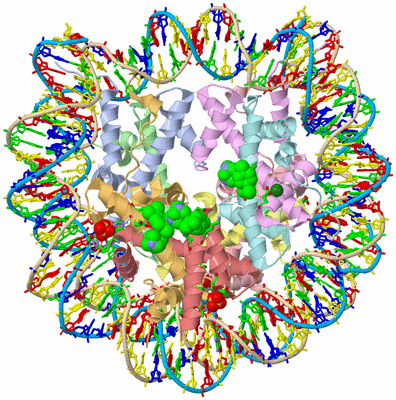

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  A RUTHENIUM ANTITUMOUR AGENT FORMS SPECIFIC HISTONE PROTEIN ADDUCTS IN THE NUCLEOSOME CORE

Authors :  M. S. Ong, C. A. Davey
Date :  22 Apr 10  (Deposition) - 06 Apr 11  (Release) - 06 Apr 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J
Keywords :  Nucleosome, Ncp, Ruthenium, Rapta-C, Structural Protein-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  B. Wu, M. S. Ong, M. Groessl, Z. Adhireksan, C. G. Hartinger, P. J. Dyson C. A. Davey
A Ruthenium Antimetastasis Agent Forms Specific Histone Protein Adducts In The Nucleosome Core
Chemistry V. 17 3562 2011
PubMed-ID: 21344528  |  Reference-DOI: 10.1002/CHEM.201100298

(-) Compounds

Molecule 1 - HISTONE H3.2
    ChainsA, E
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET3D
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneHISTONE H3
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 2 - HISTONE H4
    ChainsB, F
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET3A
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneHISTONE H4
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 3 - HISTONE H2A
    ChainsC, G
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET3A
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneHISTONE H2A, LOC494591
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355

Molecule 4 - HISTONE H2B 1.1
    ChainsD, H
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET3A
    Expression System StrainBL21(DE3)PLYSS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    GeneHISTONE H2B
    Organism CommonAFRICAN CLAWED FROG
    Organism ScientificXENOPUS LAEVIS
    Organism Taxid8355
    SynonymH2B1.1

Molecule 5 - DNA (145-MER)
    ChainsI
    EngineeredYES
    Other DetailsPALINDROMIC ALPHA-SATELLITE 145 BASE PAIR DNA CLONED AS TWO HALF-SITES IN PUC19 PLASMID, EXPRESSED IN E. COLI HB101 CELLS.
    SyntheticYES

Molecule 6 - DNA (145-MER)
    ChainsJ
    EngineeredYES
    Other DetailsPALINDROMIC ALPHA-SATELLITE 145 BASE PAIR DNA CLONED AS TWO HALF-SITES IN PUC19 PLASMID, EXPRESSED IN E. COLI HB101 CELLS.
    SyntheticYES

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric/Biological Unit ABCDEFGHIJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 13)

Asymmetric/Biological Unit (5, 13)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
2MML3Ligand/Ion1-METHYL-4-(1-METHYLETHYL)BENZENE
3PTW3Ligand/Ion1,3,5-TRIAZA-7-PHOSPHATRICYCLO[3.3.1.1~3,7~]DECANE
4RU3Ligand/IonRUTHENIUM ION
5SO43Ligand/IonSULFATE ION

(-) Sites  (13, 13)

Asymmetric Unit (13, 13)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY C:44 , ALA C:45 , GLY C:46 , ALA C:47 , THR D:87 , SER D:88BINDING SITE FOR RESIDUE SO4 D 1101
02AC2SOFTWAREVAL D:45 , ASP E:77 , HOH E:136 , HOH E:137 , HOH E:138 , HOH F:103BINDING SITE FOR RESIDUE MG E 1001
03AC3SOFTWARELYS F:59 , GLU F:63 , MML F:2002 , PTW F:2003BINDING SITE FOR RESIDUE RU F 2001
04AC4SOFTWAREPRO D:47 , ASP D:48 , LYS F:59 , RU F:2001 , PTW F:2003BINDING SITE FOR RESIDUE MML F 2002
05AC5SOFTWARELYS F:59 , VAL F:60 , GLU F:63 , RU F:2001 , MML F:2002BINDING SITE FOR RESIDUE PTW F 2003
06AC6SOFTWAREGLY G:44 , ALA G:45 , GLY G:46 , ALA G:47 , THR H:87 , SER H:88 , DA I:37BINDING SITE FOR RESIDUE SO4 G 1102
07AC7SOFTWAREGLU G:61 , GLU G:64 , MML G:2002 , PTW G:2003BINDING SITE FOR RESIDUE RU G 2001
08AC8SOFTWAREGLU G:61 , GLU G:64 , LEU G:65 , RU G:2001 , PTW G:2003 , PTW H:2003BINDING SITE FOR RESIDUE MML G 2002
09AC9SOFTWAREGLU G:61 , GLU G:64 , RU G:2001 , MML G:2002BINDING SITE FOR RESIDUE PTW G 2003
10BC1SOFTWAREHIS H:46 , PRO H:47 , ASP H:48 , THR H:49BINDING SITE FOR RESIDUE SO4 H 1103
11BC2SOFTWAREHIS H:106 , MML H:2002 , PTW H:2003BINDING SITE FOR RESIDUE RU H 2001
12BC3SOFTWAREGLU H:102 , LYS H:105 , HIS H:106 , RU H:2001 , PTW H:2003BINDING SITE FOR RESIDUE MML H 2002
13BC4SOFTWAREMML G:2002 , HIS H:106 , RU H:2001 , MML H:2002BINDING SITE FOR RESIDUE PTW H 2003

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MNN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3MNN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MNN)

(-) PROSITE Motifs  (3, 6)

Asymmetric/Biological Unit (3, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HISTONE_H2APS00046 Histone H2A signature.H2A1_XENLA22-28

  2C:21-27
G:21-27
2HISTONE_H3_2PS00959 Histone H3 signature 2.H32_XENLA67-75

  2A:66-74
E:66-74
3HISTONE_H2BPS00357 Histone H2B signature.H2B11_XENLA93-115

  2D:89-111
H:89-111

(-) Exons   (0, 0)

(no "Exon" information available for 3MNN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:97
 aligned with H32_XENLA | P84233 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:97
                                    48        58        68        78        88        98       108       118       128
            H32_XENLA    39 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 135
               SCOP domains d3mnna_ A: Histone H3                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------HISTONE_H------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 3mnn A  38 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 134
                                    47        57        67        77        87        97       107       117       127

Chain B from PDB  Type:PROTEIN  Length:82
 aligned with H4_XENLA | P62799 from UniProtKB/Swiss-Prot  Length:103

    Alignment length:82
                                    31        41        51        61        71        81        91       101
             H4_XENLA    22 VLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 103
               SCOP domains d3mnnb_ B: Histone H4                                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------- Transcript
                 3mnn B  21 VLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    30        40        50        60        70        80        90       100

Chain C from PDB  Type:PROTEIN  Length:106
 aligned with H2A1_XENLA | P06897 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:106
                                    24        34        44        54        64        74        84        94       104       114
           H2A1_XENLA    15 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGGVTIAQGGVLPNIQSVLLPKK 120
               SCOP domains d3mnnc_ C: Histone H2A                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh...hhhhhhhhhhhh....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------HISTONE-------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3mnn C  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 119
                                    23        33        43        53        63        73        83        93       103       113

Chain C from PDB  Type:PROTEIN  Length:106
 aligned with Q6AZJ8_XENLA | Q6AZJ8 from UniProtKB/TrEMBL  Length:130

    Alignment length:106
                                    24        34        44        54        64        74        84        94       104       114
         Q6AZJ8_XENLA    15 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 120
               SCOP domains d3mnnc_ C: Histone H2A                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh...hhhhhhhhhhhh....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3mnn C  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 119
                                    23        33        43        53        63        73        83        93       103       113

Chain D from PDB  Type:PROTEIN  Length:95
 aligned with H2B11_XENLA | P02281 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:95
                                    41        51        61        71        81        91       101       111       121
          H2B11_XENLA    32 KSRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 126
               SCOP domains d3mnnd_ D: Histone H2B                                                                          SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------HISTONE_H2B            ----------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 3mnn D  28 KTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 122
                                    37        47        57        67        77        87        97       107       117

Chain E from PDB  Type:PROTEIN  Length:97
 aligned with H32_XENLA | P84233 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:97
                                    48        58        68        78        88        98       108       118       128
            H32_XENLA    39 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 135
               SCOP domains d3mnne_ E: Histone H3                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -------------------Histone-3mnnE01 E:57-131                                                   --- Pfam domains (1)
           Pfam domains (2) -------------------Histone-3mnnE02 E:57-131                                                   --- Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------HISTONE_H------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 3mnn E  38 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER 134
                                    47        57        67        77        87        97       107       117       127

Chain F from PDB  Type:PROTEIN  Length:87
 aligned with H4_XENLA | P62799 from UniProtKB/Swiss-Prot  Length:103

    Alignment length:87
                                    26        36        46        56        66        76        86        96
             H4_XENLA    17 KRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 103
               SCOP domains d3mnnf_ F: Histone H4                                                                   SCOP domains
               CATH domains --------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) --------Histone-3mnnF01 F:24-93                                               --------- Pfam domains (1)
           Pfam domains (2) --------Histone-3mnnF02 F:24-93                                               --------- Pfam domains (2)
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 3mnn F  16 KRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG 102
                                    25        35        45        55        65        75        85        95

Chain G from PDB  Type:PROTEIN  Length:106
 aligned with H2A1_XENLA | P06897 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:106
                                    24        34        44        54        64        74        84        94       104       114
           H2A1_XENLA    15 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGGVTIAQGGVLPNIQSVLLPKK 120
               SCOP domains d3mnng_ G: Histone H2A                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---Histone-3mnnG01 G:17-90                                                   ----------------------------- Pfam domains (1)
           Pfam domains (2) ---Histone-3mnnG02 G:17-90                                                   ----------------------------- Pfam domains (2)
         Sec.struct. author ..hhhhhhh...hhhhhhhhhhh.....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------HISTONE-------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3mnn G  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 119
                                    23        33        43        53        63        73        83        93       103       113

Chain G from PDB  Type:PROTEIN  Length:106
 aligned with Q6AZJ8_XENLA | Q6AZJ8 from UniProtKB/TrEMBL  Length:130

    Alignment length:106
                                    24        34        44        54        64        74        84        94       104       114
         Q6AZJ8_XENLA    15 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 120
               SCOP domains d3mnng_ G: Histone H2A                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---Histone-3mnnG01 G:17-90                                                   ----------------------------- Pfam domains (1)
           Pfam domains (2) ---Histone-3mnnG02 G:17-90                                                   ----------------------------- Pfam domains (2)
         Sec.struct. author ..hhhhhhh...hhhhhhhhhhh.....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3mnn G  14 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 119
                                    23        33        43        53        63        73        83        93       103       113

Chain H from PDB  Type:PROTEIN  Length:95
 aligned with H2B11_XENLA | P02281 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:95
                                    41        51        61        71        81        91       101       111       121
          H2B11_XENLA    32 KSRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 126
               SCOP domains d3mnnh_ H: Histone H2B                                                                          SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Histone-3mnnH01 H:28-98                                                ------------------------ Pfam domains (1)
           Pfam domains (2) Histone-3mnnH02 H:28-98                                                ------------------------ Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------HISTONE_H2B            ----------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 3mnn H  28 KTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 122
                                    37        47        57        67        77        87        97       107       117

Chain I from PDB  Type:DNA  Length:145

                 3mnn I -72 ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGAATCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

Chain J from PDB  Type:DNA  Length:145

                 3mnn J -72 ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGATTCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT  72
                                   -63       -53       -43       -33       -23       -13        -3         7        17        27        37        47        57        67

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (4, 8)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MNN)

(-) Pfam Domains  (1, 8)

Asymmetric/Biological Unit
(-)
Clan: Histone (49)

(-) Gene Ontology  (9, 30)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,E   (H32_XENLA | P84233)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0000786    nucleosome    A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain B,F   (H4_XENLA | P62799)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
biological process
    GO:0006352    DNA-templated transcription, initiation    Any process involved in the assembly of the RNA polymerase preinitiation complex (PIC) at the core promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. The initiation phase ends just before and does not include promoter clearance, or release, which is the transition between the initiation and elongation phases of transcription.
    GO:0006334    nucleosome assembly    The aggregation, arrangement and bonding together of a nucleosome, the beadlike structural units of eukaryotic chromatin composed of histones and DNA.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000786    nucleosome    A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain C,G   (Q6AZJ8_XENLA | Q6AZJ8)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000786    nucleosome    A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain C,G   (H2A1_XENLA | P06897)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000786    nucleosome    A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain D,H   (H2B11_XENLA | P02281)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000786    nucleosome    A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MML  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PTW  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    RU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3mnn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3mnn
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  H2A1_XENLA | P06897
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H2B11_XENLA | P02281
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H32_XENLA | P84233
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  H4_XENLA | P62799
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  Q6AZJ8_XENLA | Q6AZJ8
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  H2A1_XENLA | P06897
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H2B11_XENLA | P02281
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H32_XENLA | P84233
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  H4_XENLA | P62799
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q6AZJ8_XENLA | Q6AZJ8
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        H2A1_XENLA | P068971aoi 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2fj7 2nzd 3b6f 3b6g 3c1b 3c1c 3kuy 3kwq 3lja 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4j8u 4j8v 4j8w 4j8x 4ld9 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 4zux 5cp6 5dnm 5dnn 5e5a 5f99 5g2e 5hq2 5mlu 5nl0
        H2B11_XENLA | P022811aoi 1f66 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2nzd 3b6f 3b6g 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4j8u 4j8v 4j8w 4j8x 4kgc 4kha 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 4zux 5cp6 5dnm 5dnn 5e5a 5f99 5g2e 5hq2 5nl0 5x0x 5x0y
        H32_XENLA | P842331f66 1kx3 1kx4 1kx5 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2hue 2io5 2nzd 3b6f 3b6g 3c1b 3c1c 3gv6 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4eo5 4j8u 4j8v 4j8w 4j8x 4kgc 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 4zux 5bs7 5bsa 5cp6 5dnm 5dnn 5e5a 5f99 5hq2 5kgf 5mlu 5nl0 5x0x 5x0y
        H4_XENLA | P627991aoi 1kx3 1kx4 1kx5 1m18 1m19 1m1a 1p34 1p3a 1p3b 1p3f 1p3g 1p3i 1p3k 1p3l 1p3m 1p3o 1p3p 1s32 1zbb 1zla 2f8n 2fj7 2hue 2io5 2nzd 3b6f 3b6g 3c1b 3c1c 3kuy 3kwq 3kxb 3lel 3lja 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mvd 3o62 3reh 3rei 3rej 3rek 3rel 3tu4 3ut9 3uta 3utb 4eo5 4j8u 4j8v 4j8w 4j8x 4kgc 4ld9 4r8p 4wu8 4wu9 4xuj 4xzq 4ys3 4z66 4zbj 4zux 5bs7 5bsa 5cp6 5dnm 5dnn 5e5a 5f99 5hq2 5kgf 5mlu 5nl0 5x0x 5x0y
        Q6AZJ8_XENLA | Q6AZJ82nzd 3b6f 3b6g 3kuy 3kwq 3lja 3tu4 3ut9 3uta 3utb 4j8v 4j8w 4j8x 4ld9 4xuj 4xzq 4ys3 4z66 5cp6 5dnm 5dnn 5e5a 5hq2
UniProtKB/TrEMBL
        Q6AZJ8_XENLA | Q6AZJ83kxb 3lel 3lz0 3lz1 3mgp 3mgq 3mgr 3mgs 3mvd 4kgc 4kha 4r8p 5x0x 5x0y

(-) Related Entries Specified in the PDB File

2nzd NCP145 STRUCTURE
