1P3A | PD0414 - JenaLib

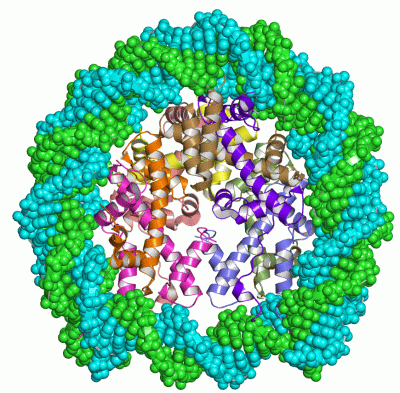

Asym./Biol. Unit - manually (Jmol Viewer)

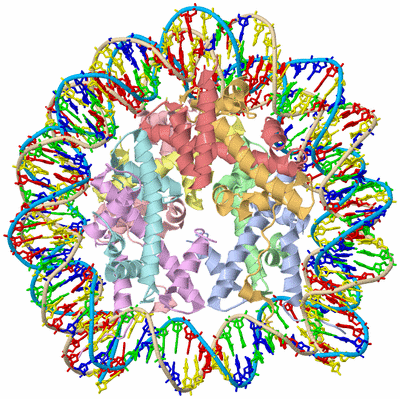

Asym./Biol. Unit (Jmol Viewer)

Title :   CRYSTALLOGRAPHIC STUDIES OF NUCLEOSOME CORE PARTICLES CONTAINING HISTONE 'SIN' MUTANTS

Authors :   U. M. Muthurajan, Y. Bao, L. J. Forsberg, R. S. Edayathumangalam, P. N. Dyer, C. L. White, K. Luger

Date :   17 Apr 03 (Deposition) - 24 Feb 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.00

Chains :   Asym./Biol. Unit : A,B,C,D,E,F,G,H,I,J

Keywords :   Sin Mutants, Nucleosome Core Particle, Chromatin, Protein/Dna Interaction, Structural Protein/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   U. M. Muthurajan, Y. Bao, L. J. Forsberg, R. S. Edayathumangalam, P. N. Dyer, C. L. White, K. Luger
Crystal Structures Of Histone Sin Mutant Nucleosomes Reveal Altered Protein-Dna Interactions
Embo J. V. 23 260 2004
PubMed-ID: 14739929 | Reference-DOI: 10.1038/SJ.EMBOJ.7600046
(for further references see the PDB file header)

Molecule 1 - PALINDROMIC 146BP HUMAN ALPHA-SATELLITE DNA FRAGMENT
	Chains	:	I, J
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PUC
	Expression System Taxid	:	562
	Expression System Variant	:	HB 101
	Expression System Vector Type	:	PLASMID
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606

Molecule 2 - HISTONE H3
	Chains	:	A, E
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Taxid	:	562
	Expression System Variant	:	BL21 DE3 PLYSS
	Expression System Vector Type	:	PLASMID
	Organism Common	:	AFRICAN CLAWED FROG
	Organism Scientific	:	XENOPUS LAEVIS
	Organism Taxid	:	8355

Molecule 3 - HISTONE H4
	Chains	:	B, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Taxid	:	562
	Expression System Variant	:	BL21 DE3 PLYSS
	Expression System Vector Type	:	PLASMID
	Organism Common	:	AFRICAN CLAWED FROG
	Organism Scientific	:	XENOPUS LAEVIS
	Organism Taxid	:	8355

Molecule 4 - HISTONE H2A
	Chains	:	C, G
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Taxid	:	562
	Expression System Variant	:	BL21 DE3 PLYSS
	Expression System Vector Type	:	PLASMID
	Organism Common	:	AFRICAN CLAWED FROG
	Organism Scientific	:	XENOPUS LAEVIS
	Organism Taxid	:	8355

Molecule 5 - HISTONE H2B
	Chains	:	D, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET
	Expression System Taxid	:	562
	Expression System Variant	:	BL21 DE3 PLYSS
	Expression System Vector Type	:	PLASMID
	Organism Common	:	AFRICAN CLAWED FROG
	Organism Scientific	:	XENOPUS LAEVIS
	Organism Taxid	:	8355

		1	2	3	4	5	6	7	8	9	10
Asymmetric/Biological Unit	:	A	B	C	D	E	F	G	H	I	J

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1P3A)

(no "Site" information available for 1P3A)

(no "SS Bond" information available for 1P3A)

(no "Cis Peptide Bond" information available for 1P3A)

(no "SAP(SNP)/Variant" information available for 1P3A)

Asymmetric/Biological Unit (3, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	HISTONE_H2A	PS00046	Histone H2A signature.	H2A1_XENLA	22-28	2	C:821-827 G:1021-1027
2	HISTONE_H3_2	PS00959	Histone H3 signature 2.	H32_XENLA	67-75	2	A:466-474 E:666-674
3	HISTONE_H2B	PS00357	Histone H2B signature.	H2B11_XENLA	93-115	2	D:1289-1311 H:1489-1511

(no "Exon" information available for 1P3A)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:98
 aligned with H32_XENLA | P84233 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:98
                                    48        58        68        78        88        98       108       118       128
           H32_XENLA     39 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA  136
               SCOP domains d1p3aa_ A: Histone H3                                                                              SCOP domains
               CATH domains 1p3aA00 A:438-535 Histone, subunit A                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------HISTONE_H------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                1p3a A  438 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKHVTIMPKDIQLARRIRGERA  535
                                   447       457       467       477       487       497       507       517       527

Chain B from PDB  Type:PROTEIN  Length:79
 aligned with H4_XENLA | P62799 from UniProtKB/Swiss-Prot  Length:103

    Alignment length:79
                                    34        44        54        64        74        84        94
            H4_XENLA     25 DNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG  103
               SCOP domains d1p3ab_ B: Histone H4                                                           SCOP domains
               CATH domains 1p3aB00 B:24-102 Histone, subunit A                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhh..ee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------- Transcript
                1p3a B   24 DNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG  102
                                    33        43        53        63        73        83        93

Chain C from PDB  Type:PROTEIN  Length:107
 aligned with H2A1_XENLA | P06897 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:107
                                    24        34        44        54        64        74        84        94       104       114
          H2A1_XENLA     15 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGGVTIAQGGVLPNIQSVLLPKKT  121
               SCOP domains d1p3ac_ C: Histone H2A                                                                                      SCOP domains
               CATH domains 1p3aC00 C:814-920 Histone, subunit A                                                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhh...hhhhhhhhhhhh....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhhhhh..eee.........hhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------HISTONE--------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                1p3a C  814 AKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKT  920
                                   823       833       843       853       863       873       883       893       903       913

Chain D from PDB  Type:PROTEIN  Length:91
 aligned with H2B11_XENLA | P02281 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:91
                                    45        55        65        75        85        95       105       115       125
         H2B11_XENLA     36 ESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK  126
               SCOP domains d1p3ad_ D: Histone H2B                                                                      SCOP domains
               CATH domains 1p3aD00 D:1232-1322 Histone, subunit A                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------HISTONE_H2B            ----------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------- Transcript
                1p3a D 1232 ESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 1322
                                  1241      1251      1261      1271      1281      1291      1301      1311      1321

Chain E from PDB  Type:PROTEIN  Length:98
 aligned with H32_XENLA | P84233 from UniProtKB/Swiss-Prot  Length:136

    Alignment length:98
                                    48        58        68        78        88        98       108       118       128
           H32_XENLA     39 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA  136
               SCOP domains d1p3ae_ E: Histone H3                                                                              SCOP domains
               CATH domains 1p3aE00 E:638-735 Histone, subunit A                                                               CATH domains
           Pfam domains (1) -------------------Histone-1p3aE01 E:657-731                                                  ---- Pfam domains (1)
           Pfam domains (2) -------------------Histone-1p3aE02 E:657-731                                                  ---- Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------HISTONE_H------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                1p3a E  638 PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKHVTIMPKDIQLARRIRGERA  735
                                   647       657       667       677       687       697       707       717       727

Chain F from PDB  Type:PROTEIN  Length:81
 aligned with H4_XENLA | P62799 from UniProtKB/Swiss-Prot  Length:103

    Alignment length:81
                                    31        41        51        61        71        81        91       101
            H4_XENLA     22 VLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFG  102
               SCOP domains d1p3af_ F: Histone H4                                                             SCOP domains
               CATH domains 1p3aF00 F:221-301 Histone, subunit A                                              CATH domains
           Pfam domains (1) ---Histone-1p3aF01 F:224-293                                             -------- Pfam domains (1)
           Pfam domains (2) ---Histone-1p3aF02 F:224-293                                             -------- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhhhhhhh...ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhh..eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                1p3a F  221 VLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFG  301
                                   230       240       250       260       270       280       290       300

Chain G from PDB  Type:PROTEIN  Length:104
 aligned with H2A1_XENLA | P06897 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    26        36        46        56        66        76        86        96       106       116
          H2A1_XENLA     17 TRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGGVTIAQGGVLPNIQSVLLPKK  120
               SCOP domains d1p3ag_ G: Histone H2A                                                                                   SCOP domains
               CATH domains 1p3aG00 G:1016-1119 Histone, subunit A                                                                   CATH domains
           Pfam domains (1) -Histone-1p3aG01 G:1017-1090                                               ----------------------------- Pfam domains (1)
           Pfam domains (2) -Histone-1p3aG02 G:1017-1090                                               ----------------------------- Pfam domains (2)
         Sec.struct. author hhhhhh....hhhhhhhhhhh.....ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh...ee.........hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----HISTONE-------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                1p3a G 1016 TRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK 1119
                                  1025      1035      1045      1055      1065      1075      1085      1095      1105      1115

Chain H from PDB  Type:PROTEIN  Length:92
 aligned with H2B11_XENLA | P02281 from UniProtKB/Swiss-Prot  Length:126

    Alignment length:92
                                    44        54        64        74        84        94       104       114       124
         H2B11_XENLA     35 KESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK  126
               SCOP domains d1p3ah_ H: Histone H2B                                                                       SCOP domains
               CATH domains 1p3aH00 H:1431-1522 Histone, subunit A                                                       CATH domains
           Pfam domains (1) Histone-1p3aH01 H:1431-1498                                         ------------------------ Pfam domains (1)
           Pfam domains (2) Histone-1p3aH02 H:1431-1498                                         ------------------------ Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------HISTONE_H2B            ----------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                1p3a H 1431 KESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK 1522
                                  1440      1450      1460      1470      1480      1490      1500      1510      1520

Chain I from PDB  Type:DNA  Length:146

                1p3a I    1 ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCGGAATTCCGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT  146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140

Chain J from PDB  Type:DNA  Length:146

                1p3a J  147 ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCGGAATTCCGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT  292
                                   156       166       176       186       196       206       216       226       236       246       256       266       276       286

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Histone, subunit A (62)

Homologous Superfamily: Histone, subunit A (62)

Human (Homo sapiens) (28)

1a	1p3aA00	A:438-535
1b	1p3aG00	G:1016-1119
1c	1p3aC00	C:814-920
1d	1p3aB00	B:24-102
1e	1p3aE00	E:638-735
1f	1p3aH00	H:1431-1522
1g	1p3aD00	D:1232-1322
1h	1p3aF00	F:221-301

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Histone (49)

Family: Histone (46)

Xenopus laevis (African clawed frog) (32)

1a	Histone-1p3aG01	G:1017-1090
1b	Histone-1p3aG02	G:1017-1090
1c	Histone-1p3aH01	H:1431-1498
1d	Histone-1p3aH02	H:1431-1498
1e	Histone-1p3aE01	E:657-731
1f	Histone-1p3aE02	E:657-731
1g	Histone-1p3aF01	F:224-293
1h	Histone-1p3aF02	F:224-293

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,E (H32_XENLA | P84233)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0046982	protein heterodimerization activity	Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
	GO:0005694	chromosome	A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
	GO:0005654	nucleoplasm	That part of the nuclear content other than the chromosomes or the nucleolus.
	GO:0000786	nucleosome	A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain B,F (H4_XENLA | P62799)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0046982	protein heterodimerization activity	Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
biological process
	GO:0006352	DNA-templated transcription, initiation	Any process involved in the assembly of the RNA polymerase preinitiation complex (PIC) at the core promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. The initiation phase ends just before and does not include promoter clearance, or release, which is the transition between the initiation and elongation phases of transcription.
	GO:0006334	nucleosome assembly	The aggregation, arrangement and bonding together of a nucleosome, the beadlike structural units of eukaryotic chromatin composed of histones and DNA.
cellular component
	GO:0005694	chromosome	A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
	GO:0000786	nucleosome	A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain C,G (H2A1_XENLA | P06897)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0046982	protein heterodimerization activity	Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
	GO:0005694	chromosome	A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
	GO:0000786	nucleosome	A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain D,H (H2B11_XENLA | P02281)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0046982	protein heterodimerization activity	Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
cellular component
	GO:0005694	chromosome	A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
	GO:0000786	nucleosome	A complex comprised of DNA wound around a multisubunit core and associated proteins, which forms the primary packing unit of DNA into higher order structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1p3a)

	Sites
(no "Sites" information available for 1p3a)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1p3a)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1p3a
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	H2A1_XENLA \| P06897
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	H2B11_XENLA \| P02281
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	H32_XENLA \| P84233
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	H4_XENLA \| P62799
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	H2A1_XENLA \| P06897
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	H2B11_XENLA \| P02281
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	H32_XENLA \| P84233
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	H4_XENLA \| P62799
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1aoi	X-RAY STRUCTURE OF THE NUCLEOSOME CORE PARTICLE AT 2.8 A
1f66	2.6 A CRYSTAL STRUCTURE OF A NUCLEOSOME CORE PARTICLE CONTAINING THE VARIANT HISTONE H2A.Z
1id3	CRYSTAL STRUCTURE OF THE YEAST NUCLEOSOME CORE PARTICLE REVEALS FUNDAMENTAL DIFFERENCES IN INTER-NUCLEOSOME INTERACTIONS
1kx3	X-RAY STRUCTURE OF THE NUCLEOSOME CORE PARTICLE, NCP146, AT 2.0 A RESOLUTION
1kx4	X-RAY STRUCTURE OF THE NUCLEOSOME CORE PARTICLE, NCP146B, AT 2.6 A RESOLUTION
1kx5	X-RAY STRUCTURE OF THE NUCLEOSOME CORE PARTICLE, NCP147, AT 1.9 A RESOLUTION
1p34
1p3b
1p3f
1p3g
1p3i
1p3k
1p3l
1p3m
1p3o
1p3p

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (3, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (4, 8)

CATH Domains (1, 8)

Pfam Domains (1, 8)

Gene Ontology (9, 25)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
