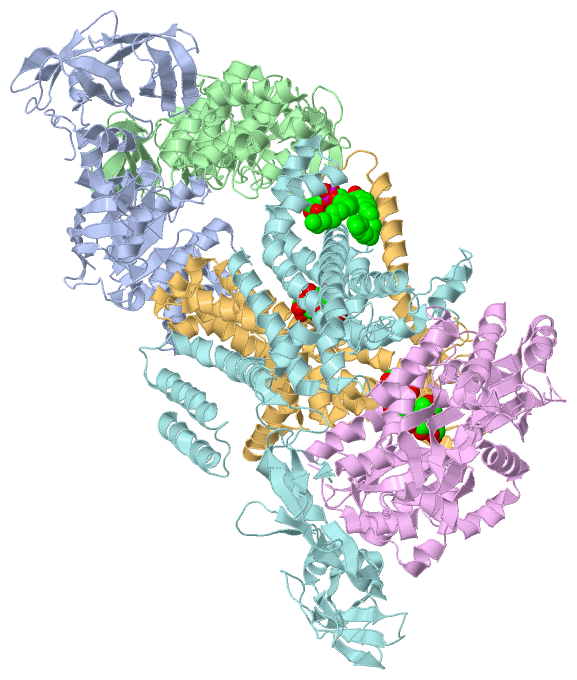

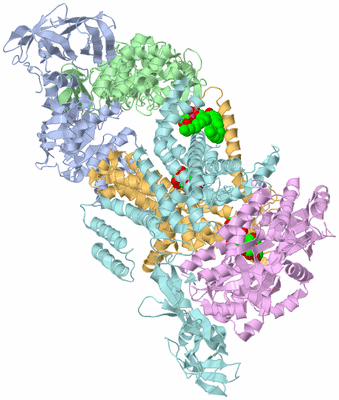

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

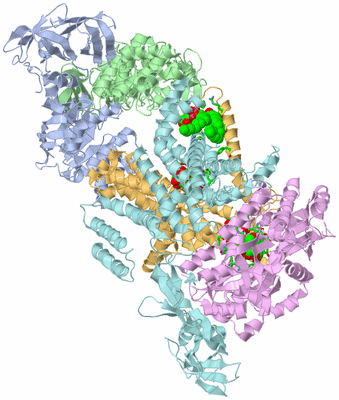

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MALTOSE-BINDING PROTEIN/MALTOSE TRANSPORTER COMPLEX IN AN PRE-TRANSLOCATION CONFORMATION BOUND TO MALTOHEPTAOSE

Authors :  M. L. Oldham, S. Chen, J. Chen
Date :  01 May 13  (Deposition) - 23 Oct 13  (Release) - 27 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym./Biol. Unit :  A,B,E,F,G
Keywords :  Abc Transporter, Atpase Maltodextrin Transporter, Atp Binding Maltodextrin Binding, Inner Membrane, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. L. Oldham, S. Chen, J. Chen
Structural Basis For Substrate Specificity In The Escherichia Coli Maltose Transport System.
Proc. Natl. Acad. Sci. Usa V. 110 18132 2013
PubMed-ID: 24145421  |  Reference-DOI: 10.1073/PNAS.1311407110

(-) Compounds

Molecule 1 - MALTOSE-BINDING PERIPLASMIC PROTEIN
    Chains: E
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: B4034, JW3994, MALE
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12
    Synonym: MBP, MMBP, MALTODEXTRIN-BINDING PROTEIN

Molecule 2 - MALTOSE TRANSPORT SYSTEM PERMEASE PROTEIN MALF
    Chains: F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 27-396
    Gene: B4033, JW3993, MALF
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12

Molecule 3 - BINDING-PROTEIN-DEPENDENT TRANSPORT SYSTEMS INNER MEMBRANE COMPONENT
    Chains: G
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: ECDH1ME8569_3888, ECDH1_3964, MALG
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 536056
    Strain: K12, DH1
    Synonym: PART OF MALTOSE PERMEASE, INNER MEMBRANE COMPONENT

Molecule 4 - BINDING-PROTEIN-DEPENDENT TRANSPORT SYSTEMS INNER MEMBRANE COMPONENT
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: ECDH1ME8569_3888, ECDH1_3964, MALG, MALK, O3O_01670
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 536056
    Strain: K12, DH1
    Synonym: PART OF MALTOSE PERMEASE, INNER MEMBRANE COMPONENT

 Structural Features

(-) Chains, Units

  12345
Asymmetric/Biological Unit : ABEFG

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric/Biological Unit (2, 8)
No.NameCountTypeFull Name
1GLC7Ligand/IonALPHA-D-GLUCOSE
2PGV1Ligand/Ion(1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA F:297 , CYS F:304 , LEU F:305 , TRP F:308 , PRO F:410 , ASN F:413 , ARG G:12 , THR G:16 , PHE G:23BINDING SITE FOR RESIDUE PGV F 604
2AC2SOFTWAREASN E:12 , ASP E:14 , LYS E:15 , GLU E:44 , GLU E:45 , TRP E:62 , ALA E:63 , ASP E:65 , ARG E:66 , GLU E:111 , GLU E:153 , PRO E:154 , TYR E:155 , PHE E:156 , TRP E:340 , TYR E:341 , ARG E:344 , HOH E:609 , GLN G:256BINDING SITE FOR CHAIN E OF POLYSACCHARIDE RESIDUES 501 TO 504
3AC3SOFTWARETYR F:325 , SER F:329 , ASN F:376 , LEU F:379 , GLY F:380 , TYR F:383 , SER F:433 , PHE F:436 , ASN F:437 , ASN F:440BINDING SITE FOR CHAIN F OF POLYSACCHARIDE RESIDUES 601 TO 603

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4KHZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4KHZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KHZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KHZ)

(-) Exons   (0, 0)

(no "Exon" information available for 4KHZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:370

               SCOP domains d4khza1 A:2-235 Maltose transport protein MalK, N-terminal domain                                                                                                                                                                         d4khza2 A:236-371 Maltose transport protein MalK, C-terminal domain                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeee..eeeeeeeeee.....eeeee.....hhhhhhhhhhh.....eeeeee........hhhhh.eeee..........hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhhhhhh..eeeee.hhhhhhhhh.eeeeee..eeeeeehhhhhhhh..hhhhhhhh.....eeeeeeeeee....eeee.......eeee...........eeeeee.....ee......eeeeeeeeeee...eeeeeee.......eeeeee.........eeeee.hhhhheee................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4khz A   2 ASVQLQNVTKAWGEVVVSKDINLDIHEGEFVVFVGPSGCGKSTLLRMIAGLETITSGDLFIGEKRMNDTPPAERGVGMVFQSYALYPHLSVAENMSFGLKLAGAKKEVINQRVNQVAEVLQLAHLLDRKPKALSGGQRQRVAIGRTLVAEPSVFLLDEPLSNLDAALRVQMRIEISRLHKRLGRTMIYVTHDQVEAMTLADKIVVLDAGRVAQVGKPLELYHYPADRFVAGFIGSPKMNFLPVKVTATAIDQVQVELPMPNRQQVWLPVESRDVQVGANMSLGIRPEHLLPSDIADVILEGEVQVVEQLGNETQIHIQIPSIRQNLVYRQNDVVLVEEGATFAIGLPPERCHLFREDGTACRRLHKEPGV 371
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371


Chain B from PDB  Type:PROTEIN  Length:368

               SCOP domains d4khzb1 B:2-235 Maltose transport protein MalK, N-terminal domain                                                                                                                                                                         d4khzb2 B:236-371 Maltose transport protein MalK, C-terminal domain                                                                    SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee....eeeeeeeee.....eeeee.....hhhhhhhhhhh.....eeeee.........hhhhh.eeee..........hhhhhhhhhhhh...hhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhhhhhh.eeeeee.hhhhhhhhh.eeeee....eeeeehhhhhhhh..hhhhhhhh.....eeeeeeeeee....eeee.......eeee.........eeeeee.....ee......eeeeeeeeeee...eeeeeee.......eeeeee.........eeeee.hhhhheee.....ee......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4khz B   2 ASVQLQNVTKAWGEVVVSKDINLDIHEGEFVVFVGPSGCGKSTLLRMIAGLETITSGDLFIGEKRMNDTPPAERGVGMVFQSYALYPHLSVAENMSFGLKLAGAKKEVINQRVNQVAEVLQLAHLLDRKPKALSGGQRQRVAIGRTLVAEPSVFLLDEPLSNLDAALRVQMRIEISRLHKRLGRTMIYVTHDQVEAMTLADKIVVLDAGRVAQVGKPLELYHYPADRFVAGFIGSPKMNFLPVKVTATAIDQVQVELPMPNRQQVWLPVESRDVGANMSLGIRPEHLLPSDIADVILEGEVQVVEQLGNETQIHIQIPSIRQNLVYRQNDVVLVEEGATFAIGLPPERCHLFREDGTACRRLHKEPGV 371
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271  ||   283       293       303       313       323       333       343       353       363
                                                                                                                                                                                                                                                                                                          274|
                                                                                                                                                                                                                                                                                                           277


Chain E from PDB  Type:PROTEIN  Length:370

               SCOP domains d4khze_ E: D-maltodextrin-binding protein, MBP                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee.....hhhhhhhhhhhhhhhhh..eeee...hhhhhhhhhhhh.....eeeee..hhhhhhhh..ee....hhhhhh..hhhhhhhh........eeeeee..eeeee............hhhhhhhhhhhhh.eee.....hhhhhhhhhhhh..eeeeee..eeeeeeee..hhhhhhhhhhhhhhhhh.......hhhhhhhhhhh..eeeeeehhhhhhhhhhhh..eeee............eeeeeeeeee....hhhhhhhhhhhh..hhhhhhhhhhhh...ee.hhhhhhhhh.hhhhhhhhhhhhhhee....hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4khz E   1 KIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTRITK 370
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370


Chain F from PDB  Type:PROTEIN  Length:483

               SCOP domains d4khzf1 F:18-260 Maltose transport system permease protein MalF                                                                                                                                                                               d4khzf2 F:261-505 Maltose transport system permease protein MalF                                                                                                                                                                                      SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhheeeeeeeee.eeeee..eeeeeee......eee..............eee.........hhhhhhhhhhhhhhh.ee.....eeee....eeeeeee.eee.....eee.....eeeee....eee......ee..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4khz F  18 SVLGLLGLLVGYLVVLMYAQGEYLFAITTLILSSAGLYIFANRKAYAWRYVYPGMAGMGLFVLFPLVCTIAIAFTNYSSTNQLTFERAQEVLLDRSWQAGKTYNFGLYPAGDEWQLALSDGETGKNYLSDAFKFGGEQKLQLKETTAQPEGERANLRVITQNRQALSDITAILPDGNKVMMSSLRQFSGTQPLYTLDGDGTLTNNQSGVKYRPNNQIGFYQSITADEKLSPGYTVTTGWKNFTRVFTDEGIQKPFLAIFVWTVVFSLITVFLTVAVGMVLACLVQWEALRGKAVYRVLLILPYAVPSFISILIFKGLFNQSFGEINMMLSALFGVKPAWFSDPTTARTMLIIVNTWLGYPYMMILCMGLLKAIPDDLYEASAMDGAGPFQNFFKITLPLLIKPLTPLMIASFAFNFNNFVLIQLLTNGGPDRLGTTTPAGYTDLLVNYTYRIAFEGGGGQDFGLAAAIATLIFLLVGALAIVN 505
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237    || 252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502
                                                                                                                                                                                                                                                          242|
                                                                                                                                                                                                                                                           248


Chain G from PDB  Type:PROTEIN  Length:282

               SCOP domains d4khzg_ G: Maltose transport system permease protein MalG                                                                                                                                                                                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh................hhhhhhhhh..ee.....ee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh...ee..eehhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4khz G   2 AMVQPKSQKARLFITHLLLLLFIAAIMFPLLMVVAISLRQGNFATGSLIPEQISWDHWKLALGFSVEQADGRITPPPFPVLLWLWNSVKVAGISAIGIVALSTTCAYAFARMRFPGKATLLKGMLIFQMFPAVLSLVALYALFDRLGEYIPFIGLNTHGGVIFAYLGGIALHVWTIKGYFETIDSSLEEAAALDGATPWQAFRLVLLPLSVPILAVVFILSFIAAITEVPVASLLLRDVNSYTLAVGMQQYLNPQNYLWGDFAAAAVMSALPITIVFLLAQR 283
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (6, 8)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Class: Membrane and cell surface proteins and peptides (2046)
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KHZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KHZ)

(-) Gene Ontology  (21, 30)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GLC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PGV  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4khz)
