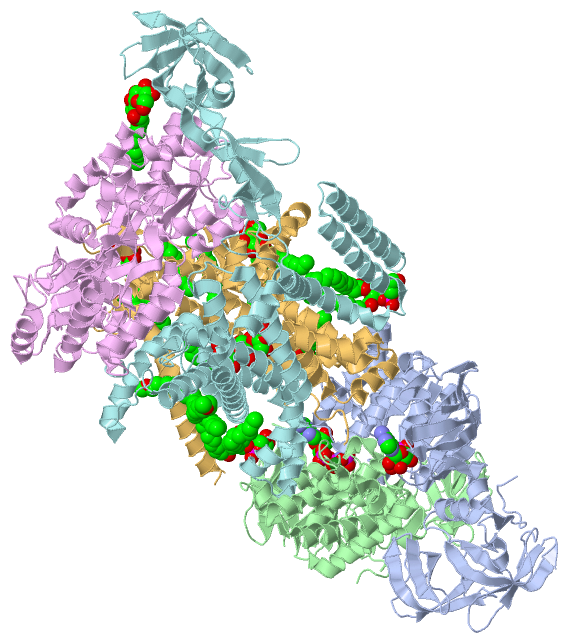

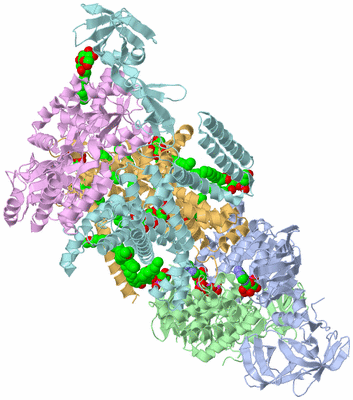

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

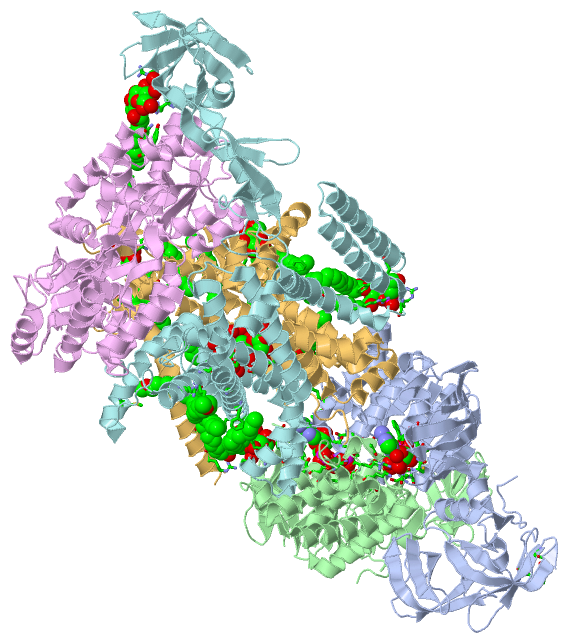

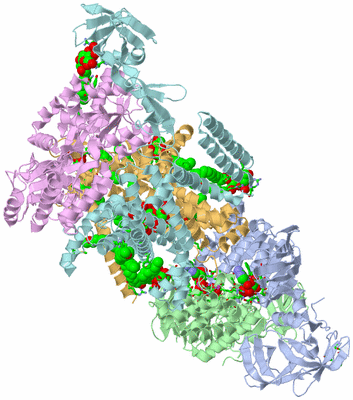

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MALTOSE-BINDING PROTEIN/MALTOSE TRANSPORTER COMPLEX IN AN OUTWARD-FACING CONFORMATION BOUND TO MALTOHEXAOSE

Authors :  M. L. Oldham, S. Chen, J. Chen
Date :  01 May 13  (Deposition) - 23 Oct 13  (Release) - 27 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.38
Chains :  Asym./Biol. Unit :  A,B,E,F,G
Keywords :  Abc Transporter, Atpase Maltodextrin Transporter, Atp Binding Maltodextrin Binding, Inner Membrane, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. L. Oldham, S. Chen, J. Chen
Structural Basis For Substrate Specificity In The Escherichia Coli Maltose Transport System.
Proc. Natl. Acad. Sci. Usa V. 110 18132 2013
PubMed-ID: 24145421  |  Reference-DOI: 10.1073/PNAS.1311407110

(-) Compounds

Molecule 1 - ABC TRANSPORTER RELATED PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: ECDH1ME8569_3891, ECDH1_3960, MALK
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 536056
    Strain: K12
    Synonym: MALTOSE ABC-TYPE TRANSPORT SYSTEMS, ATP-BINDING COMPONENT

Molecule 2 - MALTOSE-BINDING PERIPLASMIC PROTEIN
    Chains: E
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Fragment: UNP RESIDUES 27-396
    Gene: B4034, JW3994, MALE
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12
    Synonym: MBP, MMBP, MALTODEXTRIN-BINDING PROTEIN

Molecule 3 - MALTOSE TRANSPORT SYSTEM PERMEASE PROTEIN MALF
    Chains: F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: B4033, JW3993, MALF
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12

Molecule 4 - BINDING-PROTEIN-DEPENDENT TRANSPORT SYSTEMS INNER MEMBRANE COMPONENT
    Chains: G
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AD126
    Expression System Taxid: 562
    Gene: ECDH1ME8569_3888, ECDH1_3964, MALG
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 536056
    Strain: K12
    Synonym: PART OF MALTOSE PERMEASE, INNER MEMBRANE COMPONENT

 Structural Features

(-) Chains, Units

  12345
Asymmetric/Biological Unit : ABEFG

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 21)

Asymmetric/Biological Unit (5, 21)
No.NameCountTypeFull Name
1ANP2Ligand/IonPHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
2GLC4Ligand/IonALPHA-D-GLUCOSE
3MG2Ligand/IonMAGNESIUM ION
4PGV2Ligand/Ion(1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE
5UMQ11Ligand/IonUNDECYL-MALTOSIDE

(-) Sites  (15, 15)

Asymmetric Unit (15, 15)
No.NameEvidenceResiduesDescription
01AC1SOFTWARESER A:43 , GLN A:82 , ANP A:1502 , HOH A:1707 , HOH A:1709BINDING SITE FOR RESIDUE MG A 1501
02AC2SOFTWARETRP A:13 , VAL A:18 , SER A:38 , GLY A:39 , CYS A:40 , GLY A:41 , LYS A:42 , SER A:43 , THR A:44 , GLN A:82 , GLU A:159 , HIS A:192 , MG A:1501 , HOH A:1702 , HOH A:1707 , HOH A:1709 , ARG B:129 , ALA B:133 , SER B:135 , GLY B:136 , GLY B:137 , GLN B:138 , HOH B:543BINDING SITE FOR RESIDUE ANP A 1502
03AC3SOFTWARESER B:43 , GLN B:82 , ANP B:402 , HOH B:503 , HOH B:504BINDING SITE FOR RESIDUE MG B 401
04AC4SOFTWAREARG A:129 , ALA A:133 , SER A:135 , GLY A:136 , GLY A:137 , GLN A:138 , HOH A:1701 , TRP B:13 , VAL B:18 , SER B:38 , GLY B:39 , CYS B:40 , GLY B:41 , LYS B:42 , SER B:43 , THR B:44 , GLN B:82 , GLU B:159 , HIS B:192 , MG B:401 , HOH B:503 , HOH B:504 , HOH B:536BINDING SITE FOR RESIDUE ANP B 402
05AC5SOFTWAREGLN A:253 , TRP A:267 , ASN E:282 , TYR E:283 , ALA E:292 , HOH E:508 , HOH E:523 , ARG F:170 , ARG F:202 , HOH F:728BINDING SITE FOR RESIDUE UMQ E 401
06AC6SOFTWAREPHE F:293 , CYS F:304 , LEU F:305 , TRP F:308 , TYR F:400 , PRO F:410 , ASN F:413 , PHE F:414 , HOH F:732 , HOH F:733 , ARG G:12 , THR G:16BINDING SITE FOR RESIDUE PGV F 605
07AC7SOFTWARELYS F:16 , PHE F:57 , ARG F:60 , ARG F:66 , PRO F:70BINDING SITE FOR RESIDUE PGV F 606
08AC8SOFTWAREMET F:350BINDING SITE FOR RESIDUE UMQ F 608
09AC9SOFTWAREARG F:369 , ILE F:373BINDING SITE FOR RESIDUE UMQ F 609
10BC1SOFTWARETRP G:59 , LYS G:60 , SER G:66BINDING SITE FOR RESIDUE UMQ G 301
11BC2SOFTWARELEU G:63 , GLY G:64BINDING SITE FOR RESIDUE UMQ G 302
12BC3SOFTWARELEU G:82BINDING SITE FOR RESIDUE UMQ G 303
13BC4SOFTWARELYS G:90 , HIS G:159 , PHE G:164BINDING SITE FOR RESIDUE UMQ G 305
14BC5SOFTWARELYS A:130 , VAL G:212 , ARG G:283 , TRP G:284BINDING SITE FOR RESIDUE UMQ G 307
15BC6SOFTWARETHR F:291 , TYR F:325 , ASN F:376 , GLY F:380 , TYR F:383 , ALA F:432 , SER F:433 , ASN F:437 , ASN F:440 , HOH F:738 , HOH F:776 , HOH F:777 , HOH F:778 , HOH F:780 , HOH F:782 , HOH F:783 , HOH F:787BINDING SITE FOR CHAIN F OF POLYSACCHARIDE RESIDUES 601 TO 604

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4KI0)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Ser A:236 -Pro A:237
2Ser B:236 -Pro B:237
3Ser F:252 -Pro F:253
4Gly F:451 -Pro F:452

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KI0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KI0)

(-) Exons   (0, 0)

(no "Exon" information available for 4KI0)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:371

               SCOP domains d4ki0a1 A:2-235 Maltose transport protein MalK, N-terminal domain                                                                                                                                                                         d4ki0a2 A:236-372 Maltose transport protein MalK, C-terminal domain                                                                       SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeee..eeeeeeeeeee....eeeee.....hhhhhhhhhh......eeeeee..ee....hhhhh.eeee..........hhhhhhhhhhhhh..hhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhhhhhh.eeeee..hhhhhhhhh.eeeeee..eeeeeehhhhhhhh..hhhhhhhh.....eeeeeeeeeee..eeeee.......eeee...........eeeeee.....ee......eeeeeeeeeee...eeeeeee.......eeeeee.........eeeee.hhhhheee.....ee.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ki0 A   2 ASVQLQNVTKAWGEVVVSKDINLDIHEGEFVVFVGPSGCGKSTLLRMIAGLETITSGDLFIGEKRMNDTPPAERGVGMVFQSYALYPHLSVAENMSFGLKLAGAKKEVINQRVNQVAEVLQLAHLLDRKPKALSGGQRQRVAIGRTLVAEPSVFLLDEPLSNLDAALRVQMRIEISRLHKRLGRTMIYVTHDQVEAMTLADKIVVLDAGRVAQVGKPLELYHYPADRFVAGFIGSPKMNFLPVKVTATAIDQVQVELPMPNRQQVWLPVESRDVQVGANMSLGIRPEHLLPSDIADVILEGEVQVVEQLGNETQIHIQIPSIRQNLVYRQNDVVLVEEGATFAIGLPPERCHLFREDGTACRRLHKEPGVA 372
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371


Chain B from PDB  Type:PROTEIN  Length:371

               SCOP domains d4ki0b1 B:2-235 Maltose transport protein MalK, N-terminal domain                                                                                                                                                                         d4ki0b2 B:236-372 Maltose transport protein MalK, C-terminal domain                                                                       SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee....eeeeeeeeee....eeeee.....hhhhhhhhhhh.....eeeeee........hhhhh.eeee..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhhhhhh.eeeee..hhhhhhhhh.eeeeee..eeeeeehhhhhhhh..hhhhhhhh.....eeeeeeeeeee..eeeee.......eeee...........eeeeee.....ee......eeeeeeeeeee...eeeeeee.......eeeeee.........eeeee.hhhhheee................. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ki0 B   2 ASVQLQNVTKAWGEVVVSKDINLDIHEGEFVVFVGPSGCGKSTLLRMIAGLETITSGDLFIGEKRMNDTPPAERGVGMVFQSYALYPHLSVAENMSFGLKLAGAKKEVINQRVNQVAEVLQLAHLLDRKPKALSGGQRQRVAIGRTLVAEPSVFLLDEPLSNLDAALRVQMRIEISRLHKRLGRTMIYVTHDQVEAMTLADKIVVLDAGRVAQVGKPLELYHYPADRFVAGFIGSPKMNFLPVKVTATAIDQVQVELPMPNRQQVWLPVESRDVQVGANMSLGIRPEHLLPSDIADVILEGEVQVVEQLGNETQIHIQIPSIRQNLVYRQNDVVLVEEGATFAIGLPPERCHLFREDGTACRRLHKEPGVA 372
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371


Chain E from PDB  Type:PROTEIN  Length:370

               SCOP domains d4ki0e_ E: D-maltodextrin-binding protein, MBP                                                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee.....hhhhhhhhhhhhhhhhh..eeee...hhhhhhhhhhh......eeeeehhhhhhhhhhh.......hhhhhhh.hhhhhhh.ee..ee..eeeeee..eeeee............hhhhhhhhhhh...eee.....hhhhhhhhhhh...eeeee....eeeeeee..hhhhhhhhhhhhhhhhh.......hhhhhhhhhhh..eeeeeehhhhhhhhhhhh..eeee............eeeeeeeee.....hhhhhhhhhhhh..hhhhhhhhhhhh...ee.hhhhhhhhh.hhhhhhhhhhhhhhee.....hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ki0 E   1 KIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTRITK 370
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370


Chain F from PDB  Type:PROTEIN  Length:490

               SCOP domains d4ki0f1 F:12-260 Maltose transport system permease protein MalF                                                                                                                                                                                      d4ki0f2 F:261-505 Maltose transport system permease protein MalF                                                                                                                                                                                      SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhheeeeeeeeeeeeeee..eeeeeee......eee.........eeee.eee.........hhhhhhhhhhhhhheeee.....eeee....eeeeeee.eee.....eee.....eeeee....eeee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................hhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ki0 F  12 SDALKWSVLGLLGLLVGYLVVLMYAQGEYLFAITTLILSSAGLYIFANRKAYAWRYVYPGMAGMGLFVLFPLVCTIAIAFTNYSSTNQLTFERAQEVLLDRSWQAGKTYNFGLYPAGDEWQLALSDGETGKNYLSDAFKFGGEQKLQLKETTAQPEGERANLRVITQNRQALSDITAILPDGNKVMMSSLRQFSGTQPLYTLDGDGTLTNNQSGVKYRPNNQIGFYQSINWGDEKLSPGYTVTTGWKNFTRVFTDEGIQKPFLAIFVWTVVFSLITVFLTVAVGMVLACLVQWEALRGKAVYRVLLILPYAVPSFISILIFKGLFNQSFGEINMMLSALFGVKPAWFSDPTTARTMLIIVNTWLGYPYMMILCMGLLKAIPDDLYEASAMDGAGPFQNFFKITLPLLIKPLTPLMIASFAFNFNNFVLIQLLTNGGPDRLGTTTPAGYTDLLVNYTYRIAFEGGGGQDFGLAAAIATLIFLLVGALAIVN 505
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505
                                                                                                                                                                                                                                                              240|
                                                                                                                                                                                                                                                               245


Chain G from PDB  Type:PROTEIN  Length:289

               SCOP domains d4ki0g_ G: Maltose transport system permease protein MalG                                                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...............hhhhhhhhh..ee.....ee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh..hhhhhhhhhhhhh...hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ki0 G   8 SQKARLFITHLLLLLFIAAIMFPLLMVVAISLRQGNFATGSLIPEQISWDHWKLALGFSVEQADGRITPPPFPVLLWLWNSVKVAGISAIGIVALSTTCAYAFARMRFPGKATLLKGMLIFQMFPAVLSLVALYALFDRLGEYIPFIGLNTHGGVIFAYLGGIALHVWTIKGYFETIDSSLEEAAALDGATPWQAFRLVLLPLSVPILAVVFILSFIAAITEVPVASLLLRDVNSYTLAVGMQQYLNPQNYLWGDFAAAAVMSALPITIVFLLAQRWLVNGLTAGGVKG 296
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (6, 8)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Class: Membrane and cell surface proteins and peptides (2046)
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KI0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KI0)

(-) Gene Ontology  (30, 63)

Asymmetric/Biological Unit(hide GO term definitions)
