(-) Description

Title :  DISCOVERY AND OPTIMIZATION OF C-2 METHYL IMIDAZO-PYRROLOPYRIDINES AS POTENT AND ORALLY BIOAVAILABLE JAK1 INHIBITORS WITH SELECTIVITY OVER JAK2

Authors :  J. M. Murray
Date :  03 May 12  (Deposition) - 04 Jul 12  (Release) - 25 Jul 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Jak2, Kinase Domain, Jh1 Domain, Transferase-Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Zak, R. Mendonca, M. Balazs, K. Barrett, P. Bergeron, W. S. Blair, C. Chang, G. Deshmukh, J. Devoss, P. S. Dragovich, C. Eigenbrot, N. Ghilardi, P. Gibbons, S. Gradl, C. Hamman, E. J. Hanan, E. Harstad, P. R. Hewitt, C. A. Hurley, T. Jin, A. Johnson, T. Johnson, J. R. Kenny, M. F. Koehler, P. Bir Kohli, J. J. Kulagowski, S. Labadie, J. Liao, M. Liimatta, Z. Lin, P. J. Lupardus, R. J. Maxey, J. M. Murray, R. Pulk, M. Rodriguez, S. Savage, S. Shia, M. Steffek, S. Ubhayakar, M. Ultsch, A. Van Abbema, S. I. Ward, L. Xiao, Y. Xiao
Discovery And Optimization Of C-2 Methyl Imidazopyrrolopyridines As Potent And Orally Bioavailable Jak1 Inhibitors With Selectivity Over Jak2.
J. Med. Chem. V. 55 6176 2012
PubMed-ID: 22698084  |  Reference-DOI: 10.1021/JM300628C

(-) Compounds

Molecule 1 - TYROSINE-PROTEIN KINASE JAK2
    Chains: A
    EC Number: 2.7.10.2
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Common: FALL ARMYWORM
    Expression System Taxid: 7108
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 833-1132
    Gene: JAK2 KINASE DOMAIN
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: JANUS KINASE 2, JAK-2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric/Biological Unit (2, 3)
No.NameCountTypeFull Name
1JAK1Ligand/Ion2-METHYL-1-(PIPERIDIN-4-YL)-1,6-DIHYDROIMIDAZO[4,5-D]PYRROLO[2,3-B]PYRIDINE
2PTR2Mod. Amino AcidO-PHOSPHOTYROSINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:856 , VAL A:863 , ALA A:880 , MET A:929 , GLU A:930 , TYR A:931 , LEU A:932 , GLY A:935 , LEU A:983 , HOH A:1323BINDING SITE FOR RESIDUE JAK A 1201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4F09)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Gly A:858 -Asn A:859

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4F09)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4F09)

(-) Exons   (0, 0)

(no "Exon" information available for 4F09)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:290

               SCOP domains d4f09a_ A: automated matches                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhh.eeeeeeee.....eeeeeee........eeeeeee....hhhhhhhhhhhhhhhhh........eeeeeehhhhheeeeeee.....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eeeee..eeee......ee.......ee.......hhhhhhhhhhhhheehhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh..........hhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4f09 A  843 QFEERHLKFLQQLGKGNFGSVEMCRYDPLQDNTGEVVAVKKLQHSTEEHLRDFEREIEILKSLQHDNIVKYKGVCYSAGRRNLKLIMEYLPYGSLRDYLQKHKERIDHIKLLQYTSQICKGMEYLGTKRYIHRDLATRNILVENENRVKIGDFGLTKVLPQDKEyyKVKEPGESPIFWYAPESLTESKFSVASDVWSFGVVLYELFTYIEKSKSPPAEFMRMIGNDKQGQMIVFHLIELLKNNGRLPRPDGCPDEIYMIMTECWNNNVNQRPSFRDLALRVDQIRDNMAG 1132
                                   852       862       872       882       892       902       912       922       932       942       952       962       972       982       992      1002    ||1012      1022      1032      1042      1052      1062      1072      1082      1092      1102      1112      1122      1132
                                                                                                                                                                                             1007-PTR
                                                                                                                                                                                              1008-PTR
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4F09)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4F09)

(-) Gene Ontology  (114, 114)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    JAK  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PTR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:858 - Asn A:859   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4f09
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  JAK2_HUMAN | O60674
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.10.2
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP

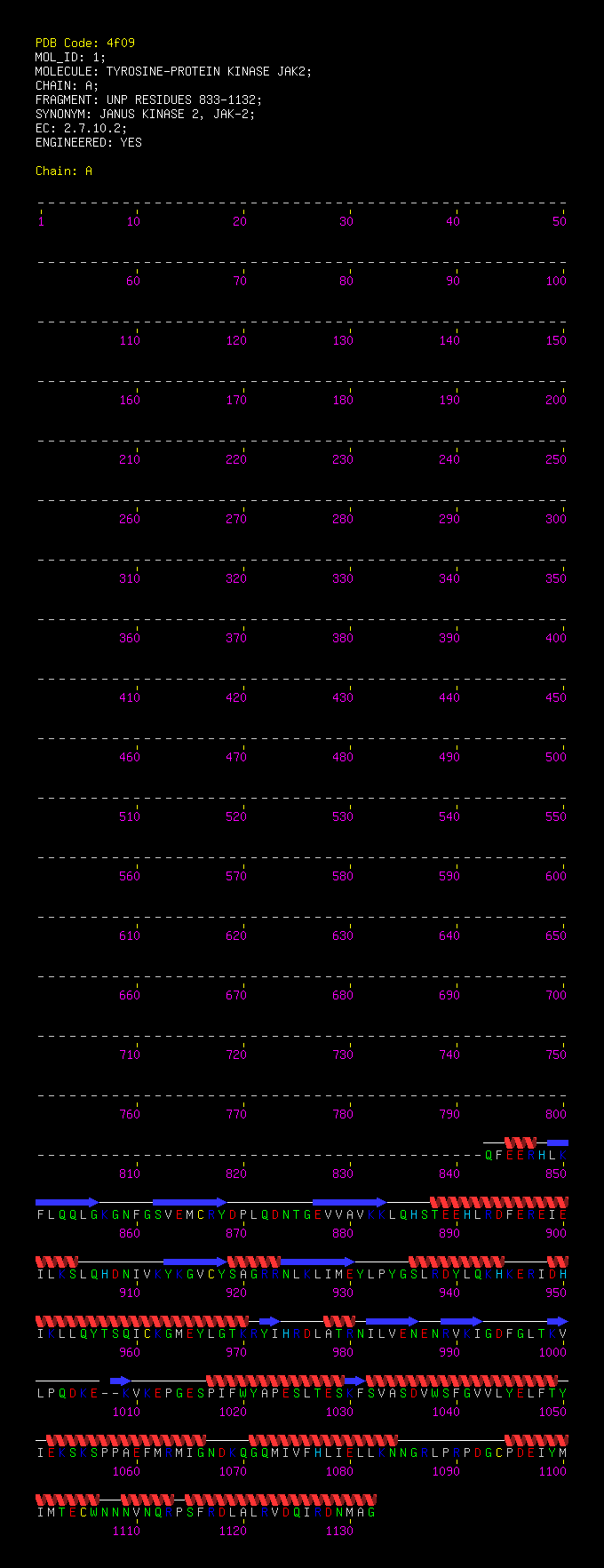

    Sequence and Secondary Structure: PDBCartoon
