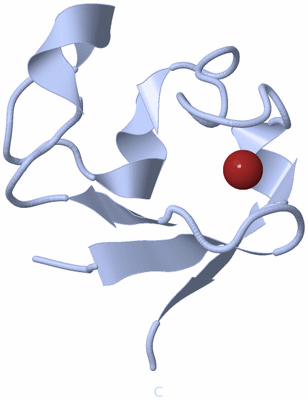

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

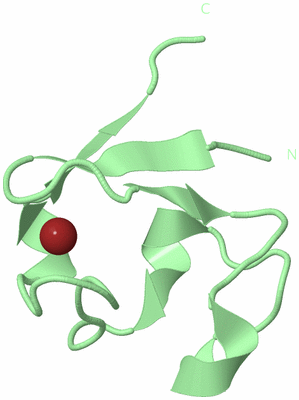

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Biological Unit 4 (Jmol Viewer)

Biological Unit 5 (Jmol Viewer)

Biological Unit 6 (Jmol Viewer)

Biological Unit 7 (Jmol Viewer)

Biological Unit 8 (Jmol Viewer)

Title :   NMR AND X-RAY ANALYSIS OF STRUCTURAL ADDITIVITY IN METAL BINDING SITE-SWAPPED HYBRIDS OF RUBREDOXIN

Authors :   L. Wang, D. M. Lemaster, G. Hernandez, H. Li

Date :   10 May 07 (Deposition) - 18 Dec 07 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.04

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)
Biol. Unit 5: E  (1x)
Biol. Unit 6: F  (1x)
Biol. Unit 7: G  (1x)
Biol. Unit 8: H  (1x)

Keywords :   Rubredoxin, Chimeric, Pyrococcus Furiosus, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. M. Lemaster, J. S. Anderson, L. Wang, Y. Guo, H. Li, G. Hernandez
Nmr And X-Ray Analysis Of Structural Additivity In Metal Binding Site-Swapped Hybrids Of Rubredoxin
Bmc Struct. Biol. V. 7 81 2007
PubMed-ID: 18053245 | Reference-DOI: 10.1186/1472-6807-7-81
(for further references see the PDB file header)

Molecule 1 - RUBREDOXIN
	Chains	:	A, B, C, D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	RUB
	Mutation	:	YES
	Organism Scientific	:	PYROCOCCUS FURIOSUS
	Organism Taxid	:	2261
	Synonym	:	RD

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D
Biological Unit 5 (1x)	:					E
Biological Unit 6 (1x)	:						F
Biological Unit 7 (1x)	:							G
Biological Unit 8 (1x)	:								H

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 8)

No.	Name	Count	Type	Full Name
1	ZN	8	Ligand/Ion	ZINC ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 4 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 5 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 6 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 7 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 8 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:6 , CYS A:9 , CYS A:39 , CYS A:42	BINDING SITE FOR RESIDUE ZN A 901
2	AC2	SOFTWARE	CYS B:106 , CYS B:109 , CYS B:139 , CYS B:142	BINDING SITE FOR RESIDUE ZN B 902
3	AC3	SOFTWARE	CYS C:206 , CYS C:209 , CYS C:239 , CYS C:242	BINDING SITE FOR RESIDUE ZN C 903
4	AC4	SOFTWARE	CYS D:306 , CYS D:309 , CYS D:339 , CYS D:342	BINDING SITE FOR RESIDUE ZN D 904
5	AC5	SOFTWARE	CYS E:406 , CYS E:409 , CYS E:439 , CYS E:442	BINDING SITE FOR RESIDUE ZN E 905
6	AC6	SOFTWARE	CYS F:506 , CYS F:509 , CYS F:539 , CYS F:542	BINDING SITE FOR RESIDUE ZN F 906
7	AC7	SOFTWARE	CYS G:606 , CYS G:609 , CYS G:639 , CYS G:642	BINDING SITE FOR RESIDUE ZN G 907
8	AC8	SOFTWARE	CYS H:706 , CYS H:709 , CYS H:739 , CYS H:742	BINDING SITE FOR RESIDUE ZN H 908

(no "SS Bond" information available for 2PVX)

(no "Cis Peptide Bond" information available for 2PVX)

(no "SAP(SNP)/Variant" information available for 2PVX)

Asymmetric Unit (2, 16)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	8	A:1-52 B:101-152 C:201-252 D:301-352 E:401-452 F:501-552 G:601-652 H:701-752
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	8	A:33-43 B:133-143 C:233-243 D:333-343 E:433-443 F:533-543 G:633-643 H:733-743

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	A:1-52 - - - - - - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	A:33-43 - - - - - - -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- B:101-152 - - - - - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- B:133-143 - - - - - -

Biological Unit 3 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - C:201-252 - - - - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - C:233-243 - - - - -

Biological Unit 4 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - - D:301-352 - - - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - - D:333-343 - - - -

Biological Unit 5 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - - - E:401-452 - - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - - - E:433-443 - - -

Biological Unit 6 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - - - - F:501-552 - -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - - - - F:533-543 - -

Biological Unit 7 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - - - - - G:601-652 -
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - - - - - G:633-643 -

Biological Unit 8 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RUBREDOXIN_LIKE	PS50903	Rubredoxin-like domain profile.	RUBR_PYRFU	1-52	1	- - - - - - - H:701-752
2	RUBREDOXIN	PS00202	Rubredoxin signature.	RUBR_PYRFU	33-43	1	- - - - - - - H:733-743

(no "Exon" information available for 2PVX)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:53
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:53
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLE  53
               SCOP domains d2pvxa_ A: Rubredoxin                                 SCOP domains
               CATH domains 2pvxA00 A:1-53  [code=2.20.28.10, no name defined]    CATH domains
               Pfam domains ----------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------- SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: A:1-52 UniProt: 1-52          - PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ---------- PROSITE (2)
                 Transcript ----------------------------------------------------- Transcript
                 2pvx A   1 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLE  53
                                    10        20        30        40        50

Chain B from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxb_ B: Rubredoxin                                  SCOP domains
               CATH domains 2pvxB00 B:101-154  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: B:101-152 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx B 101 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 154
                                   110       120       130       140       150

Chain C from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxc_ C: Rubredoxin                                  SCOP domains
               CATH domains 2pvxC00 C:201-254  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: C:201-252 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx C 201 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 254
                                   210       220       230       240       250

Chain D from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxd_ D: Rubredoxin                                  SCOP domains
               CATH domains 2pvxD00 D:301-354  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: D:301-352 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx D 301 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 354
                                   310       320       330       340       350

Chain E from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxe_ E: Rubredoxin                                  SCOP domains
               CATH domains 2pvxE00 E:401-454  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: E:401-452 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx E 401 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 454
                                   410       420       430       440       450

Chain F from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxf_ F: Rubredoxin                                  SCOP domains
               CATH domains 2pvxF00 F:501-554  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: F:501-552 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx F 501 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 554
                                   510       520       530       540       550

Chain G from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxg_ G: Rubredoxin                                  SCOP domains
               CATH domains 2pvxG00 G:601-654  [code=2.20.28.10, no name defined]  CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: G:601-652 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx G 601 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 654
                                   610       620       630       640       650

Chain H from PDB  Type:PROTEIN  Length:54
 aligned with RUBR_PYRFU | P24297 from UniProtKB/Swiss-Prot  Length:54

    Alignment length:54
                                    10        20        30        40        50
           RUBR_PYRFU     1 MAKWVCKICGYIYDEDAGDPDNGISPGTKFEELPDDWVCPICGAPKSEFEKLED  54
               SCOP domains d2pvxh_ H: Rubredoxin                                  SCOP domains
               CATH domains 2pvxH00 H:701-754  [code=2.20.28.10, no name defined]  CATH domains
           Pfam domains (1) --Rubredoxin-2pvxH01 H:703-749                   ----- Pfam domains (1)
           Pfam domains (2) --Rubredoxin-2pvxH02 H:703-749                   ----- Pfam domains (2)
           Pfam domains (3) --Rubredoxin-2pvxH03 H:703-749                   ----- Pfam domains (3)
           Pfam domains (4) --Rubredoxin-2pvxH04 H:703-749                   ----- Pfam domains (4)
           Pfam domains (5) --Rubredoxin-2pvxH05 H:703-749                   ----- Pfam domains (5)
           Pfam domains (6) --Rubredoxin-2pvxH06 H:703-749                   ----- Pfam domains (6)
           Pfam domains (7) --Rubredoxin-2pvxH07 H:703-749                   ----- Pfam domains (7)
           Pfam domains (8) --Rubredoxin-2pvxH08 H:703-749                   ----- Pfam domains (8)
         Sec.struct. author ..eeee.....eee....hhhhh.....hhhhh...........hhh.eeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) RUBREDOXIN_LIKE  PDB: H:701-752 UniProt: 1-52       -- PROSITE (1)
                PROSITE (2) --------------------------------RUBREDOXIN ----------- PROSITE (2)
                 Transcript ------------------------------------------------------ Transcript
                 2pvx H 701 MKKWVCTVCGYIYDEDAGDPDNGISPGTKFEELPDDWVCPLCGVGKDQFEKLED 754
                                   710       720       730       740       750

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Small proteins (3458)

Fold: Rubredoxin-like (572)

Superfamily: Rubredoxin-like (127)

Family: Rubredoxin (85)

Protein domain: Rubredoxin (65)

Pyrococcus furiosus [TaxId: 2261] (25)

1a	d2pvxa_	A:
1b	d2pvxh_	H:
1c	d2pvxb_	B:
1d	d2pvxc_	C:
1e	d2pvxd_	D:
1f	d2pvxe_	E:
1g	d2pvxf_	F:
1h	d2pvxg_	G:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Single Sheet (341)

Topology: Rubrerythrin, domain 2 (145)

Homologous Superfamily: [code=2.20.28.10, no name defined] (77)

Pyrococcus furiosus. Organism_taxid: 2261. (7)

1a	2pvxA00	A:1-53
1b	2pvxF00	F:501-554
1c	2pvxG00	G:601-654
1d	2pvxH00	H:701-754
1e	2pvxB00	B:101-154
1f	2pvxC00	C:201-254
1g	2pvxD00	D:301-354
1h	2pvxE00	E:401-454

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Rubredoxin (46)

Family: Rubredoxin (29)

Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1) (8)

1a	Rubredoxin-2pvxH01	H:703-749
1b	Rubredoxin-2pvxH02	H:703-749
1c	Rubredoxin-2pvxH03	H:703-749
1d	Rubredoxin-2pvxH04	H:703-749
1e	Rubredoxin-2pvxH05	H:703-749
1f	Rubredoxin-2pvxH06	H:703-749
1g	Rubredoxin-2pvxH07	H:703-749
1h	Rubredoxin-2pvxH08	H:703-749

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (RUBR_PYRFU | P24297)

molecular function
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pvx)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]
		Biological Unit 7	[ Jena3D ]
		Biological Unit 8	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format \| Biol. Unit 7 PNG format \| Biol. Unit 8 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2pvx
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RUBR_PYRFU \| P24297
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RUBR_PYRFU \| P24297
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

2pve	CHIMERIC RUBREDOXIN FROM CLOSTRIDIUM PASTEURIANUM

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 8)

Sites (8, 8)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 16)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (1, 8)

Pfam Domains (1, 8)

Gene Ontology (4, 4)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
