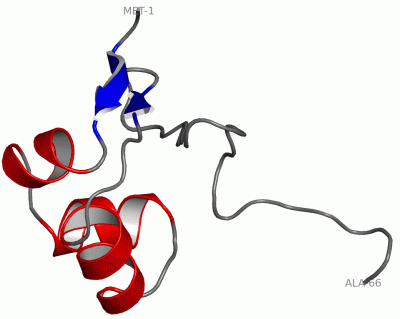

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

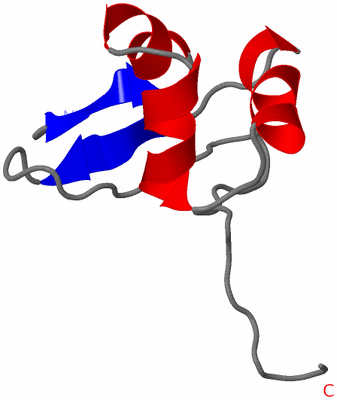

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

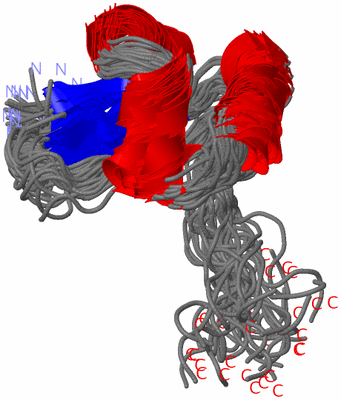

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  CRO REPRESSOR INSERTION MUTANT K56-[DGEVK], NMR, 32 STRUCTURES

Authors :  M. C. Mossing
Date :  20 Jan 98  (Deposition) - 27 May 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (32x)
Keywords :  Gene Regulating Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. C. Mossing
Solution Structure And Dynamics Of A Designed Monomeric Variant Of The Lambda Cro Repressor.
Protein Sci. V. 7 983 1998
PubMed-ID: 9568905
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CRO REPRESSOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: CRO MUTANT K56-[DGEVK]
    Expression System Plasmid: PUCRO.MDG
    Expression System Strain: X90
    Expression System Taxid: 562
    Gene: CRO MUTANT K56-[DGEVK]
    Mutation: YES
    Organism Scientific: ENTEROBACTERIA PHAGE LAMBDA
    Organism Taxid: 10710
    Other Details: RESULTS IN A 71-RESIDUE STABLE MONOMER MUTANT

 Structural Features

(-) Chains, Units


NMR Structure (32x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2ORC)

(-) Sites  (0, 0)

(no "Site" information available for 2ORC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ORC)

(-) Cis Peptide Bonds  (1, 32)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32Phe A:58 -Pro A:59

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ORC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ORC)

(-) Exons   (0, 0)

(no "Exon" information available for 2ORC)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:71
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:71
                                                                                  56    57
                                    10        20        30        40        50     |   - |      65
           RCRO_LAMBD     1 MEQRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVK-----PFPSNKKTTA  66
               SCOP domains d2orca_ A: cro lambda repressor                                         SCOP domains
               CATH domains 2orcA00 A:1-66 CRO Repressor                                            CATH domains
               Pfam domains Cro-2orcA01 A:1-60                                               ------ Pfam domains
         Sec.struct. author ..eeee.hhhhhh..hhhhhhhh...hhhhhhhhh.....eeee........................... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------- Transcript
                 2orc A   1 MEQRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKDGEVKPFPSNKKTTA  66
                                    10        20        30        40        50      |56D|       65
                                                                                  56A||||
                                                                                   56B|||
                                                                                    56C||
                                                                                     56D|
                                                                                      56E
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HTH (544)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (RCRO_LAMBD | P03040)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2orc)

  Sites
(no "Sites" information available for 2orc)

  Cis Peptide Bonds
    Phe A:58 - Pro A:59   [ RasMol ]
