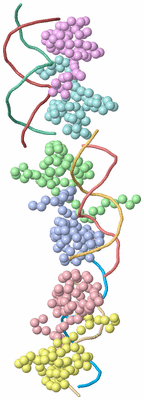

Asymmetric Unit (Jmol Viewer)

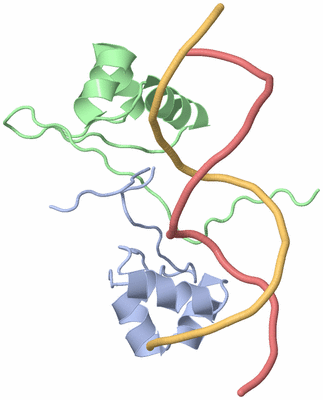

Biological Unit 1 (Jmol Viewer)

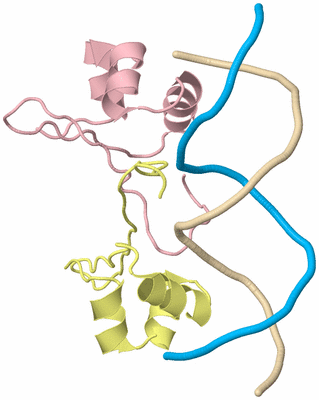

Biological Unit 2 (Jmol Viewer)

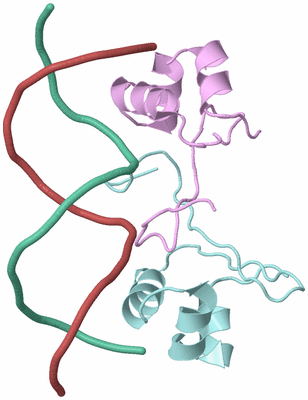

Biological Unit 3 (Jmol Viewer)

Title :   PROTEIN-DNA CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURE OF A LAMBDA CRO-OPERATOR COMPLEX

Authors :   R. G. Brennan, S. L. Roderick, Y. Takeda, B. W. Matthews

Date :   15 Jan 92 (Deposition) - 15 Jan 92 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.90

Chains :   Asym. Unit : A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1: A,B,G,H  (1x)
Biol. Unit 2: C,D,I,J  (1x)
Biol. Unit 3: E,F,K,L  (1x)

Keywords :   Protein-Dna Complex, Double Helix, Transcription/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. G. Brennan, S. L. Roderick, Y. Takeda, B. W. Matthews
Protein-Dna Conformational Changes In The Crystal Structure Of A Lambda Cro-Operator Complex.
Proc. Natl. Acad. Sci. Usa V. 87 8165 1990
PubMed-ID: 2146682 | Reference-DOI: 10.1073/PNAS.87.20.8165
(for further references see the PDB file header)

*Molecule 1 - DNA (5'- D(TPAPTPCPAPCPCPGPCPGPGPGPTPGPAPTPA)-3')**
	Chains	:	G, H, I, J, K, L
	Engineered	:	YES
	Synthetic	:	YES

Molecule 2 - PROTEIN (LAMBDA CRO)
	Chains	:	A, B, C, D, E, F
	Organism Scientific	:	ENTEROBACTERIA PHAGE LAMBDA
	Organism Taxid	:	10710
	Synonym	:	REGULATORY PROTEIN CRO

		1	2	3	4	5	6	7	8	9	10	11	12
Asymmetric Unit	:	A	B	C	D	E	F	G	H	I	J	K	L
Biological Unit 1 (1x)	:	A	B					G	H
Biological Unit 2 (1x)	:			C	D					I	J
Biological Unit 3 (1x)	:					E	F					K	L

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 4CRO)

(no "Site" information available for 4CRO)

(no "SS Bond" information available for 4CRO)

(no "Cis Peptide Bond" information available for 4CRO)

(no "SAP(SNP)/Variant" information available for 4CRO)

(no "PROSITE Motif" information available for 4CRO)

(no "Exon" information available for 4CRO)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4croa_ A: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro A  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain B from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4crob_ B: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro B  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain C from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4croc_ C: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro C  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain D from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4crod_ D: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro D  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain E from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4croe_ E: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro E  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain F from PDB  Type:PROTEIN  Length:64
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:64
                                    12        22        32        42        52        62
            RCRO_LAMBD    3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
               SCOP domains d4crof_ F: cro lambda repressor                                  SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  4cro F  3 QRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSNKKTTA 66
                                    12        22        32        42        52        62

Chain G from PDB  Type:DNA  Length:16

                  4cro G  2 ATCACCGCGGGTGATA 17
                                    11

Chain H from PDB  Type:DNA  Length:16

                  4cro H  2 ATCACCGCGGGTGATA 17
                                    11

Chain I from PDB  Type:DNA  Length:16

                  4cro I  2 ATCACCGCGGGTGATA 17
                                    11

Chain J from PDB  Type:DNA  Length:16

                  4cro J  2 ATCACCGCGGGTGATA 17
                                    11

Chain K from PDB  Type:DNA  Length:16

                  4cro K  2 ATCACCGCGGGTGATA 17
                                    11

Chain L from PDB  Type:DNA  Length:16

                  4cro L  2 ATCACCGCGGGTGATA 17
                                    11

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: lambda repressor-like DNA-binding domains (180)

Superfamily: lambda repressor-like DNA-binding domains (180)

Family: Phage repressors (36)

Protein domain: cro lambda repressor (12)

Bacteriophage lambda [TaxId: 10710] (12)

1a	d4croa_	A:
1b	d4crob_	B:
1c	d4croc_	C:
1d	d4crod_	D:
1e	d4croe_	E:
1f	d4crof_	F:

(no "CATH Domain" information available for 4CRO)

(no "Pfam Domain" information available for 4CRO)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F (RCRO_LAMBD | P03040)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4cro)

	Sites
(no "Sites" information available for 4cro)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4cro)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4cro
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RCRO_LAMBD \| P03040
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RCRO_LAMBD \| P03040
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RCRO_LAMBD \| P03040	:	1cop 1d1l 1d1m 1orc 2a63 2ecs 2orc 2ovg 3orc 5cro 6cro

(no "Related Entries Specified in the PDB File" available for 4CRO)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (3, 3)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
