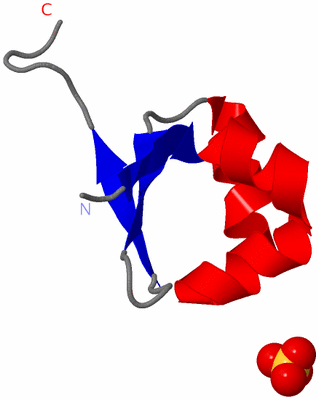

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

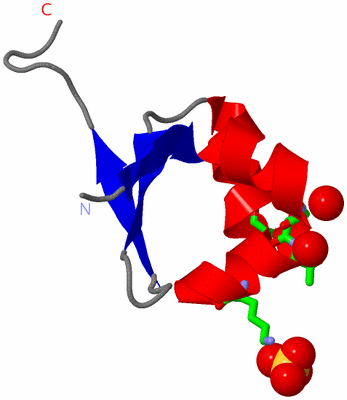

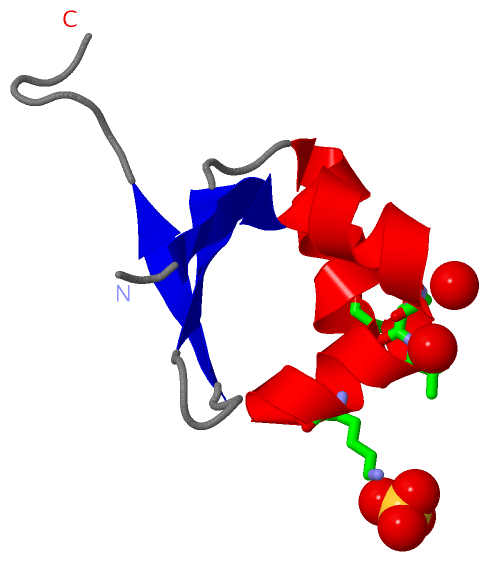

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

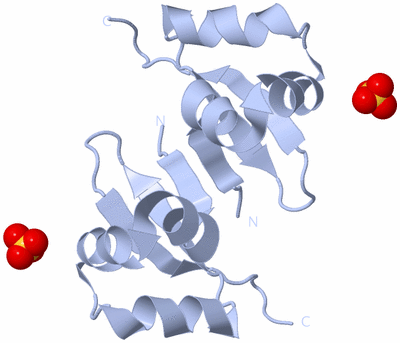

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

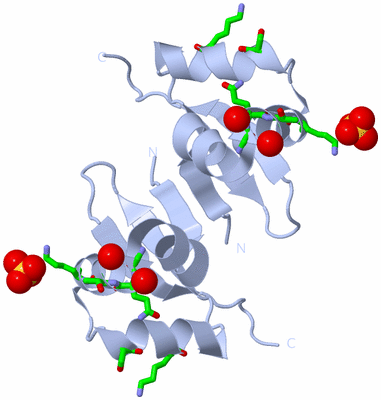

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

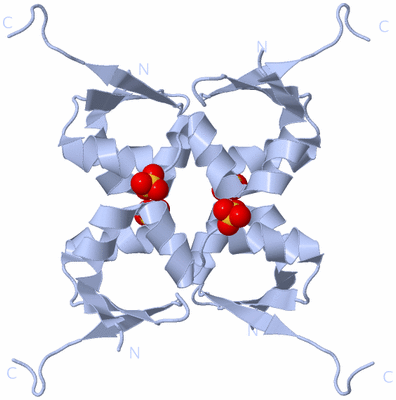

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

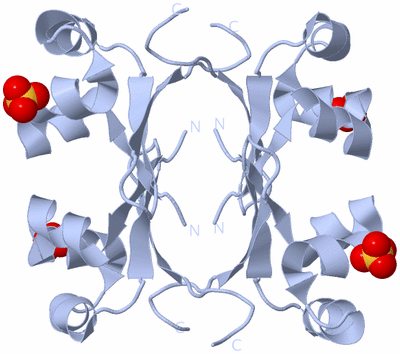

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CRO-F58W MUTANT

Authors :  P. B. Rupert, A. K. Mollah, M. C. Mossing, B. W. Matthews
Date :  17 Sep 99  (Deposition) - 06 Oct 99  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  A  (4x)
Biol. Unit 3:  A  (4x)
Keywords :  Helix-Turn-Helix, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  P. B. Rupert, A. K. Mollah, M. C. Mossing, B. W. Matthews
The Structural Basis For Enhanced Stability And Reduced Dna Binding Seen In Engineered Second-Generation Cro Monomers And Dimers.
J. Mol. Biol. V. 296 1079 2000
PubMed-ID: 10686105  |  Reference-DOI: 10.1006/JMBI.1999.3498

(-) Compounds

Molecule 1 - LAMBDA CRO REPRESSOR
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentLAMBDA CRO REPRESSOR
    MutationYES
    Organism ScientificENTEROBACTERIA PHAGE LAMBDA
    Organism Taxid10710

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A
Biological Unit 2 (4x)A
Biological Unit 3 (4x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 3 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:15 , GLN A:16 , THR A:17 , LYS A:21 , SER A:28 , LYS A:32 , HOH A:104 , HOH A:108BINDING SITE FOR RESIDUE SO4 A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1D1L)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Trp A:58 -Pro A:59

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1D1L)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1D1L)

(-) Exons   (0, 0)

(no "Exon" information available for 1D1L)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:61
 aligned with RCRO_LAMBD | P03040 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:61
                                    10        20        30        40        50        60
            RCRO_LAMBD    1 MEQRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPFPSN 61
               SCOP domains d1d1la_ A: cro lambda repressor                               SCOP domains
               CATH domains 1d1lA00 A:1-61 CRO Repressor                                  CATH domains
               Pfam domains ------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeehhhhhhhhhhhhhhhhhh..hhhhhhhhhh...eeeee.....eeeee....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------- Transcript
                  1d1l A  1 MEQRITLKDYAMRFGQTKTAKDLGVYQSAINKAIHAGRKIFLTINADGSVYAEEVKPWPSN 61
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1D1L)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A   (RCRO_LAMBD | P03040)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Trp A:58 - Pro A:59   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1d1l
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RCRO_LAMBD | P03040
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  RCRO_LAMBD | P03040
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RCRO_LAMBD | P030401cop 1d1m 1orc 2a63 2ecs 2orc 2ovg 3orc 4cro 5cro 6cro

(-) Related Entries Specified in the PDB File

1d1m CRYSTAL STRUCTURE OF CRO K56-[DGEVK]-F58W MUTANT
