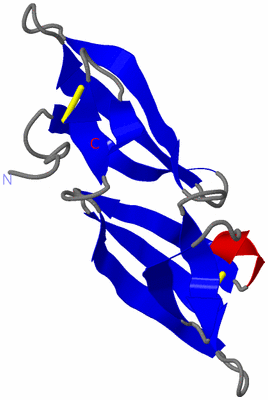

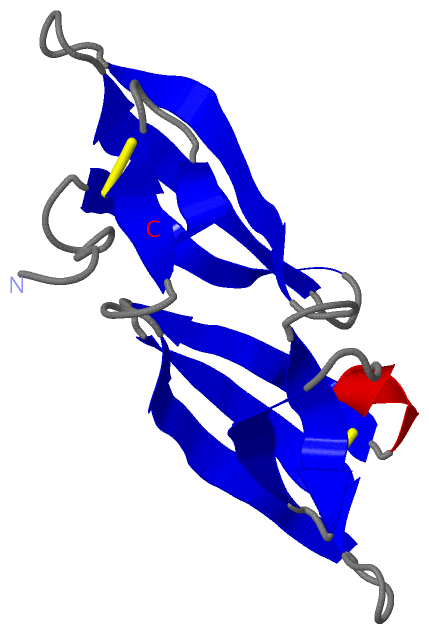

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

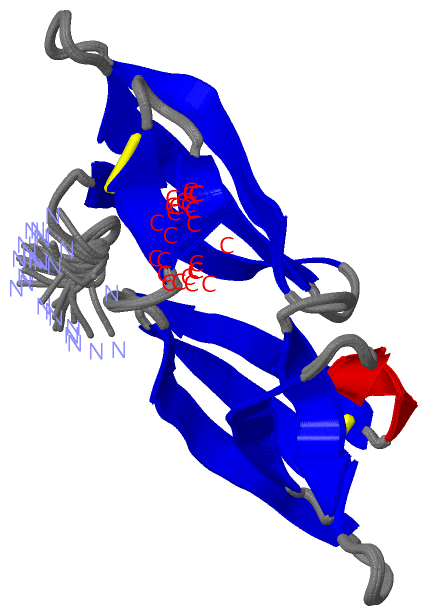

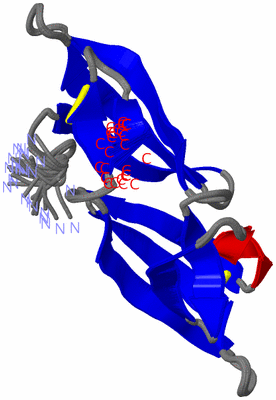

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF A CIRCULAR-PERMUTED VARIANT OF THE POTENT HIV-INACTIVATING PROTEIN CYANOVIRIN-N

Authors :  L. G. Barrientos, A. M. Gronenborn
Date :  10 Oct 02  (Deposition) - 18 Dec 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (26x)
Keywords :  Virus/Viral Protein Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. G. Barrientos, J. M. Louis, D. M. Ratner, P. H. Seeberger, A. M. Gronenborn
Solution Structure Of A Circular-Permuted Variant Of The Potent Hiv-Inactivating Protein Cyanovirin-N: Structural Basis For Protein Stability And Oligosaccharide Interaction
J. Mol. Biol. V. 325 211 2003
PubMed-ID: 12473463  |  Reference-DOI: 10.1016/S0022-2836(02)01205-6
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYANOVIRIN-N
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: NOSTOC ELLIPSOSPORUM
    Organism Taxid: 45916
    Other Details: CIRCULAR-PERMUTED VARIANT
    Synonym: CPCV-N

 Structural Features

(-) Chains, Units


NMR Structure (26x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1N02)

(-) Sites  (0, 0)

(no "Site" information available for 1N02)

(-) SS Bonds  (2, 2)

NMR Structure
No.Residues
1A:8 -A:23
2A:59 -A:73

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1N02)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1N02)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1N02)

(-) Exons   (0, 0)

(no "Exon" information available for 1N02)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102

               SCOP domains d1n02a_ A: Cyanovirin-N                                                                                SCOP domains
               CATH domains 1n02A00 A:-1-101 HIV-inactivating Protein,Cyanovirin-n;                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........eeeeeee...eeeeeee.....eeeeeee....eeee..eeee...hhhh.eeeeeee..eeeeeee.....eeeeeee....eee....eee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1n02 A  -1 GLGKFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKWQPSNFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKYE 101
                            ||       9        19        29        39        49        59        69        79        89        99
                            ||
                           -1|
                             1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1N02)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1n02)

  Sites
(no "Sites" information available for 1n02)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1n02)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1n02
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CVN_NOSEL | P81180: 1iiy 1j4v 1l5b 1l5e 1lom 2ezm 2ezn 2pys 2rdk 2rp3 2z21 3czz 3ezm 3gxy 3gxz 3lhc 3s3y 3s3z 4j4c 4j4d 4j4e 4j4f 4j4g

(-) Related Entries Specified in the PDB File

4927 CHEMICAL SHIFTS FOR THE CONSTRAINTS TABLES AND FOR TALOS CALCULATIONS
2ezm SOLUTION STRUCTURE OF WILD-TYPE CYANOVIRIN-N (NMR, RESTRAINED REGULARIZED MEAN STRUCTURE)
