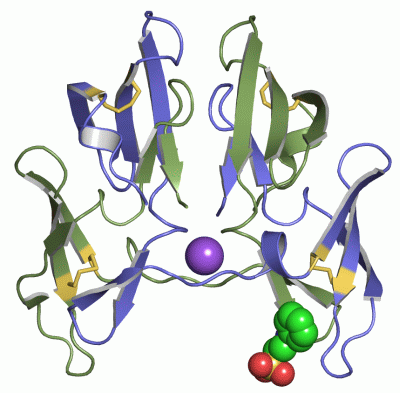

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

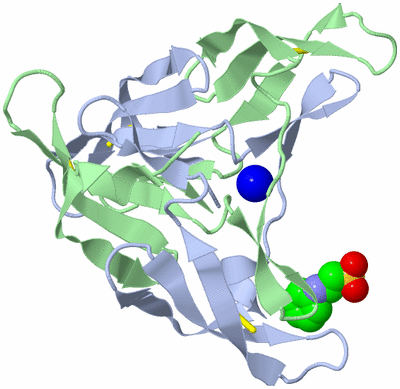

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

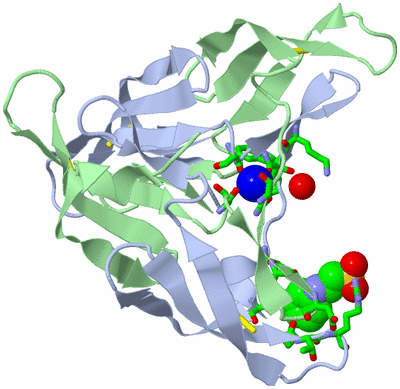

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DOMAIN-SWAPPED CYANOVIRIN-N DIMER

Authors :  L. G. Barrientos, J. M. Louis, I. Botos, T. Mori, Z. Han, B. R. O'Keefe, M. R. Boyd, A. Wlodawer, A. M. Gronenborn
Date :  06 Mar 02  (Deposition) - 22 May 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Cyanovirin-N, Hiv-Inactivating, Domain-Swapping, Gp120, Antiviral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. G. Barrientos, J. M. Louis, I. Botos, T. Mori, Z. Han, B. R. O'Keefe, M. R. Boyd, A. Wlodawer, A. M. Gronenborn
The Domain-Swapped Dimer Of Cyanovirin-N Is In A Metastable Folded State: Reconciliation Of X-Ray And Nmr Structures.
Structure V. 10 673 2002
PubMed-ID: 12015150  |  Reference-DOI: 10.1016/S0969-2126(02)00758-X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYANOVIRIN-N
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: NOSTOC ELLIPSOSPORUM
    Organism Taxid: 45916
    Synonym: CV-N

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1NA1Ligand/IonSODIUM ION
2NHE1Ligand/Ion2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:38 , GLN A:50 , HOH A:307 , HOH A:311 , SER B:38 , GLN B:50BINDING SITE FOR RESIDUE NA A 302
2AC2SOFTWARELYS A:48 , TRP A:49 , ASN A:53 , THR A:57 , LYS A:74 , THR A:75 , ARG A:76 , HOH A:339 , ASN B:42 , ASP B:44BINDING SITE FOR RESIDUE NHE A 301

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:8 -A:22
2A:58 -A:73
3B:8 -B:22
4B:58 -B:73

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1L5B)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1L5B)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1L5B)

(-) Exons   (0, 0)

(no "Exon" information available for 1L5B)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with CVN_NOSEL | P81180 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
            CVN_NOSEL     1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKWQPSNFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKYE 101
               SCOP domains d1l5ba_ A: Cyanovirin-N                                                                               SCOP domains
               CATH domains 1l5bA00 A:1-101 HIV-inactivating Protein,Cyanovirin-n;                                                CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhh.eeeeeee..eeeeeee.....eeeeeee....eeee..eeee...hhhhheeeeeee...eeeeeee.....eeeeeee....eee....eee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 1l5b A   1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKWQPSNFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKYE 101
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:101
 aligned with CVN_NOSEL | P81180 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
            CVN_NOSEL     1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKWQPSNFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKYE 101
               SCOP domains d1l5bb_ B: Cyanovirin-N                                                                               SCOP domains
               CATH domains 1l5bB00 B:1-101 HIV-inactivating Protein,Cyanovirin-n;                                                CATH domains
           Pfam domains (1) --CVNH-1l5bB01 B:3-100                                                                              - Pfam domains (1)
           Pfam domains (2) --CVNH-1l5bB02 B:3-100                                                                              - Pfam domains (2)
         Sec.struct. author ..hhhh.eeeeeee..eeeeeee.....eeeeeee....eeee..eeee........eeeeeee...eeeeeee.....ee..eee....eee....eee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 1l5b B   1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKWQPSNFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKYE 101
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: CVNH] (11)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CVN_NOSEL | P81180)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
biological process
    GO:0050688    regulation of defense response to virus    Any process that modulates the frequency, rate or extent of the antiviral response of a cell or organism.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NHE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1l5b)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

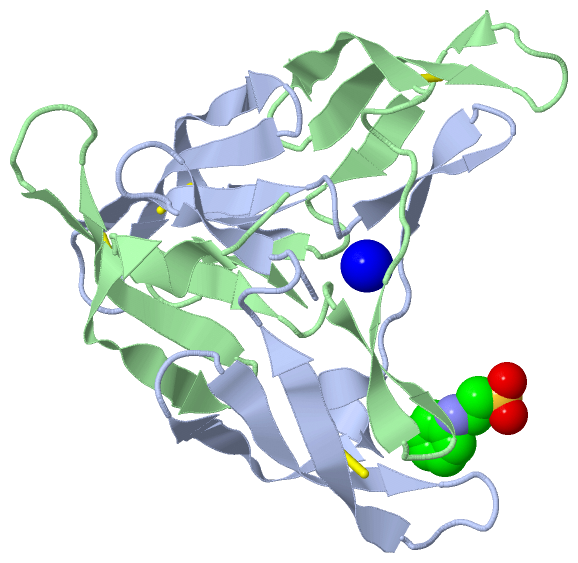

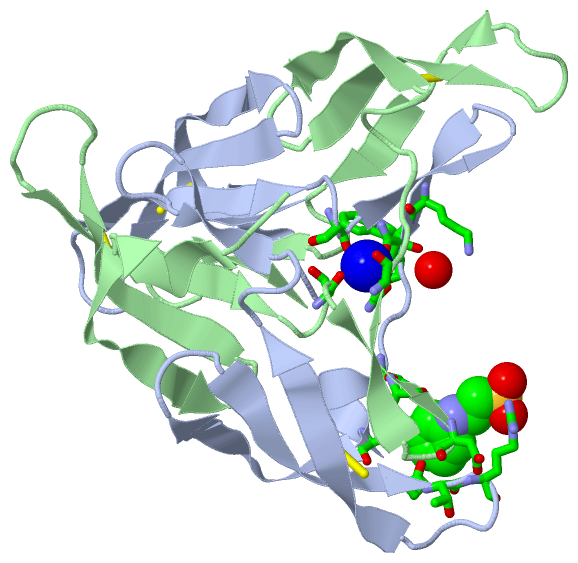

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1l5b
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CVN_NOSEL | P81180: 1iiy 1j4v 1l5e 1lom 1n02 2ezm 2ezn 2pys 2rdk 2rp3 2z21 3czz 3ezm 3gxy 3gxz 3lhc 3s3y 3s3z 4j4c 4j4d 4j4e 4j4f 4j4g

(-) Related Entries Specified in the PDB File

1l5e SOLUTION NMR STRUCTURE OF THE DOMAIN-SWAPPED DIMER CV-N
3ezm DOMAIN-SWAPPED CYANOVIRIN AT LOW PH
