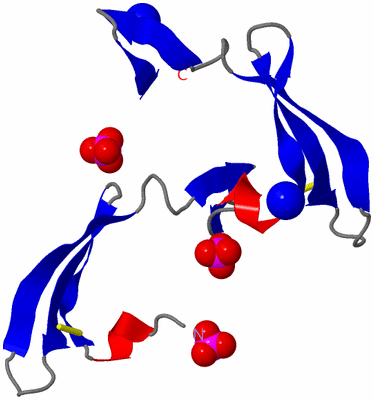

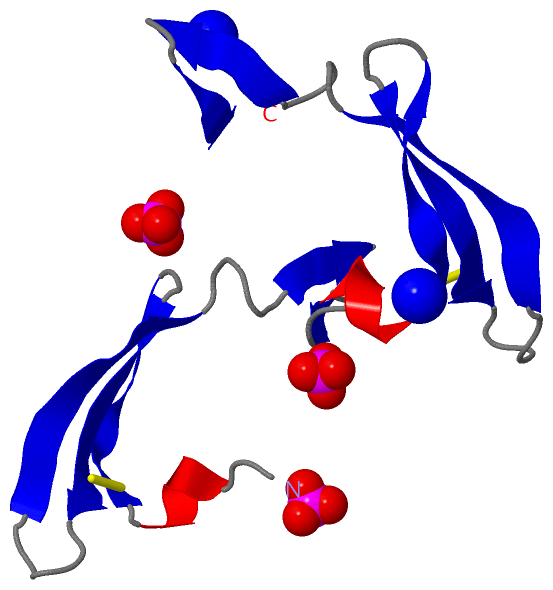

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

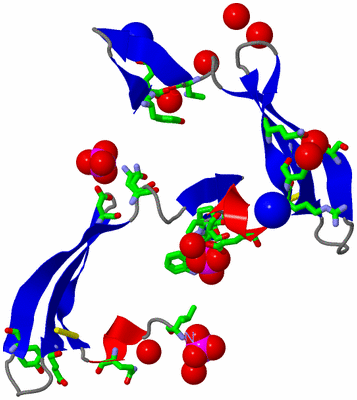

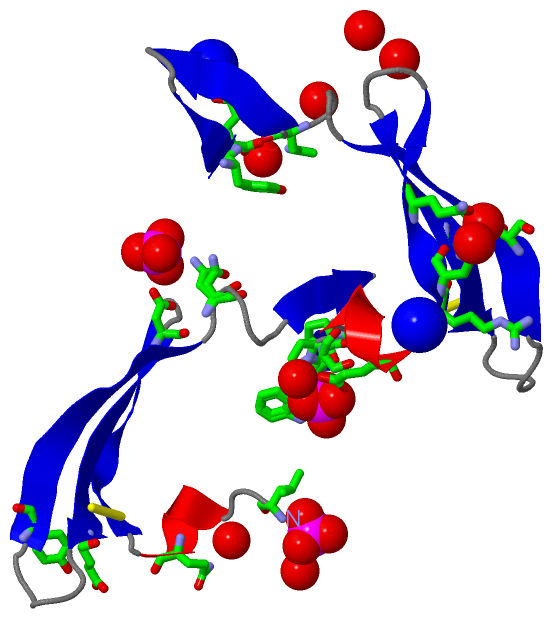

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

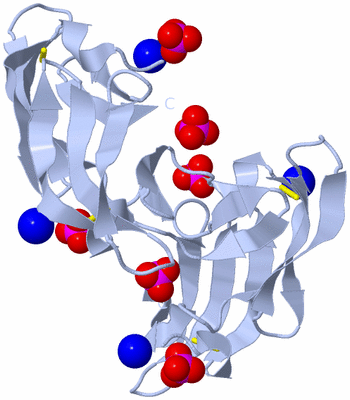

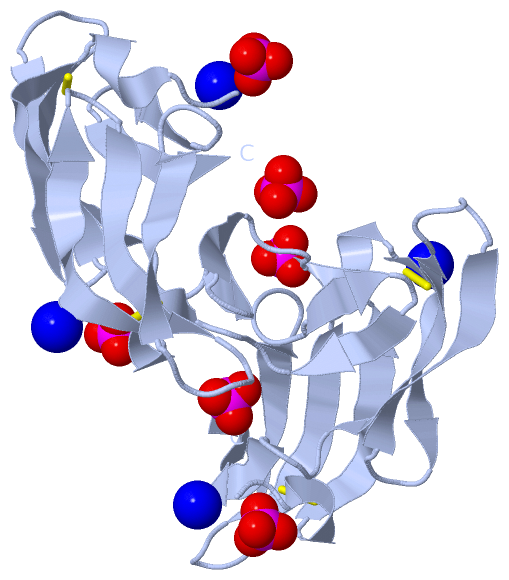

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

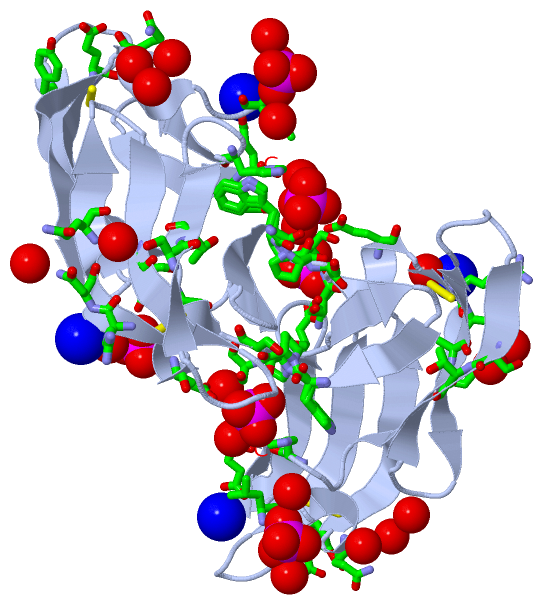

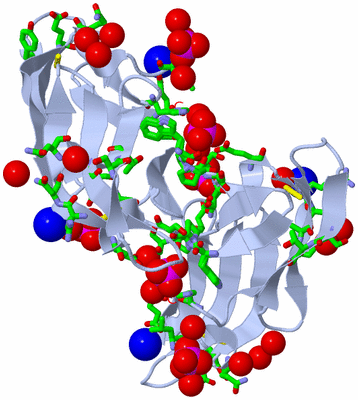

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CYANOVIRIN-N SWAPPING DOMAIN B MUTANT

Authors :  E. Matei, A. Zheng, W. Furey, J. Rose, C. Aiken, A. M. Gronenborn
Date :  21 Jan 10  (Deposition) - 09 Feb 10  (Release) - 05 May 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.34
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Cyanovirin-N, Sugar Binding Protein, Hiv-Inactivating, Gp120, Antiviral Protein, Protein Synthesis Inhibitor, Lectin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Matei, A. Zheng, W. Furey, J. Rose, C. Aiken, A. M. Gronenborn
Anti-Hiv Activity Of Defective Cyanovirin-N Mutants Is Restored By Dimerization.
J. Biol. Chem. V. 285 13057 2010
PubMed-ID: 20147291  |  Reference-DOI: 10.1074/JBC.M109.094938

(-) Compounds

Molecule 1 - CYANOVIRIN-N
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET26B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: NOSTOC ELLIPSOSPORUM
    Organism Taxid: 45916
    Synonym: CV-N

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1NA2Ligand/IonSODIUM ION
2PO43Ligand/IonPHOSPHATE ION
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1NA-1Ligand/IonSODIUM ION
2PO46Ligand/IonPHOSPHATE ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:23 , TYR A:29 , ARG A:58 , ASN A:59 , HOH A:111BINDING SITE FOR RESIDUE NA A 221
2AC2SOFTWAREALA A:70 , SER A:81 , THR A:82 , GLU A:100 , HOH A:130BINDING SITE FOR RESIDUE NA A 222
3AC3SOFTWARELEU A:1 , ASN A:59 , GLN A:61 , HOH A:155 , HOH A:197 , HOH A:215BINDING SITE FOR RESIDUE PO4 A 223
4AC4SOFTWAREGLN A:6 , ASP A:35 , ASN A:37 , HOH A:184 , HOH A:198 , HOH A:199BINDING SITE FOR RESIDUE PO4 A 224
5AC5SOFTWARETRP A:49 , PRO A:50 , SER A:51 , GLU A:55 , HIS A:89 , TYR A:99 , HOH A:139 , HOH A:195BINDING SITE FOR RESIDUE PO4 A 225

(-) SS Bonds  (2, 2)

Asymmetric Unit
No.Residues
1A:8 -A:22
2A:57 -A:72

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3LHC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3LHC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3LHC)

(-) Exons   (0, 0)

(no "Exon" information available for 3LHC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:100
 aligned with CVN_NOSEL | P81180 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
            CVN_NOSEL     1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIENVDGSLKWQPSNFIETCRNTQLAGSSELAAECKTRAQQFVSTKINLDDHIANIDGTLKYE 101
               SCOP domains d3lhca_ A: automated matches                                                                          SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --CVNH-3lhcA01 A:3-99                            -                                                  - Pfam domains
         Sec.struct. author ..hhhh.eeeeeee..eeeeeee.....eeeeeee.....eee..eee.-..hhhh.eeeeeee...eeeeeee.....eeeeeee....eeee..eeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 3lhc A   1 LGKFSQTCYNSAIQGSVLTSTCERTNGGYNTSSIDLNSVIAAVDGSLKW-PSNFIEACRNTQLAGSSELAAECKTAAGQFVSTKINLDDHIANIDGTLKYE 100
                                    10        20        30        40        |-|       59        69        79        89        99
                                                                           49 |
                                                                             50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3LHC)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: no clan defined [family: CVNH] (11)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (CVN_NOSEL | P81180)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
biological process
    GO:0050688    regulation of defense response to virus    Any process that modulates the frequency, rate or extent of the antiviral response of a cell or organism.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3lhc)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3lhc
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CVN_NOSEL | P81180
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CVN_NOSEL | P81180: 1iiy 1j4v 1l5b 1l5e 1lom 1n02 2ezm 2ezn 2pys 2rdk 2rp3 2z21 3czz 3ezm 3gxy 3gxz 3s3y 3s3z 4j4c 4j4d 4j4e 4j4f 4j4g

(-) Related Entries Specified in the PDB File

1lom CRYSTAL STRUCTURE OF A DOUBLE MUTANT OF CYANOVIRIN-N
2ezm SOLUTION NMR STRUCTURE OF THE MONOMER CV-N
3ezm CRYSTAL STRUCTURE OF DOMAIN-SWAPPED CYANOVIRIN-N DIMER
