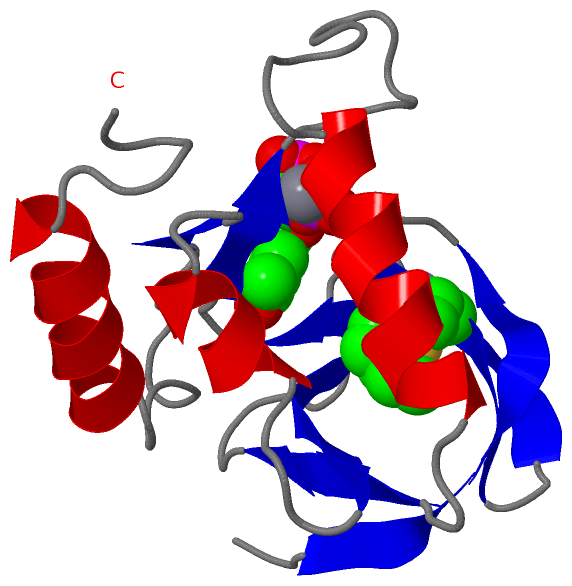

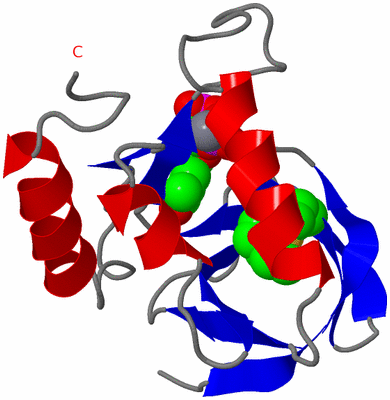

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

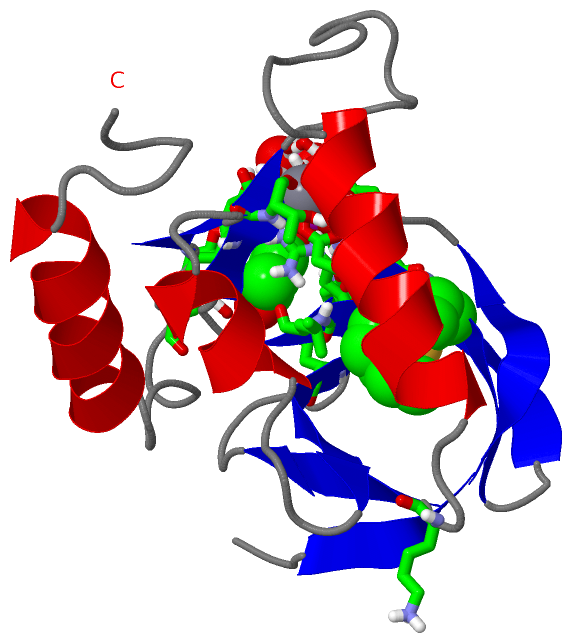

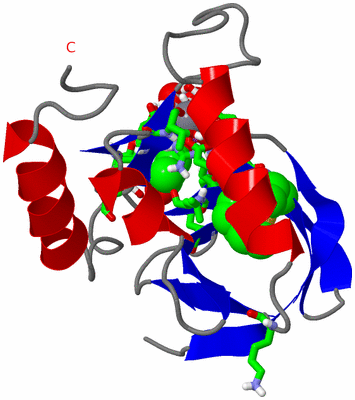

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STAPHYLOCOCCAL NUCLEASE, 1-N-PENTANE THIOL DISULFIDE TO V23C VARIANT

Authors :  R. Wynn, P. C. Harkins, F. M. Richards, R. O. Fox
Date :  11 Jan 98  (Deposition) - 29 Apr 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Nuclease, Unnatural Amino Acid, Hydrolase, Endonuclease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Wynn, P. C. Harkins, F. M. Richards, R. O. Fox
Mobile Unnatural Amino Acid Side Chains In The Core Of Staphylococcal Nuclease.
Protein Sci. V. 5 1026 1996
PubMed-ID: 8762134
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - STAPHYLOCOCCAL NUCLEASE
    Chains: A
    EC Number: 3.1.31.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: AR120
    Expression System Taxid: 562
    Expression System Vector: PAS1
    Mutation: YES
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Other Details: VARIANT FORMED BY CHEMICAL MODIFICATION OF SOLE CYSTEINE RESIDUE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION
2PEC1Mod. Amino AcidS,S-PENTYLTHIOCYSTEINE
3THP1Ligand/IonTHYMIDINE-3',5'-DIPHOSPHATE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:21 , ASP A:40 , THR A:41 , THP A:151 , HOH A:214 , HOH A:215 , HOH A:219BINDING SITE FOR RESIDUE CA A 150
2AC2SOFTWAREARG A:35 , LEU A:36 , ASP A:40 , LYS A:71 , ASP A:83 , LYS A:84 , TYR A:85 , ARG A:87 , LEU A:89 , TYR A:113 , TYR A:115 , CA A:150 , HOH A:203 , HOH A:206 , HOH A:214 , HOH A:215 , HOH A:230 , HOH A:242 , HOH A:260BINDING SITE FOR RESIDUE THP A 151

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5NUC)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:116 -Pro A:117

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5NUC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5NUC)

(-) Exons   (0, 0)

(no "Exon" information available for 5NUC)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:135

               SCOP domains d5nuca_ A: Staphylococcal nuclease                                                                                                      SCOP domains
               CATH domains 5nucA00 A:7-141  [code=2.40.50.90, no name defined]                                                                                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee....eeeeee..eeeeeee..eee.............hhhhhhhhhhhhh....eeeee...........eeeeeee....hhhhhhh...eee..........hhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nuc A   7 LHKEPATLIKAIDGDTcKLMYKGQPMTFRLLLVDTPETKHPKKGVEKYGPEASAFTKKMVENAKKIEVEFDKGQRTDKYGRGLAYIYADGKMVNEALVRQGLAKVAYVYKPNNTHEQHLRKSEAQAKKEKLNIWS 141
                                    16      | 26        36        46        56        66        76        86        96       106       116       126       136
                                           23-PEC
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5NUC)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PEC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    THP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:116 - Pro A:117   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
