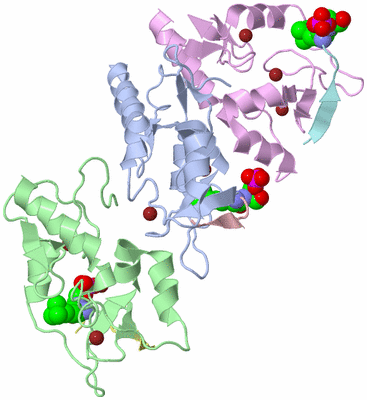

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  COMPLEX STRUCTURE OF ATRX ADD BOUND TO H3K9ME3S10PH PEPTIDE

Authors :  D. Zhao, B. Xiang, H. Li
Date :  17 Aug 14  (Deposition) - 21 Jan 15  (Release) - 17 Jun 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,C  (1x)
Biol. Unit 2:  B,D  (1x)
Biol. Unit 3:  E,F  (1x)
Keywords :  Epigenetic Regulation, Complex, Transcription, Mitosis (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. M. Noh, I. Maze, D. Zhao, B. Xiang, W. Wenderski, P. W. Lewis, L. Shen, H. Li, C. D. Allis
Atrx Tolerates Activity-Dependent Histone H3 Methyl/Phos Switching To Maintain Repetitive Element Silencing In Neurons
Proc. Natl. Acad. Sci. Usa V. 112 6820 2015
PubMed-ID: 25538301  |  Reference-DOI: 10.1073/PNAS.1411258112

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REGULATOR ATRX
    ChainsA, B, E
    EC Number3.6.4.12
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGOOD6P
    Expression System StrainBL21(DE3)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentUNP RESIDUES 167-289
    GeneATRX, RAD54L, XH2
    MutationYES
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymATP-DEPENDENT HELICASE ATRX,X-LINKED HELICASE II,X-LINKED NUCLEAR PROTEIN,XNP,ZNF-HX

Molecule 2 - PEPTIDE FROM HISTONE H3.3
    ChainsC, D, F
    EngineeredYES
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SyntheticYES

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit ABCDEF
Biological Unit 1 (1x)A C
Biological Unit 2 (1x) B D
Biological Unit 3 (1x)    EF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 15)

Asymmetric Unit (3, 15)
No.NameCountTypeFull Name
1M3L3Mod. Amino AcidN-TRIMETHYLLYSINE
2SEP3Mod. Amino AcidPHOSPHOSERINE
3ZN9Ligand/IonZINC ION
Biological Unit 1 (2, 2)
No.NameCountTypeFull Name
1M3L1Mod. Amino AcidN-TRIMETHYLLYSINE
2SEP1Mod. Amino AcidPHOSPHOSERINE
3ZN-1Ligand/IonZINC ION
Biological Unit 2 (2, 2)
No.NameCountTypeFull Name
1M3L1Mod. Amino AcidN-TRIMETHYLLYSINE
2SEP1Mod. Amino AcidPHOSPHOSERINE
3ZN-1Ligand/IonZINC ION
Biological Unit 3 (2, 2)
No.NameCountTypeFull Name
1M3L1Mod. Amino AcidN-TRIMETHYLLYSINE
2SEP1Mod. Amino AcidPHOSPHOSERINE
3ZN-1Ligand/IonZINC ION

(-) Sites  (9, 9)

Asymmetric Unit (9, 9)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:11 , CYS A:14 , CYS A:37 , CYS A:40binding site for residue ZN A 501
2AC2SOFTWARECYS A:60 , CYS A:63 , CYS A:80 , CYS A:83binding site for residue ZN A 502
3AC3SOFTWARECYS A:72 , CYS A:75 , CYS A:105 , CYS A:108binding site for residue ZN A 503
4AC4SOFTWARECYS B:11 , CYS B:14 , CYS B:37 , CYS B:40binding site for residue ZN B 501
5AC5SOFTWARECYS B:60 , CYS B:63 , CYS B:80 , CYS B:83binding site for residue ZN B 502
6AC6SOFTWARECYS B:72 , CYS B:75 , CYS B:105 , CYS B:108binding site for residue ZN B 503
7AC7SOFTWARECYS E:11 , CYS E:14 , CYS E:37 , CYS E:40binding site for residue ZN E 501
8AC8SOFTWARECYS E:60 , CYS E:63 , CYS E:80 , CYS E:83binding site for residue ZN E 502
9AC9SOFTWARECYS E:72 , CYS E:75 , CYS E:105 , CYS E:108binding site for residue ZN E 503

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4W5A)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Phe B:21 -Gln B:22

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4W5A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4W5A)

(-) Exons   (0, 0)

(no "Exon" information available for 4W5A)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:128
