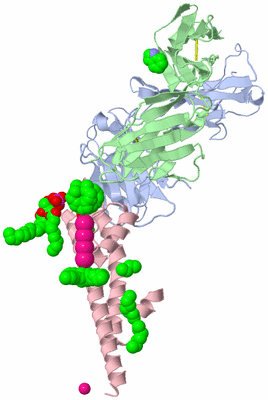

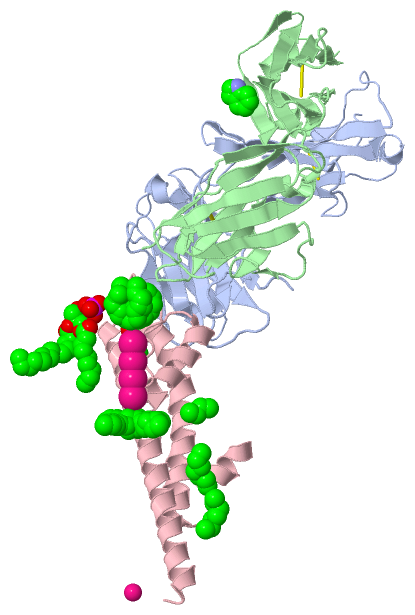

Asymmetric Unit (Jmol Viewer)

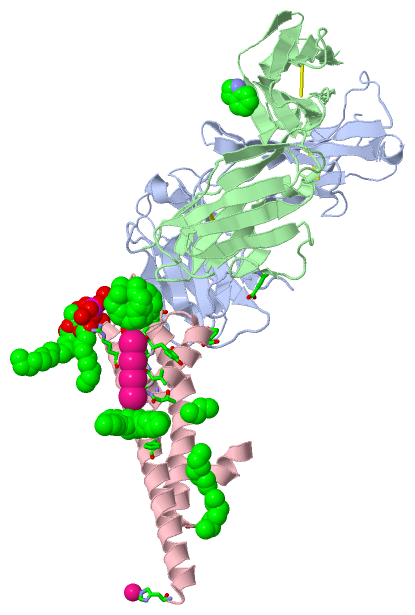

Asym. Unit - sites (Jmol Viewer)

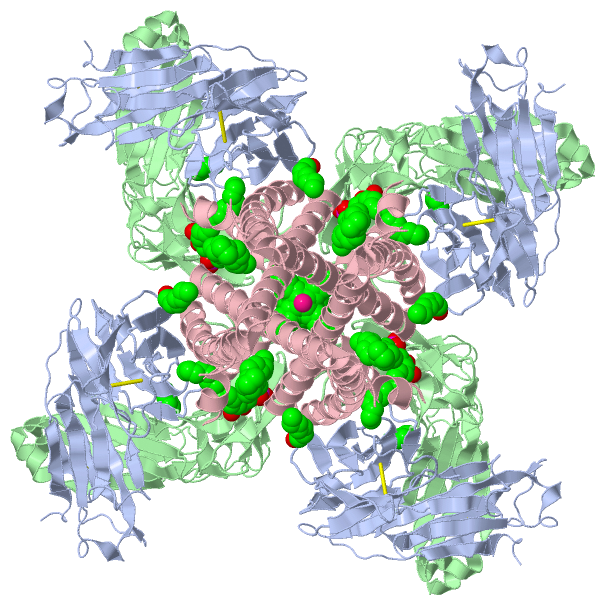

Biological Unit 1 (Jmol Viewer)

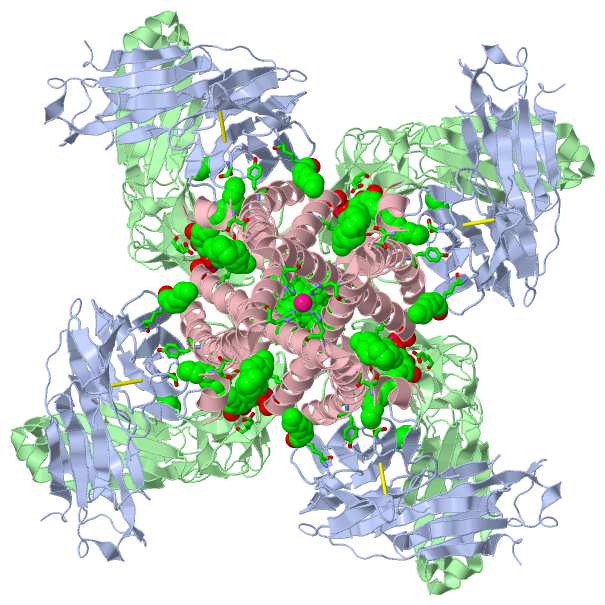

Biol. Unit 1 - sites (Jmol Viewer)

Title :   POTASSIUM CHANNEL KCSA-FAB WITH TETRAHEXYLAMMONIUM

Authors :   M. J. Lenaeus, D. Burdette, T. Wagner, P. J. Focia, A. Gross

Date :   29 Jul 14 (Deposition) - 27 Aug 14 (Release) - 03 Sep 14 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (4x)

Keywords :   Immune System-Metal Transport Complex, Quaternary Ammonium, Protein-Antibody Fab Complex, Ionic Channel, Ion Transport, Potassium Channel (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. J. Lenaeus, D. Burdette, T. Wagner, P. J. Focia, A. Gross
Structures Of Kcsa In Complex With Symmetrical Quaternary Ammonium Compounds Reveal A Hydrophobic Binding Site.
Biochemistry V. 53 5365 2014
PubMed-ID: 25093676 | Reference-DOI: 10.1021/BI500525S

Molecule 1 - ANTIBODY FAB FRAGMENT LIGHT CHAIN
	Chains	:	A
	Engineered	:	YES
	Expression System	:	MUS MUSCULUS
	Expression System Common	:	HOUSE MOUSE
	Expression System Taxid	:	10090
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Molecule 2 - ANTIBODY FAB FRAGMENT HEAVY CHAIN
	Chains	:	B
	Engineered	:	YES
	Expression System	:	MUS MUSCULUS
	Expression System Common	:	HOUSE MOUSE
	Expression System Taxid	:	10090
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Molecule 3 - VOLTAGE-GATED POTASSIUM CHANNEL KCSA
	Chains	:	C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Scientific	:	STREPTOMYCES LIVIDANS
	Organism Taxid	:	1916
	Synonym	:	STREPTOMYCES LIVIDANS K+ CHANNEL, KCSA

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (4x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (7, 14)

No.	Name	Count	Type	Full Name
1	CO	1	Ligand/Ion	COBALT (II) ION
2	DGA	1	Ligand/Ion	DIACYL GLYCEROL
3	F09	4	Ligand/Ion	NONAN-1-OL
4	IND	1	Ligand/Ion	INDOLE
5	K	4	Ligand/Ion	POTASSIUM ION
6	PO4	1	Ligand/Ion	PHOSPHATE ION
7	XA7	2	Ligand/Ion	TETRAHEXYL AMMONNIUM

Biological Unit 1 (5, 36)

No.	Name	Count	Type	Full Name
1	CO	-1	Ligand/Ion	COBALT (II) ION
2	DGA	4	Ligand/Ion	DIACYL GLYCEROL
3	F09	16	Ligand/Ion	NONAN-1-OL
4	IND	4	Ligand/Ion	INDOLE
5	K	-1	Ligand/Ion	POTASSIUM ION
6	PO4	4	Ligand/Ion	PHOSPHATE ION
7	XA7	8	Ligand/Ion	TETRAHEXYL AMMONNIUM

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ARG A:57	BINDING SITE FOR RESIDUE F09 A1220
02	AC2	SOFTWARE	GLY C:77 , TYR C:78 , K C:1126	BINDING SITE FOR RESIDUE K C1125
03	AC3	SOFTWARE	VAL C:76 , GLY C:77 , K C:1125 , K C:1127	BINDING SITE FOR RESIDUE K C1126
04	AC4	SOFTWARE	THR C:75 , VAL C:76 , K C:1126 , K C:1128	BINDING SITE FOR RESIDUE K C1127
05	AC5	SOFTWARE	THR C:75 , K C:1127	BINDING SITE FOR RESIDUE K C1128
06	AC6	SOFTWARE	SER A:31 , GLU B:53 , TYR C:45 , PRO C:63 , ARG C:89 , PO4 C:1133	BINDING SITE FOR RESIDUE DGA C1129
07	AC7	SOFTWARE	HIS C:124	BINDING SITE FOR RESIDUE CO C1130
08	AC8	SOFTWARE	HOH B:2012 , TYR C:78 , GLY C:79 , TYR C:82	BINDING SITE FOR RESIDUE XA7 C1131
09	AC9	SOFTWARE	ALA C:73 , THR C:74 , THR C:75 , GLY C:99 , PHE C:103	BINDING SITE FOR RESIDUE XA7 C1132
10	BC1	SOFTWARE	GLU B:53 , DGA C:1129 , HOH C:2011 , HOH C:2012 , HOH C:2013	BINDING SITE FOR RESIDUE PO4 C1133
11	BC2	SOFTWARE	GLY C:30 , F09 C:1135	BINDING SITE FOR RESIDUE F09 C1134
12	BC3	SOFTWARE	SER C:22 , F09 C:1134	BINDING SITE FOR RESIDUE F09 C1135

Asymmetric Unit

No.	Residues
1	A:22	-	A:96
2	A:145	-	A:200
3	B:23	-	B:88
4	B:134	-	B:194

Asymmetric Unit

No.	Residues
1	Phe A:151	-	Pro A:152
2	Glu A:153	-	Pro A:154
3	Trp A:193	-	Pro A:194
4	Ser B:7	-	Pro B:8
5	Trp B:94	-	Pro B:95
6	Tyr B:140	-	Pro B:141

(no "SAP(SNP)/Variant" information available for 4UUJ)

(no "PROSITE Motif" information available for 4UUJ)

(no "Exon" information available for 4UUJ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:219

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee...eeee.....eeeeeee........eeeeeee......eeeeeee....eeee.........eeee....eeeeee...hhhhheeeeeeee.......ee...eeeee........eeeee..........eeeeeeeeeee.....eeee........eee...eee..eeeeeeeeeee.hhh.....eeeeee....eeeeee..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4uuj A   1 QVQLQQPGAELVKPGASVKLSCKASGYTFTSDWIHWVKQRPGHGLEWIGEIIPSYGRANYNEKIQKKATLTADKSSSTAFMQLSSLTSEDSAVYYCARERGDGYFAVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRD 219
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain B from PDB  Type:PROTEIN  Length:212

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee......ee...eeeee.......eeeee..hhhhhhh..eeeeeeeeee.....eeeeee..ee....eeeeee........eeeeeeeeehhhhhhh..eeeeeee.......eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4uuj B   1 DILLTQSPAILSVSPGERVSFSCRASQSIGTDIHWYQQRTNGSPRLLIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIANYYCQQSNRWPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain C from PDB  Type:PROTEIN  Length:111

               SCOP domains --------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 4uuj C  11 AAVALLLGSALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRCVAVVVMVAGITSFGLVTAALATWFVGREQERRGH 124
                                  ||23        33        43        53        63        73        83        93       103       113       123
                                 17|
                                  21

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 4UUJ)

(no "CATH Domain" information available for 4UUJ)

(no "Pfam Domain" information available for 4UUJ)

Asymmetric Unit(hide GO term definitions)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		DGA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		F09	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IND	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		XA7	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:153 - Pro A:154	[ RasMol ]
		Phe A:151 - Pro A:152	[ RasMol ]
		Ser B:7 - Pro B:8	[ RasMol ]
		Trp A:193 - Pro A:194	[ RasMol ]
		Trp B:94 - Pro B:95	[ RasMol ]
		Tyr B:140 - Pro B:141	[ RasMol ]
