Title :   POTASSIUM CHANNEL KCSA-FAB COMPLEX WITH TETRAOCTYLAMMONIUM

Authors :   M. J. Lenaeus, P. J. Focia, T. Wagner, A. Gross

Date :   14 Aug 08 (Deposition) - 17 Nov 09 (Release) - 03 Sep 14 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (4x)

Keywords :   Immune System Metal Transport Complex, Quaternary Ammonium, Protein-Antibody Fab Complex, Ionic Channel, Ion Transport, Potassium Channel (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. J. Lenaeus, D. Burdette, T. Wagner, P. J. Focia, A. Gross
Structures Of Kcsa In Complex With Symmetrical Quaternary Ammonium Compounds Reveal A Hydrophobic Binding Site.
Biochemistry V. 53 5365 2014
PubMed-ID: 25093676 | Reference-DOI: 10.1021/BI500525S

Molecule 1 - ANTIBODY FAB FRAGMENT LIGHT CHAIN
	Chains	:	A
	Engineered	:	YES
	Expression System	:	MUS MUSCULUS
	Expression System Common	:	HOUSE MOUSE
	Expression System Taxid	:	10090
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Other Details	:	HYBRIDOMA

Molecule 2 - ANTIBODY FAB FRAGMENT HEAVY CHAIN
	Chains	:	B
	Engineered	:	YES
	Expression System	:	MUS MUSCULUS
	Expression System Common	:	HOUSE MOUSE
	Expression System Taxid	:	10090
	Organism Common	:	HOUSE MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Other Details	:	HYBRIDOMA

Molecule 3 - VOLTAGE-GATED POTASSIUM CHANNEL
	Chains	:	C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	RESIDUES 1-124
	Organism Scientific	:	STREPTOMYCES LIVIDANS
	Organism Taxid	:	1916

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (4x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (5, 11)

No.	Name	Count	Type	Full Name
1	CO	1	Ligand/Ion	COBALT (II) ION
2	DGA	1	Ligand/Ion	DIACYL GLYCEROL
3	F09	1	Ligand/Ion	NONAN-1-OL
4	HX0	1	Ligand/Ion	N,N,N-TRIOCTYLOCTAN-1-AMINIUM
5	K	7	Ligand/Ion	POTASSIUM ION

Biological Unit 1 (3, 12)

No.	Name	Count	Type	Full Name
1	CO	-1	Ligand/Ion	COBALT (II) ION
2	DGA	4	Ligand/Ion	DIACYL GLYCEROL
3	F09	4	Ligand/Ion	NONAN-1-OL
4	HX0	4	Ligand/Ion	N,N,N-TRIOCTYLOCTAN-1-AMINIUM
5	K	-1	Ligand/Ion	POTASSIUM ION

Asymmetric Unit (11, 11)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS C:124	BINDING SITE FOR RESIDUE CO C1125
02	AC2	SOFTWARE	ARG A:57 , HOH C:2037	BINDING SITE FOR RESIDUE F09 C1126
03	AC3	SOFTWARE	LEU C:41 , TYR C:45 , TYR C:62 , PRO C:63 , LEU C:66 , LEU C:86 , ARG C:89 , HOH C:2007 , HOH C:2039 , HOH C:2040 , HOH C:2041	BINDING SITE FOR RESIDUE DGA C1127
04	AC4	SOFTWARE	ALA C:73 , THR C:74 , THR C:75 , GLY C:99 , PHE C:103 , HOH C:2018	BINDING SITE FOR RESIDUE HX0 C1128
05	AC5	SOFTWARE	THR C:75 , K C:1131 , K C:1132	BINDING SITE FOR RESIDUE K C1129
06	AC6	SOFTWARE	GLY C:77 , TYR C:78 , K C:1134 , K C:1135	BINDING SITE FOR RESIDUE K C1130
07	AC7	SOFTWARE	THR C:75 , VAL C:76 , K C:1129 , K C:1133 , K C:1135 , HOH C:2020	BINDING SITE FOR RESIDUE K C1131
08	AC8	SOFTWARE	THR C:75 , VAL C:76 , K C:1129 , K C:1133 , HOH C:2020	BINDING SITE FOR RESIDUE K C1132
09	AC9	SOFTWARE	THR C:75 , K C:1131 , K C:1132	BINDING SITE FOR RESIDUE K C1133
10	BC1	SOFTWARE	GLY C:77 , TYR C:78 , K C:1130 , K C:1135	BINDING SITE FOR RESIDUE K C1134
11	BC2	SOFTWARE	VAL C:76 , GLY C:77 , K C:1130 , K C:1131 , K C:1134 , HOH C:2020	BINDING SITE FOR RESIDUE K C1135

Asymmetric Unit

No.	Residues
1	A:22	-	A:96
2	A:145	-	A:200
3	B:23	-	B:88
4	B:134	-	B:194

Asymmetric Unit

No.	Residues
1	Phe A:151	-	Pro A:152
2	Glu A:153	-	Pro A:154
3	Trp A:193	-	Pro A:194
4	Trp B:94	-	Pro B:95
5	Tyr B:140	-	Pro B:141

(no "SAP(SNP)/Variant" information available for 2W0F)

(no "PROSITE Motif" information available for 2W0F)

(no "Exon" information available for 2W0F)

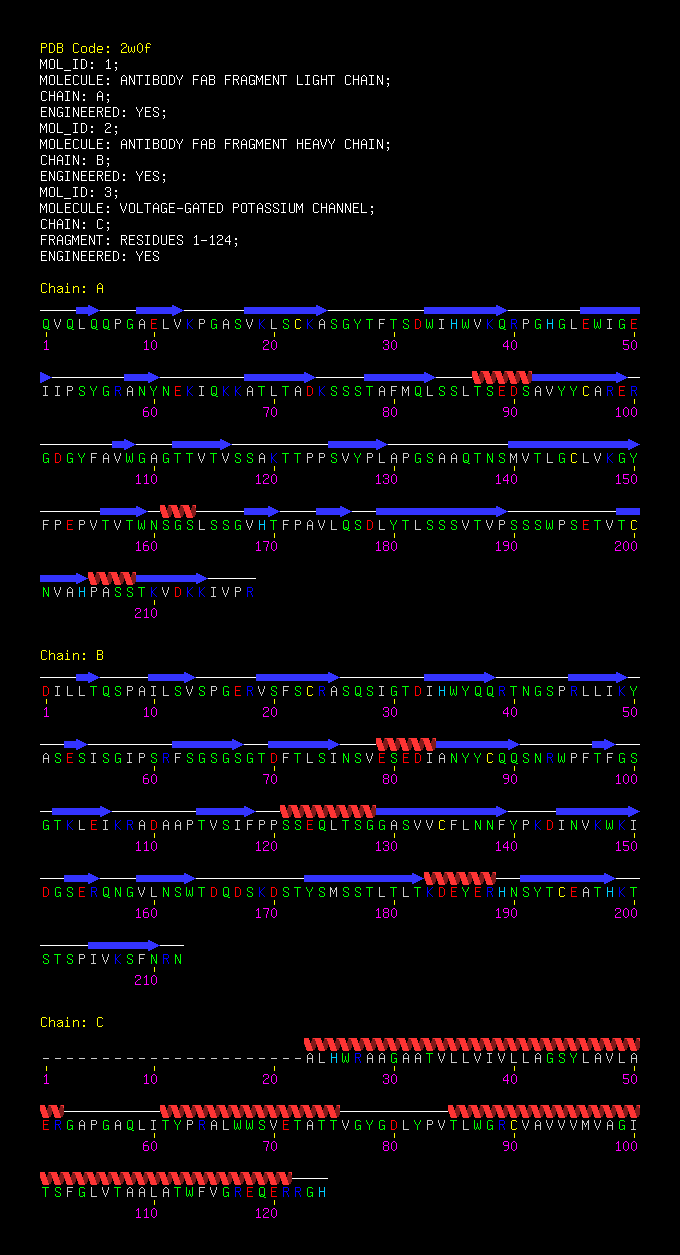

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:218

               SCOP domains d2w0fa1 A:1-118 Immunoglobulin heavy chain variable domain, VH                                                        d2w0fa2 A:119-218 Immunoglobulin heavy chain gamma constant domain 1, CH1-gamma                      SCOP domains
               CATH domains 2w0fA01 A:1-118 Immunoglobulins                                                                                       2w0fA02 A:119-217 Immunoglobulins                                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee...eeee.....eeeeeee........eeeeeee......eeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeeee.......ee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.........eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2w0f A   1 QVQLQQPGAELVKPGASVKLSCKASGYTFTSDWIHWVKQRPGHGLEWIGEIIPSYGRANYNEKIQKKATLTADKSSSTAFMQLSSLTSEDSAVYYCARERGDGYFAVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPR 218
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain B from PDB  Type:PROTEIN  Length:212

               SCOP domains d2w0fb1 B:1-107 Immunoglobulin light chain kappa variable domain, VL-kappa                                 d2w0fb2 B:108-212 Immunoglobulin light chain kappa constant domain, CL-kappa                              SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------2w0fB02 B:109-211 Immunoglobulins                                                                      - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeee.......eeeee..hhhhhhhheeeeeeeeeee....eeeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeeee......eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2w0f B   1 DILLTQSPAILSVSPGERVSFSCRASQSIGTDIHWYQQRTNGSPRLLIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIANYYCQQSNRWPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain C from PDB  Type:PROTEIN  Length:102
 aligned with KCSA_STRLI | P0A334 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:102
                                    32        42        52        62        72        82        92       102       112       122
           KCSA_STRLI    23 ALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGH 124
               SCOP domains d2w0fc_ C: automated matches                                                                           SCOP domains
               CATH domains 2w0fC00 C:23-124  [code=1.10.287.70, no name defined]                                                  CATH domains
               Pfam domains ----------Ion_trans_2-2w0fC01 C:33-116                                                        -------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 2w0f C  23 ALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRCVAVVVMVAGITSFGLVTAALATWFVGREQERRGH 124
                                    32        42        52        62        72        82        92       102       112       122

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Helix Hairpins (718)

Homologous Superfamily: [code=1.10.287.70, no name defined] (106)

Mouse (Mus musculus) (5)

2w0fC00

C:23-124

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: Immunoglobulins (2282)

Mouse (Mus musculus) (152)

2a	2w0fB02	B:109-211
2b	2w0fA02	A:119-217
2c	2w0fA01	A:1-118

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Ion_channel (150)

Family: Ion_trans_2 (35)

Streptomyces lividans (16)

Ion_trans_2-2w0fC01

C:33-116

Asymmetric Unit(hide GO term definitions)

Chain C (KCSA_STRLI | P0A334)

molecular function
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0005249	voltage-gated potassium channel activity	Enables the transmembrane transfer of a potassium ion by a voltage-gated channel. A voltage-gated channel is a channel whose open state is dependent on the voltage across the membrane in which it is embedded.
biological process
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0071805	potassium ion transmembrane transport	A process in which a potassium ion is transported from one side of a membrane to the other.
	GO:0006813	potassium ion transport	The directed movement of potassium ions (K+) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0008076	voltage-gated potassium channel complex	A protein complex that forms a transmembrane channel through which potassium ions may cross a cell membrane in response to changes in membrane potential.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		DGA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		F09	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HX0	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		K	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:153 - Pro A:154	[ RasMol ]
		Phe A:151 - Pro A:152	[ RasMol ]
		Trp A:193 - Pro A:194	[ RasMol ]
		Trp B:94 - Pro B:95	[ RasMol ]
		Tyr B:140 - Pro B:141	[ RasMol ]

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2w0f
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	KCSA_STRLI \| P0A334
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	KCSA_STRLI \| P0A334
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1bl8	POTASSIUM CHANNEL (KCSA) FROM STREPTOMYCES LIVIDANS
1f6g	POTASSIUM CHANNEL (KCSA) FULL-LENGTH FOLD
1j95	KCSA POTASSIUM CHANNEL WITH TBA ( TETRABUTYLAMMONIUM) ANDPOTASSIUM
1jq1	POTASSIUM CHANNEL (KCSA) OPEN GATE MODEL
1jq2	POTASSIUM CHANNEL (KCSA) OPEN GATE MODEL
1jvm	KCSA POTASSIUM CHANNEL WITH TBA ( TETRABUTYLAMMONIUM) ANDRUBIDIUM
1k4c	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN HIGH CONCENTRATION OFK+
1k4d	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN LOW CONCENTRATION OFK+
1r3i	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN RB+
1r3j	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN HIGH CONCENTRATION OFTL+
1r3k	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN LOW CONCENTRATION OFTL+
1r3l	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN CS+
1zwi	STRUCTURE OF MUTANT KCSA POTASSIUM CHANNEL
2a9h	NMR STRUCTURAL STUDIES OF A POTASSIUM CHANNEL /CHARYBDOTOXIN COMPLEX
2atk	STRUCTURE OF A MUTANT KCSA K+ CHANNEL
2bob	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN THALLIUM WITH TETRABUTYLAMMONIUM (TBA)
2boc	POTASSIUM CHANNEL KCSA-FAB COMPLEX IN THALLIUM WITH TETRAETHYLARSONIUM (TEAS)
2h8p	STRUCTURE OF A K CHANNEL WITH AN AMIDE TO ESTERSUBSTITUTION IN THE SELECTIVITY FILTER
2hg5	CS+ COMPLEX OF A K CHANNEL WITH AN AMIDE TO ESTERSUBSTITUTION IN THE SELECTIVITY FILTER
2ih1	ION SELECTIVITY IN A SEMI-SYNTHETIC K+ CHANNEL LOCKED INTHE CONDUCTIVE CONFORMATION
2ih3	ION SELECTIVITY IN A SEMI-SYNTHETIC K+ CHANNEL LOCKED INTHE CONDUCTIVE CONFORMATION
4uuj	POTASSIUM CHANNEL KCSA-FAB COMPLEX WITH TETRAHEXYLAMMONIUM

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 11)

Sites (11, 11)

SS Bonds (4, 4)

Cis Peptide Bonds (5, 5)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (5, 5)

CATH Domains (2, 4)

Pfam Domains (1, 1)

Gene Ontology (10, 10)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
