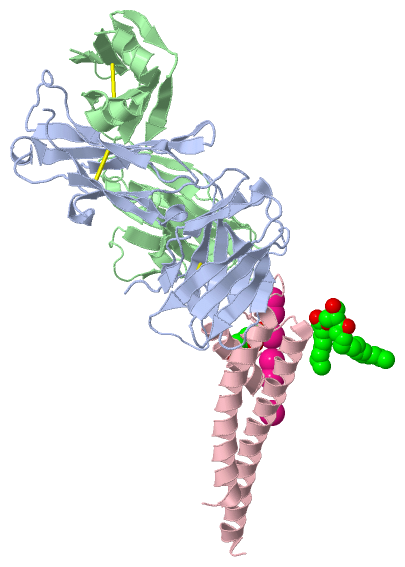

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

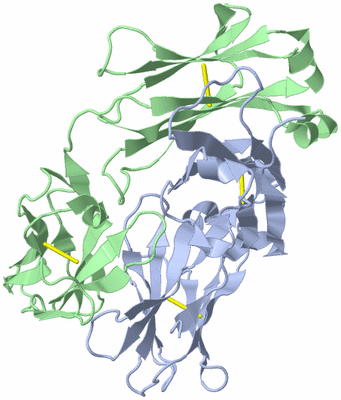

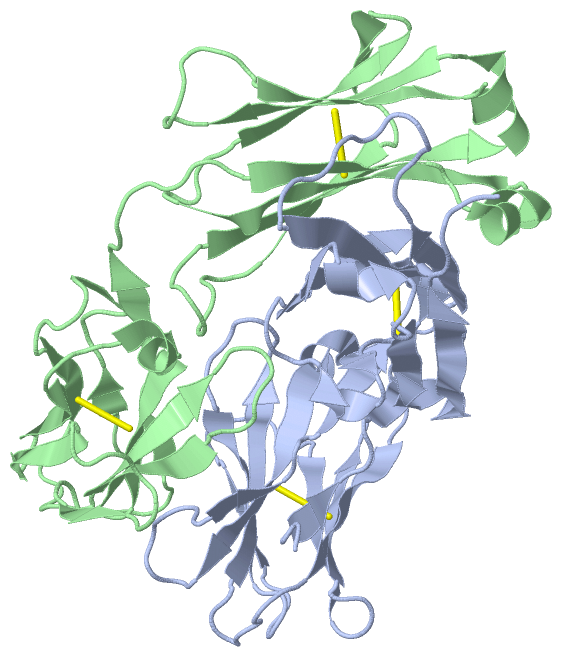

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

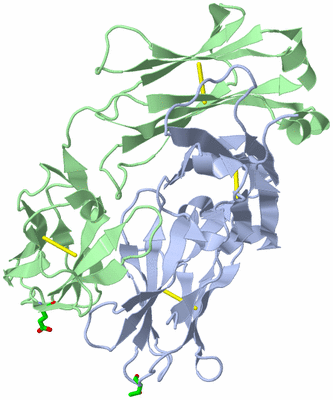

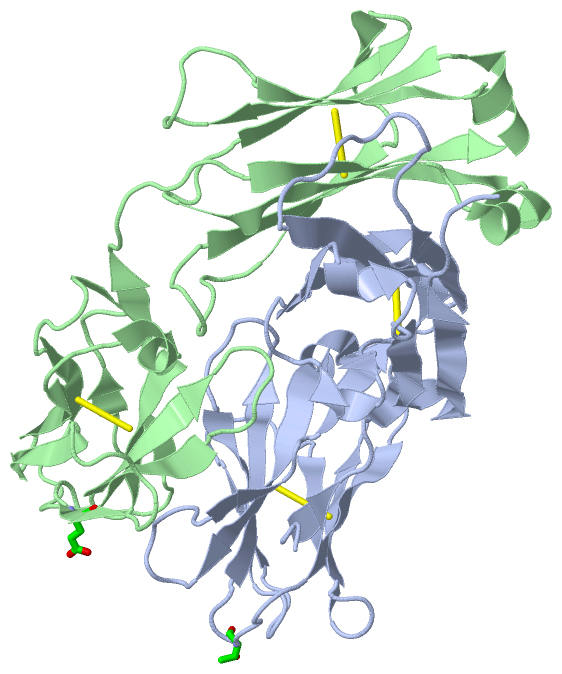

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

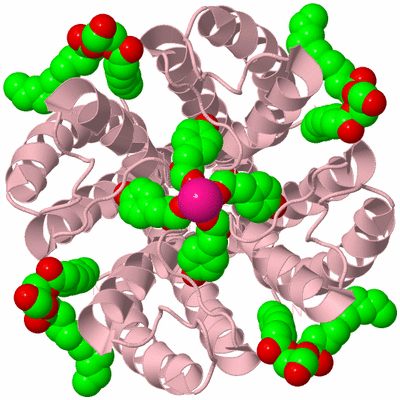

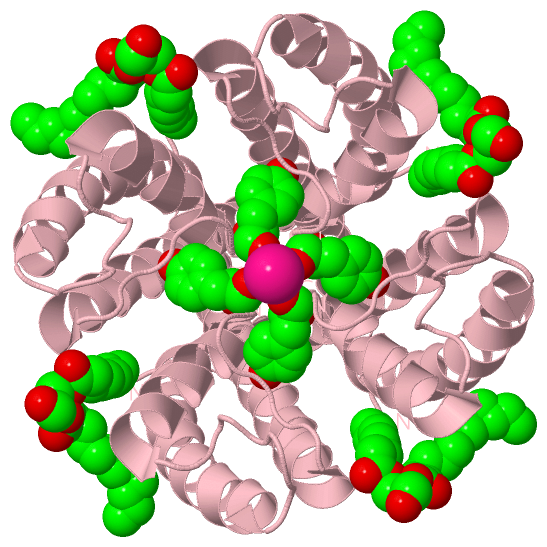

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  Y78 ESTER MUTANT OF KCSA IN HIGH K+

Authors :  K. Matulef, F. I. Valiyaveetil
Date :  18 Sep 13  (Deposition) - 30 Oct 13  (Release) - 13 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.06
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C  (4x)
Keywords :  Membrane Protein, Channel, Ester, Unnatural Amino Acid, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Matulef, A. G. Komarov, C. A. Costantino, F. I. Valiyaveetil
Using Protein Backbone Mutagenesis To Dissect The Link Between Ion Occupancy And C-Type Inactivation In K+ Channels.
Proc. Natl. Acad. Sci. Usa V. 110 17886 2013
PubMed-ID: 24128761  |  Reference-DOI: 10.1073/PNAS.1314356110

(-) Compounds

Molecule 1 - ANTIBODY FAB FRAGMENT HEAVY CHAIN
    Cell: HYBRIDOMA
    Chains: A
    Engineered: YES
    Expression System: KOMAGATAELLA PASTORIS
    Expression System Common: PICHIA PASTORIS
    Expression System Taxid: 4922
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 2 - ANTIBODY FAB FRAGMENT LIGHT CHAIN
    Cell: HYBRIDOMA
    Chains: B
    Engineered: YES
    Expression System: KOMAGATAELLA PASTORIS
    Expression System Common: PICHIA PASTORIS
    Expression System Taxid: 4922
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 3 - PH-GATED POTASSIUM CHANNEL KCSA
    Chains: C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 22-124
    Gene: KCSA, SKC1
    Organism Scientific: STREPTOMYCES LIVIDANS
    Organism Taxid: 1916
    Synonym: STREPTOMYCES LIVIDANS K+ CHANNEL, SKC1

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): AB
Biological Unit 2 (4x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 8)

Asymmetric Unit (3, 8)
No.NameCountTypeFull Name
1DGA1Ligand/IonDIACYL GLYCEROL
2K6Ligand/IonPOTASSIUM ION
3TYF1Mod. Amino Acid(2S)-2-HYDROXY-3-(4-HYDROXYPHENYL)PROPANOIC ACID
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1DGA-1Ligand/IonDIACYL GLYCEROL
2K-1Ligand/IonPOTASSIUM ION
3TYF-1Mod. Amino Acid(2S)-2-HYDROXY-3-(4-HYDROXYPHENYL)PROPANOIC ACID
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1DGA4Ligand/IonDIACYL GLYCEROL
2K-1Ligand/IonPOTASSIUM ION
3TYF4Mod. Amino Acid(2S)-2-HYDROXY-3-(4-HYDROXYPHENYL)PROPANOIC ACID

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:30 , GLU B:53 , PRO C:63 , LEU C:86 , HOH C:1113BINDING SITE FOR RESIDUE DGA C 1001
2AC2SOFTWAREGLY C:77 , TYF C:78BINDING SITE FOR RESIDUE K C 1002
3AC3SOFTWARETHR C:75 , VAL C:76 , K C:1004BINDING SITE FOR RESIDUE K C 1003
4AC4SOFTWARETHR C:75 , K C:1003BINDING SITE FOR RESIDUE K C 1004
5AC5SOFTWAREK C:1007BINDING SITE FOR RESIDUE K C 1006
6AC6SOFTWAREK C:1006BINDING SITE FOR RESIDUE K C 1007

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:22 -A:96
2A:145 -A:200
3B:23 -B:88
4B:134 -B:194

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Phe A:151 -Pro A:152
2Glu A:153 -Pro A:154
3Trp A:193 -Pro A:194
4Ser B:7 -Pro B:8
5Trp B:94 -Pro B:95
6Tyr B:140 -Pro B:141

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4MSW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4MSW)

(-) Exons   (0, 0)

(no "Exon" information available for 4MSW)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:219

               SCOP domains d4mswa1 A:1-118 Immunoglobulin heavy chain variable domain, VH                                                        d4mswa2 A:119-219 Immunoglobulin heavy chain gamma constant domain 1, CH1-gamma                       SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee...eeee.....eeeeeee........eeeeeee......eeeeee......eee.......eeeeee....eeeeee...hhhhheeeeeeee.......ee...eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.hhh.....eeeeeehhhheeeeee..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4msw A   1 QVQLQQPGAELVKPGASVKLSCKASGYTFTSDWIHWVKQRPGHGLEWIGEIIPSYGRANYNEKIQKKATLTADKSSSTAFMQLSSLTSEDSAVYYCARERGDGYFAVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRD 219
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain B from PDB  Type:PROTEIN  Length:212

               SCOP domains d4mswb1 B:1-107 Immunoglobulin light chain kappa variable domain, VL-kappa                                 d4mswb2 B:108-212 Immunoglobulin light chain kappa constant domain, CL-kappa                              SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee......ee...eeeee.......eeeee..hhhhhhh.eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhhh..eeeeeee.......eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4msw B   1 DILLTQSPAILSVSPGERVSFSCRASQSIGTDIHWYQQRTNGSPRLLIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIANYYCQQSNRWPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain C from PDB  Type:PROTEIN  Length:103

               SCOP domains d4mswc_ C: Potassium channel protein                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 4msw C  22 SALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGxGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGH 124
                                    31        41        51        61        71      | 81        91       101       111       121
                                                                                   78-TYF
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
