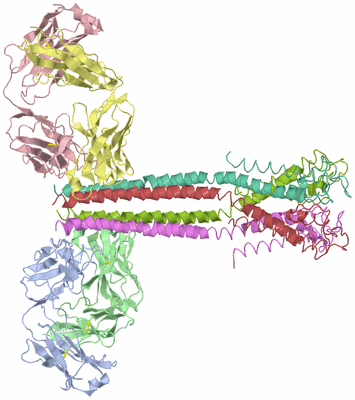

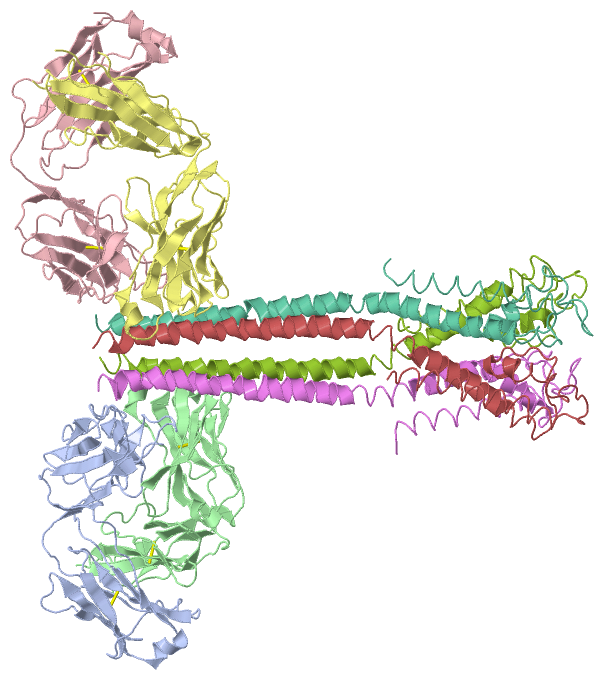

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  MECHANISM OF ACTIVATION GATING IN THE FULL-LENGTH KCSA K+ CHANNEL

Authors :  S. Uysal, L. G. Cuello, A. Kossiakoff, E. Perozo
Date :  10 Nov 10  (Deposition) - 06 Jul 11  (Release) - 03 Aug 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.80
Chains :  Asym./Biol. Unit :  A,B,C,D,K,L,M,N
Keywords :  Ion Channel, Conducts K+ Ions, Cell Membrane, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Uysal, L. G. Cuello, D. M. Cortes, S. Koide, A. A. Kossiakoff, E. Perozo
Mechanism Of Activation Gating In The Full-Length Kcsa K+ Channel.
Proc. Natl. Acad. Sci. Usa V. 108 11896 2011
PubMed-ID: 21730186  |  Reference-DOI: 10.1073/PNAS.1105112108

(-) Compounds

Molecule 1 - FAB LIGHT CHAIN
    Chains: A, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 2 - FAB HEAVY CHAIN
    Chains: B, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 3 - VOLTAGE-GATED POTASSIUM CHANNEL
    Chains: K, L, M, N
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: KCSA, SKC1
    Organism Scientific: STREPTOMYCES LIVIDANS
    Organism Taxid: 1916
    Synonym: KCSA

 Structural Features

(-) Chains, Units

  12345678
Asymmetric/Biological Unit : ABCDKLMN

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3PJS)

(-) Sites  (0, 0)

(no "Site" information available for 3PJS)

(-) SS Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1A:23 -A:88
2A:136 -A:196
3B:22 -B:96
4B:151 -B:207
5C:23 -C:88
6C:136 -C:196
7D:22 -D:96
8D:151 -D:207

(-) Cis Peptide Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1Ser A:7 -Pro A:8
2Ala A:96 -Pro A:97
3Phe B:157 -Pro B:158
4Glu B:159 -Pro B:160
5Ser C:7 -Pro C:8
6Tyr C:142 -Pro C:143
7Phe D:157 -Pro D:158
8Glu D:159 -Pro D:160

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3PJS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3PJS)

(-) Exons   (0, 0)

(no "Exon" information available for 3PJS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:215

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeeee.....eeeee.............eeeeee..eeeeee.........eeeeee.............eeeee........eeee..........eeeeeeee.......eeeeeee........eee..............eeeeeeehhhhhh..eeeeeeee.......eeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs A   1 DIQMTQSPSSLSASVGDRVTITCRASQDVNTAVAWYQQKPGKAPKLLIYSASFLESGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYYSYSAPVTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE 215
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain B from PDB  Type:PROTEIN  Length:219

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...ee.....eeeeeee...hhh.eeeeeeee.....eeeeeeee....eeee..........eee....eeeeee...hhhhheeeeeeeee....hhhhh........eeeee...................eeeeeeeeee....eeee...............ee.....eeeeeeeee.........ee.eeee....eee..ee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs B   1 EVQLVESGGGLVQPGGSLRLSCAASGFNISSYSIHWVRQAPGKGLEWVASISSYYSSTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARQPSYHMYSWWVALDYWGQGTLVTVSSASTKGPSVFPLAPSSGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEP 224
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       145       155       165       175       185       195       205       215
                                                                                                                                                                    139|
                                                                                                                                                                     145


Chain C from PDB  Type:PROTEIN  Length:215

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee.......eeeeee.....eeeee.............eeeeee..eeeeee.........eeeeee.............eeeee........ee.....hhhhh..eeeeeeee.......eeeeeee........eeeee...........eeeeeeeehhhhhh..eeeeeeee.......eeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs C   1 DIQMTQSPSSLSASVGDRVTITCRASQDVNTAVAWYQQKPGKAPKLLIYSASFLESGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYYSYSAPVTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE 215
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain D from PDB  Type:PROTEIN  Length:219

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...ee.....eeeeeee...hhh.eeeeeeee.....eeeeeeee....eeee..........eee....eeeeee........eeeeeeeee....hhhhh........eeeee...................eeeeeeeeee....eeee...............ee.....eeeeeeeee..........eeeeeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs D   1 EVQLVESGGGLVQPGGSLRLSCAASGFNISSYSIHWVRQAPGKGLEWVASISSYYSSTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARQPSYHMYSWWVALDYWGQGTLVTVSSASTKGPSVFPLAPSSGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEP 224
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       145       155       165       175       185       195       205       215
                                                                                                                                                                    139|
                                                                                                                                                                     145


Chain K from PDB  Type:PROTEIN  Length:139
 aligned with KCSA_STRLI | P0A334 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:139
                                    31        41        51        61        71        81        91       101       111       121       131       141       151
           KCSA_STRLI    22 SALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGHFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............................................hhhhhh.................hhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs K  22 SALQWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGQEQQQQQQFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
                                    31        41        51        61        71        81        91       101       111       121       131       141       151


Chain L from PDB  Type:PROTEIN  Length:139
 aligned with KCSA_STRLI | P0A334 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:139
                                    31        41        51        61        71        81        91       101       111       121       131       141       151
           KCSA_STRLI    22 SALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGHFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............................................hhhhhh.................hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs L  22 SALQWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGQEQQQQQQFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
                                    31        41        51        61        71        81        91       101       111       121       131       141       151


Chain M from PDB  Type:PROTEIN  Length:139
 aligned with KCSA_STRLI | P0A334 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:139
                                    31        41        51        61        71        81        91       101       111       121       131       141       151
           KCSA_STRLI    22 SALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGHFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........................................hhhhhhhhhhh.................hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs M  22 SALQWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGQEQQQQQQFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
                                    31        41        51        61        71        81        91       101       111       121       131       141       151


Chain N from PDB  Type:PROTEIN  Length:139
 aligned with KCSA_STRLI | P0A334 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:139
                                    31        41        51        61        71        81        91       101       111       121       131       141       151
           KCSA_STRLI    22 SALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGREQERRGHFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----------Ion_trans_2-3pjsN01 N:33-116                                                        -------------------------------------------- Pfam domains (1)
           Pfam domains (2) -----------Ion_trans_2-3pjsN02 N:33-116                                                        -------------------------------------------- Pfam domains (2)
           Pfam domains (3) -----------Ion_trans_2-3pjsN03 N:33-116                                                        -------------------------------------------- Pfam domains (3)
           Pfam domains (4) -----------Ion_trans_2-3pjsN04 N:33-116                                                        -------------------------------------------- Pfam domains (4)
         Sec.struct. author ..........................................hhhhhhhhhhh...................hhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3pjs N  22 SALQWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRLVAVVVMVAGITSFGLVTAALATWFVGQEQQQQQQFVRHSEKAAEEAYTRTTRALHERFDRLERMLDDNRR 160
                                    31        41        51        61        71        81        91       101       111       121       131       141       151
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3PJS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3PJS)

(-) Pfam Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Clan: Ion_channel (150)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain K,L,M,N   (KCSA_STRLI | P0A334)
molecular function
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005249    voltage-gated potassium channel activity    Enables the transmembrane transfer of a potassium ion by a voltage-gated channel. A voltage-gated channel is a channel whose open state is dependent on the voltage across the membrane in which it is embedded.
biological process
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0071805    potassium ion transmembrane transport    A process in which a potassium ion is transported from one side of a membrane to the other.
    GO:0006813    potassium ion transport    The directed movement of potassium ions (K+) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0008076    voltage-gated potassium channel complex    A protein complex that forms a transmembrane channel through which potassium ions may cross a cell membrane in response to changes in membrane potential.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3pjs)

  Sites
(no "Sites" information available for 3pjs)

  Cis Peptide Bonds
    Ala A:96 - Pro A:97   [ RasMol ]
    Glu B:159 - Pro B:160   [ RasMol ]
    Glu D:159 - Pro D:160   [ RasMol ]
    Phe B:157 - Pro B:158   [ RasMol ]
    Phe D:157 - Pro D:158   [ RasMol ]
    Ser A:7 - Pro A:8   [ RasMol ]
    Ser C:7 - Pro C:8   [ RasMol ]
    Tyr C:142 - Pro C:143   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3pjs
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KCSA_STRLI | P0A334
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KCSA_STRLI | P0A334
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KCSA_STRLI | P0A334: 1bl8 1f6g 1j95 1jq1 1jq2 1jvm 1k4c 1k4d 1r3i 1r3j 1r3k 1r3l 1s33 1s5h 1zwi 2a9h 2atk 2bob 2boc 2dwd 2dwe 2h8p 2hg5 2hjf 2hvj 2hvk 2ih1 2ih3 2itc 2itd 2jk5 2nlj 2p7t 2qto 2w0f 3eff 3f5w 3f7v 3f7y 3fb5 3fb6 3fb7 3fb8 3gb7 3hpl 3ifx 3iga 3ogc 3or6 3or7 3stl 3stz 4lbe 4lcu 4msw 4uuj 5e1a 5ebl 5ebm 5ebw 5ec1 5ec2 5j9p

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3PJS)
