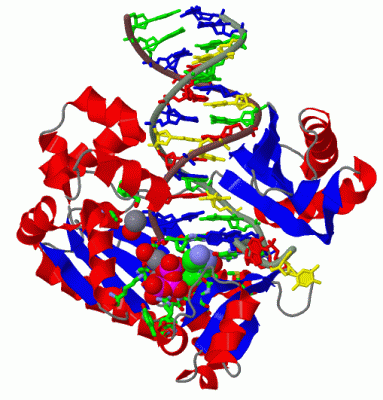

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Authors :  H. Ling, F. Boudsocq, R. Woodgate, W. Yang
Date :  31 Dec 03  (Deposition) - 30 Mar 04  (Release) - 13 Jul 11  (Revision)
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A,P,T
Keywords :  Abasic Lesion, Lesion Bypass, Polymerase, Transferase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))
Reference :  H. Ling, F. Boudsocq, R. Woodgate, W. Yang
Snapshots Of Replication Through An Abasic Lesion; Structural Basis For Base Substitutions And Frameshifts.
Mol. Cell V. 13 751 2004
PubMed-ID: 15023344  |  Reference-DOI: 10.1016/S1097-2765(04)00101-7

(-) Compounds

Molecule 1 - 5'-D(*GP*GP*CP*AP*CP*TP*GP*AP*TP*CP*AP*CP*G)-3'
Molecule 2 - 5'-D(*TP*AP*CP*GP*AP*CP*GP*TP*GP*AP*TP*CP*AP*GP*TP*GP*CP*C) -3'
    EC Number2.7.7.7
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET22B
    Expression System Taxid562
    Expression System Vector TypePLASMID
    Organism Taxid273057
    SynonymPOL IV

 Structural Features

(-) Chains, Units

Asymmetric/Biological Unit APT

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
1AC1SOFTWAREASP A:7 , GLU A:106 , CA A:404 , DCP A:804 , HOH A:805 , HOH A:813 , DG P:13BINDING SITE FOR RESIDUE CA A 403
4AC4SOFTWAREASP A:7 , PHE A:8 , TYR A:10 , PHE A:11 , TYR A:12 , ALA A:44 , THR A:45 , TYR A:48 , ARG A:51 , MET A:76 , ASP A:105 , LYS A:159 , CA A:403 , CA A:404 , HOH A:813 , DG P:13 , DG T:4BINDING SITE FOR RESIDUE DCP A 804

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1S0N)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
1Lys A:159 -Pro A:160

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1S0N)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
1UMUCPS50173 UmuC domain profile.DPO4_SULSO3-187  1A:3-187

(-) Exons   (0, 0)

(no "Exon" information available for 1S0N)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:341
 aligned with DPO4_SULSO | Q97W02 from UniProtKB/Swiss-Prot  Length:352

    Alignment length:341
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
               SCOP domains d1s0na2 A:1-240 DinB homolog (DBH)                                                                                                                                                                                                              d1s0na1 A:241-341 DinB homolog (DBH)                                                                  SCOP domains
               CATH domains -1s0nA02  -------------------------------------------------------------------1s0nA02 A:2-10,A:78-166  [code=, no name defined]                             1s0nA03 A:167-233 5' to 3' exonuclease, C-terminal subdomain       ----------1s0nA04 A:244-336  [code=3.30.1490.100, no name defined]                                     ----- CATH domains
               Pfam domains -----IMS-1s0nA02 A:6-156                                                                                                                                    -----------IMS_HHH-1s0nA01 A:168-199       -----------IMS_C-1s0nA03 A:211-334                                                                                                     ------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhhhhhhhhhhh...eeeeee.......eeeeeehhhhhh.......hhhhhhhhh...eeee.hhhhhhhhhhhhhhhhh.....eeeee..eeeee......hhhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhh...eeeehhhhhhhhhhhhhhhhh...hhhhhhhhhh....hhhhhh..hhhhhhhhhhhhhhhhhhhhhh.............eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhh...eeeeeeeeee....eeeeeee.....hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --UMUC  PDB: A:3-187 UniProt: 3-187                                                                                                                                                        ---------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340

Chain P from PDB  Type:DNA  Length:13
                 1s0n P   1 GGCACTGATCACG  13

Chain T from PDB  Type:DNA  Length:18
                 1s0n T   1 TACGACGTGATCAGTGCC  18

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (3, 3)

Asymmetric/Biological Unit
Class: Alpha Beta (26913)

(-) Pfam Domains  (3, 3)

Asymmetric/Biological Unit
Clan: HHH (112)

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DPO4_SULSO | Q97W02)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0003684    damaged DNA binding    Interacting selectively and non-covalently with damaged DNA.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0006261    DNA-dependent DNA replication    A DNA replication process that uses parental DNA as a template for the DNA-dependent DNA polymerases that synthesize the new strands.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.


(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)
  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    DCP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
  Cis Peptide Bonds
    Lys A:159 - Pro A:160   [ RasMol ]

(-) Still Images

  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
