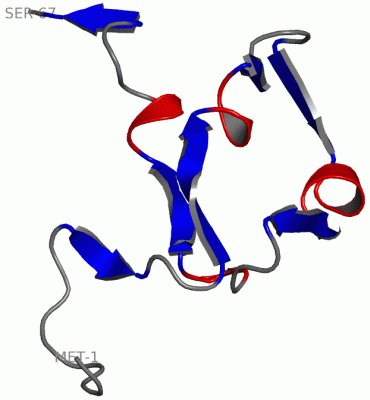

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

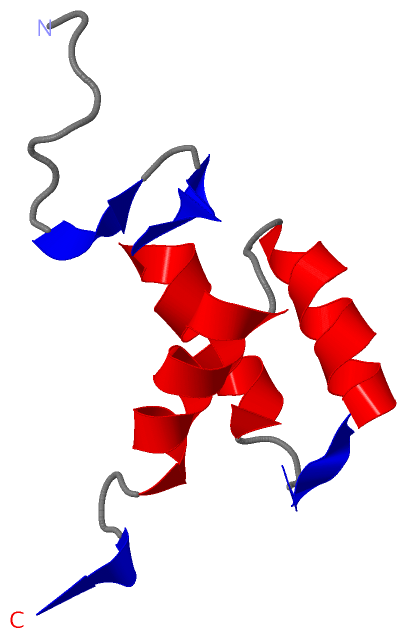

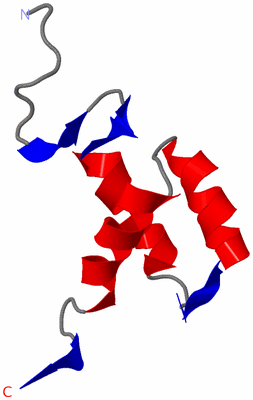

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

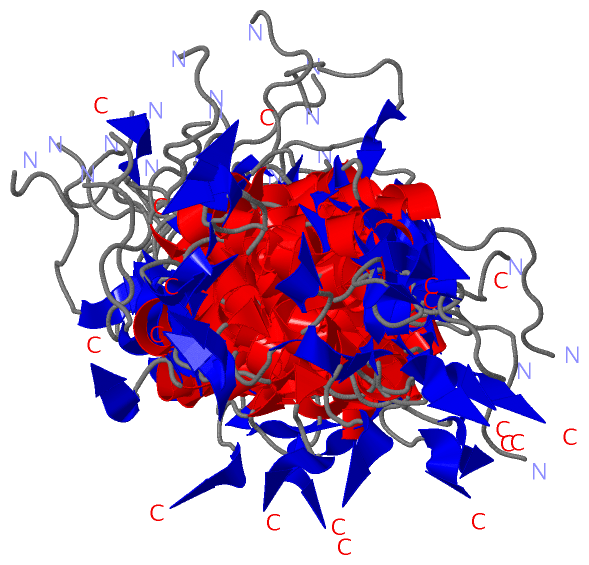

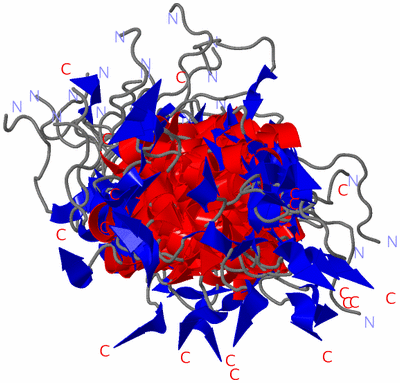

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF OCT3 POU-HOMEODOMAIN

Authors :  E. H. Morita, F. Hayashi, M. Shirakawa, Y. Kyogoku
Date :  21 Feb 95  (Deposition) - 15 Sep 95  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Dna-Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. H. Morita, M. Shirakawa, F. Hayashi, M. Imagawa, Y. Kyogoku
Structure Of The Oct-3 Pou-Homeodomain In Solution, As Determined By Triple Resonance Heteronuclear Multidimensional Nmr Spectroscopy
Protein Sci. V. 4 729 1995
PubMed-ID: 7613470
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - OCT-3
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Gene: T7 GENE 1 UNDER CONTROL OF THE LAC UV5 PROMOTER
    Expression System Plasmid: PAR2113
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: LAC
    Gene: T7 GENE 1 UNDER CONTROL OF THE
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1OCP)

(-) Sites  (0, 0)

(no "Site" information available for 1OCP)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1OCP)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1OCP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1OCP)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HOMEOBOX_2PS50071 'Homeobox' domain profile.PO5F1_MOUSE221-281  1A:6-66
2HOMEOBOX_1PS00027 'Homeobox' domain signature.PO5F1_MOUSE256-279  1A:41-64

(-) Exons   (0, 0)

(no "Exon" information available for 1OCP)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:67
 aligned with PO5F1_MOUSE | P20263 from UniProtKB/Swiss-Prot  Length:352

    Alignment length:67
                                   225       235       245       255       265       275
          PO5F1_MOUSE   216 SETLVQARKRKRTSIENRVRWSLETMFLKCPKPSLQQITHIANQLGLEKDVVRVWFCNRRQKGKRSS 282
               SCOP domains d1ocpa_ A: Oct-3 POU Homeodomain                                    SCOP domains
               CATH domains 1ocpA00 A:1-67 Homeodomain-like                                     CATH domains
               Pfam domains --------Homeobox-1ocpA01 A:9-65                                  -- Pfam domains
     Sec.struct. author (1) ........eee..---hhhhhhhhhhh...eeeehhhhhhhhhhh...hhhhhhhhhhhh...eee. Sec.struct. author (1)
     Sec.struct. author (2) -------------eeeeeeee---eee-----------eeeeeee-----eeeeeee---------- Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -----HOMEOBOX_2  PDB: A:6-66 UniProt: 221-281                     - PROSITE (1)
                PROSITE (2) ----------------------------------------HOMEOBOX_1  PDB: A:41-64--- PROSITE (2)
                 Transcript ------------------------------------------------------------------- Transcript
                 1ocp A   1 METLVQARKRKRTSIENRVRWSLETMFLKCPKPSLQQITHIANQLGLEKDVVRVWFCNRRQKGKRSS  67
                                    10        20        30        40        50        60
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HTH (544)

(-) Gene Ontology  (72, 72)

NMR Structure(hide GO term definitions)
Chain A   (PO5F1_MOUSE | P20263)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0071837    HMG box domain binding    Interacting selectively and non-covalently with an HMG box domain, a protein domain that consists of three helices in an irregular array. HMG-box domains are found in one or more copies in HMG-box proteins, which form a large, diverse family involved in the regulation of DNA-dependent processes such as transcription, replication, and strand repair, all of which require the bending and unwinding of chromatin.
    GO:0070974    POU domain binding    Interacting selectively and non-covalently with a POU domain of a protein. The POU domain is a bipartite DNA binding domain composed of two subunits separated by a non-conserved region of 15-55 amino acids; it is found in several eukaryotic transcription factors.
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0001162    RNA polymerase II intronic transcription regulatory region sequence-specific DNA binding    Interacting selectively and non-covalently with an RNA polymerase II intronic DNA sequence that regulates the transcription of the transcript it is contained within.
    GO:0001105    RNA polymerase II transcription coactivator activity    Interacting selectively and non-covalently with an RNA polymerase II (RNAP II) regulatory transcription factor and also with the RNAP II basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind DNA, but rather mediate protein-protein interactions between activating transcription factors and the basal RNAP II transcription machinery.
    GO:0000981    RNA polymerase II transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription by RNA polymerase II. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0031490    chromatin DNA binding    Interacting selectively and non-covalently with DNA that is assembled into chromatin.
    GO:0003682    chromatin binding    Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
    GO:0019955    cytokine binding    Interacting selectively and non-covalently with a cytokine, any of a group of proteins that function to control the survival, growth and differentiation of tissues and cells, and which have autocrine and paracrine activity.
    GO:0001158    enhancer sequence-specific DNA binding    Interacting selectively and non-covalently with a specific sequence of DNA that is part of an enhancer, a transcription regulatory region that is somewhat distal from the core promoter and which enhances transcription from that promoter.
    GO:0035198    miRNA binding    Interacting selectively and non-covalently with a microRNA, a 21-23 nucleotide RNA that is processed from a stem-loop RNA precursor (pre-miRNA) that is encoded within plant and animal genomes.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
    GO:0003714    transcription corepressor activity    Interacting selectively and non-covalently with a repressing transcription factor and also with the basal transcription machinery in order to stop, prevent, or reduce the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between repressive transcription factors and the basal transcription machinery.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
    GO:0044212    transcription regulatory region DNA binding    Interacting selectively and non-covalently with a DNA region that regulates the transcription of a region of DNA, which may be a gene, cistron, or operon. Binding may occur as a sequence specific interaction or as an interaction observed only once a factor has been recruited to the DNA by other factors.
    GO:0000976    transcription regulatory region sequence-specific DNA binding    Interacting selectively and non-covalently with a specific sequence of DNA that is part of a regulatory region that controls transcription of that section of the DNA. The transcribed region might be described as a gene, cistron, or operon.
    GO:0001077    transcriptional activator activity, RNA polymerase II core promoter proximal region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to activate or increase the frequency, rate or extent of transcription from the RNAP II promoter.
    GO:0001227    transcriptional repressor activity, RNA polymerase II transcription regulatory region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in the regulatory region for RNA polymerase II (RNAP II) in order to stop, prevent, or reduce the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0031625    ubiquitin protein ligase binding    Interacting selectively and non-covalently with a ubiquitin protein ligase enzyme, any of the E3 proteins.
biological process
    GO:0003130    BMP signaling pathway involved in heart induction    A series of molecular signals initiated by the binding of a member of the BMP (bone morphogenetic protein) family to a receptor on the surface of a target cell, which contributes to heart induction.
    GO:0001824    blastocyst development    The process whose specific outcome is the progression of the blastocyst over time, from its formation to the mature structure. The mammalian blastocyst is a hollow ball of cells containing two cell types, the inner cell mass and the trophectoderm.
    GO:0001832    blastocyst growth    An increase in size of a blastocyst due to expansion of the blastocoelic cavity cell shape changes and cell proliferation.
    GO:0060913    cardiac cell fate determination    The process involved in cardiac cell fate commitment. Once determination has taken place, a cell becomes committed to differentiate down a particular pathway regardless of its environment.
    GO:0045165    cell fate commitment    The commitment of cells to specific cell fates and their capacity to differentiate into particular kinds of cells. Positional information is established through protein signals that emanate from a localized source within a cell (the initial one-cell zygote) or within a developmental field.
    GO:0060795    cell fate commitment involved in formation of primary germ layer    The commitment of cells to specific cell fates of the endoderm, ectoderm, or mesoderm as a part of gastrulation.
    GO:0001712    ectodermal cell fate commitment    The cell differentiation process that results in commitment of a cell to become part of the ectoderm.
    GO:0001711    endodermal cell fate commitment    The cell differentiation process that results in commitment of a cell to become part of the endoderm.
    GO:0001714    endodermal cell fate specification    The cell fate determination process that results in a cell becoming capable of differentiating autonomously into an endoderm cell in an environment that is neutral with respect to the developmental pathway; upon specification, the cell fate can be reversed.
    GO:0030718    germ-line stem cell population maintenance    Any process by which an organism or tissue maintains a population of germ-line stem cells.
    GO:0042789    mRNA transcription from RNA polymerase II promoter    The cellular synthesis of messenger RNA (mRNA) from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter.
    GO:0001710    mesodermal cell fate commitment    The cell differentiation process that results in commitment of a cell to become part of the mesoderm.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0045955    negative regulation of calcium ion-dependent exocytosis    Any process that stops, prevents, or reduces the frequency, rate or extent of calcium ion-dependent exocytosis.
    GO:0045596    negative regulation of cell differentiation    Any process that stops, prevents, or reduces the frequency, rate or extent of cell differentiation.
    GO:0010629    negative regulation of gene expression    Any process that decreases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0060965    negative regulation of gene silencing by miRNA    Any process that decreases the rate, frequency, or extent of the downregulation of gene expression through the action of microRNAs (miRNAs), endogenous 21-24 nucleotide small RNAs processed from stem-loop RNA precursors (pre-miRNAs). Once incorporated into a RNA-induced silencing complex (RISC), miRNAs can downregulate gene expression by either of two posttranscriptional mechanisms: mRNA cleavage or translational repression.
    GO:0051898    negative regulation of protein kinase B signaling    Any process that stops, prevents, or reduces the frequency, rate or extent of protein kinase B signaling, a series of reactions mediated by the intracellular serine/threonine kinase protein kinase B.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0060391    positive regulation of SMAD protein import into nucleus    Any process that increases the rate, frequency or extent of SMAD protein import into the nucleus, i.e. the directed movement of a SMAD proteins from the cytoplasm into the nucleus. Pathway-restricted SMAD proteins and common-partner SMAD proteins are involved in the transforming growth factor beta receptor signaling pathways.
    GO:0035413    positive regulation of catenin import into nucleus    Any process that increases the rate, frequency or extent of the directed movement of a catenin protein from the cytoplasm into the nucleus.
    GO:0010628    positive regulation of gene expression    Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0051897    positive regulation of protein kinase B signaling    Any process that activates or increases the frequency, rate or extent of protein kinase B signaling, a series of reactions mediated by the intracellular serine/threonine kinase protein kinase B.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0009786    regulation of asymmetric cell division    Any process that modulates the frequency, rate or extent of asymmetric cell division.
    GO:0010468    regulation of gene expression    Any process that modulates the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0090081    regulation of heart induction by regulation of canonical Wnt signaling pathway    Any process that modulates the rate, frequency or extent of canonical Wnt signaling pathway that regulates heart induction. Canonical Wnt signaling pathway involved in heart induction is the series of molecular signals initiated by binding of Wnt protein to a frizzled family receptor on the surface of the target cell, followed by relaying of the signal via beta-catenin, and ending with a change in transcription of target genes.
    GO:0090308    regulation of methylation-dependent chromatin silencing    Any process that modulates the rate, frequency, or extent of the repression of transcription by methylation of DNA, leading to the formation of heterochromatin.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0034097    response to cytokine    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a cytokine stimulus.
    GO:0010033    response to organic substance    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic substance stimulus.
    GO:0032526    response to retinoic acid    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a retinoic acid stimulus.
    GO:0035019    somatic stem cell population maintenance    Any process by which an organism retains a population of somatic stem cells, undifferentiated cells in the embryo or adult which can undergo unlimited division and give rise to cell types of the body other than those of the germ-line.
    GO:0048863    stem cell differentiation    The process in which a relatively unspecialized cell acquires specialized features of a stem cell. A stem cell is a cell that retains the ability to divide and proliferate throughout life to provide progenitor cells that can differentiate into specialized cells.
    GO:0019827    stem cell population maintenance    The process by which an organism or tissue maintains a population of stem cells of a single type. This can be achieved by a number of mechanisms: stem cell asymmetric division maintains stem cell numbers; stem cell symmetric division increases them; maintenance of a stem cell niche maintains the conditions for commitment to the stem cell fate for some types of stem cell; stem cells may arise de novo from other cell types.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0001829    trophectodermal cell differentiation    The process in which a relatively unspecialized cell acquires the specialized features of a trophectoderm cell.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0000790    nuclear chromatin    The ordered and organized complex of DNA, protein, and sometimes RNA, that forms the chromosome in the nucleus.
    GO:0044798    nuclear transcription factor complex    A protein complex, located in the nucleus, that is capable of associating with DNA by direct binding, or via other DNA-binding proteins or complexes, and regulating transcription.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005667    transcription factor complex    A protein complex that is capable of associating with DNA by direct binding, or via other DNA-binding proteins or complexes, and regulating transcription.
    GO:0017053    transcriptional repressor complex    A protein complex that possesses activity that prevents or downregulates transcription.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ocp)

  Sites
(no "Sites" information available for 1ocp)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ocp)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ocp
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PO5F1_MOUSE | P20263
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PO5F1_MOUSE | P20263
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PO5F1_MOUSE | P20263: 3l1p

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1OCP)
