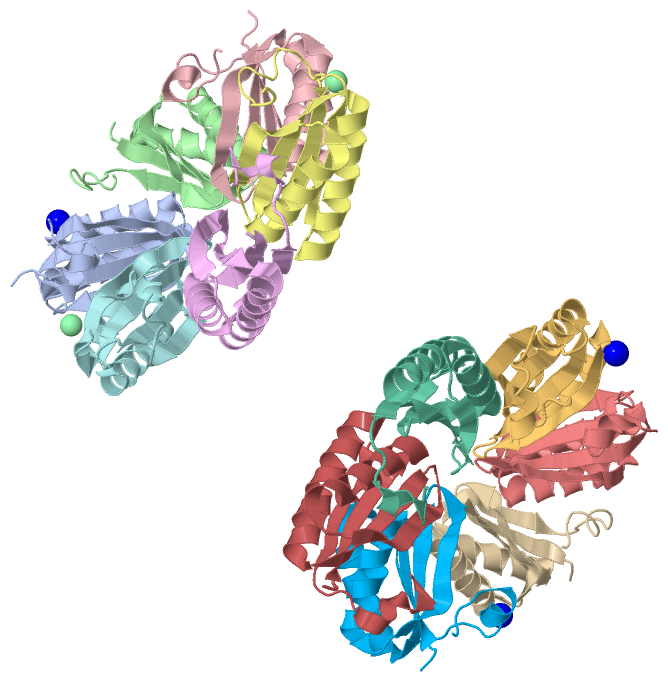

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

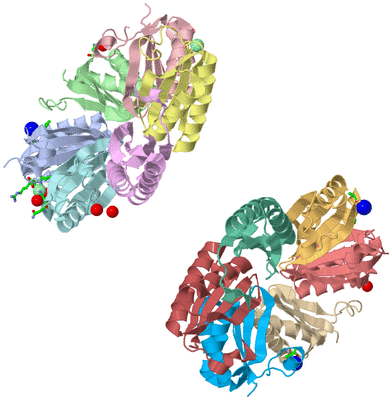

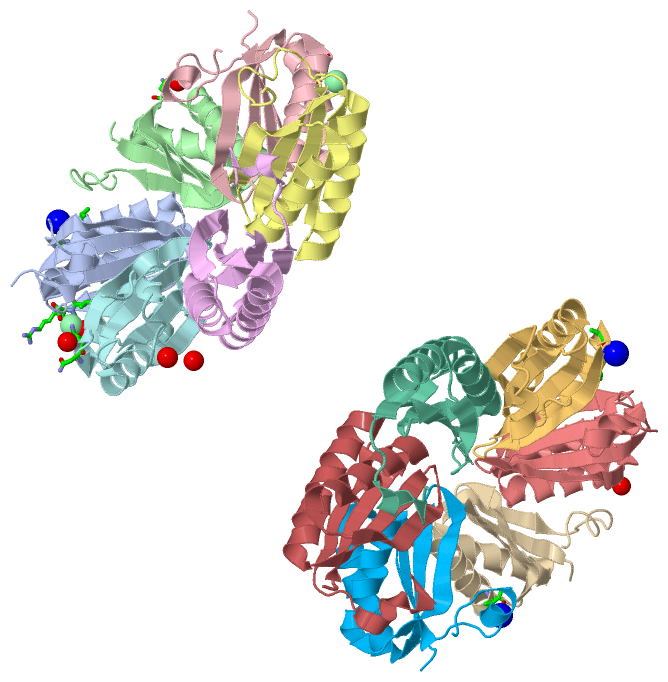

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

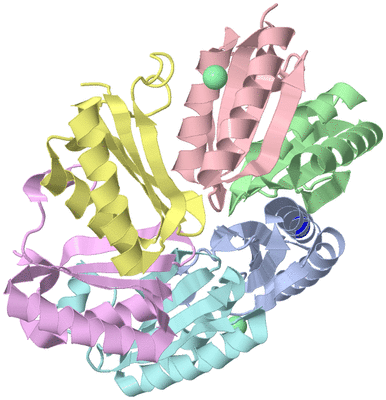

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

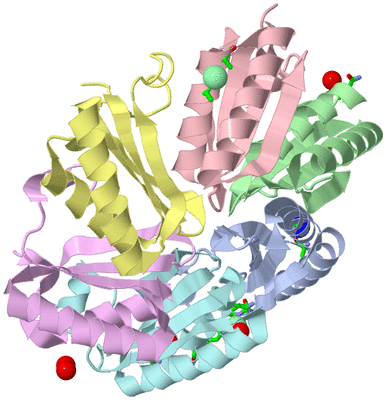

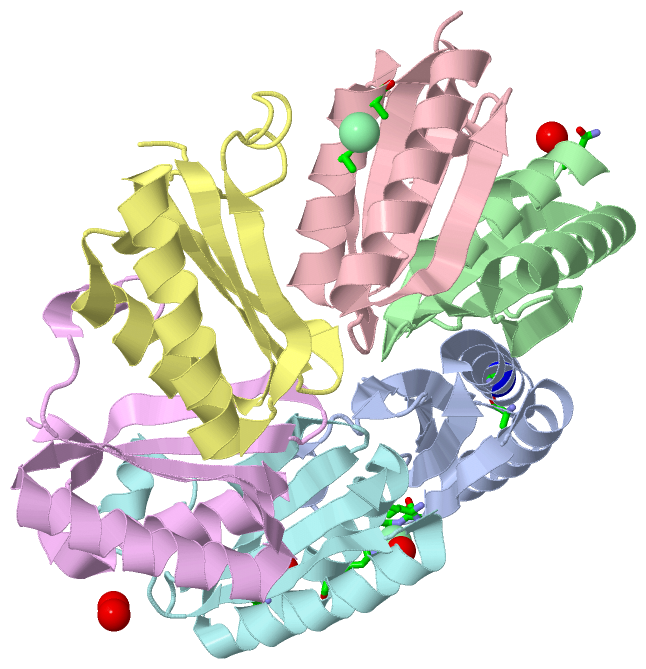

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

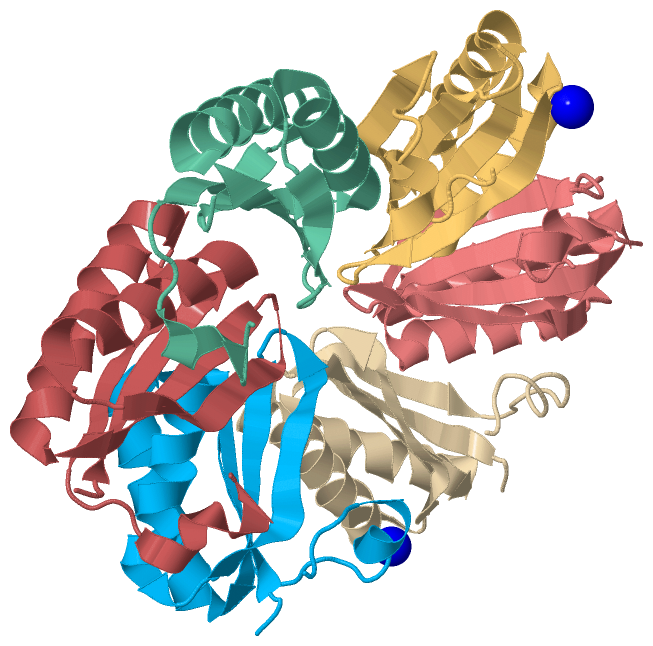

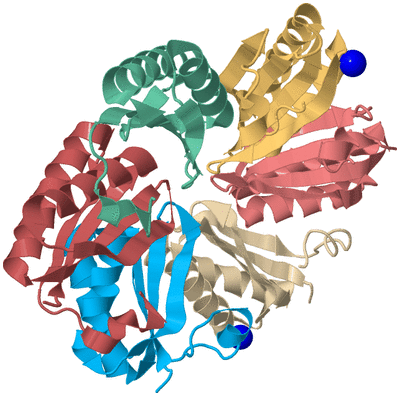

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF THE HEXAGONAL SHELL PROTEIN MSM0272 FROM THE RMM MICROCOMPARTMENT

Authors :  E. Mallette, M. S. Kimber
Date :  03 Aug 16  (Deposition) - 14 Dec 16  (Release) - 08 Feb 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,C,D,E,F  (1x)
Biol. Unit 2:  G,H,I,J,K,L  (1x)
Keywords :  Bacterial Microcompartment, Hexameric Shell Protein, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Mallette, M. S. Kimber
A Complete Structural Inventory Of The Mycobacterial Microcompartment Shell Proteins Constrains Models Of Global Architecture And Transport.
J. Biol. Chem. V. 292 1197 2017
PubMed-ID: 27927988  |  Reference-DOI: 10.1074/JBC.M116.754093

(-) Compounds

Molecule 1 - MSM0272 - RMM MICROCOMPARTMENT SHELL PROTEIN
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: MSMEG_0272, MSMEI_0265
    Organism Scientific: MYCOBACTERIUM SMEGMATIS (STRAIN ATCC 700084 / MC(2)155)
    Organism Taxid: 246196
    Strain: ATCC 700084 / MC(2)155
    Synonym: PROPANEDIOL UTILIZATION PROTEIN PDUA

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): ABCDEF
Biological Unit 2 (1x):       GHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1CL2Ligand/IonCHLORIDE ION
2NA3Ligand/IonSODIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2NA-1Ligand/IonSODIUM ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2NA-1Ligand/IonSODIUM ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREVAL A:25 , ALA A:28 , HOH A:306 , HOH A:356 , HOH H:228binding site for residue NA A 201
2AC2SOFTWAREILE A:77 , PRO A:78 , ARG A:79 , LYS F:26 , HOH F:280binding site for residue CL A 202
3AC3SOFTWAREALA C:23 , ALA C:27 , HOH E:256 , HOH F:268binding site for residue CL C 201
4AC4SOFTWAREASN F:29 , HOH F:224 , VAL G:25 , ALA G:28 , HOH H:225binding site for residue NA G 201
5AC5SOFTWAREASN B:29 , HOH B:225 , VAL I:25 , ALA I:28 , HOH J:218binding site for residue NA I 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5L38)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ser F:2 -Ser F:3

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5L38)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5L38)

(-) Exons   (0, 0)

(no "Exon" information available for 5L38)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:91

               SCOP domains ------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeehhhhhhhhhhhhhhhh.eeeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee.....hhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------- Transcript
                  5l38 A  2 SSNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVSS 92
                                    11        21        31        41        51        61        71        81        91


Chain B from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee........... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                  5l38 B  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHF 88
                                    12        22        32        42        52        62        72        82


Chain C from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhheeeeeeee.....hhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  5l38 C  2 SSNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVS 91
                                    11        21        31        41        51        61        71        81        91


Chain D from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  5l38 D  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVS 91
                                    12        22        32        42        52        62        72        82


Chain E from PDB  Type:PROTEIN  Length:85

               SCOP domains ------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhheeeeeeee...hhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                  5l38 E  4 NAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHF 88
                                    13        23        33        43        53        63        73        83


Chain F from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee.....hhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  5l38 F  2 SSNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVS 91
                                    11        21        31        41        51        61        71        81        91


Chain G from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeehhhhhhhhhhhhhhhh.eeeeeeee....eeeeeeeehhhhhhhhhhhhhhhhhhhheeeeeeee.....hhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  5l38 G  2 SSNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVS 91
                                    11        21        31        41        51        61        71        81        91


Chain H from PDB  Type:PROTEIN  Length:88

               SCOP domains ---------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhheeeeeeee.....hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  5l38 H  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSV 90
                                    12        22        32        42        52        62        72        82


Chain I from PDB  Type:PROTEIN  Length:87

               SCOP domains --------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee............ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  5l38 I  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFS 89
                                    12        22        32        42        52        62        72        82


Chain J from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhheeeeeeee.....hhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  5l38 J  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHFSVS 91
                                    12        22        32        42        52        62        72        82


Chain K from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee...hhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                  5l38 K  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHF 88
                                    12        22        32        42        52        62        72        82


Chain L from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeehhhhhhhhhhhhhhhh..eeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhh.eeeeeee...hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                  5l38 L  3 SNAIGLIETKGYVAALAAADAMVKAANVTITDRQQVGDGLVAVIVTGEVGAVKAATEAGAETASQVGELVSVHVIPRPHSELGAHF 88
                                    12        22        32        42        52        62        72        82
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5L38)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5L38)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5L38)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5L38)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser F:2 - Ser F:3   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5l38
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0QP49_MYCS2 | A0QP49
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0QP49_MYCS2 | A0QP49
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 5L38)

(-) Related Entries Specified in the PDB File

5l37 5l39 5suh
