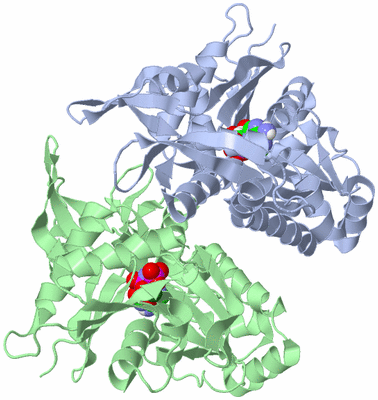

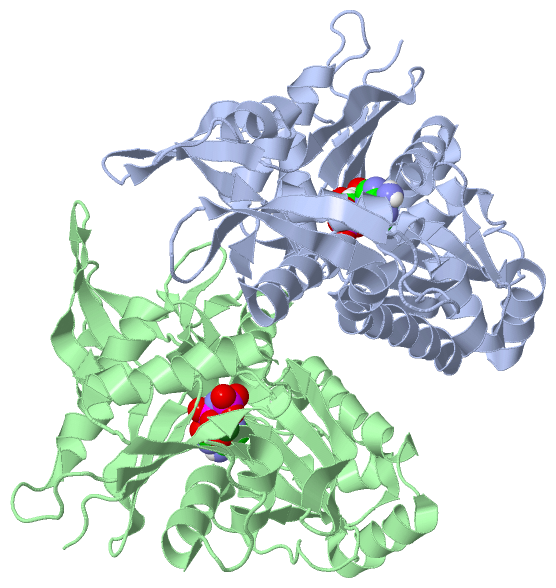

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

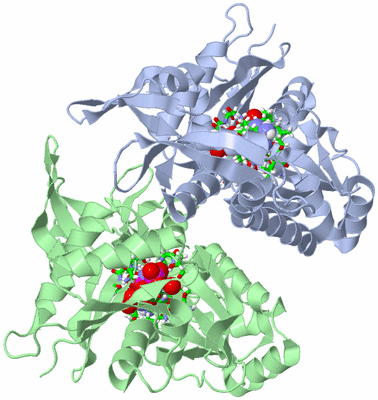

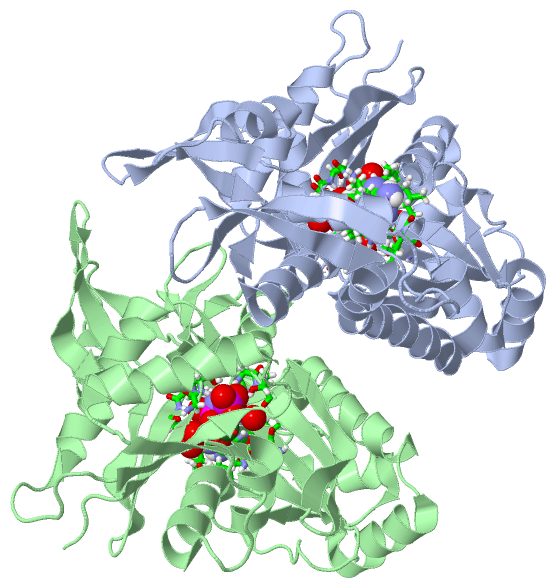

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

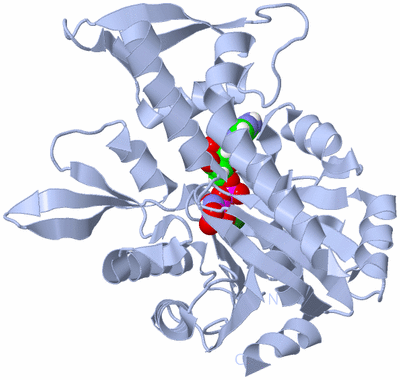

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

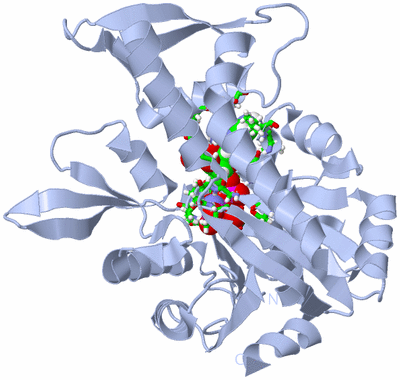

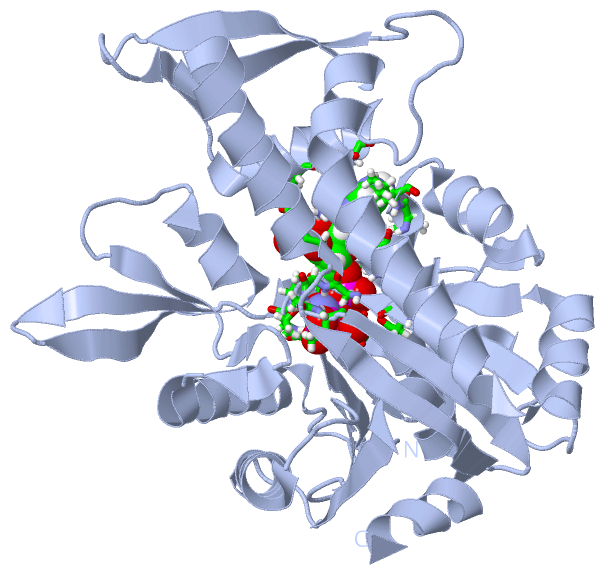

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

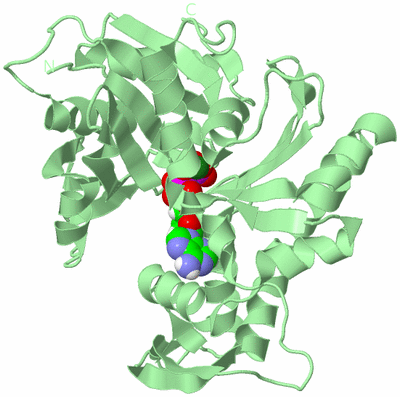

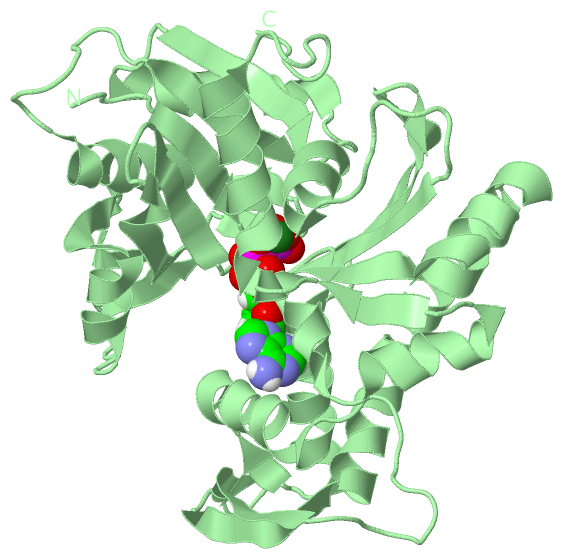

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  C. CRESCENTUS MREB, MONOMERIC, AMPPNP

Authors :  J. Lowe, F. Van Den Ent
Date :  19 Apr 14  (Deposition) - 13 Aug 14  (Release) - 13 Aug 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Structural Protein, Bacterial Actin, Bacterial Cytoskeleton (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Van Den Ent, T. Izore, T. A. Bharat, C. M. Johnson, J. Lowe
Bacterial Actin Mreb Forms Antiparallel Double Filaments.
Elife V. 3 02634 2014
PubMed-ID: 24843005  |  Reference-DOI: 10.7554/ELIFE.02634

(-) Compounds

Molecule 1 - ROD SHAPE-DETERMINING PROTEIN MREB
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: C41
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 9-347
    Mutation: YES
    Organism Scientific: CAULOBACTER VIBRIOIDES
    Organism Taxid: 155892
    Synonym: MREB

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric Unit (2, 4)
No.NameCountTypeFull Name
1ANP2Ligand/IonPHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
2MG2Ligand/IonMAGNESIUM ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1ANP1Ligand/IonPHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
2MG-1Ligand/IonMAGNESIUM ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1ANP1Ligand/IonPHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
2MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:162 , ANP A:1346 , HOH A:2001 , HOH A:2003 , HOH A:2013 , HOH A:2015BINDING SITE FOR RESIDUE MG A1345
2AC2SOFTWAREGLY A:18 , THR A:19 , ALA A:20 , ASN A:21 , GLY A:164 , GLY A:165 , GLY A:166 , THR A:167 , GLY A:188 , GLU A:213 , LYS A:216 , LYS A:217 , GLY A:294 , GLY A:295 , GLY A:296 , LEU A:298 , LEU A:299 , LEU A:321 , MG A:1345 , HOH A:2001 , HOH A:2002 , HOH A:2003 , HOH A:2013 , HOH A:2014 , HOH A:2015 , HOH A:2020 , HOH A:2026BINDING SITE FOR RESIDUE ANP A1346
3AC3SOFTWAREASP B:162 , ANP B:1346 , HOH B:2001 , HOH B:2002 , HOH B:2009 , HOH B:2011BINDING SITE FOR RESIDUE MG B1345
4AC4SOFTWAREGLY B:18 , THR B:19 , ALA B:20 , ASN B:21 , GLY B:164 , GLY B:165 , GLY B:166 , THR B:167 , GLY B:188 , GLU B:213 , LYS B:216 , GLY B:294 , GLY B:295 , GLY B:296 , LEU B:298 , LEU B:299 , LEU B:321 , MG B:1345 , HOH B:2001 , HOH B:2002 , HOH B:2003 , HOH B:2009 , HOH B:2010 , HOH B:2011 , HOH B:2013 , HOH B:2016BINDING SITE FOR RESIDUE ANP B1346

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4CZM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4CZM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4CZM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4CZM)

(-) Exons   (0, 0)

(no "Exon" information available for 4CZM)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:336
 aligned with A0A0H3C7V4_C | A0A0H3C7V4 from UniProtKB/TrEMBL  Length:347

    Alignment length:336
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
         A0A0H3C7V4_C     9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGFVNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELASDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLES 344
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee...eeeeee...eeeeeee..eeeeee..eeeeeeehhhhhhhh......eeee..ee..ee.hhhhhhhhhhhhhhhh.........eeeeee....hhhhhhhhhhhhhh....eeeeeehhhhhhhhhh........eeeeee....eeeeeee..eeeeeeee..hhhhhhhhhhhhhhhhhhee.hhhhhhhhhhhh............eeeeeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhheeeehhhhhh.hhhhhhhhhhh..eee..hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4czm A   9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGSGNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELADDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLES 344
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338


Chain B from PDB  Type:PROTEIN  Length:336
 aligned with A0A0H3C7V4_C | A0A0H3C7V4 from UniProtKB/TrEMBL  Length:347

    Alignment length:336
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
         A0A0H3C7V4_C     9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGFVNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELASDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLES 344
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee...eeeeee...eeeeeee..eeeeee..eeeeeeehhhhhhhh......eeee..ee..ee.hhhhhhhhhhhhhhhhh........eeeeee....hhhhhhhhhhhhhhh...eeeeeehhhhhhhhh.........eeeeee....eeeeeee..eeeeeeee..hhhhhhhhhhhhhhhh..ee.hhhhhhhhhhhh............eeeeeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhheeeehhhhhh.hhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4czm B   9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGSGNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELADDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLES 344
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4CZM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4CZM)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4CZM)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4CZM)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ANP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4czm)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4czm
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3C7V4_C | A0A0H3C7V4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3C7V4_C | A0A0H3C7V4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A0H3C7V4_C | A0A0H3C7V4: 4cze 4czf 4czg 4czh 4czi 4czj 4czk 4czl

(-) Related Entries Specified in the PDB File

4cze C. CRESCENTUS MREB, DOUBLE FILAMENT, EMPTY
4czf C. CRESCENTUS MREB, SINGLE FILAMENT, ADP
4czg C. CRESCENTUS MREB, SINGLE FILAMENT, ADP, A22 INHIBITOR
4czh C. CRESCENTUS MREB, SINGLE FILAMENT, ADP, MP265 INHIBITOR
4czi C. CRESCENTUS MREB, SINGLE FILAMENT, EMPTY
4czj C. CRESCENTUS MREB, DOUBLE FILAMENT, AMPPNP
4czk C. CRESCENTUS MREB, SINGLE FILAMENT, AMPPNP, MP265 INHIBITOR
4czl C. CRESCENTUS MREB, MONOMERIC, ADP
