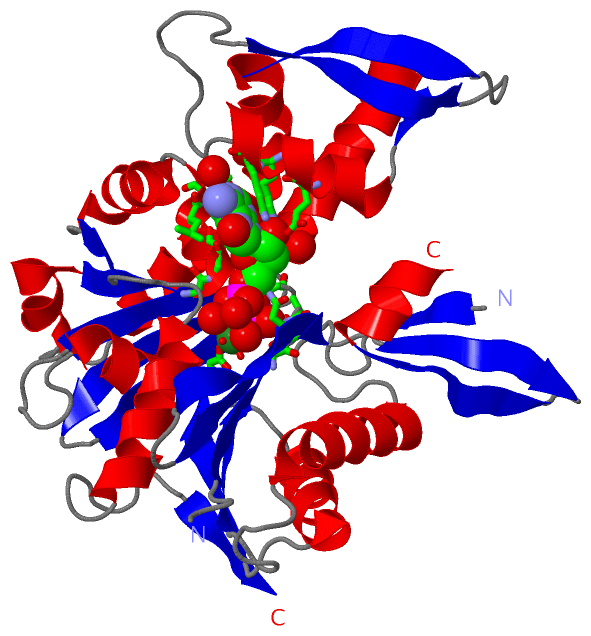

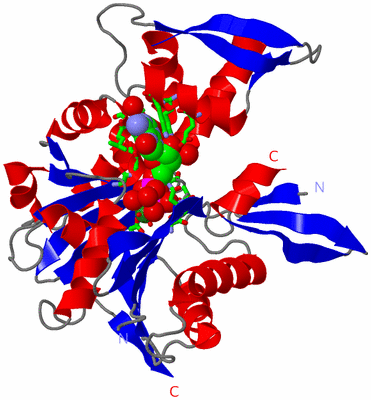

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  C. CRESCENTUS MREB, MONOMERIC, ADP

Authors :  J. Lowe, F. Van Den Ent
Date :  19 Apr 14  (Deposition) - 25 Jun 14  (Release) - 25 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Protein, Bacterial Actin, Bacterial Cytoskeleton (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Van Den Ent, T. Izore, T. A. Bharat, C. M. Johnson, J. Lowe
Bacterial Actin Mreb Forms Antiparallel Double Filaments.
Elife V. 3 02634 2014
PubMed-ID: 24843005  |  Reference-DOI: 10.7554/ELIFE.02634

(-) Compounds

Molecule 1 - ROD SHAPE-DETERMINING PROTEIN MREB
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: C41
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 9-347
    Mutation: YES
    Organism Scientific: CAULOBACTER VIBRIOIDES
    Organism Taxid: 155892
    Synonym: MREB

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1ADP1Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MG1Ligand/IonMAGNESIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:140 , ADP A:1349 , HOH A:2002 , HOH A:2003 , HOH A:2111 , HOH A:2112BINDING SITE FOR RESIDUE MG A1348
2AC2SOFTWAREGLY A:18 , THR A:19 , ALA A:20 , ASN A:21 , GLY A:164 , GLY A:165 , GLY A:188 , GLU A:213 , LYS A:216 , LYS A:217 , GLY A:294 , GLY A:295 , GLY A:296 , LEU A:298 , LEU A:299 , MG A:1348 , HOH A:2002 , HOH A:2003 , HOH A:2005 , HOH A:2111 , HOH A:2112 , HOH A:2135 , HOH A:2138 , HOH A:2157 , HOH A:2159 , HOH A:2198 , HOH A:2199BINDING SITE FOR RESIDUE ADP A1349

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4CZL)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:279 -Glu A:280

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4CZL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4CZL)

(-) Exons   (0, 0)

(no "Exon" information available for 4CZL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:333
 aligned with A0A0H3C7V4_C | A0A0H3C7V4 from UniProtKB/TrEMBL  Length:347

    Alignment length:339
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
         A0A0H3C7V4_C     9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGFVNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELASDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLESTLA 347
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee...eeeeee...eeeeeee..eeeeee..eeeeeeehhhhhhhh------.eee.........hhhhhhhhhhhhhhhhh........eeeeee....hhhhhhhhhhhhhhh...eeeeeehhhhhhhhhh........eeeeee....eeeeeee..eeeeeeee..hhhhhhhhhhhhhhhhhhee.hhhhhhhhhhhh............eeeeeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhheeeehhhhhh.hhhhhhhhhhh..eee.....hhhhhhhhhhhhh........eeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4czl A   9 ISNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQML------MEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGSGNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELADDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLEHPKWMKGVLESTLA 347
                                    18        28        38        48        58  |     68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
                                                                               61     68
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4CZL)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4CZL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4CZL)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4CZL)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:279 - Glu A:280   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4czl
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3C7V4_C | A0A0H3C7V4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3C7V4_C | A0A0H3C7V4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A0H3C7V4_C | A0A0H3C7V4: 4cze 4czf 4czg 4czh 4czi 4czj 4czk 4czm

(-) Related Entries Specified in the PDB File

4cze C. CRESCENTUS MREB, DOUBLE FILAMENT, EMPTY
4czf C. CRESCENTUS MREB, SINGLE FILAMENT, ADP
4czg C. CRESCENTUS MREB, SINGLE FILAMENT, ADP, A22 INHIBITOR
4czh C. CRESCENTUS MREB, SINGLE FILAMENT, ADP, MP265 INHIBITOR
4czi C. CRESCENTUS MREB, SINGLE FILAMENT, EMPTY
4czj C. CRESCENTUS MREB, DOUBLE FILAMENT, AMPPNP
4czk C. CRESCENTUS MREB, SINGLE FILAMENT, AMPPNP, MP265 INHIBITOR
4czm C. CRESCENTUS MREB, MONOMERIC, AMPPNP
