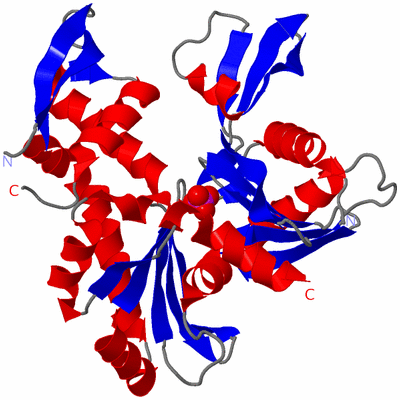

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

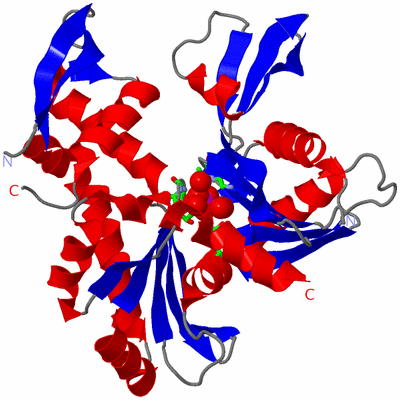

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  C. CRESCENTUS MREB, DOUBLE FILAMENT, EMPTY

Authors :  J. Lowe, F. Van Den Ent
Date :  19 Apr 14  (Deposition) - 11 Jun 14  (Release) - 25 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Protein, Bacterial Actin, Bacterial Cytoskeleton (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Van Den Ent, T. Izore, T. A. Bharat, C. M. Johnson, J. Lowe
Bacterial Actin Mreb Forms Antiparallel Double Filaments.
Elife V. 3 02634 2014
PubMed-ID: 24843005  |  Reference-DOI: 10.7554/ELIFE.02634

(-) Compounds

Molecule 1 - ROD SHAPE-DETERMINING PROTEIN MREB
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: C41
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 9-347
    Organism Scientific: CAULOBACTER VIBRIOIDES
    Organism Taxid: 155892
    Other Details: M-I9-CCMREB-A347-GSHHHHHH

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1PO41Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:18 , THR A:19 , GLY A:77 , GLU A:140 , GLY A:164 , GLY A:165 , GLY A:166 , THR A:167 , HOH A:2012 , HOH A:2016 , HOH A:2018 , HOH A:2283BINDING SITE FOR RESIDUE PO4 A1334

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4CZE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4CZE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4CZE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4CZE)

(-) Exons   (0, 0)

(no "Exon" information available for 4CZE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:321
 aligned with A0A0H3C7V4_C | A0A0H3C7V4 from UniProtKB/TrEMBL  Length:347

    Alignment length:324
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329
         A0A0H3C7V4_C    10 SNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGFVNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAPADGEGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELASDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLE 333
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeee...eeeeee...eeeeeee..eeeeee..eeeeeeehhhhhh........eeee..ee..ee.hhhhhhhhhhhhhhhhh........eeeeee....hhhhhhhhhhhhhhh...eeeeeehhhhhhhhhh........eeeeee....eeeeeee..eeeeeeee..hhhhhhhhhhhhhhhhhhee.hhhhhhhhhhhhh.....---...eeeeeeee.....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhheeeehhhhhh.hhhhhhhhhhh..eee..hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4cze A  10 SNDIAIDLGTANTLIYQKGKGIVLNEPSVVALRNVGGRKVVHAVGIEAKQMLGRTPGHMEAIRPMRDGVIADFEVAEEMIKYFIRKVHNRKGFVNPKVIVCVPSGATAVERRAINDSCLNAGARRVGLIDEPMAAAIGAGLPIHEPTGSMVVDIGGGTTEVAVLSLSGIVYSRSVRVGGDKMDEAIISYMRRHHNLLIGETTAERIKKEIGTARAP---EGLSIDVKGRDLMQGVPREVRISEKQAADALAEPVGQIVEAVKVALEATPPELASDIADKGIMLTGGGALLRGLDAEIRDHTGLPVTVADDPLSCVALGCGKVLE 333
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219     | 229       239       249       259       269       279       289       299       309       319       329
                                                                                                                                                                                                                                                 225 229
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4CZE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4CZE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4CZE)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4CZE)
