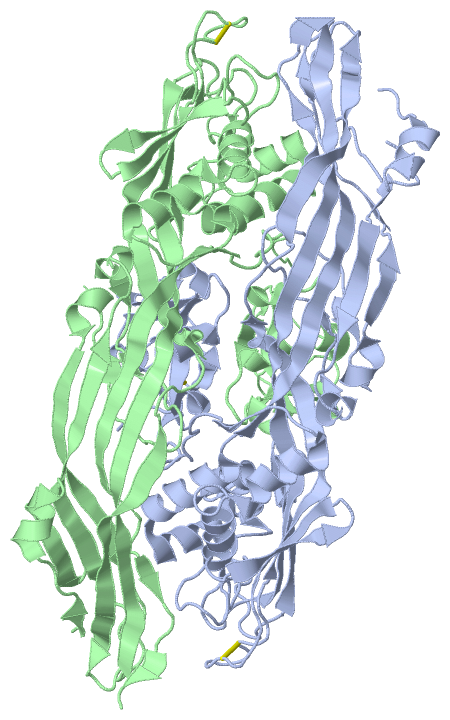

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE ACTIVATED AEROLYSIN MUTANT H132N

Authors :  L. Pernot, M. Schiltz, G. Van Der Goot
Date :  04 Feb 09  (Deposition) - 09 Feb 10  (Release) - 03 Aug 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Toxin, Cytolytic Toxin, Pore-Forming Toxin, Membrane, Secreted (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. Iacovache, M. T. Degiacomi, L. Pernot, S. Ho, M. Schiltz, M. Dal Peraro, F. G. Van Der Goot
Dual Chaperone Role Of The C-Terminal Propeptide In Folding And Oligomerization Of The Pore-Forming Toxin Aerolysin.
Plos Pathog. V. 7 02135 2011
PubMed-ID: 21779171  |  Reference-DOI: 10.1371/JOURNAL.PPAT.1002135
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - AEROLYSIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET22B(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AERA
    Mutation: YES
    Organism Scientific: AEROMONAS HYDROPHILA
    Organism Taxid: 644

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3G4O)

(-) Sites  (0, 0)

(no "Site" information available for 3G4O)

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:19 -A:75
2A:159 -A:164
3B:19 -B:75
4B:159 -B:164

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3G4O)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3G4O)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1AEROLYSINPS00274 Aerolysin type toxins signature.AERA_AERHY246-255
 		  2A:223-232
B:223-232

(-) Exons   (0, 0)

(no "Exon" information available for 3G4O)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:439
 aligned with AERA_AERHY | P09167 from UniProtKB/Swiss-Prot  Length:493

    Alignment length:461
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474       484
           AERA_AERHY    25 EPVYPDQLRLFSLGQGVCGDKYRPVNREEAQSVKSNIVGMMGQWQISGLANGWVIMGPGYNGEIKPGTASNTWCYPTNPVTGEIPTLSALDIPDGDEVDVQWRLVHDSANFIKPTSYLAHYLGYAWVGGNHSQYVGEDMDVTRDGDGWVIRGNNDGGCDGYRCGDKTAIKVSNFAYNLDPDSFKHGDVTQSDRQLVKTVVGWAVNDSDTPQSGYDVTLRYDTATNWSKTNTYGLSEKVTTKNKFKWPLVGETELSIEIAANQSWASQNGGSTTTSLSQSVRPTVPARSKIPVKIELYKADISYPYEFKADVSYDLTLSGFLRWGGNAWYTHPDNRPNWNHTFVIGPYKDKASSIRYQWDKRYIPGEVKWWDWNWTIQQNGLSTMQNNLARVLRPVRAGITGDFSAESQFAGNIEIGAPVPLAADSKVRRARSVDGAGQGLRLEIPLDAQELSGLGFNNVSL 485
               SCOP domains d3g4oa1 A:2-84 Proaerolysin, N-terminal domain                                     d3g4oa2 A:85-462 (Pro)aerolysin, pore-forming lobe                                                                                                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 3g4oA01 A:2-90 Pertussis Toxin, subunit B, domain 1                                      3g4oA02 A:91-176,A:311-397 Proaerolysin, chain A, domain 2                            3g4oA03 A:177-310,A:398-462 Proaerolysin, chain A, domain 3                                                                           3g4oA02 A:91-176,A:311-397 Proaerolysin, chain A, domain 2                             3g4oA03 A:177-310,A:398-4                      62 Proaerolysin, c CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhheee..........eee.hhhhhhhhhhhhhh......eee....eeee.hhhh..eee.....eeeee.............eee...hhhhhhhhhhh....hhhhhhhhhhhhh...............eeeeee..eeeeee...............eeeeeeeeeeeeeeeeee.....eeeeeeeeeeeeeee.....ee.......ee.eeeeee....hhhh.ee....ee...........ee....hhhhh.eeee..ee......ee...eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee................eeeeeeee....hhhhhhhhhhhh..hhhhh...hhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeeeeeeee...ee.----------------------...hhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------AEROLYSIN -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3g4o A   2 EPVYPDQLRLFSLGQGVCGDKYRPVNREEAQSVKSNIVGMMGQWQISGLANGWVIMGPGYNGEIKPGTASNTWCYPTNPVTGEIPTLSALDIPDGDEVDVQWRLVHDSANFIKPTSYLAHYLGYAWVGGNNSQYVGEDMDVTRDGDGWVIRGNNDGGCDGYRCGDKTAIKVSNFAYNLDPDSFKHGDVTQSDRQLVKTVVGWAVNDSDTPQSGYDVTLRYDTATNWSKTNTYGLSEKVTTKNKFKWPLVGETELSIEIAANQSWASQNGGSTTTSLSQSVRPTVPARSKIPVKIELYKADISYPYEFKADVSYDLTLSGFLRWGGNAWYTHPDNRPNWNHTFVIGPYKDKASSIRYQWDKRYIPGEVKWWDWNWTIQQNGLSTMQNNLARVLRPVRAGITGDFSAESQFAGNIEIGAPVPL----------------------IPLDAQELSGLGFNNVSL 462
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421|        -         -   |   451       461
                                                                                                                                                                                                                                                                                                                                                                                                                                                              422                    445


Chain B from PDB  Type:PROTEIN  Length:451
 aligned with AERA_AERHY | P09167 from UniProtKB/Swiss-Prot  Length:493

    Alignment length:467
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474       484
           AERA_AERHY    25 EPVYPDQLRLFSLGQGVCGDKYRPVNREEAQSVKSNIVGMMGQWQISGLANGWVIMGPGYNGEIKPGTASNTWCYPTNPVTGEIPTLSALDIPDGDEVDVQWRLVHDSANFIKPTSYLAHYLGYAWVGGNHSQYVGEDMDVTRDGDGWVIRGNNDGGCDGYRCGDKTAIKVSNFAYNLDPDSFKHGDVTQSDRQLVKTVVGWAVNDSDTPQSGYDVTLRYDTATNWSKTNTYGLSEKVTTKNKFKWPLVGETELSIEIAANQSWASQNGGSTTTSLSQSVRPTVPARSKIPVKIELYKADISYPYEFKADVSYDLTLSGFLRWGGNAWYTHPDNRPNWNHTFVIGPYKDKASSIRYQWDKRYIPGEVKWWDWNWTIQQNGLSTMQNNLARVLRPVRAGITGDFSAESQFAGNIEIGAPVPLAADSKVRRARSVDGAGQGLRLEIPLDAQELSGLGFNNVSLSVTPAA 491
               SCOP domains d3g4ob1 B:2-84 Proaerolysin, N-terminal domain                                     d3g4ob2 B:85-468 (Pro)aerolysin, pore-forming lobe                                                                                                                                                                                                                                                                                                                                               SCOP domains
               CATH domains 3g4oB01 B:2-90 Pertussis Toxin, subunit B, domain 1                                      3g4oB02 B:91-176,B:311-397 Proaerolysin, chain A, domain 2                            3g4oB03 B:177-310,B:398-468 Proaerolysin, chain A, domain 3                                                                           3g4oB02 B:91-176,B:311-397 Proaerolysin, chain A, domain 2                             3g4oB03 B:177-310,B:398-46                8 Proaerolysin, chain A, doma CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhheee..........eee.hhhhhhhhhhhhhh......eee....eeee.hhhh..eee.....eeeee.............eee...hhhhhhhhhhh....hhhhhhhhhhhhh...............eeeeee..eeeeee...............eeeeeeeeeeeeeeeeee.....eeeeeeeeeeeeeee.........eeeeeeeeeeeeee....hhhh.ee....ee...........ee....hhhhh.eeeeeeeeeeee.......eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee................eeeeeeee....hhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeeeee...ee...ee..----------------.eeee...hhhhhhh..eeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------AEROLYSIN -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3g4o B   2 EPVYPDQLRLFSLGQGVCGDKYRPVNREEAQSVKSNIVGMMGQWQISGLANGWVIMGPGYNGEIKPGTASNTWCYPTNPVTGEIPTLSALDIPDGDEVDVQWRLVHDSANFIKPTSYLAHYLGYAWVGGNNSQYVGEDMDVTRDGDGWVIRGNNDGGCDGYRCGDKTAIKVSNFAYNLDPDSFKHGDVTQSDRQLVKTVVGWAVNDSDTPQSGYDVTLRYDTATNWSKTNTYGLSEKVTTKNKFKWPLVGETELSIEIAANQSWASQNGGSTTTSLSQSVRPTVPARSKIPVKIELYKADISYPYEFKADVSYDLTLSGFLRWGGNAWYTHPDNRPNWNHTFVIGPYKDKASSIRYQWDKRYIPGEVKWWDWNWTIQQNGLSTMQNNLARVLRPVRAGITGDFSAESQFAGNIEIGAPVPLA----------------GLRLEIPLDAQELSGLGFNNVSLSVTPAA 468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421 |       -       441       451       461
                                                                                                                                                                                                                                                                                                                                                                                                                                                               423              440
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (3, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3G4O)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (AERA_AERHY | P09167)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0020002    host cell plasma membrane    The plasma membrane surrounding a host cell.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3g4o)

  Sites
(no "Sites" information available for 3g4o)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3g4o)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3g4o
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AERA_AERHY | P09167
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AERA_AERHY | P09167
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        AERA_AERHY | P09167: 1pre 1z52 3c0m 3c0n 3c0o 3g4n 5jzh 5jzt 5jzw

(-) Related Entries Specified in the PDB File

1pre STRUCTURE OF THE WILD-TYPE PROAEROLYSIN
1z52 STRUCTURE OF THE PROAEROLYSIN MUTANT W373L
3c0n STRUCTURE OF THE PROAEROLYSIN MUTANT Y221G
3g4n STRUCTURE OF THE ACTIVATED AEROLYSIN MUTANT H132D
