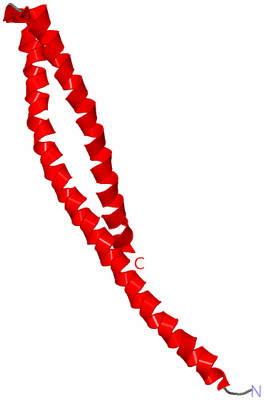

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BACTERIAL ADHESIN FADA L14A MUTANT

Authors :  S. Nithianantham, M. Xu, N. Wu, M. Shoham, Y. W. Han
Date :  08 Oct 08  (Deposition) - 02 Dec 08  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Antiparallel Helix-Loop-Helix, Fada L14A Mutant, Cell Adhesin, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Nithianantham, M. Xu, M. Yamada, A. Ikegami, M. Shoham, Y. W. Han
Crystal Structure Of Fada Adhesin From Fusobacterium Nucleatum Reveals A Novel Oligomerization Motif, The Leucine Chain.
J. Biol. Chem. V. 284 3865 2009
PubMed-ID: 18996848  |  Reference-DOI: 10.1074/JBC.M805503200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ADHESIN A
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21(B)
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: FADA
    Mutation: YES
    Organism Scientific: FUSOBACTERIUM NUCLEATUM
    Organism Taxid: 851

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3ETY)

(-) Sites  (0, 0)

(no "Site" information available for 3ETY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3ETY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3ETY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3ETY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3ETY)

(-) Exons   (0, 0)

(no "Exon" information available for 3ETY)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with Q5I6B0_FUSNU | Q5I6B0 from UniProtKB/TrEMBL  Length:129

    Alignment length:104
                                    31        41        51        61        71        81        91       101       111       121
         Q5I6B0_FUSNU    22 AASLVGELQALDAEYQNLANQEEARFNEERAQADAARQALAQNEQVYNELSQRAQRLQAEANTRFYKSQYQELASKYEDALKKLEAEMEQQKAVISDFEKIQAL 125
               SCOP domains -------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 3ety A   4 AASLVGELQAADAEYQNLANQEEARFNEERAQADAARQALAQNEQVYNELSQRAQRLQAEANTRFYKSQYQELASKYEDALKKLEAEMEQQKAVISDFEKIQAL 107
                                    13        23        33        43        53        63        73        83        93       103
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3ETY)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3ETY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3ETY)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3ETY)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3ety)

  Sites
(no "Sites" information available for 3ety)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3ety)


(-) Still Images

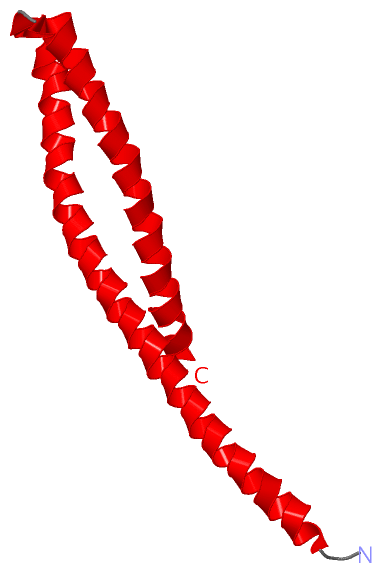

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3ety
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5I6B0_FUSNU | Q5I6B0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5I6B0_FUSNU | Q5I6B0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q5I6B0_FUSNU | Q5I6B0: 2gl2 3etw 3etx 3etz

(-) Related Entries Specified in the PDB File

3etw CRYSTAL STRUCTURE OF BACTERIAL ADHESIN FADA
3etx CRYSTAL STRUCTURE OF BACTERIAL ADHESIN FADA L14A MUTANT
3etz CRYSTAL STRUCTURE OF BACTERIAL ADHESIN FADA L76A MUTANT
