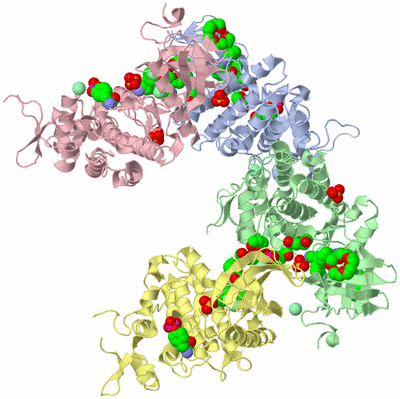

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

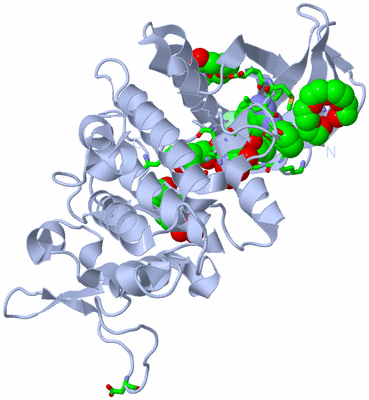

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

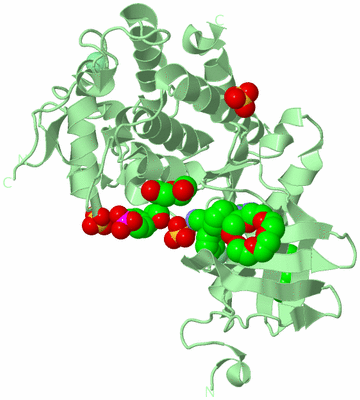

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE HUMAN DUAL SPECIFICITY TYROSINE-PHOSPHORYLATION-REGULATED KINASE 1A

Authors :  A. K. Roos, M. Soundararajan, A. C. W. Pike, O. Fedorov, O. King, N. Burge C. Philips, P. Filippakopoulos, C. H. Arrowsmith, M. Wikstrom, A. Edw F. Von Delft, C. Bountra, S. Knapp
Date :  30 Jun 08  (Deposition) - 16 Sep 08  (Release) - 26 Jun 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Serine/Threonine-Protein Kinase, Minibrain Homolog, Nucleotide-Binding, Transferase, Phosphoprotein, Tyrosine-Protein Kinase, Casp8, Kinase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Soundararajan, A. K. Roos, P. Savitsky, P. Filippakopoulos, A. N. Kettenbach, J. V. Olsen, S. A. Gerber, J. Eswaran, S. Knapp, J. M. Elkins
Structures Of Down Syndrome Kinases, Dyrks, Reveal Mechanisms Of Kinase Activation And Substrate Recognition.
Structure V. 21 986 2013
PubMed-ID: 23665168  |  Reference-DOI: 10.1016/J.STR.2013.03.012

(-) Compounds

Molecule 1 - DUAL SPECIFICITY TYROSINE-PHOSPHORYLATION- REGULATED KINASE 1A
    ChainsA, B, C, D
    EC Number2.7.12.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPNIC28-BSA4
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System VariantR3-PRARE2
    FragmentRESIDUES 127-485
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymPROTEIN KINASE MINIBRAIN HOMOLOG, MNBH, HMNB, HP86, DUAL SPECIFICITY YAK1-RELATED KINASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit ABCD
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (1x)  C
Biological Unit 4 (1x)   D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 32)

Asymmetric Unit (5, 32)
No.NameCountTypeFull Name
1CL8Ligand/IonCHLORIDE ION
2D154Ligand/IonN-(5-{[(2S)-4-AMINO-2-(3-CHLOROPHENYL)BUTANOYL]AMINO}-1H-INDAZOL-3-YL)BENZAMIDE
3P6G8Ligand/IonHEXAETHYLENE GLYCOL
4PTR4Mod. Amino AcidO-PHOSPHOTYROSINE
5SO48Ligand/IonSULFATE ION
Biological Unit 1 (4, 6)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2D151Ligand/IonN-(5-{[(2S)-4-AMINO-2-(3-CHLOROPHENYL)BUTANOYL]AMINO}-1H-INDAZOL-3-YL)BENZAMIDE
3P6G3Ligand/IonHEXAETHYLENE GLYCOL
4PTR1Mod. Amino AcidO-PHOSPHOTYROSINE
5SO41Ligand/IonSULFATE ION
Biological Unit 2 (4, 8)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2D151Ligand/IonN-(5-{[(2S)-4-AMINO-2-(3-CHLOROPHENYL)BUTANOYL]AMINO}-1H-INDAZOL-3-YL)BENZAMIDE
3P6G3Ligand/IonHEXAETHYLENE GLYCOL
4PTR1Mod. Amino AcidO-PHOSPHOTYROSINE
5SO43Ligand/IonSULFATE ION
Biological Unit 3 (4, 6)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2D151Ligand/IonN-(5-{[(2S)-4-AMINO-2-(3-CHLOROPHENYL)BUTANOYL]AMINO}-1H-INDAZOL-3-YL)BENZAMIDE
3P6G1Ligand/IonHEXAETHYLENE GLYCOL
4PTR1Mod. Amino AcidO-PHOSPHOTYROSINE
5SO43Ligand/IonSULFATE ION
Biological Unit 4 (4, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2D151Ligand/IonN-(5-{[(2S)-4-AMINO-2-(3-CHLOROPHENYL)BUTANOYL]AMINO}-1H-INDAZOL-3-YL)BENZAMIDE
3P6G1Ligand/IonHEXAETHYLENE GLYCOL
4PTR1Mod. Amino AcidO-PHOSPHOTYROSINE
5SO41Ligand/IonSULFATE ION

(-) Sites  (26, 26)

Asymmetric Unit (26, 26)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY A:166 , LYS A:167 , GLY A:168 , GLY A:171 , GLN A:172 , VAL A:173 , ALA A:186 , GLU A:239 , MET A:240 , LEU A:241 , SER A:242 , ASN A:292 , LEU A:294 , ASP A:307 , CL A:620 , P6G A:700 , SO4 A:1483 , HOH A:2035BINDING SITE FOR RESIDUE D15 A 600
02AC2SOFTWARELYS A:188 , ASP A:307 , D15 A:600BINDING SITE FOR RESIDUE CL A 620
03AC3SOFTWAREASP A:162 , LYS A:175 , D15 A:600BINDING SITE FOR RESIDUE P6G A 700
04AC4SOFTWAREGLN A:201 , GLN C:201BINDING SITE FOR RESIDUE P6G A 701
05AC5SOFTWARETYR A:319BINDING SITE FOR RESIDUE P6G A 702
06AC6SOFTWAREILE B:165 , GLY B:166 , GLY B:168 , GLY B:171 , GLN B:172 , VAL B:173 , ALA B:186 , LYS B:188 , GLU B:239 , LEU B:241 , SER B:242 , ASN B:292 , LEU B:294 , ASP B:307 , CL B:620 , P6G B:700 , SO4 B:1482 , ARG D:179BINDING SITE FOR RESIDUE D15 B 600
07AC7SOFTWARELYS B:188 , ASP B:307 , D15 B:600BINDING SITE FOR RESIDUE CL B 620
08AC8SOFTWAREASP B:162 , LYS B:175 , MET B:240 , D15 B:600BINDING SITE FOR RESIDUE P6G B 700
09AC9SOFTWAREGLN B:201 , HIS B:227 , GLN D:201 , LEU D:234BINDING SITE FOR RESIDUE P6G B 701
10BC1SOFTWAREASP B:247 , ASN B:251 , GLU D:160BINDING SITE FOR RESIDUE P6G B 702
11BC2SOFTWAREILE C:165 , GLY C:166 , LYS C:167 , GLY C:168 , GLY C:171 , VAL C:173 , ALA C:186 , LYS C:188 , GLU C:239 , MET C:240 , LEU C:241 , SER C:242 , ASN C:292 , LEU C:294 , ASP C:307 , CL C:620 , SO4 C:1482BINDING SITE FOR RESIDUE D15 C 600
12BC3SOFTWARELYS C:188 , ASP C:307 , D15 C:600BINDING SITE FOR RESIDUE CL C 620
13BC4SOFTWAREASP C:162 , LYS C:175 , TRP C:184BINDING SITE FOR RESIDUE P6G C 700
14BC5SOFTWAREILE D:165 , GLY D:166 , LYS D:167 , GLY D:168 , GLY D:171 , GLN D:172 , VAL D:173 , ALA D:186 , GLU D:239 , MET D:240 , LEU D:241 , SER D:242 , TYR D:243 , ASN D:292 , LEU D:294 , ASP D:307 , CL D:620 , SO4 D:1482BINDING SITE FOR RESIDUE D15 D 600
15BC6SOFTWARELYS D:188 , ASP D:307 , D15 D:600BINDING SITE FOR RESIDUE CL D 620
16BC7SOFTWAREASP D:162 , LYS D:175 , TRP D:184BINDING SITE FOR RESIDUE P6G D 700
17BC8SOFTWAREGLY C:168 , SER C:169 , LYS C:289 , D15 C:600 , HOH C:2026BINDING SITE FOR RESIDUE SO4 C1482
18BC9SOFTWAREGLY A:168 , SER A:169 , LYS A:289 , ASP A:307 , ASP A:410 , D15 A:600BINDING SITE FOR RESIDUE SO4 A1483
19CC1SOFTWAREASP C:410 , GLY D:168 , SER D:169 , LYS D:289 , D15 D:600BINDING SITE FOR RESIDUE SO4 D1482
20CC2SOFTWARESER B:169 , LYS B:289 , D15 B:600BINDING SITE FOR RESIDUE SO4 B1482
21CC3SOFTWAREASN B:365 , GLU B:366 , LYS B:393 , ARG D:300BINDING SITE FOR RESIDUE SO4 B1483
22CC4SOFTWARELYS C:225 , ARG C:226BINDING SITE FOR RESIDUE SO4 C1483
23CC5SOFTWARELYS C:264 , ARG C:300 , SER C:301BINDING SITE FOR RESIDUE SO4 C1484
24CC6SOFTWARELYS B:264 , ARG B:300 , SER B:301BINDING SITE FOR RESIDUE SO4 B1484
25CC7SOFTWAREHIS B:424 , LYS B:453BINDING SITE FOR RESIDUE CL B1485
26CC8SOFTWAREARG B:325BINDING SITE FOR RESIDUE CL D1484

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2VX3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2VX3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 4)

Asymmetric Unit (1, 4)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_009395Y415FDYR1A_HUMANPolymorphism  ---A/B/C/DY415F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_009395Y415FDYR1A_HUMANPolymorphism  ---AY415F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 2 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_009395Y415FDYR1A_HUMANPolymorphism  ---BY415F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 3 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_009395Y415FDYR1A_HUMANPolymorphism  ---CY415F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 4 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_009395Y415FDYR1A_HUMANPolymorphism  ---DY415F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (2, 8)

Asymmetric Unit (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.DYR1A_HUMAN165-188



  4A:165-188
B:165-188
C:165-188
D:165-188
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.DYR1A_HUMAN283-295



  4A:283-295
B:283-295
C:283-295
D:283-295
Biological Unit 1 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.DYR1A_HUMAN165-188



  1A:165-188
-
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.DYR1A_HUMAN283-295



  1A:283-295
-
-
-
Biological Unit 2 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.DYR1A_HUMAN165-188



  1-
B:165-188
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.DYR1A_HUMAN283-295



  1-
B:283-295
-
-
Biological Unit 3 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.DYR1A_HUMAN165-188



  1-
-
C:165-188
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.DYR1A_HUMAN283-295



  1-
-
C:283-295
-
Biological Unit 4 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.DYR1A_HUMAN165-188



  1-
-
-
D:165-188
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.DYR1A_HUMAN283-295



  1-
-
-
D:283-295

(-) Exons   (0, 0)

(no "Exon" information available for 2VX3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:347
 aligned with DYR1A_HUMAN | Q13627 from UniProtKB/Swiss-Prot  Length:763

    Alignment length:347
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474
          DYR1A_HUMAN   135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQYIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKDGKREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFKK 481
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhh.............ee...eeeeeeeeee..eeeeeeee....eeeeeeee..hhhhhhhhhhhhhhhhhhhhh.hhhhhh...eeeeeee..eeeeeee....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....ee....hhh.eee.......eee......ee..........hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh..hhhhhh...hhhhheee.....eee................hhhhhhh....hhhhh.......hhhhhhhhhhhhhhhh........hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------F------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------PROTEIN_KINASE_ATP      ----------------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vx3 A 135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQyIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKDGKREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFKK 481
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314      |324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474
                                                                                                                                                                                                                    321-PTR

Chain B from PDB  Type:PROTEIN  Length:341
 aligned with DYR1A_HUMAN | Q13627 from UniProtKB/Swiss-Prot  Length:763

    Alignment length:346
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474
          DYR1A_HUMAN   135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQYIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKDGKREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh.............ee...eeeeeeeeee..eeeeeeee....eeeeeeee..hhhhhhhhhhhhhhhhhhhhh..hhhhh...eeeeeee..eeeeeee....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh....ee....hhh.eee.......eee......ee..........hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh..hhhhhh...hhhhheee.....eee...-----........hhhhhh.....hhhhh.......hhhhhhhhhhhhhhhh........hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------F----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------PROTEIN_KINASE_ATP      ----------------------------------------------------------------------------------------------PROTEIN_KINAS----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vx3 B 135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQyIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKT-----EYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314      |324       334       344       354       364       374       384       394       404   |   414       424       434       444       454       464       474
                                                                                                                                                                                                                    321-PTR                                                                                408   414

Chain C from PDB  Type:PROTEIN  Length:339
 aligned with DYR1A_HUMAN | Q13627 from UniProtKB/Swiss-Prot  Length:763

    Alignment length:346
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474
          DYR1A_HUMAN   135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQYIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKDGKREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh.............ee...eeeeeeeeee..eeeeeeee....eeeeeeee..hhhhhhhhhhhhhhhhhhhh.---hhhh...eeeeeee..eeeeeee....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh....ee....hhh.eee.......eee......ee..........hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh..hhhhhhhh.hhhh.eee.....eee.....-..........hhhhhh.....hhhhh.---...hhhhhhhhhhhhhhhh........hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------F----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------PROTEIN_KINASE_ATP      ----------------------------------------------------------------------------------------------PROTEIN_KINAS----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vx3 C 135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKH---MKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQyIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKD-KREYKPPGTRKLHNILGVETGGPGGRR---SGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
                                   144       154       164       174       184       194       204        |-  |    224       234       244       254       264       274       284       294       304       314      |324       334       344       354       364       374       384       394       404     | 414       424       434   |   444       454       464       474
                                                                                                        213 217                                                                                                     321-PTR                                                                                  410 |                       438 442
                                                                                                                                                                                                                                                                                                               412

Chain D from PDB  Type:PROTEIN  Length:343
 aligned with DYR1A_HUMAN | Q13627 from UniProtKB/Swiss-Prot  Length:763

    Alignment length:346
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444       454       464       474
          DYR1A_HUMAN   135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQYIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKTKDGKREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------------Pkinase-2vx3D01 D:159-479                                                                                                                                                                                                                                                                                                        - Pfam domains (1)
           Pfam domains (2) ------------------------Pkinase-2vx3D02 D:159-479                                                                                                                                                                                                                                                                                                        - Pfam domains (2)
           Pfam domains (3) ------------------------Pkinase-2vx3D03 D:159-479                                                                                                                                                                                                                                                                                                        - Pfam domains (3)
           Pfam domains (4) ------------------------Pkinase-2vx3D04 D:159-479                                                                                                                                                                                                                                                                                                        - Pfam domains (4)
         Sec.struct. author ..hhhh.............ee...eeeeeeeeee..eeeeeeee....eeeeeeee..hhhhhhhhhhhhhhhhhhhhh..hhhhh...eeeeeee..eeeeeee....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh....ee....hhh.eee.......eee......ee..........hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh..hhhhhh...hhhh.eee.....eee...---..........hhhhhh.....hhhhh.......hhhhhhhhhhhhhhhh........hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------F----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------PROTEIN_KINASE_ATP      ----------------------------------------------------------------------------------------------PROTEIN_KINAS----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2vx3 D 135 VYNDGYDDDNYDYIVKNGEKWMDRYEIDSLIGKGSFGQVVKAYDRVEQEWVAIKIIKNKKAFLNQAQIEVRLLELMNKHDTEMKYYIVHLKRHFMFRNHLCLVFEMLSYNLYDLLRNTNFRGVSLNLTRKFAQQMCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQyIQSRFYRSPEVLLGMPYDLAIDMWSLGCILVEMHTGEPLFSGANEVDQMNKIVEVLGIPPAHILDQAPKARKFFEKLPDGTWNLKKT---KREYKPPGTRKLHNILGVETGGPGGRRAGESGHTVADYLKFKDLILRMLDYDPKTRIQPYYALQHSFFK 480
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314      |324       334       344       354       364       374       384       394       404   |   414       424       434       444       454       464       474
                                                                                                                                                                                                                    321-PTR                                                                                408 412

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2VX3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2VX3)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: PKinase (934)
(-)
Family: Pkinase (680)
1aPkinase-2vx3D01D:159-479
1bPkinase-2vx3D02D:159-479
1cPkinase-2vx3D03D:159-479
1dPkinase-2vx3D04D:159-479

(-) Gene Ontology  (29, 29)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (DYR1A_HUMAN | Q13627)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0004715    non-membrane spanning protein tyrosine kinase activity    Catalysis of the reaction: ATP + protein L-tyrosine = ADP + protein L-tyrosine phosphate by a non-membrane spanning protein.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0043621    protein self-association    Interacting selectively and non-covalently with a domain within the same polypeptide.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0004712    protein serine/threonine/tyrosine kinase activity    Catalysis of the reactions: ATP + a protein serine = ADP + protein serine phosphate; ATP + a protein threonine = ADP + protein threonine phosphate; and ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
    GO:0004713    protein tyrosine kinase activity    Catalysis of the reaction: ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
    GO:0048156    tau protein binding    Interacting selectively and non-covalently with tau protein. tau is a microtubule-associated protein, implicated in Alzheimer's disease, Down Syndrome and ALS.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0007623    circadian rhythm    Any biological process in an organism that recurs with a regularity of approximately 24 hours.
    GO:0043518    negative regulation of DNA damage response, signal transduction by p53 class mediator    Any process that stops, prevents, or reduces the frequency, rate or extent of the cascade of processes induced by the cell cycle regulator phosphoprotein p53, or an equivalent protein, in response to the detection of DNA damage.
    GO:0048025    negative regulation of mRNA splicing, via spliceosome    Any process that stops, prevents or reduces the rate or extent of mRNA splicing via a spliceosomal mechanism.
    GO:0007399    nervous system development    The process whose specific outcome is the progression of nervous tissue over time, from its formation to its mature state.
    GO:0018105    peptidyl-serine phosphorylation    The phosphorylation of peptidyl-serine to form peptidyl-O-phospho-L-serine.
    GO:0018107    peptidyl-threonine phosphorylation    The phosphorylation of peptidyl-threonine to form peptidyl-O-phospho-L-threonine.
    GO:0018108    peptidyl-tyrosine phosphorylation    The phosphorylation of peptidyl-tyrosine to form peptidyl-O4'-phospho-L-tyrosine.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0090312    positive regulation of protein deacetylation    Any process that increases the rate, frequency, or extent of protein deacetylation, the removal of an acetyl group from a protein amino acid. An acetyl group is CH3CO-, derived from acetic [ethanoic] acid.
    GO:0046777    protein autophosphorylation    The phosphorylation by a protein of one or more of its own amino acid residues (cis-autophosphorylation), or residues on an identical protein (trans-autophosphorylation).
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0000381    regulation of alternative mRNA splicing, via spliceosome    Any process that modulates the frequency, rate or extent of alternative splicing of nuclear mRNAs.
cellular component
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0016607    nuclear speck    A discrete extra-nucleolar subnuclear domain, 20-50 in number, in which splicing factors are seen to be localized by immunofluorescence microscopy.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    D15  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    P6G  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PTR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2vx3)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2vx3
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DYR1A_HUMAN | Q13627
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.12.1
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DYR1A_HUMAN | Q13627
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DYR1A_HUMAN | Q136272wo6 3anq 3anr 4aze 4mq1 4mq2 4nct 4ylj 4ylk 4yll 4yu2 5a3x 5a4e 5a4l 5a4q 5a4t 5a54 5aik

(-) Related Entries Specified in the PDB File

2wo6 HUMAN DUAL-SPECIFICITY TYROSINE-PHOSPHORYLATION -REGULATED KINASE 1A IN COMPLEX WITH A CONSENSUS SUBSTRATE PEPTIDE
