2NZE - JenaLib

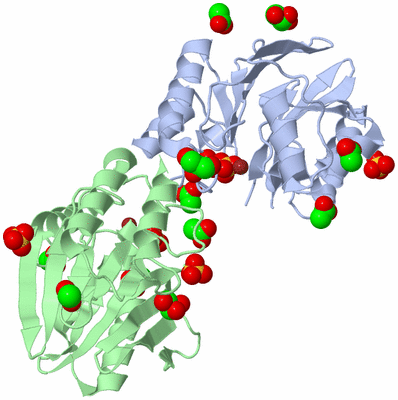

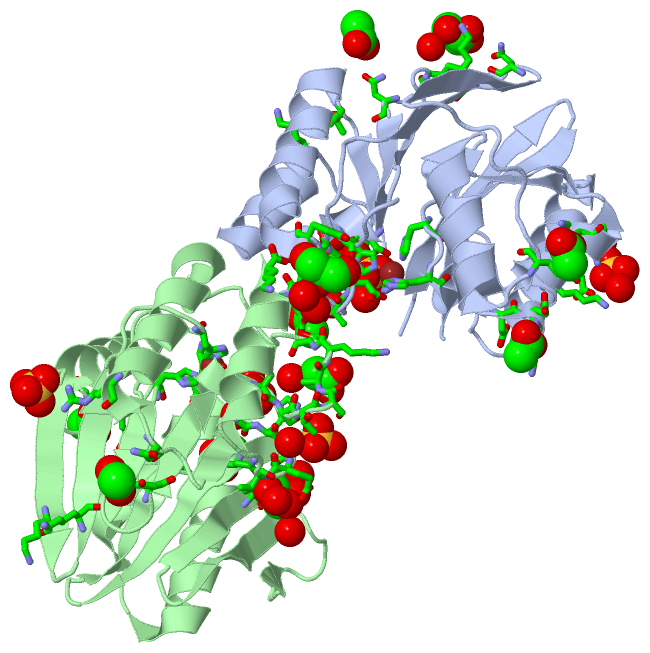

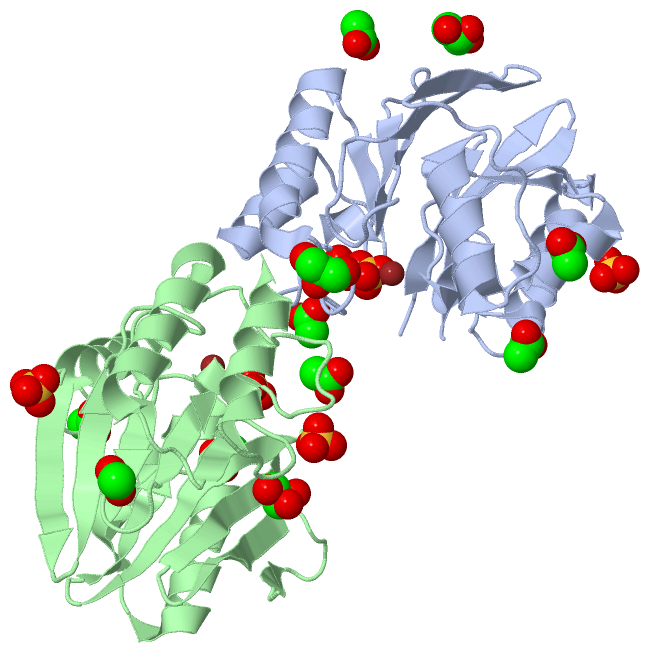

Asymmetric Unit (19, 19)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS A:86 , HIS A:88 , HIS A:149 , HOH A:726 , HOH A:812	BINDING SITE FOR RESIDUE ZN A 401
02	AC2	SOFTWARE	HIS B:86 , HIS B:88 , HIS B:149 , HOH B:785 , HOH B:816	BINDING SITE FOR RESIDUE ZN B 402
03	AC3	SOFTWARE	SER A:172 , THR A:173 , SER A:174 , GLY A:211 , GLU A:212 , HOH A:773 , HOH A:845	BINDING SITE FOR RESIDUE SO4 A 501
04	AC4	SOFTWARE	SER B:172 , THR B:173 , SER B:174 , GLY B:211 , GLU B:212 , HOH B:706	BINDING SITE FOR RESIDUE SO4 B 502
05	AC5	SOFTWARE	LYS A:65 , GLU A:69 , ARG A:101 , ILE A:203 , LYS A:216 , HOH A:744 , HOH A:806	BINDING SITE FOR RESIDUE SO4 A 503
06	AC6	SOFTWARE	LYS B:134 , LYS B:139 , ARG B:199	BINDING SITE FOR RESIDUE SO4 B 504
07	AC7	SOFTWARE	SER A:168 , LYS A:171 , HIS A:210 , HOH A:750 , HOH A:765	BINDING SITE FOR RESIDUE SO4 A 505
08	AC8	SOFTWARE	SER B:168 , LYS B:171 , GLY B:209 , HIS B:210 , HOH B:732 , HOH B:743 , HOH B:850	BINDING SITE FOR RESIDUE SO4 B 506
09	AC9	SOFTWARE	ASP B:60 , ASP B:61 , LYS B:62	BINDING SITE FOR RESIDUE ACY B 601
10	BC1	SOFTWARE	LYS A:99 , GLU A:121	BINDING SITE FOR RESIDUE ACY A 602
11	BC2	SOFTWARE	ASN A:162	BINDING SITE FOR RESIDUE ACY A 603
12	BC3	SOFTWARE	LYS B:99 , GLU B:121 , GLU B:122	BINDING SITE FOR RESIDUE ACY B 604
13	BC4	SOFTWARE	ASN B:162 , ASN B:202	BINDING SITE FOR RESIDUE ACY B 605
14	BC5	SOFTWARE	ALA B:175 , LYS B:176 , ASP B:177 , HOH B:854	BINDING SITE FOR RESIDUE ACY B 606
15	BC6	SOFTWARE	ASP A:60 , ASP A:61 , LYS A:62	BINDING SITE FOR RESIDUE ACY A 607
16	BC7	SOFTWARE	ALA A:175 , LYS A:176 , ASP A:177 , HOH A:873	BINDING SITE FOR RESIDUE ACY A 608
17	BC8	SOFTWARE	ASN A:137 , LYS A:139 , GLN A:160 , HOH A:740	BINDING SITE FOR RESIDUE GOL A 701
18	BC9	SOFTWARE	ALA A:182 , ASP A:183 , ALA A:184 , TYR A:185 , HOH A:832 , HOH A:874 , LYS B:227	BINDING SITE FOR RESIDUE GOL A 702
19	CC1	SOFTWARE	THR B:29 , ASN B:42 , GLY B:211 , GLU B:212 , VAL B:213 , HOH B:720 , HOH B:723 , HOH B:894	BINDING SITE FOR RESIDUE GOL B 703

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 4)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	BETA_LACTAMASE_B_1	PS00743	Beta-lactamases class B signature 1.	BLA2_BACCE	113-132	2	A:83-102 B:83-102
2	BETA_LACTAMASE_B_2	PS00744	Beta-lactamases class B signature 2.	BLA2_BACCE	189-201	2	A:159-171 B:159-171

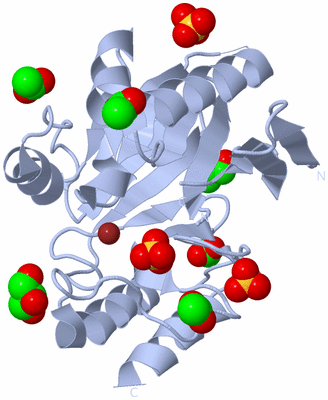

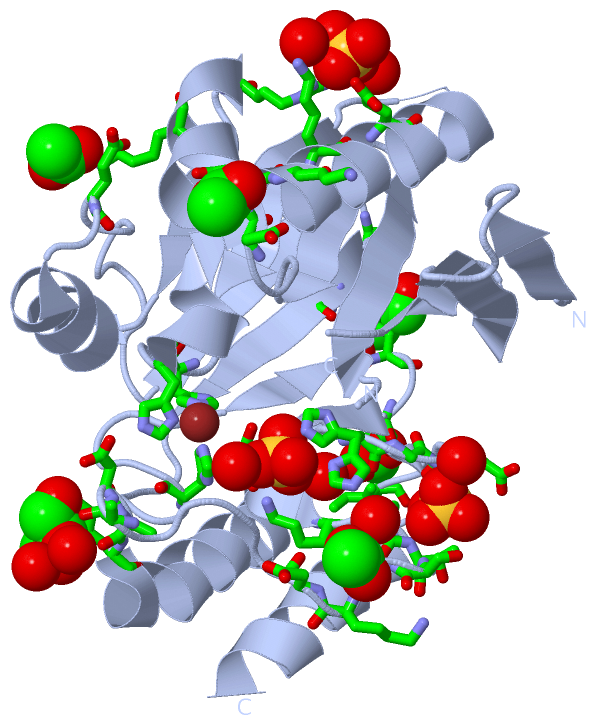

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	BETA_LACTAMASE_B_1	PS00743	Beta-lactamases class B signature 1.	BLA2_BACCE	113-132	1	A:83-102 -
2	BETA_LACTAMASE_B_2	PS00744	Beta-lactamases class B signature 2.	BLA2_BACCE	189-201	1	A:159-171 -

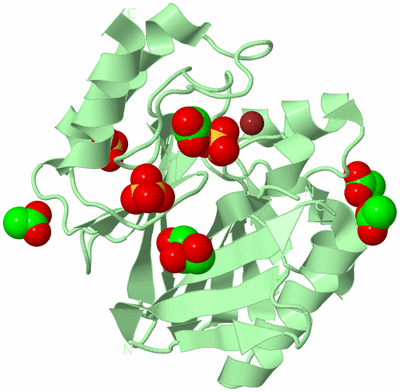

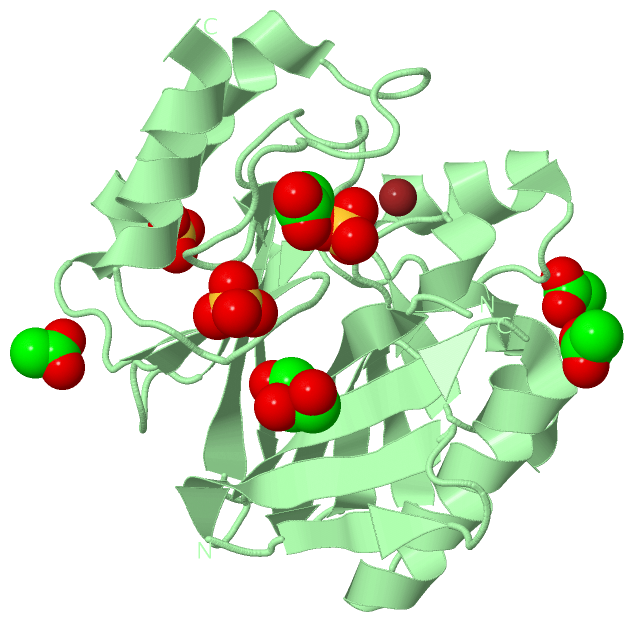

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	BETA_LACTAMASE_B_1	PS00743	Beta-lactamases class B signature 1.	BLA2_BACCE	113-132	1	- B:83-102
2	BETA_LACTAMASE_B_2	PS00744	Beta-lactamases class B signature 2.	BLA2_BACCE	189-201	1	- B:159-171

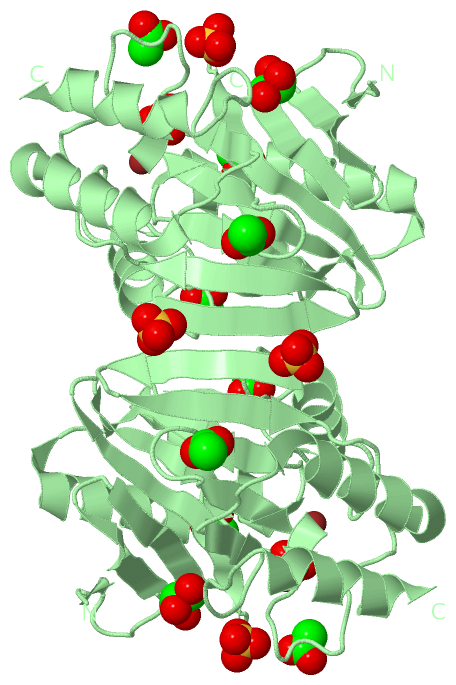

Biological Unit 3 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	BETA_LACTAMASE_B_1	PS00743	Beta-lactamases class B signature 1.	BLA2_BACCE	113-132	2	- B:83-102
2	BETA_LACTAMASE_B_2	PS00744	Beta-lactamases class B signature 2.	BLA2_BACCE	189-201	2	- B:159-171

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:215
 aligned with BLA2_BACCE | P04190 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:221
                                    46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256
           BLA2_BACCE    37 TVIKNETGTISISQLNKNVWVHTELGSFNGEAVPSNGLVLNTSKGLVLVDSSWDDKLTKELIEMVEKKFQKRVTDVIITHAHADRIGGIKTLKERGIKAHSTALTAELAKKNGYEEPLGDLQTVTNLKFGNMKVETFYPGKGHTEDNIVVWLPQYNILVGGCLVKSTSAKDLGNVADAYVNEWSTSIENVLKRYRNINAVVPGHGEVGDKGLLLHTLDLLK 257
               SCOP domains d2nzea_ A: Zn metallo-beta      -lactamase                                                                                                                                                                                    SCOP domains
               CATH domains 2nzeA00 A:7-227 Metallo-be      ta-lactamase, chain A                                                                                                                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeeeeee..eeeeee..------..eeeeeeee..eeeee....hhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..eee.hhhhhhhhhhh...........eeeeee..eeeeee...........eee.....eeeeehhh..............hhhhhhhhhhhhhhhh....eeee.......hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------BETA_LACTAMASE_B_1  --------------------------------------------------------BETA_LACTAMAS-------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2nze A   7 TVIKNETGTISISQLNKNVWVHTELG------VPSNGLVLNTSKGLVLVDSSWDDKLTKELIEMVEKKFQKRVTDVIITHAHADHIGGIKTLKERGIKAHSTALTAELAKKNGYEEPLGDLQTVTNLKFGNMKVETFYPGKGHTEDNIVVWLPQYNILVGGSLVKSTSAKDLGNVADAYVNEWSTSIENVLKRYRNINAVVPGHGEVGDKGLLLHTLDLLK 227
                                    16        26     |   -  |     46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
                                                    32     39

Chain B from PDB  Type:PROTEIN  Length:217
 aligned with BLA2_BACCE | P04190 from UniProtKB/Swiss-Prot  Length:257

    Alignment length:222
                                    45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255
           BLA2_BACCE    36 KTVIKNETGTISISQLNKNVWVHTELGSFNGEAVPSNGLVLNTSKGLVLVDSSWDDKLTKELIEMVEKKFQKRVTDVIITHAHADRIGGIKTLKERGIKAHSTALTAELAKKNGYEEPLGDLQTVTNLKFGNMKVETFYPGKGHTEDNIVVWLPQYNILVGGCLVKSTSAKDLGNVADAYVNEWSTSIENVLKRYRNINAVVPGHGEVGDKGLLLHTLDLLK 257
               SCOP domains d2nzeb_ B: Zn metallo-beta-     lactamase                                                                                                                                                                                      SCOP domains
               CATH domains 2nzeB00 B:6-227 Metallo-bet     a-lactamase, chain A                                                                                                                                                                           CATH domains
           Pfam domains (1) --------------------------------Lactamase_B-2nzeB01 B:38-210                                                                                                                                                 ----------------- Pfam domains (1)
           Pfam domains (2) --------------------------------Lactamase_B-2nzeB02 B:38-210                                                                                                                                                 ----------------- Pfam domains (2)
         Sec.struct. author ..eee.....eeeeeee..eeeeeee.-----..eeeeeeeee..eeeee....hhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..eee.hhhhhhhhhhh...........eeeeee..eeeeee...........eee.....eeeeehhh..............hhhhhhhhhhhhhhhh....eeee.......hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------BETA_LACTAMASE_B_1  --------------------------------------------------------BETA_LACTAMAS-------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2nze B   6 KTVIKNETGTISISQLNKNVWVHTELG-----AVPSNGLVLNTSKGLVLVDSSWDDKLTKELIEMVEKKFQKRVTDVIITHAHADHIGGIKTLKERGIKAHSTALTAELAKKNGYEEPLGDLQTVTNLKFGNMKVETFYPGKGHTEDNIVVWLPQYNILVGGSLVKSTSAKDLGNVADAYVNEWSTSIENVLKRYRNINAVVPGHGEVGDKGLLLHTLDLLK 227
                                    15        25      |  -  |     45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225
                                                     32    38

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (1, 2)

Gene Ontology (7, 7)

Asymmetric Unit(hide GO term definitions)

Chain A,B (BLA2_BACCE | P04190)

molecular function
	GO:0008800	beta-lactamase activity	Catalysis of the reaction: a beta-lactam + H2O = a substituted beta-amino acid.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0017001	antibiotic catabolic process	The chemical reactions and pathways resulting in the breakdown of antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
	GO:0046677	response to antibiotic	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
cellular component
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACY	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2nze)

Biological Units
	Complete Structure

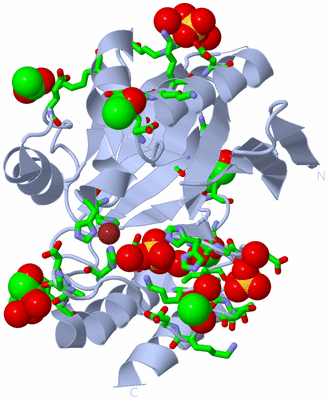

		Biological Unit 1	[ Jena3D ]
