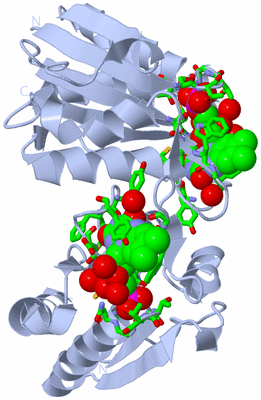

Biol. Unit 1 - sites

collapse

expand

Biol.Unit 1 - manually (Jmol Viewer)

Asymmetric Unit (Jmol Viewer)

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

Description

Title :   LOW TEMPERATURE (100K) CRYSTAL STRUCTURE OF FLAVODOXIN MUTANT S64C, DIMER, SEMIQUINONE STATE

Authors :   R. Artali, N. Marchini, F. Meneghetti, D. Cavazzini, G. Bombieri, G. L. G. Gilardi

Date :   12 Nov 04 (Deposition) - 07 Dec 04 (Release) - 22 Dec 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.69

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Flavodoxin, S64C Mutant, Dimer, Semireduced Form, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Fantuzzi, R. Artali, G. Bombieri, N. Marchini, F. Meneghetti, G. Gilardi, S. J. Sadeghi, D. Cavazzini, G. L. Rossi
Redox Properties And Crystal Structures Of A Desulfovibrio Vulgaris Flavodoxin Mutant In The Monomeric And Homodimeric Forms.
Biochim. Biophys. Acta V. 1794 496 2009
PubMed-ID: 19118653 | Reference-DOI: 10.1016/J.BBAPAP.2008.11.026

Compounds

Molecule 1 - FLAVODOXIN
	Chains	:	A
	Engineered	:	YES
	Expression System	:	DESULFOVIBRIO VULGARIS
	Expression System Plasmid	:	PT7
	Expression System Taxid	:	881
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organism Scientific	:	DESULFOVIBRIO VULGARIS
	Organism Taxid	:	881

Structural Features

Chains, Units

		1
Asymmetric Unit	:	A
Biological Unit 1 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (1, 1)

Asymmetric Unit (1, 1)

No.	Name	Count	Type	Full Name
1	FMN	1	Ligand/Ion	FLAVIN MONONUCLEOTIDE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	FMN	2	Ligand/Ion	FLAVIN MONONUCLEOTIDE

Sites (1, 1)

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	SER A:10 , THR A:11 , THR A:12 , GLY A:13 , ASN A:14 , THR A:15 , SER A:58 , THR A:59 , TRP A:60 , GLY A:61 , CYS A:93 , GLY A:94 , ASP A:95 , TYR A:98 , TYR A:100 , PHE A:101 , CYS A:102 , HOH A:204 , HOH A:218 , HOH A:232 , HOH A:329	BINDING SITE FOR RESIDUE FMN A 149

SS Bonds (1, 1)

Asymmetric Unit

No.	Residues
1	A:64	-	A:64

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1WSW)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

(no "SAP(SNP)/Variant" information available for 1WSW)

PROSITE Motifs (2, 2)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FLAVODOXIN_LIKE	PS50902	Flavodoxin-like domain profile.	FLAV_DESVH	4-145	1	A:4-145
2	FLAVODOXIN	PS00201	Flavodoxin signature.	FLAV_DESVH	6-22	1	A:6-22

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FLAVODOXIN_LIKE	PS50902	Flavodoxin-like domain profile.	FLAV_DESVH	4-145	2	A:4-145
2	FLAVODOXIN	PS00201	Flavodoxin signature.	FLAV_DESVH	6-22	2	A:6-22

Exons (0, 0)

(no "Exon" information available for 1WSW)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:147
 aligned with FLAV_DESVH | P00323 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:147
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
           FLAV_DESVH     2 PKALIVYGSTTGNTEYTAETIARELADAGYEVDSRDAASVEAGGLFEGFDLVLLGCSTWGDDSIELQDDFIPLFDSLEETGAQGRKVACFGCGDSSYEYFCGAVDAIEEKLKNLGAEIVQDGLRIDGDPRAARDDIVGWAHDVRGAI 148
               SCOP domains d1wswa_ A: Flavodoxin                                                                                                                               SCOP domains
               CATH domains 1wswA00 A:2-148  [code=3.40.50.360, no name defined]                                                                                                CATH domains
               Pfam domains ----Flavodoxin_1-1wswA01 A:6-140                                                                                                           -------- Pfam domains
         Sec.struct. author .eeeeeee...hhhhhhhhhhhhhhhhh..eeeeee.hhh..........eeeeee.ee.....ee...hhhhhhhhhhh.....eeeeeeee.......hhhhhhhhhhhhhh..ee....eeee.hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --FLAVODOXIN_LIKE  PDB: A:4-145 UniProt: 4-145                                                                                                  --- PROSITE (1)
                PROSITE (2) ----FLAVODOXIN       ------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wsw A   2 AKALIVYGSTTGNTEYTAETIARELADAGYEVDSRDAASVEAGGLFEGFDLVLLGCSTWGDDCIELQDDFIPLFDSLEETGAQGRKVACFGCGDSSYEYFCGAVDAIEEKLKNLGAEIVQDGLRIDGDPRAARDDIVGWAHDVRGAI 148
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: Flavoproteins (208)

Family: Flavodoxin-related (81)

Protein domain: Flavodoxin (65)

Desulfovibrio vulgaris [TaxId: 881] (25)

d1wswa_

CATH Domains (1, 1)

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.360, no name defined] (150)

Desulfovibrio vulgaris. Organism_taxid: 881. (9)

1wswA00

A:2-148

Pfam Domains (1, 1)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Flavoprotein (71)

Family: Flavodoxin_1 (23)

Desulfovibrio vulgaris (strain Hildenborough / ATCC 29579 / NCIMB 8303) (5)

Flavodoxin_1-1wswA01

A:6-140

Gene Ontology (3, 3)

Asymmetric Unit(hide GO term definitions)

Chain A (FLAV_DESVH | P00323)

molecular function
	GO:0010181	FMN binding	Interacting selectively and non-covalently with flavin mono nucleotide. Flavin mono nucleotide (FMN) is the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FMN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wsw)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1wsw
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FLAV_DESVH \| P00323
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FLAV_DESVH \| P00323
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
	FLAV_DESVH \| P00323	:	1akq 1akr 1akt 1aku 1akv 1akw 1azl 1bu5 1c7e 1c7f 1f4p 1fx1 1i1o 1j8q 1j9e 1j9g 1wsb 1xt6 1xyv 1xyy 2fx2 3fx2 4fx2 5fx2 5tgz 5v56 5v57 5xr8 5xra

Related Entries Specified in the PDB File

1wsb	THE SAME PROTEIN IN THE SEMIREDUCED FORM AT 1.80 A
1xyv	THE SAME PROTEIN IN THE SEMIREDUCED FORM AT 1.79 A
1xyy	THE SAME PROTEIN IN THE SEMIREDUCED FORM AT 1.70 A
