(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

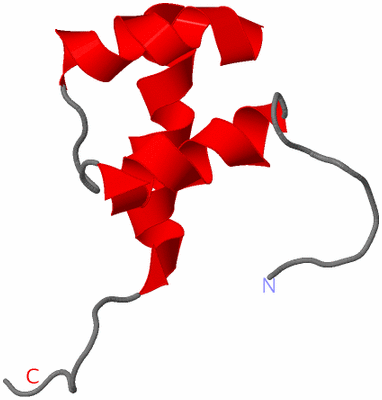

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

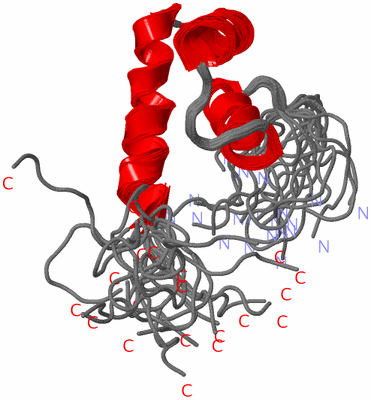

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE HOMEOBOX DOMAIN OF MOUSE LAG1 LONGEVITY ASSURANCE HOMOLOG 6

Authors :  Y. O. Kamatari, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 Apr 05  (Deposition) - 26 Oct 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Homeobox Domain, Mouse Lag1 Longevity Assurance Homolog 6, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. O. Kamatari, T. Tomizawa, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Homeobox Domain Of Mouse Lag1 Longevity Assurance Homolog 6
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LAG1 LONGEVITY ASSURANCE HOMOLOG 6
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040719-06
    Expression System Vector Type: PLASMID
    Fragment: HOMEOBOX DOMAIN
    Gene: LASS6
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1X2M)

(-) Sites  (0, 0)

(no "Site" information available for 1X2M)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1X2M)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X2M)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X2M)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HOMEOBOX_2PS50071 'Homeobox' domain profile.CERS6_MOUSE83-127  1A:15-59
2TLCPS50922 TLC domain profile.CERS6_MOUSE130-331  1A:62-64

(-) Exons   (0, 0)

(no "Exon" information available for 1X2M)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:64
 aligned with CERS6_MOUSE | Q8C172 from UniProtKB/Swiss-Prot  Length:384

    Alignment length:81
                                  76
                                75 |
                                 | |78        88        98       108       118       128       138       148
          CERS6_MOUSE    70 QANGPQ-TAQPNAILEKVFTAITKHPDEKRLEGLSKQLDWDVRSIQRWFRQRRNQEKPSTLTRFCESMWRFSFYLYVFSYG 149
               SCOP domains -------d1x2ma1 A:8-59                                      ---------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.....-----------------... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------HOMEOBOX_2  PDB: A:15-59 UniProt: 83-127     --TLC  PDB: A:62-64    PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                 1x2m A   1 GSSGSSGTAQPNAILEKVFTAITKHPDEKRLEGLSKQLDWDVRSIQRWFRQRRNQEKPSGP-----------------SSG  64
                                    10        20        30        40        50        60|        -        63
                                                                                       61                62
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1X2M)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1X2M)

(-) Gene Ontology  (11, 11)

NMR Structure(hide GO term definitions)
Chain A   (CERS6_MOUSE | Q8C172)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0050291    sphingosine N-acyltransferase activity    Catalysis of the reaction: acyl-CoA + sphingosine = CoA + N-acylsphingosine.
biological process
    GO:0046513    ceramide biosynthetic process    The chemical reactions and pathways resulting in the formation of ceramides, any N-acylated sphingoid.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:0030148    sphingolipid biosynthetic process    The chemical reactions and pathways resulting in the formation of sphingolipids, any of a class of lipids containing the long-chain amine diol sphingosine or a closely related base (a sphingoid).
cellular component
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0031965    nuclear membrane    Either of the lipid bilayers that surround the nucleus and form the nuclear envelope; excludes the intermembrane space.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1x2m)

  Sites
(no "Sites" information available for 1x2m)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1x2m)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1x2m
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CERS6_MOUSE | Q8C172
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CERS6_MOUSE | Q8C172
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
