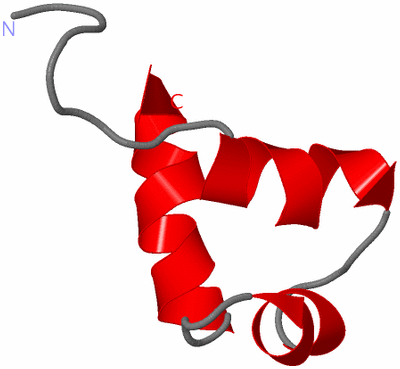

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

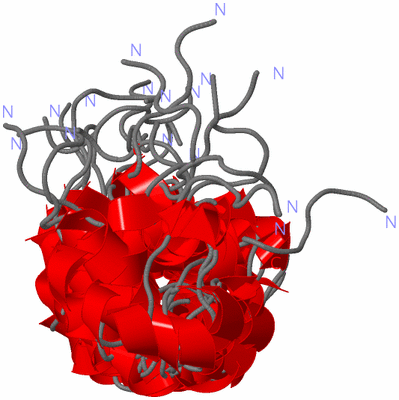

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  DETERMINATION OF THE STRUCTURE OF THE DNA BINDING DOMAIN OF GAMMA DELTA RESOLVASE IN SOLUTION

Authors :  G. P. Mullen
Date :  29 Jun 94  (Deposition) - 30 Nov 94  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (17x)
Keywords :  Site-Specific Recombinase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Liu, E. F. Derose, G. P. Mullen
Determination Of The Structure Of The Dna Binding Domain Of Gamma Delta Resolvase In Solution.
Protein Sci. V. 3 1286 1994
PubMed-ID: 7987224
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GAMMA DELTA-RESOLVASE
    Chains: A
    Engineered: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units


NMR Structure (17x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1RET)

(-) Sites  (0, 0)

(no "Site" information available for 1RET)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1RET)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1RET)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RET)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RET)

(-) Exons   (0, 0)

(no "Exon" information available for 1RET)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:43
 aligned with TNR1_ECOLI | P03012 from UniProtKB/Swiss-Prot  Length:183

    Alignment length:43
                                   150       160       170       180
           TNR1_ECOLI   141 GRKRKIDRDAVLNMWQQGLGASHISKTMNIARSTVYKVINESN 183
               SCOP domains d1reta_ A:                                  SCOP domains
               CATH domains 1retA00 A:1-43 Homeodomain-like             CATH domains
               Pfam domains HTH_7-1retA01 A:1-42                      - Pfam domains
         Sec.struct. author ........hhhhhhhhh....hhhhhh....hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------- PROSITE
                 Transcript ------------------------------------------- Transcript
                 1ret A   1 GRKRKIDRDAVLNMWQQGLGASHISKTMNIARSTVYKVINESN  43
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HTH (544)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (TNR1_ECOLI | P03012)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0000150    recombinase activity    Catalysis of the identification and base-pairing of homologous sequences between single-stranded DNA and double-stranded DNA.
biological process
    GO:0015074    DNA integration    The process in which a segment of DNA is incorporated into another, usually larger, DNA molecule such as a chromosome.
    GO:0006310    DNA recombination    Any process in which a new genotype is formed by reassortment of genes resulting in gene combinations different from those that were present in the parents. In eukaryotes genetic recombination can occur by chromosome assortment, intrachromosomal recombination, or nonreciprocal interchromosomal recombination. Intrachromosomal recombination occurs by crossing over. In bacteria it may occur by genetic transformation, conjugation, transduction, or F-duction.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ret)

  Sites
(no "Sites" information available for 1ret)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ret)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

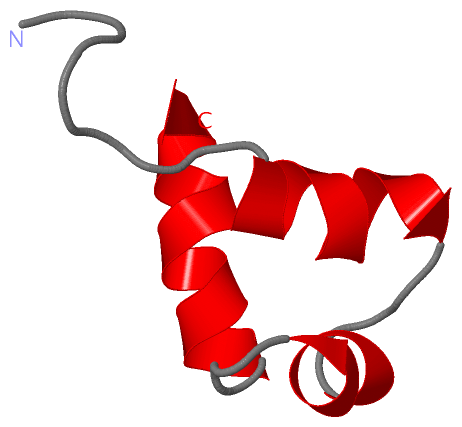

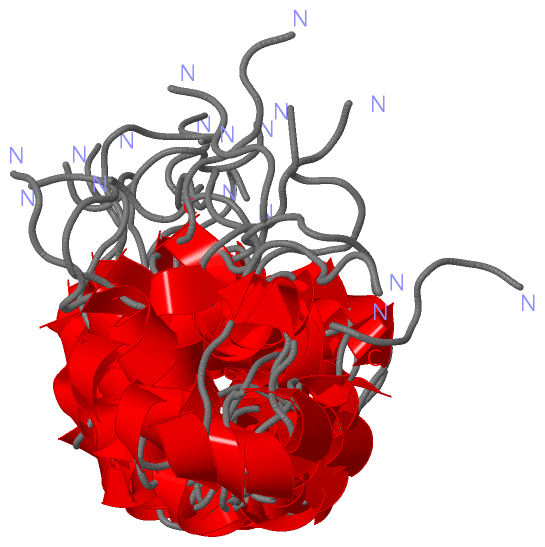

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ret
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TNR1_ECOLI | P03012
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TNR1_ECOLI | P03012
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TNR1_ECOLI | P03012: 1gdr 1gdt 1ght 1hx7 1res 1zr2 1zr4 2gm4 2gm5 2rsl

(-) Related Entries Specified in the PDB File

1res
