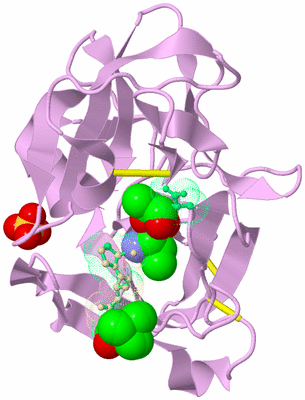

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

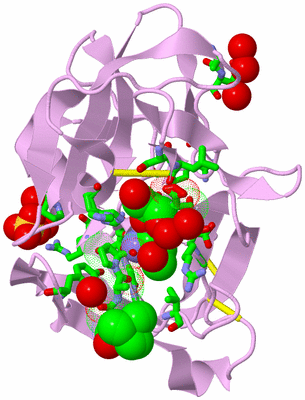

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURES OF ALPHA-LYTIC PROTEASE COMPLEXES WITH IRREVERSIBLY BOUND PHOSPHONATE ESTERS

Authors :  R. Bone, D. A. Agard
Date :  26 Oct 90  (Deposition) - 15 Jan 93  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.93
Chains :  Asym./Biol. Unit :  E,I,P
Keywords :  Serine Proteinase, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Bone, N. S. Sampson, P. A. Bartlett, D. A. Agard
Crystal Structures Of Alpha-Lytic Protease Complexes With Irreversibly Bound Phosphonate Esters.
Biochemistry V. 30 2263 1991
PubMed-ID: 1998685  |  Reference-DOI: 10.1021/BI00222A032
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ALPHA-LYTIC PROTEASE
    Chains: E
    EC Number: 3.4.21.12
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: LAC
    Organism Scientific: LYSOBACTER ENZYMOGENES
    Organism Taxid: 69

Molecule 2 - PHOSPHONATE ESTER INHIBITOR A
    Chains: P
    Engineered: YES

Molecule 3 - PHOSPHONATE ESTER INHIBITOR B(TRANSITION STATE)
    Chains: I
    Engineered: YES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : EIP

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 6)

Asymmetric/Biological Unit (4, 6)
No.NameCountTypeFull Name
1BOC2Mod. Amino AcidTERT-BUTYL HYDROGEN CARBONATE
2LAC1Mod. Amino AcidLACTIC ACID
3PVA2Mod. Amino Acid1-AMINO-2-METHYL-PROPYLPHOSPHONIC ACID
4SO41Ligand/IonSULFATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA E:15A , ASN E:15B , ARG E:230 , PRO E:233 , HOH E:266 , HOH E:277 , HOH E:292 , HOH E:367 , HOH E:381BINDING SITE FOR RESIDUE SO4 E 1
2AC2SOFTWARESER E:40 , LEU E:41 , HIS E:57 , ARG E:125 , THR E:128 , TYR E:171 , GLY E:192A , ARG E:192B , GLY E:193 , ASP E:194 , SER E:195 , GLN E:208 , SER E:214 , GLY E:215 , GLY E:216 , VAL E:217A , GLY E:244 , HOH E:247 , HOH E:348 , PVA I:1 , PRO I:2 , ALA I:3 , ALA I:4 , BOC I:5 , HOH P:6 , HOH P:7 , HOH P:8 , HOH P:9 , HOH P:10 , HOH P:11BINDING SITE FOR CHAIN P OF PHOSPHONATE ESTER INHIBITOR A
3AC3SOFTWAREHIS E:57 , ARG E:125 , TYR E:171 , GLY E:192A , GLY E:193 , ASP E:194 , SER E:195 , SER E:214 , GLY E:215 , GLY E:216 , VAL E:217A , GLY E:244 , HOH E:348 , LAC P:-1 , ALA P:-2 , PVA P:1 , PRO P:2 , ALA P:3 , ALA P:4 , BOC P:5 , HOH P:6 , HOH P:8 , HOH P:10BINDING SITE FOR CHAIN I OF PHOSPHONATE ESTER INHIBITOR B(TRANSITION STATE)

(-) SS Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1E:42 -E:58
2E:137 -E:159
3E:191 -E:220

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Phe E:94 -Pro E:99A

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1P11)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TRYPSIN_HISPS00134 Serine proteases, trypsin family, histidine active site.PRLA_LYSEN231-236  1E:53-58
2TRYPSIN_SERPS00135 Serine proteases, trypsin family, serine active site.PRLA_LYSEN336-347  1E:191-200

(-) Exons   (0, 0)

(no "Exon" information available for 1P11)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain E from PDB  Type:PROTEIN  Length:198
 aligned with PRLA_LYSEN | P00778 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:198
                                   209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389
          PRLA_LYSEN    200 ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLTQGNACMGRGDSGGSWITSAGQAQGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  397
               SCOP domains d1p11e_ E: alpha-Lytic protease                                                                                                                                                                        SCOP domains
               CATH domains --1p11E01 E:16-115,E:231-242 Trypsin-like serine proteases                  1p11E02 E:116-230 Trypsin-like serine proteases                                                            1p11E01      -- CATH domains
               Pfam domains --Trypsin-1p11E01 E:16-226                                                                                                                                                         ------------------- Pfam domains
         Sec.struct. author .......eeee...eeee.........eeeeeehhhhh..........eeeeeeeeee.....eeeeee....eeeeeeee.................eeeeee...eeeeeeeeeeeeeeee..eeeeeeeee...........eee.....eeeeeeee...........hhhhh.eeeeehhhhhhhhh.ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------TRYPSI---------------------------------------------------------------------------------------------------TRYPSIN_SER -------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                1p11 E  15A ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLTQGNACMGRGDSGGSWITSAGQAQGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  244
                            ||   || 32  ||    45   |||| 51       |63  | ||  84      |99A       109       119 |||   126       136      |158       168   ||  179    ||192B       202||     215  |||||220 |||   227       236
                            ||  19|    35|       48A|||         59| 65A ||         91|||                  120B||                    143|             172|       184|  ||        203|       217A|||| 221A||           235A
                          15A|   29     39        48B||          62    67|          93||                   120C|                     156              174        190  ||         207        217B|||  221B|
                           15B                     48C|                 80           94|                    120D                                                   192A|                     217C||   221C
                                                    48D                              99A                                                                            192B                      217D|
                                                                                                                                                                                               217E


Chain I from PDB  Type:PROTEIN  Length:5

               SCOP domains ----- SCOP domains
               CATH domains ----- CATH domains
               Pfam domains ----- Pfam domains
         Sec.struct. author ..... Sec.struct. author
                 SAPs(SNPs) ----- SAPs(SNPs)
                    PROSITE ----- PROSITE
                 Transcript ----- Transcript
                1p11 I    5 xAAPx    1
                            |||||
                            5-BOC
                             4|||
                              3||
                               2|
                                1-PVA


Chain P from PDB  Type:PROTEIN  Length:7

               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ....... Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                    PROSITE ------- PROSITE
                 Transcript ------- Transcript
                1p11 P    5 xAAPxxA   -2
                            |||||||
                            |||||||
                            5-BOC||
                             4|||||
                              3||||
                               2|||
                                1-PVA
                                -1-LAC
                                 -2
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Peptidase_PA (797)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain E   (PRLA_LYSEN | P00778)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BOC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    LAC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PVA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe E:94 - Pro E:99A  [ RasMol ]
