Title :   REPACK MUTANT (T181I, W199L, Q210I) OF ALPHA-LYTIC PROTEASE

Authors :   B. A. Kelch, D. A. Agard

Date :   22 Nov 11 (Deposition) - 23 May 12 (Release) - 18 Jul 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.49

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Serine Protease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. A. Kelch, N. L. Salimi, D. A. Agard
Functional Modulation Of A Protein Folding Landscape Via Side-Chain Distortion.
Proc. Natl. Acad. Sci. Usa V. 109 9414 2012
PubMed-ID: 22635267 | Reference-DOI: 10.1073/PNAS.1119274109

Molecule 1 - ALPHA-LYTIC PROTEASE
	Chains	:	A, B
	EC Number	:	3.4.21.12
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	ALPHA-LP
	Mutation	:	YES
	Organism Scientific	:	LYSOBACTER ENZYMOGENES
	Organism Taxid	:	69
	Synonym	:	ALPHA-LYTIC ENDOPEPTIDASE

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 7)

No.	Name	Count	Type	Full Name
1	SO4	7	Ligand/Ion	SULFATE ION

Biological Unit 1 (1, 4)

No.	Name	Count	Type	Full Name
1	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 3)

No.	Name	Count	Type	Full Name
1	SO4	3	Ligand/Ion	SULFATE ION

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:217 , GLN A:219 , HOH A:483 , HOH A:523 , HOH A:652 , HOH A:693 , HOH A:712	BINDING SITE FOR RESIDUE SO4 A 301
2	AC2	SOFTWARE	ASN A:36 , THR A:62 , ARG A:65 , HOH A:452	BINDING SITE FOR RESIDUE SO4 A 302
3	AC3	SOFTWARE	ARG A:178 , HOH A:403 , HOH A:567 , HOH A:726 , THR B:168 , ARG B:178 , HOH B:726	BINDING SITE FOR RESIDUE SO4 A 303
4	AC4	SOFTWARE	HIS A:57 , ARG A:192 , GLY A:193 , SER A:195 , HOH A:418 , HOH A:453 , HOH A:695	BINDING SITE FOR RESIDUE SO4 A 304
5	AC5	SOFTWARE	ALA A:39 , ARG A:192 , GLY B:120E , SER B:120G , ARG B:122 , HOH B:607 , HOH B:608 , HOH B:610 , HOH B:614 , HOH B:646 , HOH B:874	BINDING SITE FOR RESIDUE SO4 B 501
6	AC6	SOFTWARE	ARG B:120A , HOH B:829	BINDING SITE FOR RESIDUE SO4 B 502
7	AC7	SOFTWARE	HIS B:57 , ARG B:192 , GLY B:193 , SER B:195 , HOH B:758 , HOH B:818 , HOH B:855	BINDING SITE FOR RESIDUE SO4 B 503

Asymmetric Unit

No.	Residues
1	A:42	-	A:58
2	A:137	-	A:159
3	A:189	-	A:220A
4	B:42	-	B:58
5	B:137	-	B:159
6	B:189	-	B:220A

Asymmetric Unit

No.	Residues
1	Phe A:94	-	Pro A:95
2	Phe B:94	-	Pro B:95

(no "SAP(SNP)/Variant" information available for 3URE)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRYPSIN_HIS	PS00134	Serine proteases, trypsin family, histidine active site.	PRLA_LYSEN	231-236	2	A:53-58 B:53-58
2	TRYPSIN_SER	PS00135	Serine proteases, trypsin family, serine active site.	PRLA_LYSEN	336-347	2	A:189-200 B:189-200

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRYPSIN_HIS	PS00134	Serine proteases, trypsin family, histidine active site.	PRLA_LYSEN	231-236	1	A:53-58 -
2	TRYPSIN_SER	PS00135	Serine proteases, trypsin family, serine active site.	PRLA_LYSEN	336-347	1	A:189-200 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRYPSIN_HIS	PS00134	Serine proteases, trypsin family, histidine active site.	PRLA_LYSEN	231-236	1	- B:53-58
2	TRYPSIN_SER	PS00135	Serine proteases, trypsin family, serine active site.	PRLA_LYSEN	336-347	1	- B:189-200

(no "Exon" information available for 3URE)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

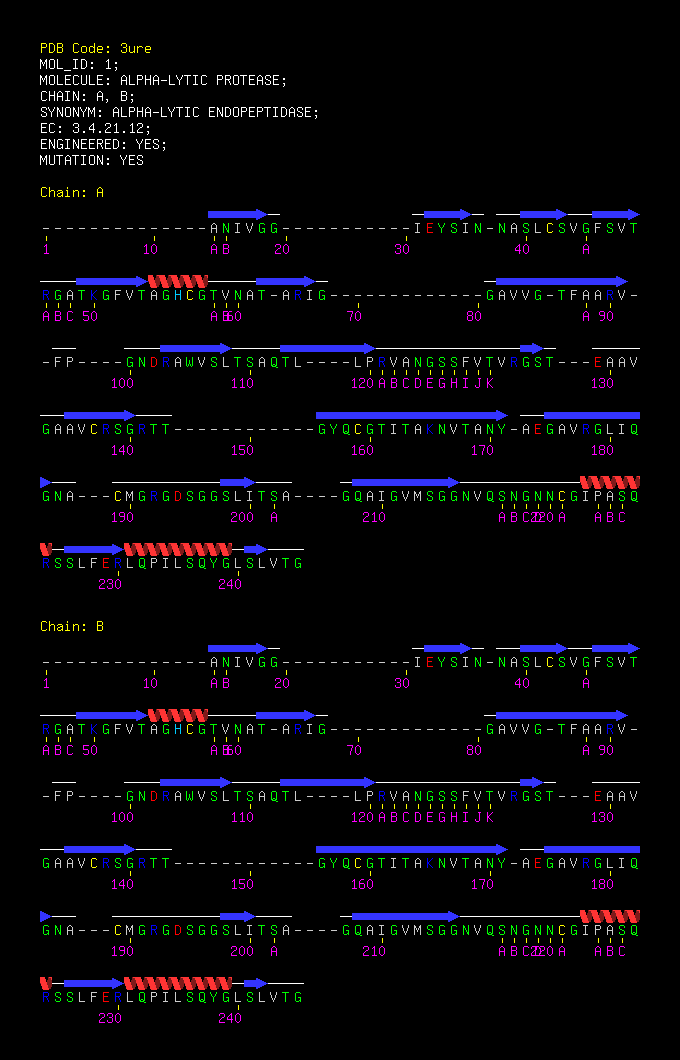

Chain A from PDB  Type:PROTEIN  Length:198
 aligned with PRLA_LYSEN | P00778 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:198
                                   209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389
          PRLA_LYSEN    200 ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLTQGNACMGRGDSGGSWITSAGQAQGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  397
               SCOP domains d3urea_ A: alpha-Lytic protease                                                                                                                                                                        SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..eeee...eeee..eeeee..eeeeeehhhhh....eeee..eeeeeeeeee.....eeeeee....eeeeeeee..eeee..ee.......eeeeee...eeeeeeeeeeeeeeee..eeeeeeeee...........eee....eeeeeeeee...........hhhhh.eeeeehhhhhhhhh.ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------TRYPSI---------------------------------------------------------------------------------------------------TRYPSIN_SER -------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3ure A  15A ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLIQGNACMGRGDSGGSLITSAGQAIGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  245
                            ||   || 34 ||    44A    ||| 51       59B  ||  ||83 || |  |95|      109    ||120C|||||||123 ||    136      |158       168  ||   179     ||192      201A||     215    ||220A  |||  227       237
                            ||  19|   36|    44A  48A||         59A| 62| 67|  85| | 91|||           114| ||||120I||  125|           143|            171|         185|         201A||         219A||| |  |||
                          15A|   31    38          48B|          59B  64  81   87 |  94||            119 |||||120J|   129            156             173          189           202|          219B|| |  |||
                           15B                      48C                         88A   95|             120A|||||120K                                                              207           219C| |  |||
                                                                                      100              120B|||||                                                                                219D |  |||
                                                                                                        120C||||                                                                                  220A  |||
                                                                                                         120D|||                                                                                     222A||
                                                                                                          120E||                                                                                      222B|
                                                                                                           120G|                                                                                       222C
                                                                                                            120H

Chain B from PDB  Type:PROTEIN  Length:198
 aligned with PRLA_LYSEN | P00778 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:198
                                   209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389
          PRLA_LYSEN    200 ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLTQGNACMGRGDSGGSWITSAGQAQGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  397
               SCOP domains d3ureb_ B: alpha-Lytic protease                                                                                                                                                                        SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..eeee...eeee..eeeee..eeeeeehhhhh....eeee..eeeeeeeeee.....eeeeee....eeeeeeee..eeee..ee.......eeeeee...eeeeeeeeeeeeeeee..eeeeeeeee...........eee....eeeeeeeee...........hhhhh.eeeeehhhhhhhhh.ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------TRYPSI---------------------------------------------------------------------------------------------------TRYPSIN_SER -------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3ure B  15A ANIVGGIEYSINNASLCSVGFSVTRGATKGFVTAGHCGTVNATARIGGAVVGTFAARVFPGNDRAWVSLTSAQTLLPRVANGSSFVTVRGSTEAAVGAAVCRSGRTTGYQCGTITAKNVTANYAEGAVRGLIQGNACMGRGDSGGSLITSAGQAIGVMSGGNVQSNGNNCGIPASQRSSLFERLQPILSQYGLSLVTG  245
                            ||   || 34 ||    44A    ||| 51       59B  ||  ||83 || |  |95|      109    ||120C|||||||123 ||    136      |158       168  ||   179     ||192      201A||     215    ||220A  |||  227       237
                          15A|  19|   36|    44A  48A||         59A| 62| 67|  85| | 91|||           114| ||||120I||  125|           143|            171|         185|         201A||         219A||| |  |||
                           15B   31    38          48B|          59B  64  81   87 |  94||            119 |||||120J|   129            156             173          189           202|          219B|| |  |||
                                                    48C                         88A   95|             120A|||||120K                                                              207           219C| |  |||
                                                                                      100              120B|||||                                                                                219D |  |||
                                                                                                        120C||||                                                                                  220A  |||
                                                                                                         120D|||                                                                                     222A||
                                                                                                          120E||                                                                                      222B|
                                                                                                           120G|                                                                                       222C
                                                                                                            120H

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Trypsin-like serine proteases (1752)

Superfamily: Trypsin-like serine proteases (1752)

Family: Prokaryotic proteases (131)

Protein domain: alpha-Lytic protease (45)

Lysobacter enzymogenes, 495 [TaxId: 69] (45)

1a	d3urea_	A:
1b	d3ureb_	B:

(no "CATH Domain" information available for 3URE)

(no "Pfam Domain" information available for 3URE)

Asymmetric Unit(hide GO term definitions)

Chain A,B (PRLA_LYSEN | P00778)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
