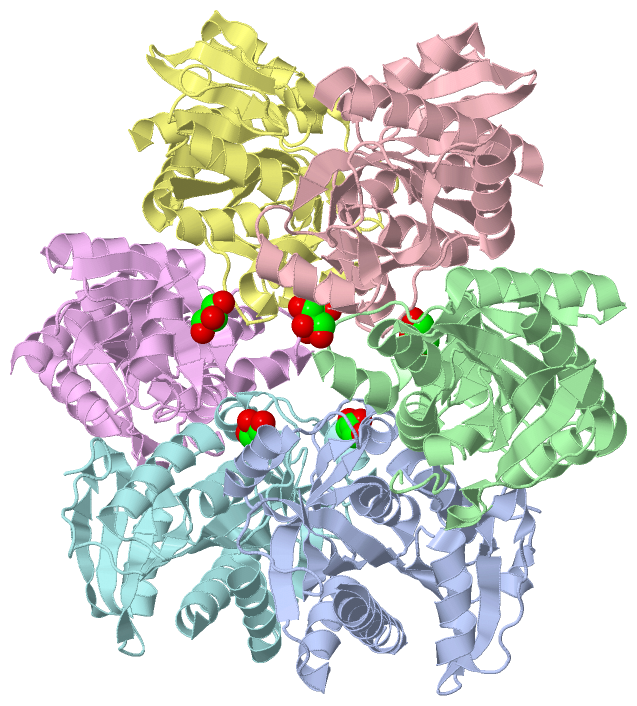

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

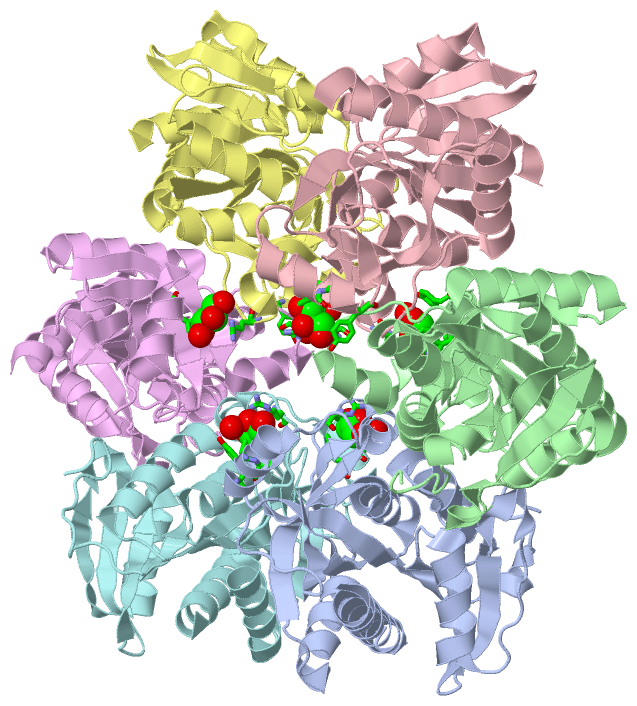

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  PURINE NUCLEOSIDE PHOSPHORYLASE FROM THERMUS THERMOPHILUS

Authors :  T. H. Tahirov, E. Inagaki, M. Miyano
Date :  19 Feb 03  (Deposition) - 27 Feb 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Nucleoside Phosphorylase, Alpha-Beta Protein, Transferase, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. H. Tahirov, E. Inagaki, N. Ohshima, T. Kitao, C. Kuroishi, Y. Ukita, K. Takio, M. Kobayashi, S. Kuramitsu, S. Yokoyama, M. Miyano
Crystal Structure Of Purine Nucleoside Phosphorylase From Thermus Thermophilus
J. Mol. Biol. V. 337 1149 2004
PubMed-ID: 15046984  |  Reference-DOI: 10.1016/J.JMB.2004.02.016

(-) Compounds

Molecule 1 - PURINE NUCLEOSIDE PHOSPHORYLASE
    Chains: A, B, C, D, E, F
    EC Number: 2.4.2.28
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: B834(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric/Biological Unit (1, 6)
No.NameCountTypeFull Name
1GOL6Ligand/IonGLYCEROL

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:169 , TRP A:170 , TYR A:173 , HOH A:2157 , ARG F:123BINDING SITE FOR RESIDUE GOL A1236
2AC2SOFTWAREARG A:123 , HOH A:2158 , ALA F:169 , TRP F:170BINDING SITE FOR RESIDUE GOL A1237
3AC3SOFTWAREALA B:169 , TRP B:170 , TYR B:173 , HOH B:2148 , HOH B:2149 , ARG C:123BINDING SITE FOR RESIDUE GOL B1236
4AC4SOFTWAREARG B:123 , ALA C:169 , TRP C:170 , TYR C:173BINDING SITE FOR RESIDUE GOL C1236
5AC5SOFTWAREALA D:169 , TYR D:173 , HOH D:2106 , ARG E:123BINDING SITE FOR RESIDUE GOL D1236
6AC6SOFTWAREARG D:123 , TRP E:170 , HOH E:2112BINDING SITE FOR RESIDUE GOL E1236

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ODK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ODK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ODK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ODK)

(-) Exons   (0, 0)

(no "Exon" information available for 1ODK)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:228
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odka_ A: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkA00 A:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhh..eeee..hhhhhhhhhhhhh.......hhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhhh.eeeeeeeeeee.------hhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk A   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRI------PPEVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201    |    - |     221       231
                                                                                                                                                                                                                                      206    213


Chain B from PDB  Type:PROTEIN  Length:234
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odkb_ B: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkB00 B:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhh..eeeee.hhhhhhhhhhhhh.......hhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhhh..eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhhh.eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk B   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231


Chain C from PDB  Type:PROTEIN  Length:228
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odkc_ C: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkC00 C:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhhh..eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhh..eeeeeeeeeee.------hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk C   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRI------PPEVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201    |    - |||   221       231
                                                                                                                                                                                                                                      206    212||
                                                                                                                                                                                                                                              213|
                                                                                                                                                                                                                                               215


Chain D from PDB  Type:PROTEIN  Length:234
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odkd_ D: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkD00 D:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhhh.eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk D   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231


Chain E from PDB  Type:PROTEIN  Length:226
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odke_ E: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkE00 E:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhh..eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhhh.eeeeeeeeeee.--------hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk E   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRI--------EVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201    |    -   |   221       231
                                                                                                                                                                                                                                      206      215


Chain F from PDB  Type:PROTEIN  Length:234
 aligned with Q5SID9_THET8 | Q5SID9 from UniProtKB/TrEMBL  Length:235

    Alignment length:234
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
         Q5SID9_THET8     2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
               SCOP domains d1odkf_ F: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                            SCOP domains
               CATH domains 1odkF00 F:2-235  [code=3.40.50.1580, no name defined]                                                                                                                                                                                      CATH domains
           Pfam domains (1) -------------PNP_UDP_1-1odkF01 F:15-234                                                                                                                                                                                                  - Pfam domains (1)
           Pfam domains (2) -------------PNP_UDP_1-1odkF02 F:15-234                                                                                                                                                                                                  - Pfam domains (2)
           Pfam domains (3) -------------PNP_UDP_1-1odkF03 F:15-234                                                                                                                                                                                                  - Pfam domains (3)
           Pfam domains (4) -------------PNP_UDP_1-1odkF04 F:15-234                                                                                                                                                                                                  - Pfam domains (4)
           Pfam domains (5) -------------PNP_UDP_1-1odkF05 F:15-234                                                                                                                                                                                                  - Pfam domains (5)
           Pfam domains (6) -------------PNP_UDP_1-1odkF06 F:15-234                                                                                                                                                                                                  - Pfam domains (6)
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeeehhhhhhhhh........hhhhhhhhhhhhhhh...eeeeeeeee......hhhhhhhhhh..eeeee.hhhhhhhhhhhh..eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1odk F   2 SPIHVRAHPGDVAERVLLPGDPGRAEWIAKTFLQNPRRYNDHRGLWGYTGLYKGVPVSVQTTGMGTPSAAIVVEELVRLGARVLVRVGTAGAASSDLAPGELIVAQGAVPLDGTTRQYLEGRPYAPVPDPEVFRALWRRAEALGYPHRVGLVASEDAFYATTPEEARAWARYGVLAFEMEASALFLLGRMRGVRTGAILAVSNRIGDPELAPPEVLQEGVRRMVEVALEAVLEV 235
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 6)

Asymmetric/Biological Unit
(-)
Clan: PUP (121)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (Q5SID9_THET8 | Q5SID9)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0016763    transferase activity, transferring pentosyl groups    Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0009116    nucleoside metabolic process    The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1odk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1odk
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5SID9_THET8 | Q5SID9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  2.4.2.28
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5SID9_THET8 | Q5SID9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q5SID9_THET8 | Q5SID9: 1odi 1odj 1odl

(-) Related Entries Specified in the PDB File

1a69 PURINE NUCLEOSIDE PHOSPHORYLASE IN COMPLEX WITH FORMYCIN B AND SULPHATE (PHOSPHATE)
1a9o BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH PHOSPHATE
1a9p BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 9-DEAZAINOSINE AND PHOSPHATE
1a9q BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH INOSINE
1a9r BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH HYPOXANTHINE AND SULFATE
1a9s BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH INOSINE AND SULFATE
1a9t BOVINE PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 9-DEAZAINOSINE AND PHOSPHATE
1b8n PURINE NUCLEOSIDE PHOSPHORYLASE
1b8o PURINE NUCLEOSIDE PHOSPHORYLASE
1c3x PURINE NUCLEOSIDE PHOSPHORYLASE FROM CELLULOMONAS SP. IN COMPLEX WITH 8-IODO- GUANINE
1ecp PURINE NUCLEOSIDE PHOSPHORYLASE
1fxu PURINE NUCLEOSIDE PHOSPHORYLASE FROM CALF SPLEEN IN COMPLEXWITH N(7)-ACYCLOGUANOSINE INHIBITOR AND A PHOSPHATE ION
1g2o CRYSTAL STRUCTURE OF PURINE NUCLEOSIDE PHOSPHORYLASE FROMMYCOBACTERIUM TUBERCULOSIS IN COMPLEX WITH A TRANSITION-STATE INHIBITOR
1k9s PURINE NUCLEOSIDE PHOSPHORYLASE FROM E. COLI IN COMPLEXWITH FORMYCIN A DERIVATIVE AND PHOSPHATE
1odi PURINE NUCLEOSIDE PHOSPHORYLASE FROM THERMUS THERMOPHILUS
1odj PURINE NUCLEOSIDE PHOSPHORYLASE FROM THERMUS THERMOPHILUS
1odl PURINE NUCLEOSIDE PHOSPHORYLASE FROM THERMUS THERMOPHILUS
1pbn PURINE NUCLEOSIDE PHOSPHORYLASE
1qe5 PURINE NUCLEOSIDE PHOSPHORYLASE FROM CELLULOMONAS SP. IN COMPLEX WITH PHOSPHATE
1ula PURINE NUCLEOSIDE PHOSPHORYLASE
1ulb PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEX WITH GUANINE
1vfn PURINE NUCLEOSIDE PHOSPHORYLASE
3pnp THE HIGH RESOLUTION CRYSTAL STRUCTURE OF BOVINE SPLEEN PURINE NUCLEOSIDE PHOSPHORYLASE IN COMPLEX FORMS WITH PHOSPHATE AND 9- DEAZAINOSINE
4pnp THE HIGH RESOLUTION CRYSTAL STRUCTURE OF BOVINE SPLEEN PURINE NUCLEOSIDE PHOSPHORYLASE IN COMPLEX FORMS WITH PHOSPHATE AND 9- DEAZAINOSINE
