1FXU - JenaLib

Title :   PURINE NUCLEOSIDE PHOSPHORYLASE FROM CALF SPLEEN IN COMPLEX WITH N(7)-ACYCLOGUANOSINE INHIBITOR AND A PHOSPHATE ION

Authors :   M. Luic, A. Bzowska, D. Shugar, W. Saenger, G. Koellner

Date :   27 Sep 00 (Deposition) - 18 Oct 00 (Release) - 16 Nov 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (3x)
Biol. Unit 3: A  (3x)

Keywords :   Glycosyltransferase, Nucleoside Phosphorylase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Luic, G. Koellner, D. Shugar, W. Saenger, A. Bzowska
Calf Spleen Purine Nucleoside Phosphorylase: Structure Of Its Ternary Complex With An N(7)-Acycloguanosine Inhibitor And A Phosphate Anion.
Acta Crystallogr. , Sect. D V. 57 30 2001
PubMed-ID: 11134924 | Reference-DOI: 10.1107/S0907444900014402
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 4)

Asymmetric Unit (4, 4)

No.	Name	Count	Type	Full Name
1	GU7	1	Ligand/Ion	2-AMINO-7-[2-(2-HYDROXY-1-HYDROXYMETHYL-ETHYLAMINO)-ETHYL]-1,7-DIHYDRO-PURIN-6-ONE
2	MG	1	Ligand/Ion	MAGNESIUM ION
3	PO4	1	Ligand/Ion	PHOSPHATE ION
4	ZN	1	Ligand/Ion	ZINC ION

Biological Unit 1 (2, 2)

No.	Name	Count	Type	Full Name
1	GU7	1	Ligand/Ion	2-AMINO-7-[2-(2-HYDROXY-1-HYDROXYMETHYL-ETHYLAMINO)-ETHYL]-1,7-DIHYDRO-PURIN-6-ONE
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	PO4	1	Ligand/Ion	PHOSPHATE ION
4	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (2, 6)

No.	Name	Count	Type	Full Name
1	GU7	3	Ligand/Ion	2-AMINO-7-[2-(2-HYDROXY-1-HYDROXYMETHYL-ETHYLAMINO)-ETHYL]-1,7-DIHYDRO-PURIN-6-ONE
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	PO4	3	Ligand/Ion	PHOSPHATE ION
4	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 3 (2, 6)

No.	Name	Count	Type	Full Name
1	GU7	3	Ligand/Ion	2-AMINO-7-[2-(2-HYDROXY-1-HYDROXYMETHYL-ETHYLAMINO)-ETHYL]-1,7-DIHYDRO-PURIN-6-ONE
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	PO4	3	Ligand/Ion	PHOSPHATE ION
4	ZN	-1	Ligand/Ion	ZINC ION

Sites (4, 4)

SS Bonds (0, 0)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_MTAP_2	PS01240	Purine and other phosphorylases family 2 signature.	PNPH_BOVIN	79-120	1	A:79-120

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_MTAP_2	PS01240	Purine and other phosphorylases family 2 signature.	PNPH_BOVIN	79-120	1	A:79-120

Biological Unit 2 (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_MTAP_2	PS01240	Purine and other phosphorylases family 2 signature.	PNPH_BOVIN	79-120	3	A:79-120

Biological Unit 3 (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_MTAP_2	PS01240	Purine and other phosphorylases family 2 signature.	PNPH_BOVIN	79-120	3	A:79-120

Exons (6, 6)

Asymmetric Unit (6, 6)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	ENSBTAT00000016346	1	ENSBTAE00000133169	chr10:26040769-26040670	100	PNPH_BOVIN	1-33	33	1	A:4-33	30
1.3	ENSBTAT00000016346	3	ENSBTAE00000420054	chr10:26038796-26038627	170	PNPH_BOVIN	33-90	58	1	A:33-90	58
1.4	ENSBTAT00000016346	4	ENSBTAE00000408817	chr10:26036665-26036562	104	PNPH_BOVIN	90-124	35	1	A:90-124	35
1.5	ENSBTAT00000016346	5	ENSBTAE00000427656	chr10:26036357-26036182	176	PNPH_BOVIN	125-183	59	1	A:125-183	59
1.6	ENSBTAT00000016346	6	ENSBTAE00000404946	chr10:26036090-26035900	191	PNPH_BOVIN	183-247	65	1	A:183-247	65
1.7	ENSBTAT00000016346	7	ENSBTAE00000133178	chr10:26035106-26034471	636	PNPH_BOVIN	247-318	72	1	A:247-284 (gaps)	38

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:278
 aligned with PNPH_BOVIN | P55859 from UniProtKB/Swiss-Prot  Length:289

    Alignment length:281
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283
           PNPH_BOVIN     4 GYTYEDYQDTAKWLLSHTEQRPQVAVICGSGLGGLVNKLTQAQTFDYSEIPNFPESTVPGHAGRLVFGILNGRACVMMQGRFHMYEGYPFWKVTFPVRVFRLLGVETLVVTNAAGGLNPNFEVGDIMLIRDHINLPGFSGENPLRGPNEERFGVRFPAMSDAYDRDMRQKAHSTWKQMGEQRELQEGTYVMLGGPNFETVAECRLLRNLGADAVGMSTVPEVIVARHCGLRVFGFSLITNKVIMDYESQGKANHEEVLEAGKQAAQKLEQFVSLLMASIPV 284
               SCOP domains d1fxua_ A: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1fxuA00 A:4-284  [code=3.40.50.1580, no name defined]                                                                                                                                                                                                                                     CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhh.......eeeee...hhhhhh..eeeeeee.hhh.............eeeeee....eeeeee...hhhhh.hhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeeehhhhh........................hhhhhhhhhhhhhhh......eeeeeee.......hhhhhhhhhhh...eee..hhhhhhhhhhh..eeeeeeeeeee.....---...hhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------PNP_MTAP_2  PDB: A:79-120 UniProt: 79-120 -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1  PDB: A:4-33         --------------------------------------------------------Exon 1.4  PDB: A:90-124            Exon 1.5  PDB: A:125-183 UniProt: 125-183                  ---------------------------------------------------------------Exon 1.7  PDB: A:247-284 (gaps)        Transcript 1 (1)
           Transcript 1 (2) -----------------------------Exon 1.3  PDB: A:33-90 UniProt: 33-90                     --------------------------------------------------------------------------------------------Exon 1.6  PDB: A:183-247 UniProt: 183-247                        ------------------------------------- Transcript 1 (2)
                 1fxu A   4 GYTYEDYQDTAKWLLSHTEQRPQVAVICGSGLGGLVNKLTQAQTFDYSEIPNFPESTVPGHAGRLVFGILNGRACVMMQGRFHMYEGYPFWKVTFPVRVFRLLGVETLVVTNAAGGLNPNFEVGDIMLIRDHINLPGFSGQNPLRGPNEERFGVRFPAMSDAYDRDMRQKAHSTWKQMGEQRELQEGTYVMLGGPNFETVAECRLLRNLGADAVGMSTVPEVIVARHCGLRVFGFSLITNKVIMDT---GKANHEEVLEAGKQAAQKLEQFVSLLMASIPV 284
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243     | 253       263       273       283
                                                                                                                                                                                                                                                                               249 253

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

Asymmetric Unit(hide GO term definitions)

Chain A (PNPH_BOVIN | P55859)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0004731	purine-nucleoside phosphorylase activity	Catalysis of the reaction: purine nucleoside + phosphate = purine + alpha-D-ribose 1-phosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0016763	transferase activity, transferring pentosyl groups	Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
biological process
	GO:0006139	nucleobase-containing compound metabolic process	Any cellular metabolic process involving nucleobases, nucleosides, nucleotides and nucleic acids.
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0043101	purine-containing compound salvage	Any process that generates a purine-containing compound, any nucleobase, nucleoside, nucleotide or nucleic acid that contains a purine base, from derivatives of them without de novo synthesis.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005856	cytoskeleton	Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.

Visualization

Interactive Views

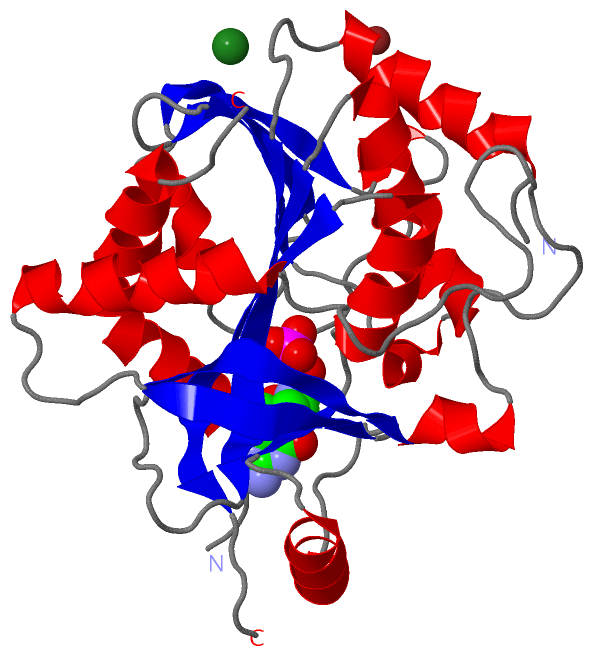

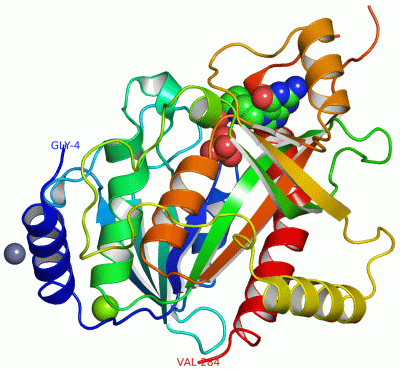

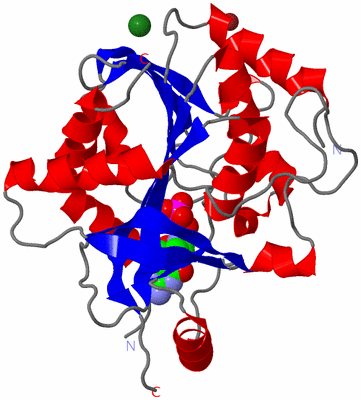

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GU7	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

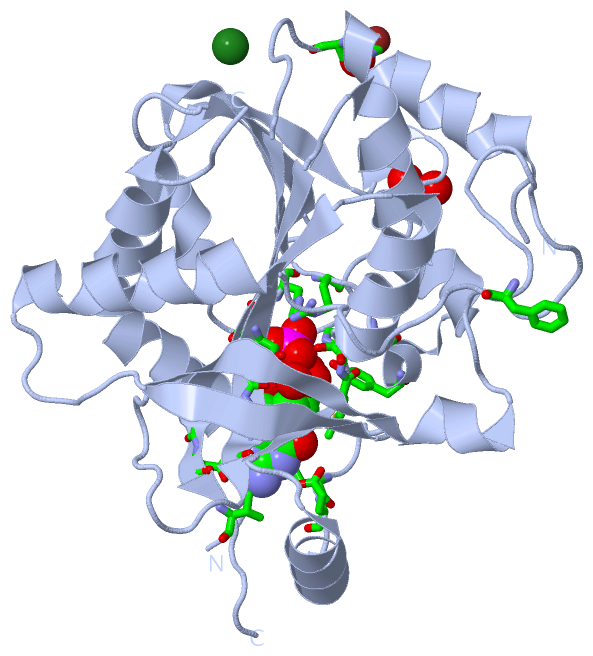

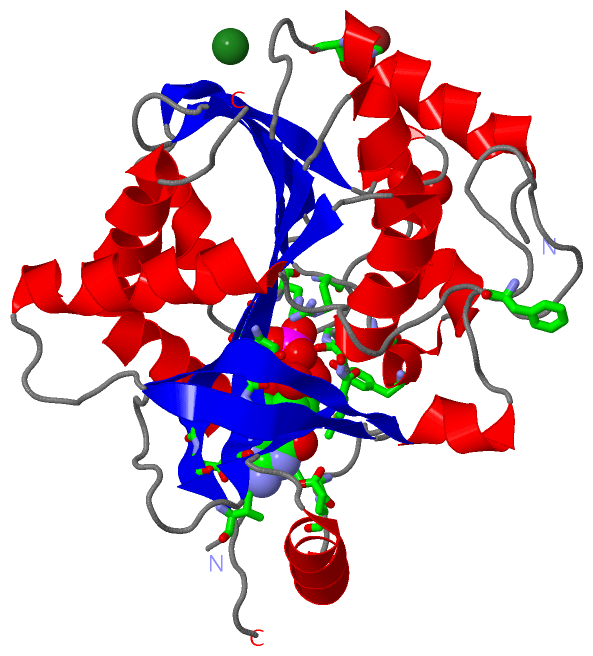

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Gly A:197 - Pro A:198	[ RasMol ]

Biological Units
	Complete Structure

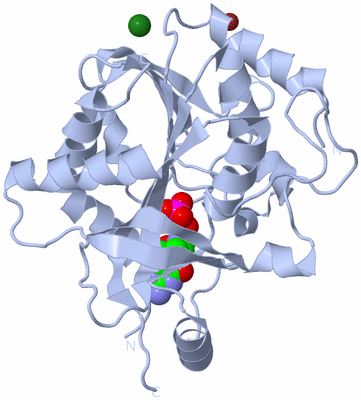

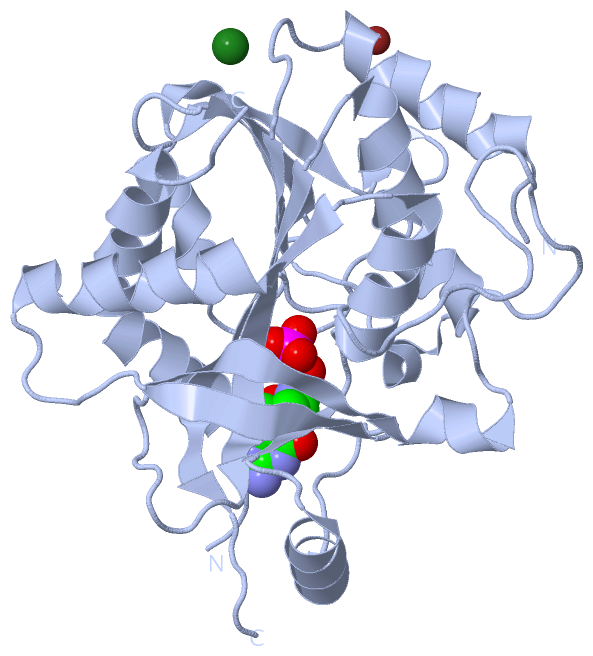

		Biological Unit 1	[ Jena3D ]

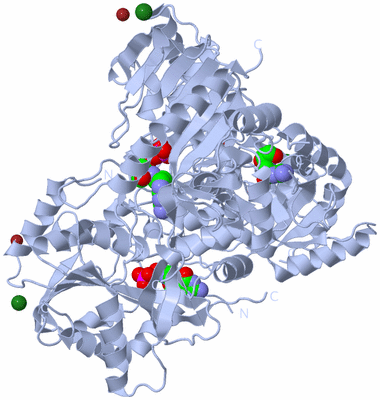

		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
