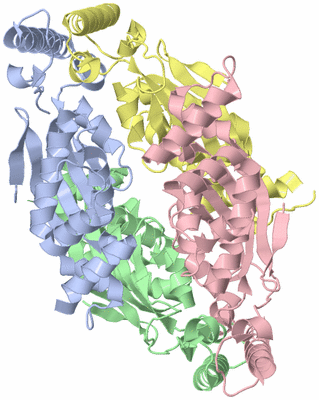

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THYMIDYLATE SYNTHASE COMPLEMENTING PROTEIN (TM0449) FROM THERMOTOGA MARITIMA AT 2.0 A RESOLUTION

Authors :  I. I. Mathews, A. M. Deacon, J. M. Canaves, D. Mcmullan, S. A. Lesley, S. Agarwalla, P. Kuhn, Joint Center For Structural Genomics (Jcsg)
Date :  18 Feb 03  (Deposition) - 24 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Tm0449, Thymidylate Synthase Complementing Protein, Structural Genomics, Jcsg, Joint Center For Structural Genomics, Protein Structure Initiative, Psi, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. I. Mathews, A. M. Deacon, J. M. Canaves, D. Mcmullan, S. A. Lesley, S. Agarwalla, P. Kuhn
Functional Analysis Of Substrate And Cofactor Complex Structures Of A Thymidylate Synthase-Complementing Protein
Structure V. 11 677 2003
PubMed-ID: 12791256  |  Reference-DOI: 10.1016/S0969-2126(03)00097-2
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THYMIDYLATE SYNTHASE THYX
    Chains: A, B, C, D
    EC Number: 2.1.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0449
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Synonym: TS, TSASE, THYMIDYLATE SYNTHASE COMPLEMENTING PROTEIN

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1O24)

(-) Sites  (0, 0)

(no "Site" information available for 1O24)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O24)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1O24)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O24)

(-) PROSITE Motifs  (1, 4)

Asymmetric/Biological Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1THYXPS51331 Flavin-dependent thymidylate synthase (thyX) domain profile.THYX_THEMA1-208


 		  4A:1-208
B:1-208
C:1-208
D:1-208

(-) Exons   (0, 0)

(no "Exon" information available for 1O24)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:208
 aligned with THYX_THEMA | Q9WYT0 from UniProtKB/Swiss-Prot  Length:220

    Alignment length:217
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208
           THYX_THEMA     - --MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDIL 215
               SCOP domains d1o24a_ A: Thy1 homologue                                                                                                                                                                                                 SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeeeeee.hhhhhhhhhhh.....----hhhhhhhhhhhhh..hhhhhh.eeeeeeeeehhhhhhhh.....eeee..-----........hhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhh....eeeeeeeeehhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --THYX  PDB: A:1-208 UniProt: 1-208                                                                                                                                                                               ------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o24 A  -1 HHMKIDILDKGFVELVDVMGNDLSAVRAARVSFDMG----ERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELS-----LSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDIL 215
                                     8        18        28     |   -|       48        58        68        78        88     |  98       108       118       128       138       148       158       168       178       188       198       208
                                                              34   39                                               88    94


Chain B from PDB  Type:PROTEIN  Length:213
 aligned with THYX_THEMA | Q9WYT0 from UniProtKB/Swiss-Prot  Length:220

    Alignment length:220
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
           THYX_THEMA     1 MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDILKEVQV 220
               SCOP domains d1o24b_ B: Thy1 homologue                                                                                                                                                                                                    SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee...eeeeeeeee.hhhhhhhhhhh.-------hhhhhhhhhhhhhh..hhhhhh.eeeeeeeeehhhhhhhh.....eeee...............hhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhh....eeeeeeeeehhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE THYX  PDB: B:1-208 UniProt: 1-208                                                                                                                                                                               ------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o24 B   1 MKIDILDKGFVELVDVMGNDLSAVRAARVS-------EERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDILKEVQV 220
                                    10        20        30       |40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
                                                        30      38


Chain C from PDB  Type:PROTEIN  Length:220
 aligned with THYX_THEMA | Q9WYT0 from UniProtKB/Swiss-Prot  Length:220

    Alignment length:220
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
           THYX_THEMA     1 MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDILKEVQV 220
               SCOP domains d1o24c_ C: Thy1 homologue                                                                                                                                                                                                    SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee...eeeeeeeee.hhhhhhhhhhh.......hhhhhhhhhhhhhhh..hhhhhh.eeeeeeeeehhhhhhhh.....eeee...............hhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh....eeeeeeeeehhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE THYX  PDB: C:1-208 UniProt: 1-208                                                                                                                                                                               ------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o24 C   1 MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDILKEVQV 220
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain D from PDB  Type:PROTEIN  Length:214
 aligned with THYX_THEMA | Q9WYT0 from UniProtKB/Swiss-Prot  Length:220

    Alignment length:215
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
           THYX_THEMA     1 MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDIL 215
               SCOP domains d1o24d_ D: Thy1 homologue                                                                                                                                                                                               SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ----------Thy1-1o24D01 D:11-201                                                                                                                                                                          -------------- Pfam domains (1)
           Pfam domains (2) ----------Thy1-1o24D02 D:11-201                                                                                                                                                                          -------------- Pfam domains (2)
           Pfam domains (3) ----------Thy1-1o24D03 D:11-201                                                                                                                                                                          -------------- Pfam domains (3)
           Pfam domains (4) ----------Thy1-1o24D04 D:11-201                                                                                                                                                                          -------------- Pfam domains (4)
         Sec.struct. author .eeee...eeeeeeeee.hhhhhhhhhhh......-hhhhhhhhhhhhhhhh.hhhhhh.eeeeeeeeehhhhhhhh.....eeee...............hhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhh....eeeeeeeeehhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE THYX  PDB: D:1-208 UniProt: 1-208                                                                                                                                                                               ------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o24 D   1 MKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGL-DEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDIL 215
                                    10        20        30    | | 40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
                                                             35 |
                                                               37
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1O24)

(-) Pfam Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Thy1] (11)
(-)
Family: Thy1 (11)
(-)
Thermotoga maritima (11)
1aThy1-1o24D01D:11-201
1bThy1-1o24D02D:11-201
1cThy1-1o24D03D:11-201
1dThy1-1o24D04D:11-201

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (THYX_THEMA | Q9WYT0)
molecular function
    GO:0050660    flavin adenine dinucleotide binding    Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0050797    thymidylate synthase (FAD) activity    Catalysis of the reaction: 5,10-methylenetetrahydrofolate + dUMP + NADPH + H+ = dTMP + tetrahydrofolate + NADP+.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006231    dTMP biosynthetic process    The chemical reactions and pathways resulting in the formation of dTMP, deoxyribosylthymine monophosphate (2'-deoxyribosylthymine 5'-phosphate).
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0009165    nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1o24)

  Sites
(no "Sites" information available for 1o24)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1o24)


(-) Still Images

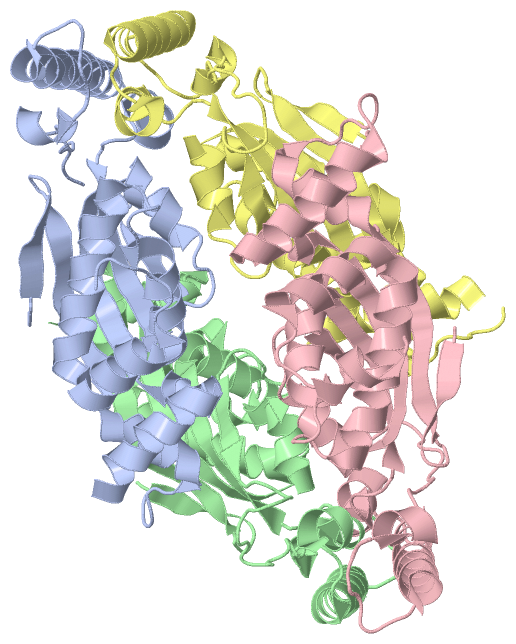

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
