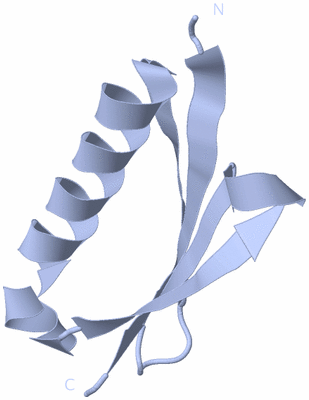

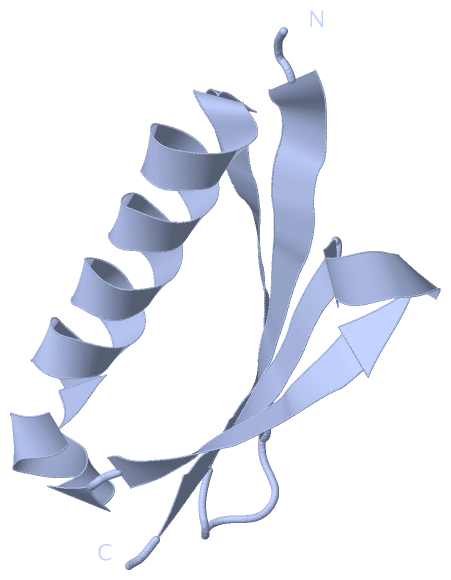

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

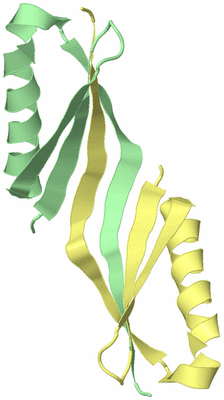

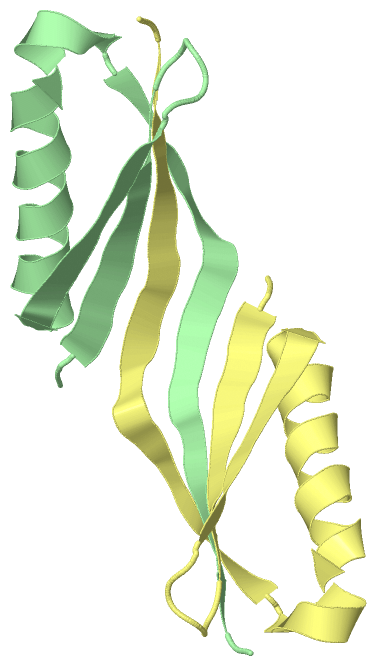

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

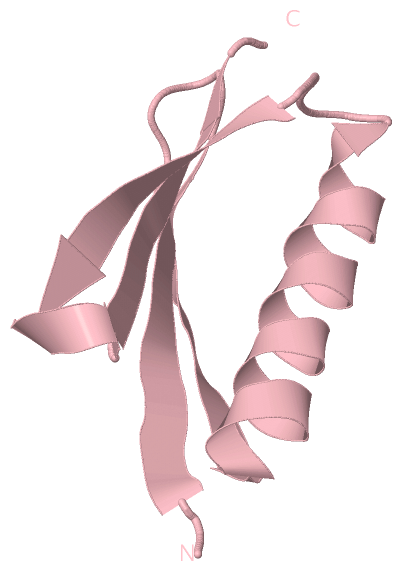

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

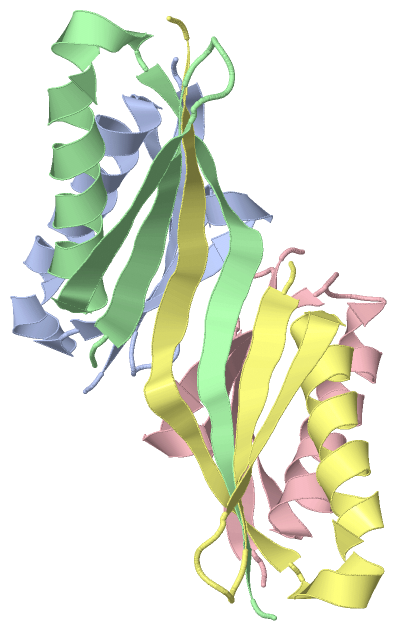

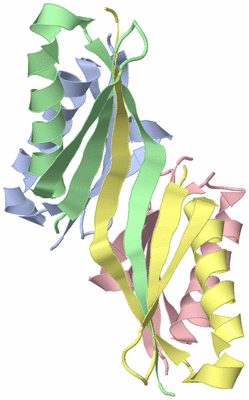

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  A V49A MUTATION INDUCES 3D DOMAIN SWAPPING IN THE B1 DOMAIN OF PROTEIN L FROM PEPTOSTREPTOCOCCUS MAGNUS

Authors :  J. W. O'Neill, D. E. Kim, K. Johnsen, D. Baker, K. Y. J. Zhang
Date :  09 Oct 01  (Deposition) - 05 Dec 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B,D  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  A,B,C,D  (1x)
Keywords :  Protein L B1 Domain, Strained Beta-Hairpin Turn, Positive Phi Angles, Domain Swapping, Amyloid Formation, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. W. O'Neill, D. E. Kim, K. Johnsen, D. Baker, K. Y. Zhang
Single-Site Mutations Induce 3D Domain Swapping In The B1 Domain Of Protein L From Peptostreptococcus Magnus.
Structure V. 9 1017 2001
PubMed-ID: 11709166  |  Reference-DOI: 10.1016/S0969-2126(01)00667-0

(-) Compounds

Molecule 1 - PROTEIN L
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET3A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: B1 DOMAIN (RESIDUES 111-173)
    Gene: PROTEIN L, B1 DOMAIN
    Mutation: YES
    Organism Scientific: FINEGOLDIA MAGNA
    Organism Taxid: 334413
    Strain: ATCC 29328

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B D
Biological Unit 3 (1x):   C
Biological Unit 4 (1x): ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1K50)

(-) Sites  (0, 0)

(no "Site" information available for 1K50)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1K50)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1K50)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1K50)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1K50)

(-) Exons   (0, 0)

(no "Exon" information available for 1K50)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:63
 aligned with Q51912_FINMA | Q51912 from UniProtKB/TrEMBL  Length:719

    Alignment length:63
                                   120       130       140       150       160       170
         Q51912_FINMA   111 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEYTVDVADKGYTLNIKFAG 173
               SCOP domains d1k50a_ A:                                                      SCOP domains
               CATH domains 1k50A00 A:2-64  [code=3.10.20.10, no name defined]              CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhhh.eeeeeehhh.eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 1k50 A   2 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTADVADKGYTLNIKFAG  64
                                    11        21        31        41        51        61


Chain B from PDB  Type:PROTEIN  Length:63
 aligned with Q51912_FINMA | Q51912 from UniProtKB/TrEMBL  Length:719

    Alignment length:63
                                   120       130       140       150       160       170
         Q51912_FINMA   111 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEYTVDVADKGYTLNIKFAG 173
               SCOP domains d1k50b_ B:                                                      SCOP domains
               CATH domains 1k50B00 B:2-64  [code=3.10.20.10, no name defined]              CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 1k50 B   2 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTADVADKGYTLNIKFAG  64
                                    11        21        31        41        51        61


Chain C from PDB  Type:PROTEIN  Length:63
 aligned with Q51912_FINMA | Q51912 from UniProtKB/TrEMBL  Length:719

    Alignment length:63
                                   120       130       140       150       160       170
         Q51912_FINMA   111 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEYTVDVADKGYTLNIKFAG 173
               SCOP domains d1k50c_ C:                                                      SCOP domains
               CATH domains 1k50C00 C:2-64  [code=3.10.20.10, no name defined]              CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhh.....eeeeeehhh.eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 1k50 C   2 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTADVADKGYTLNIKFAG  64
                                    11        21        31        41        51        61


Chain D from PDB  Type:PROTEIN  Length:63
 aligned with Q51912_FINMA | Q51912 from UniProtKB/TrEMBL  Length:719

    Alignment length:63
                                   120       130       140       150       160       170
         Q51912_FINMA   111 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEYTVDVADKGYTLNIKFAG 173
               SCOP domains d1k50d_ D:                                                      SCOP domains
               CATH domains 1k50D00 D:2-64  [code=3.10.20.10, no name defined]              CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                 1k50 D   2 EEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTADVADKGYTLNIKFAG  64
                                    11        21        31        41        51        61
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1K50)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q51912_FINMA | Q51912)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1k50)

  Sites
(no "Sites" information available for 1k50)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1k50)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1k50
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q51912_FINMA | Q51912
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q51912_FINMA | Q51912
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Q51912_FINMA | Q51912: 2ptl
UniProtKB/TrEMBL
        Q51912_FINMA | Q51912: 1hz5 1hz6 1jml 1k51 1k52 1k53 1kh0 2jzp 2kac

(-) Related Entries Specified in the PDB File

1hz5 MONOMERIC WT PROTEIN L, B1 DOMAIN WITH A Y47W MUTATION, ZN- COORDINATED HIS-TAG.
1hz6 MONOMERIC WT PROTEIN L,B1 DOMAIN WITH A Y47W MUTATION.
1jml CONVERSION OF MONOMERIC PROTEIN L TO AN OBLIGATE DIMER BY COMPUTATIONAL PROTEIN DESIGN.
1k51 A G55A MUTATION INDUCES 3D DOMAIN SWAPPING IN THE B1 DOMAIN OF PROTEIN L.
1k52 MONOMERIC PROTEIN L B1 DOMAIN WITH A K54G MUTATION.
1k53 MONOMERIC PROTEIN L B1 DOMAIN WITH A G15A MUTATION.
