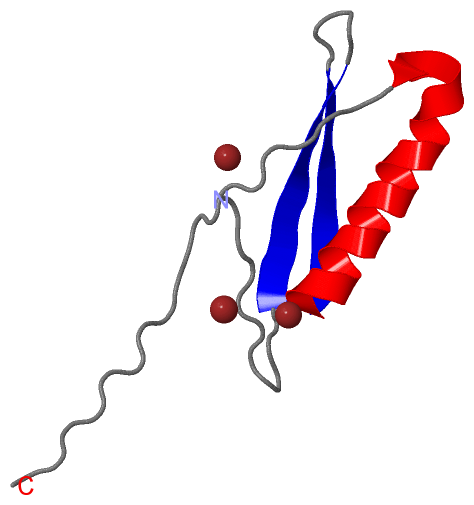

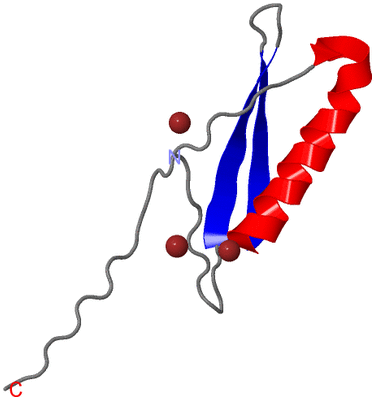

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

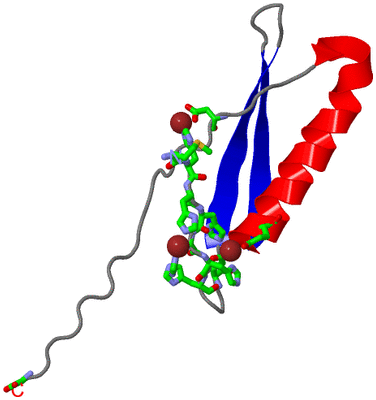

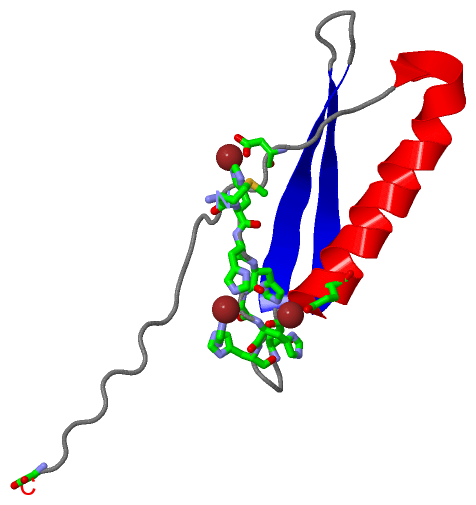

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

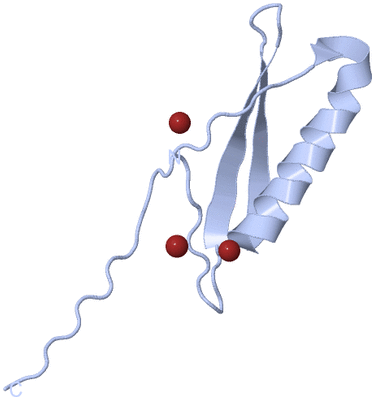

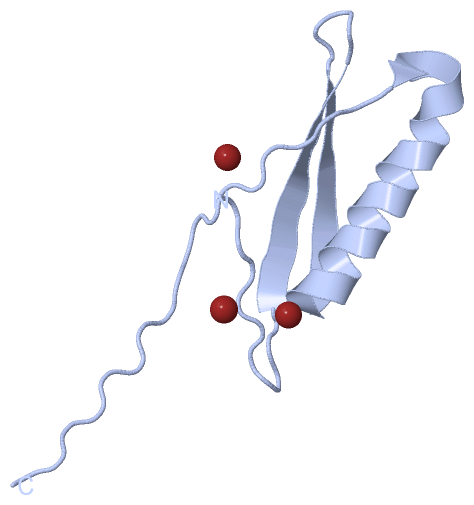

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

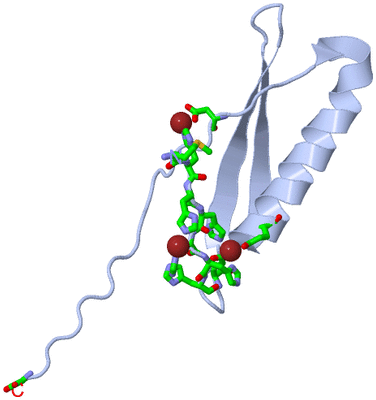

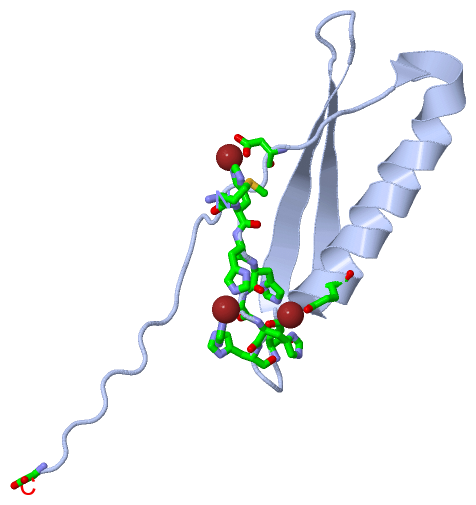

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

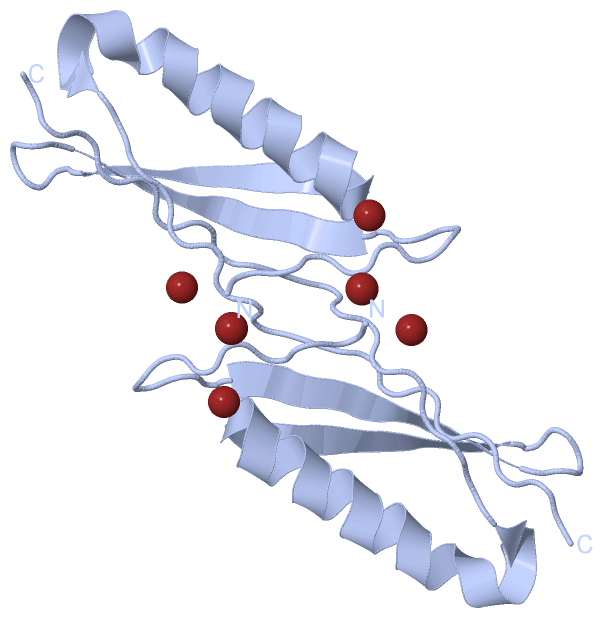

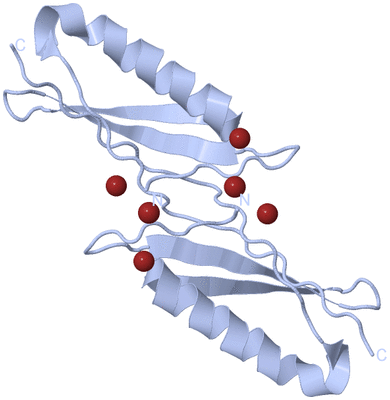

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CONVERSION OF MONOMERIC PROTEIN L TO AN OBLIGATE DIMER BY COMPUTATIONAL PROTEIN DESIGN

Authors :  J. W. O'Neill, B. Kuhlman, D. E. Kim, K. Y. J. Zhang, D. Baker
Date :  19 Jul 01  (Deposition) - 10 Oct 01  (Release) - 01 Feb 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Domain Swapped Dimer, Four Stranded Beta-Sheet With Central Alpha Helix, Carboxy-Terminal Beta-Strand Swapped. , Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Kuhlman, J. W. O'Neill, D. E. Kim, K. Y. Zhang, D. Baker
Conversion Of Monomeric Protein L To An Obligate Dimer By Computational Protein Design.
Proc. Natl. Acad. Sci. Usa V. 98 10687 2001
PubMed-ID: 11526208  |  Reference-DOI: 10.1073/PNAS.181354398

(-) Compounds

Molecule 1 - PROTEIN L
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET3A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: B1 DOMAIN
    Mutation: YES
    Organism Scientific: FINEGOLDIA MAGNA
    Organism Taxid: 334413
    Strain: ATCC 29328
    Synonym: IG LIGHT CHAIN-BINDING PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1ZN3Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMET A:-7 , HIS A:-3 , HIS A:-5 , GLY A:64BINDING SITE FOR RESIDUE ZN A 101
2AC2SOFTWAREHIS A:-2 , HIS A:-4 , GLU A:2 , GLU A:27BINDING SITE FOR RESIDUE ZN A 102
3AC3SOFTWAREHIS A:-1 , HIS A:-6 , ASP A:50 , HOH A:238BINDING SITE FOR RESIDUE ZN A 103

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JML)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JML)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JML)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JML)

(-) Exons   (0, 0)

(no "Exon" information available for 1JML)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:72
 aligned with Q51912_FINMA | Q51912 from UniProtKB/TrEMBL  Length:719

    Alignment length:87
                                    96       106       116       126       136       146       156       166
         Q51912_FINMA    87 FDQSEHPFVENKEETPETPETDSEEEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEYTVDVADKGYTLNIKFAG 173
               SCOP domains d1jmla               _ A: Immunoglobulin light chain-binding domain of protein L        SCOP domains
               CATH domains 1jmlA0               0 A:-7-64  [code=3.10.20.10, no name defined]                      CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......---------------.....eeeeeeee.....eeeeeeeehhhhhhhhhhhhhhhhhhhhh................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 1jml A  -7 MHHHHH---------------HGMEEVTIKANLIFANGSTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTVDVVPKAYTLNIKFAG  64
                                 |   -         - |       7        17        27        37        47        57
                                -2              -1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1JML)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q51912_FINMA | Q51912)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jml)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jml
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q51912_FINMA | Q51912
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q51912_FINMA | Q51912
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Q51912_FINMA | Q51912: 2ptl
UniProtKB/TrEMBL
        Q51912_FINMA | Q51912: 1hz5 1hz6 1k50 1k51 1k52 1k53 1kh0 2jzp 2kac

(-) Related Entries Specified in the PDB File

1hz5 CRYSTAL STRUCTURE OF MONOMERIC PROTEIN L WITH ZINC COORDINATED HISTIDINE-TAG
1hz6 CRYSTAL STRUCTURE OF SONOMERIC PROTEIN L
