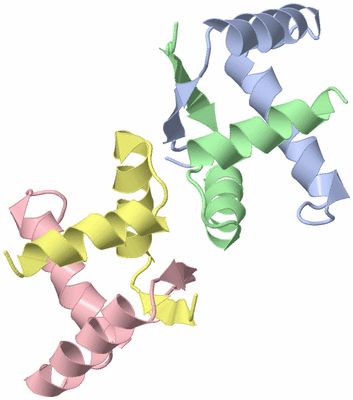

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  ARC REPRESSOR MUTANT PHE10VAL

Authors :  J. F. Schildbach, B. E. Raumann, R. T. Sauer
Date :  21 Apr 98  (Deposition) - 17 Jun 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Transcription Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. F. Schildbach, A. W. Karzai, B. E. Raumann, R. T. Sauer
Origins Of Dna-Binding Specificity: Role Of Protein Contacts With The Dna Backbone.
Proc. Natl. Acad. Sci. Usa V. 96 811 1999
PubMed-ID: 9927650  |  Reference-DOI: 10.1073/PNAS.96.3.811
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ARC REPRESSOR
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: ARC
    Expression System Plasmid: PTA200-FV10
    Expression System Strain: UA2F
    Expression System Taxid: 562
    Gene: ARC
    Mutation: YES
    Organism Scientific: ENTEROBACTERIA PHAGE P22
    Organism Taxid: 10754
    Synonym: REGULATORY PROTEIN ARC

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1BAZ)

(-) Sites  (0, 0)

(no "Site" information available for 1BAZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1BAZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BAZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BAZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1BAZ)

(-) Exons   (0, 0)

(no "Exon" information available for 1BAZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:49
 aligned with RARC_BPP22 | P03050 from UniProtKB/Swiss-Prot  Length:53

    Alignment length:49
                                    14        24        34        44
            RARC_BPP22    5 SKMPQFNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFKKEGRIGA 53
               SCOP domains d1baza_ A: Arc repressor                          SCOP domains
               CATH domains 1bazA00 A:5-53 Met repressor-like                 CATH domains
               Pfam domains ------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------- Transcript
                  1baz A  5 SKMPQVNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFKKEGRIGA 53
                                    14        24        34        44


Chain B from PDB  Type:PROTEIN  Length:41
 aligned with RARC_BPP22 | P03050 from UniProtKB/Swiss-Prot  Length:53

    Alignment length:41
                                    15        25        35        45
            RARC_BPP22    6 KMPQFNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFK 46
               SCOP domains d1bazb_ B: Arc repressor                  SCOP domains
               CATH domains 1bazB00 B:6-46 Met repressor-like         CATH domains
               Pfam domains ----------------------------------------- Pfam domains
         Sec.struct. author ...eeeee..hhhhhhhhhhhhh....hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------- PROSITE
                 Transcript ----------------------------------------- Transcript
                  1baz B  6 KMPQVNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFK 46
                                    15        25        35        45


Chain C from PDB  Type:PROTEIN  Length:46
 aligned with RARC_BPP22 | P03050 from UniProtKB/Swiss-Prot  Length:53

    Alignment length:46
                                    16        26        36        46
            RARC_BPP22    7 MPQFNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFKKEGRIG 52
               SCOP domains d1bazc_ C: Arc repressor                       SCOP domains
               CATH domains 1bazC00 C:7-52 Met repressor-like              CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhh...hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                  1baz C  7 MPQVNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFKKEGRIG 52
                                    16        26        36        46


Chain D from PDB  Type:PROTEIN  Length:40
 aligned with RARC_BPP22 | P03050 from UniProtKB/Swiss-Prot  Length:53

    Alignment length:40
                                    16        26        36        46
            RARC_BPP22    7 MPQFNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFK 46
               SCOP domains d1bazd_ D: Arc repressor                 SCOP domains
               CATH domains 1bazD00 D:7-46 Met repressor-like        CATH domains
               Pfam domains ---------------------------------------- Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhh...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------- PROSITE
                 Transcript ---------------------------------------- Transcript
                  1baz D  7 MPQVNLRWPREVLDLVRKVAEENGRSVNSEIYQRVMESFK 46
                                    16        26        36        46
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BAZ)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (RARC_BPP22 | P03050)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1baz)

  Sites
(no "Sites" information available for 1baz)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1baz)

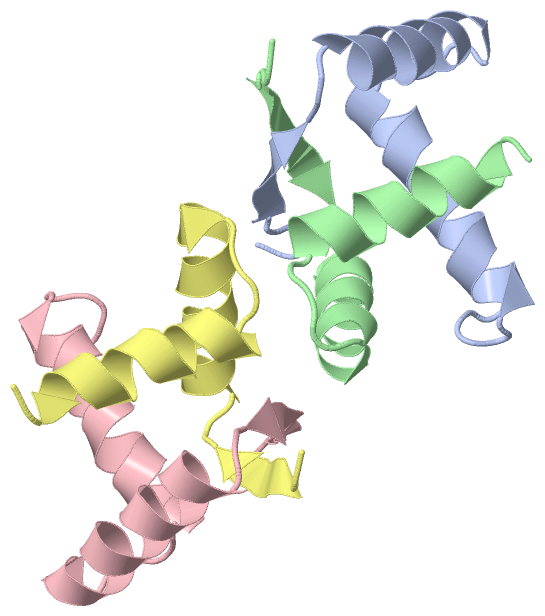

(-) Still Images
