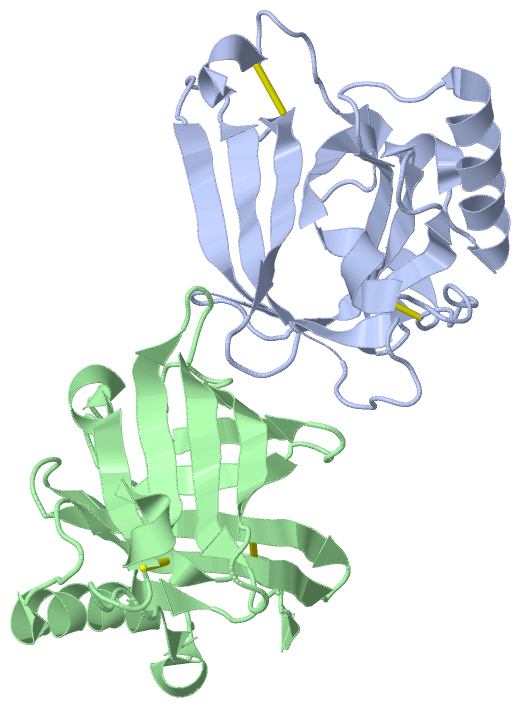

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

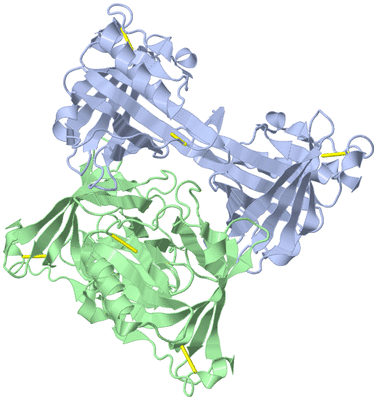

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  APO PROTEIN OF SANDERCYANIN

Authors :  S. Ghosh, S. Ramaswamy
Date :  30 Nov 15  (Deposition) - 28 Sep 16  (Release) - 26 Oct 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Sandercyanin, Red-Fluorescent Protein, Lipocalin, Biliverdin, Photo- Stability, Fluorescent Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Ghosh, C. L. Yu, D. J. Ferraro, S. Sudha, S. K. Pal, W. F. Schaefer, D. T. Gibson, S. Ramaswamy
Blue Protein With Red Fluorescence
Proc. Natl. Acad. Sci. Usa V. 113 11513 2016
PubMed-ID: 27688756  |  Reference-DOI: 10.1073/PNAS.1525622113

(-) Compounds

Molecule 1 - SANDERCYANIN FLUORESCENT PROTEIN
    Cell Line: MUCOSA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: SANDER VITREUS
    Organism Taxid: 283036
    Tissue: MUCUS

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5F1E)

(-) Sites  (0, 0)

(no "Site" information available for 5F1E)

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:27 -A:132
2A:60 -A:184
3B:27 -B:132
4B:60 -B:184

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5F1E)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5F1E)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5F1E)

(-) Exons   (0, 0)

(no "Exon" information available for 5F1E)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:163

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee............hhhhhheeeeeeee....eeeeeeeee.....eeeeeeee.....eeeeeeeee........eeeeee.....eeeeeeee....eeeeeeeeee..eeeeeeeeee.....hhhhhhhhhhhhhhh..hhhhhee.......hhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5f1e A  22 IKPGRCPKPAVQEDFDAARYLGVWYDIQRLPNGECATATYSLSPGVGFSVFNRERLANGTIKSVIGSAIAEDPCEPAKLQFFHENAAPVPYWVLSTDYDNYALVYSCINLGASHAAYASIVSRQPTLPEETIKKLQGTMSSFGVGVDTLLTTNQDAAYCSAMN 188
                                    31        41        51 ||     65        75        85        95       105       115       125       135       145       155       165       175       185
                                                          53|
                                                           58


Chain B from PDB  Type:PROTEIN  Length:164

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee............hhhhhheeeeeeee....eeeeeeeee.....eeeeeeee.....eeeeeeeee........eeeeee.....eeeeeeee....eeeeeeeeee..eeeeeeeeee.....hhhhhhhhhhhhhh...hhhhhee.......hhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5f1e B  21 FIKPGRCPKPAVQEDFDAARYLGVWYDIQRLPNGECATATYSLSPGVGFSVFNRERLANGTIKSVIGSAIAEDPCEPAKLQFFHENAAPVPYWVLSTDYDNYALVYSCINLGASHAAYASIVSRQPTLPEETIKKLQGTMSSFGVGVDTLLTTNQDAAYCSAMN 188
                                    30        40        50  ||    64        74        84        94       104       114       124       134       144       154       164       174       184
                                                           53|
                                                            58
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5F1E)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5F1E)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5F1E)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5F1E)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5f1e)

  Sites
(no "Sites" information available for 5f1e)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5f1e)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5f1e
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A1D5B367_S | A0A1D5B367
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A1D5B367_S | A0A1D5B367
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A1D5B367_S | A0A1D5B367: 5ez2

(-) Related Entries Specified in the PDB File

5ez2 5f6z
