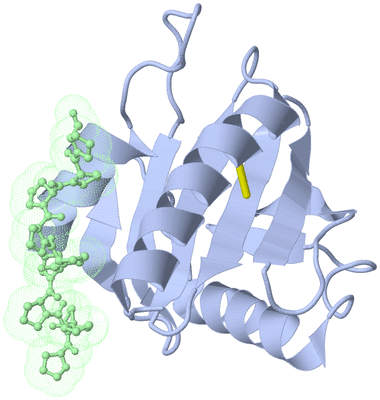

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF AMB A 8 IN COMPLEX WITH POLY-PRO10

Authors :  L. R. Offermann, C. R. Schlachter, J. Garrett, M. Chruszcz
Date :  19 Nov 15  (Deposition) - 08 Jun 16  (Release) - 10 Aug 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.55
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Allergen (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. R. Offermann, C. R. Schlachter, M. L. Perdue, K. A. Majorek, J. Z. He, W. T. Booth, J. Garrett, K. Kowal, M. Chruszcz
Structural, Functional, And Immunological Characterization Of Profilin Panallergens Amb A 8, Art V 4, And Bet V 2.
J. Biol. Chem. V. 291 15447 2016
PubMed-ID: 27231348  |  Reference-DOI: 10.1074/JBC.M116.733659

(-) Compounds

Molecule 1 - PROFILIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PJEXPRESS411
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Common: SHORT RAGWEED
    Organism Scientific: AMBROSIA ARTEMISIIFOLIA
    Organism Taxid: 4212

Molecule 2 - POLY-PROLINE PEPTIDE
    Chains: B
    Engineered: YES
    Organism Scientific: SYNTHETIC CONSTRUCT
    Organism Taxid: 32630
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5EVE)

(-) Sites  (0, 0)

(no "Site" information available for 5EVE)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:95 -A:117

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Glu A:110 -Pro A:111

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5EVE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5EVE)

(-) Exons   (0, 0)

(no "Exon" information available for 5EVE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:132

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhh............eeeeee....eeee.......hhhhhhhhhhhhhh........eee..eeeeee......eeeeee..eeeeeee...eeeeeee....hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5eve A   2 SWQTYVDEHLMCDIEGTGQHLASAAIFGTDGNVWAKSSSFPEFKPDEINAIIKEFSEPGALAPTGLFLAGAKYMVIQGEPGAVIRGKKGAGGICIKKTGQAMVFGIYEEPVNPGQCNMVVERLGDYLVDQGM 133
                                    11        21        31        41        51        61        71        81        91       101       111       121       131


Chain B from PDB  Type:PROTEIN  Length:10

               SCOP domains ---------- SCOP domains
               CATH domains ---------- CATH domains
               Pfam domains ---------- Pfam domains
         Sec.struct. author .......... Sec.struct. author
                 SAPs(SNPs) ---------- SAPs(SNPs)
                    PROSITE ---------- PROSITE
                 Transcript ---------- Transcript
                 5eve B   1 PPPPPPPPPP  10
                                    10
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5EVE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5EVE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5EVE)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5eve)

  Sites
(no "Sites" information available for 5eve)

  Cis Peptide Bonds
    Glu A:110 - Pro A:111   [ RasMol ]


(-) Still Images

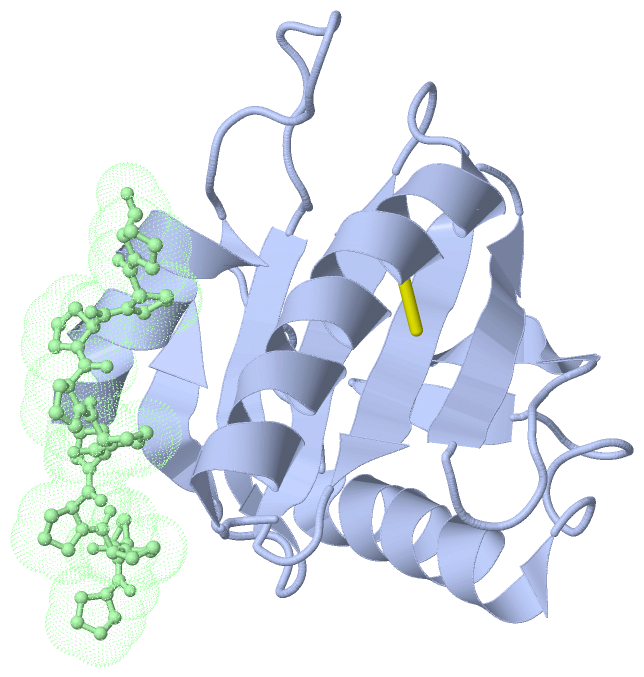

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5eve
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q2KN24_AMBAR | Q2KN24
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q2KN24_AMBAR | Q2KN24
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q2KN24_AMBAR | Q2KN24: 5em1 5ev0

(-) Related Entries Specified in the PDB File

5em0 5em1 5ev0
