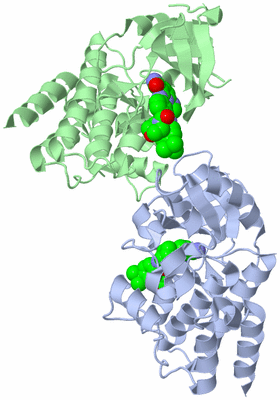

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

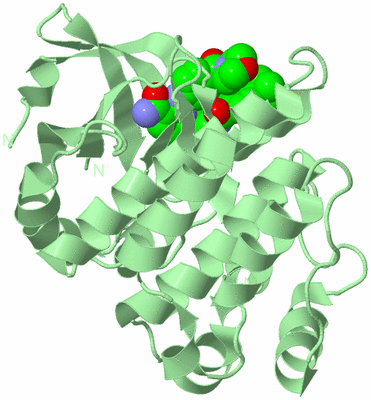

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BRUTON AGAMMAGLOBULINEMIA TYROSINE KINASE COMPLEXED WITH BMS-824171 AKA 6-[(3R)-3-(4-TERT-BU TYLBENZAMIDO) PIPERIDIN-1-YL]-2-{[4-(MORPHOLINE-4-CARBONYL) PHENYL]AMINO}PYRIDINE-3-CARBOXAMIDE

Authors :  J. K. Muckelbauer
Date :  28 May 15  (Deposition) - 23 Sep 15  (Release) - 23 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.31
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Kinase, Inhibitor, Transferase, Transferase-Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Q. Liu, D. G. Batt, J. S. Lippy, N. Surti, A. J. Tebben, J. K. Muckelbauer L. Chen, Y. An, C. Chang, M. Pokross, Z. Yang, H. Wang, J. R. Burke, P. H. Carter, J. A. Tino
Design And Synthesis Of Carbazole Carboxamides As Promising Inhibitors Of Bruton'S Tyrosine Kinase (Btk) And Janus Kinase 2 (Jak2).
Bioorg. Med. Chem. Lett. V. 25 4265 2015
PubMed-ID: 26320619  |  Reference-DOI: 10.1016/J.BMCL.2015.07.102

(-) Compounds

Molecule 1 - TYROSINE-PROTEIN KINASE BTK
    Chains: A, B
    EC Number: 2.7.10.2
    Engineered: YES
    Expression System: BACULOVIRUS EXPRESSION VECTOR PFASTBAC1-HM
    Expression System Taxid: 274590
    Expression System Vector: PFASTBAC1-HM
    Expression System Vector Type: BACULOVIRUS
    Gene: BTK, AGMX1, ATK, BPK
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: AGAMMAGLOBULINEMIA TYROSINE KINASE,ATK,B-CELL PROGENITOR KINASE,BPK,BRUTON TYROSINE KINASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
14UQ2Ligand/Ion6-{(3R)-3-[(4-TERT-BUTYLBENZOYL)AMINO]PIPERIDIN-1-YL}-2-{[4-(MORPHOLIN-4-YLCARBONYL)PHENYL]AMINO}PYRIDINE-3-CARBOXAMIDE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
14UQ1Ligand/Ion6-{(3R)-3-[(4-TERT-BUTYLBENZOYL)AMINO]PIPERIDIN-1-YL}-2-{[4-(MORPHOLIN-4-YLCARBONYL)PHENYL]AMINO}PYRIDINE-3-CARBOXAMIDE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
14UQ1Ligand/Ion6-{(3R)-3-[(4-TERT-BUTYLBENZOYL)AMINO]PIPERIDIN-1-YL}-2-{[4-(MORPHOLIN-4-YLCARBONYL)PHENYL]AMINO}PYRIDINE-3-CARBOXAMIDE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELEU A:408 , VAL A:416 , ALA A:428 , THR A:474 , GLU A:475 , TYR A:476 , MET A:477 , ALA A:478 , ASN A:479 , GLY A:480 , CYS A:481 , LEU A:528binding site for residue 4UQ A 4000
2AC2SOFTWAREVAL B:416 , ALA B:428 , THR B:474 , GLU B:475 , TYR B:476 , MET B:477 , ALA B:478 , ASN B:479 , GLY B:480 , CYS B:481 , ASN B:484 , LEU B:528binding site for residue 4UQ B 4000

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5BPY)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Arg A:468 -Pro A:469

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5BPY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5BPY)

(-) Exons   (0, 0)

(no "Exon" information available for 5BPY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:263

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhh.eeeeeeeee....eeeeeee...eeeeeeee.....hhhhhhhhhhhhhh........eeeee.....eeeeee....eehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.......hhh.eee.....eee....hhhhh.hhhhhh......hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhh..........hhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bpy A 395 MEIDPKDLTFLKELGTGQFGVVKYGKWRGQYDVAIKMIKEGSMSEDEFIEEAKVMMNLSHEKLVQLYGVCTKQRPIFIITEYMANGCLLNYLREMRHRFQTQQLLEMCKDVCEAMEYLESKQFLHRDLAARNCLVNDQGVVKVSDFGLSRYVLDDEYTSSVGSKFPVRWSPPEVLMYSKFSSKSDIWAFGVLMWEIYSLGKMPYERFTNSETAEHIAQGLRLYRPHLASEKVYTIMYSCWHEKADERPTFKILLSNILDVMDE 657
                                   404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654


Chain B from PDB  Type:PROTEIN  Length:247

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhh.eeeeeeeee....eeeeeee...eeeeeee.....hhhhhhhhhhhhhh........eeeee..eeeee....eehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.......hhh.eee.....eee....hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhh..........hhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bpy B 395 MEIDPKDLTFLKELGTGQFGVVKYGKWRGQYDVAIKMIKGSMSEDEFIEEAKVMMNLSHEKLVQLYGVCTIFIITEYMANGCLLNYLREMRHRFQTQQLLEMCKDVCEAMEYLESKQFLHRDLAARNCLVNDQGVVKVSDFGLSRYVKFPVRWSPPEVLMYSKFSSKSDIWAFGVLMWEIYSLGKMPYERFTNSETAEHIAQGLRLYRPHLASEKVYTIMYSCWHEKADERPTFKILLSNILDVMDE 657
                                   404       414       424       435       445       455       465|      479       489       499       509       519       529       539      |560       570       580       590       600       610       620       630       640       650
                                                                433|                           465|                                                                         546|
                                                                 435                            470                                                                          558
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5BPY)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5BPY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5BPY)

(-) Gene Ontology  (49, 49)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    4UQ  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Arg A:468 - Pro A:469   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5bpy
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BTK_HUMAN | Q06187
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.10.2
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  BTK_HUMAN | Q06187
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BTK_HUMAN | Q06187: 1aww 1awx 1b55 1btk 1bwn 1k2p 1qly 2ge9 2z0p 3gen 3k54 3ocs 3oct 3p08 3pix 3piy 3piz 3pj1 3pj2 3pj3 4nwm 4ot5 4ot6 4otf 4otq 4otr 4rfy 4rfz 4rg0 4rx5 4yhf 4z3v 4zly 4zlz 5bq0 5fbn 5fbo 5j87 5jrs 5kup 5p9f 5p9g 5p9h 5p9i 5p9j 5p9k 5p9l 5p9m 5t18 5u9d 5vgo

(-) Related Entries Specified in the PDB File

5bq0
