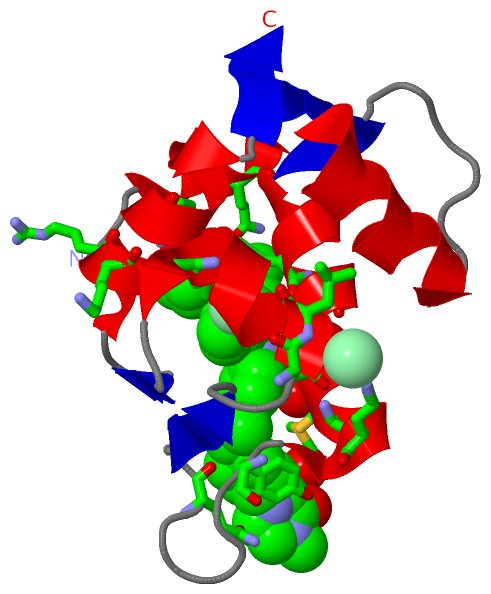

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DISCOVERY OF NVP-CGM097 - A HIGHLY POTENT AND SELECTIVE MDM2 INHIBITOR UNDERGOING PHASE 1 CLINICAL TRIALS IN P53WT TUMORS: HDM2 (MDM2) COMPLEXED WITH NVP-CGM097

Authors :  J. Kallen
Date :  21 May 15  (Deposition) - 29 Jul 15  (Release) - 23 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Ppi With P53, Inhibitor Complex, Cell Cycle (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Holzer, K. Masuya, P. Furet, J. Kallen, T. Valat-Stachyra, S. Ferretti, J. Berghausen, M. Bouisset-Leonard, N. Buschmann, C. Pissot-Soldermann, C. Rynn, S. Ruetz, S. Stutz, P. Chene, S. Jeay, F. Gessier
Discovery Of A Dihydroisoquinolinone Derivative (Nvp-Cgm097): A Highly Potent And Selective Mdm2 Inhibitor Undergoing Phase 1 Clinical Trials In P53Wt Tumors.
J. Med. Chem. V. 58 6348 2015
PubMed-ID: 26181851  |  Reference-DOI: 10.1021/ACS.JMEDCHEM.5B00810

(-) Compounds

Molecule 1 - E3 UBIQUITIN-PROTEIN LIGASE MDM2
    Chains: A
    EC Number: 6.3.2.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP RESIDUES 17-111
    Gene: MDM2
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: DOUBLE MINUTE 2 PROTEIN,HDM2,ONCOPROTEIN MDM2,P53-BINDING PROTEIN MDM2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
14T41Ligand/Ion(S)-1-(4-CHLOROPHENYL)-7-ISOPROPOXY-6-METHOXY-2-(4-(METHYL(((1R,4S)-4-(4-METHYL-3-OXOPIPERAZIN-1-YL)CYCLOHEXYL)METHYL)AMINO)PHENYL)-1,2-DIHYDROISOQUINOLIN-3(4H)-ONE
2CL1Ligand/IonCHLORIDE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:24 , LEU A:54 , PHE A:55 , MET A:62 , TYR A:67 , GLN A:72 , PHE A:86 , ARG A:97 , LYS A:98 , TYR A:100 , HOH A:302 , HOH A:311 , HOH A:323 , HOH A:337binding site for residue 4T4 A 201
2AC2SOFTWARELYS A:64 , ASP A:80 , LEU A:81binding site for residue CL A 202

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZYF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ZYF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZYF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZYF)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZYF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:93

               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhh.eeeehhhhhhhhhh.......eehhhhhhhhhhhhhhhh........eee...hhhhhhhh..eee..hhhhhhhhhhh.eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4zyf A  18 QIPASEQETLVRPKPLLLKLLKSVGAQKDTYTMKEVLFYLGQYIMTKRLYDEKQQHIVYCSNDLLGDLFGVPSFSVKEHRKIYTMIYRNLVVV 110
                                    27        37        47        57        67        77        87        97       107
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZYF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZYF)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZYF)

(-) Gene Ontology  (83, 83)
