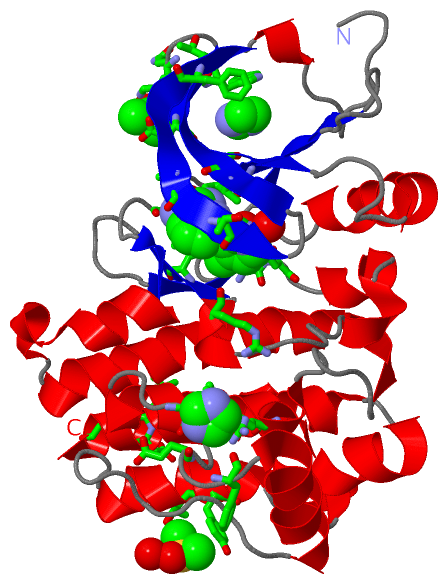

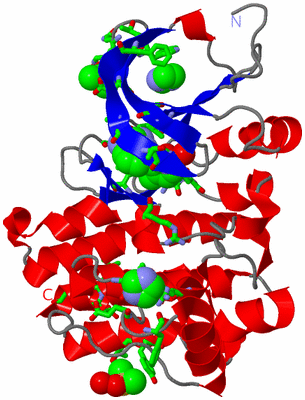

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BRUTON'S TYROSINE KINASE IN COMPLEX WITH A SUBSTITUTED CINNOLINE

Authors :  D. R. Dougan
Date :  02 May 15  (Deposition) - 01 Jul 15  (Release) - 05 Aug 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Cytoplasmic Tyrosine Kinase, Transcriptional Regulation, Nuclear Factor-Kappab, Transferase-Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. R. Smith, D. R. Dougan, M. Komandla, T. Kanouni, B. Knight, J. D. Lawson, M. Sabat, E. R. Taylor, P. Vu, C. Wyrick
Fragment-Based Discovery Of A Small Molecule Inhibitor Of Bruton'S Tyrosine Kinase.
J. Med. Chem. V. 58 5437 2015
PubMed-ID: 26087137  |  Reference-DOI: 10.1021/ACS.JMEDCHEM.5B00734

(-) Compounds

Molecule 1 - TYROSINE-PROTEIN KINASE BTK
    Chains: A
    EC Number: 2.7.10.2
    Engineered: YES
    Expression System: UNIDENTIFIED BACULOVIRUS
    Expression System Strain: SF9
    Expression System Taxid: 10469
    Fragment: UNP RESIDUES 423-692
    Gene: BTK, AGMX1, ATK, BPK
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: AGAMMAGLOBULINEMIA TYROSINE KINASE,ATK,B-CELL PROGENITOR KINASE,BPK,BRUTON TYROSINE KINASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 5)

Asymmetric/Biological Unit (4, 5)
No.NameCountTypeFull Name
14RV1Ligand/Ion4-AMINO-8-(4-METHYLPYRIDIN-3-YL)CINNOLINE-3-CARBOXAMIDE
2DMS1Ligand/IonDIMETHYL SULFOXIDE
3IMD2Ligand/IonIMIDAZOLE
4IPA1Ligand/IonISOPROPYL ALCOHOL

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:562 , MET A:596 , GLU A:599 , PHE A:601 , SER A:649 , LEU A:652 , ASP A:653 , ASP A:656binding site for residue IMD A 701
2AC2SOFTWARELYS A:420 , GLN A:424 , ASP A:426binding site for residue IPA A 702
3AC3SOFTWARETRP A:421binding site for residue IMD A 703
4AC4SOFTWARETHR A:403 , PHE A:404 , THR A:628 , TYR A:631 , HOH A:801binding site for residue DMS A 704
5AC5SOFTWARELEU A:408 , THR A:410 , VAL A:416 , ALA A:428 , THR A:474 , GLU A:475 , MET A:477 , ARG A:525 , LEU A:528 , SER A:538 , ASP A:539 , HOH A:852 , HOH A:954binding site for residue 4RV A 705

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZLZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ZLZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZLZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZLZ)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZLZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:270

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhh.eeeeeeeeee..eeeeeeee...eeeeeee......hhhhhhhhhhhhh.........eeeee......eeee.....eehhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.......hhh.eee.....eee...hhhhhh.hhhhhh......hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhh..........hhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4zlz A 389 GLGYGSWEIDPKDLTFLKELGTGQFGVVKYGKWRGQYDVAIKMIKEGSMSEDEFIEEAKVMMNLSHEKLVQLYGVCTKQRPIFIITEYMANGCLLNYLREMRHRFQTQQLLEMCKDVCEAMEYLESKQFLHRDLAARNCLVNDQGVVKVSDFGLSRYVLDDEYTSSVGSKFPVRWSPPEVLMYSKFSSKSDIWAFGVLMWEIYSLGKMPYERFTNSETAEHIAQGLRLYRPHLASEKVYTIMYSCWHEKADERPTFKILLSNILDVMDEE 658
                                   398       408       418       428       438       448       458       468       478       488       498       508       518       528       538       548       558       568       578       588       598       608       618       628       638       648       658
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZLZ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZLZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZLZ)

(-) Gene Ontology  (49, 49)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    4RV  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    DMS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    IMD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    IPA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4zlz)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4zlz
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BTK_HUMAN | Q06187
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.10.2
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  BTK_HUMAN | Q06187
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BTK_HUMAN | Q06187: 1aww 1awx 1b55 1btk 1bwn 1k2p 1qly 2ge9 2z0p 3gen 3k54 3ocs 3oct 3p08 3pix 3piy 3piz 3pj1 3pj2 3pj3 4nwm 4ot5 4ot6 4otf 4otq 4otr 4rfy 4rfz 4rg0 4rx5 4yhf 4z3v 4zly 5bpy 5bq0 5fbn 5fbo 5j87 5jrs 5kup 5p9f 5p9g 5p9h 5p9i 5p9j 5p9k 5p9l 5p9m 5t18 5u9d 5vgo

(-) Related Entries Specified in the PDB File

4zly
