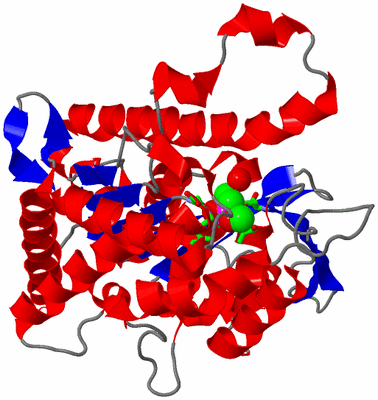

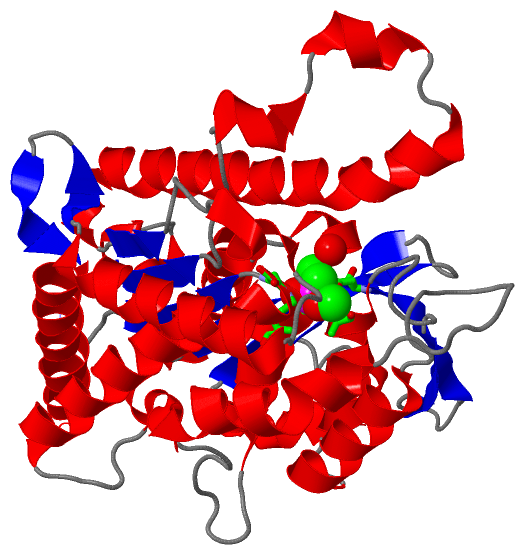

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

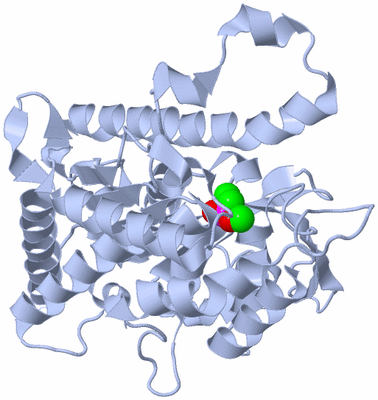

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

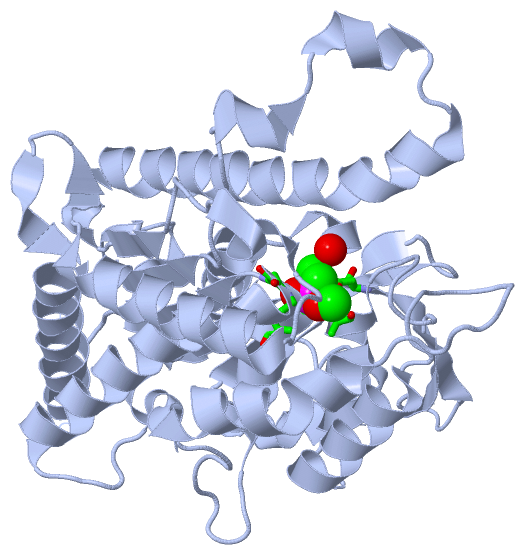

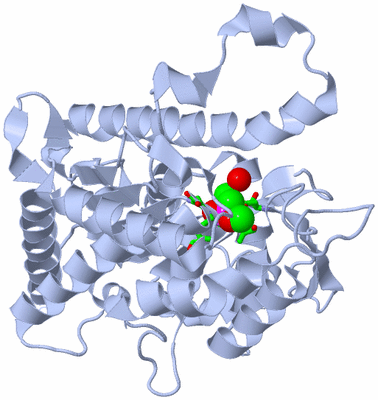

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

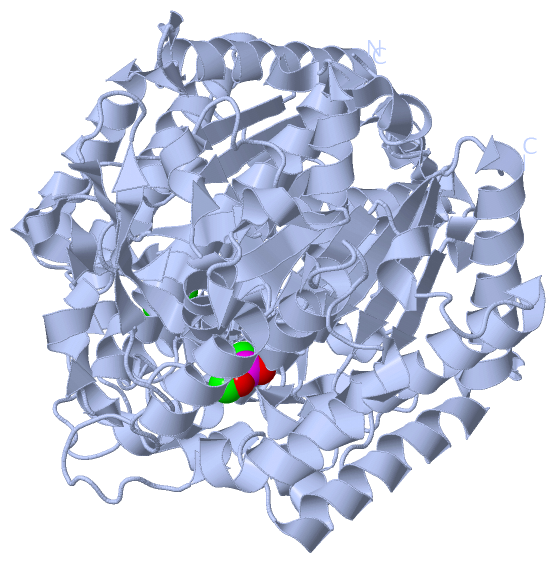

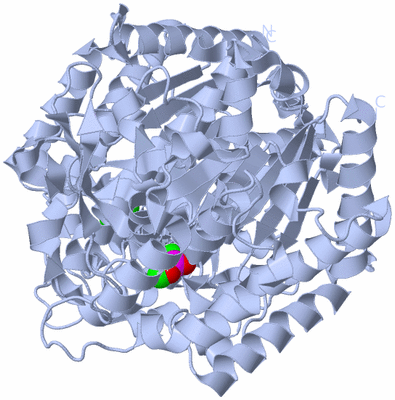

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PATATIN-17 COMPLEXED WITH METHYL ARACHIDONYL FLUOROPHOSPHONATE (MAFP)

Authors :  S. J. Wijeyesakere, R. J. Richardson, J. A. Stuckey
Date :  14 May 14  (Deposition) - 01 Oct 14  (Release) - 01 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.09
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Alpha/Beta Class Fold With Approximately Three Layers, Serine Hydrolase, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. J. Wijeyesakere, R. J. Richardson, J. A. Stuckey
Crystal Structure Of Patatin-17 In Complex With Aged And Non-Aged Organophosphorus Compounds.
Plos One V. 9 08245 2014
PubMed-ID: 25248161  |  Reference-DOI: 10.1371/JOURNAL.PONE.0108245

(-) Compounds

Molecule 1 - PATATIN-17
    Chains: A
    EC Number: 3.1.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24
    Expression System Strain: CD41
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 23-386
    Organism Common: HEARTLEAF NIGHTSHADE
    Organism Scientific: SOLANUM CARDIOPHYLLUM
    Organism Taxid: 160510

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1MAY1Ligand/IonMETHYL ARACHIDONYL FLUOROPHOSPHONATE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1MAY1Ligand/IonMETHYL ARACHIDONYL FLUOROPHOSPHONATE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1MAY2Ligand/IonMETHYL ARACHIDONYL FLUOROPHOSPHONATE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:36 , GLY A:37 , GLY A:38 , SER A:77 , THR A:78 , ALA A:188 , ASP A:215 , HOH A:570binding site for residue MAY A 401

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4PKB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4PKB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PKB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PKB)

(-) Exons   (0, 0)

(no "Exon" information available for 4PKB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:357

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee..hhhhhhhhhhhhhhhhhhhhhhh.....hhhhh..eeee.hhhhhhhhhhhh.........hhhhhhhhhhhhhhhhh............hhhhhhhhhhhhh..hhhhh..eeeeeeee....eeeee.......hhhhh.hhhhhhhhhhh.......eeeeee.....eeeeeeee.hhhh...hhhhhhhhhhhhhhhhhhhhhhh..hhh.eeeeee......hhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhh.eeee.....hhhhhh....hhhhhhhhhhhhhhhhh.eee..eeeehhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4pkb A  25 LGEMVTVLSIDGGGIRGIIPATILEFLEGQLQEMDNNADARLADYFDVIGGTSTGGLLTAMISTPNENNRPFAAAKEIVPFYFEHGPQIFNPSGQILGPKYDGKYLMQVLQEKLGETRVHQALTEVVISSFDIKTNKPVIFTKSNLANSPELDAKMYDISYSTAAAPTYFPPHYFVTNTSNGDEYEFNLVDGAVATVADPALLSISVATRLAQKDPAFASIRSLNYKKMLLLSLGTGTTSEFDKTYTAKEAATWTAVHWMLVIQKMTDAASSYMTDYYLSTAFQALDSKNNYLRVQENALTGTTTEMDDASEANMELLVQVGENLLKKPVSEDNPETYEEALKRFAKLLSDRKKLRA 381
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4PKB)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4PKB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4PKB)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MAY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4pkb)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4pkb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PAT17_SOLCD | Q8LPW4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.1.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PAT17_SOLCD | Q8LPW4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PAT17_SOLCD | Q8LPW4: 1oxw 4pk9 4pka

(-) Related Entries Specified in the PDB File

1oxw CRYSTAL STRUCTURE OF SEMET PATATIN-17
4pk9
4pka
