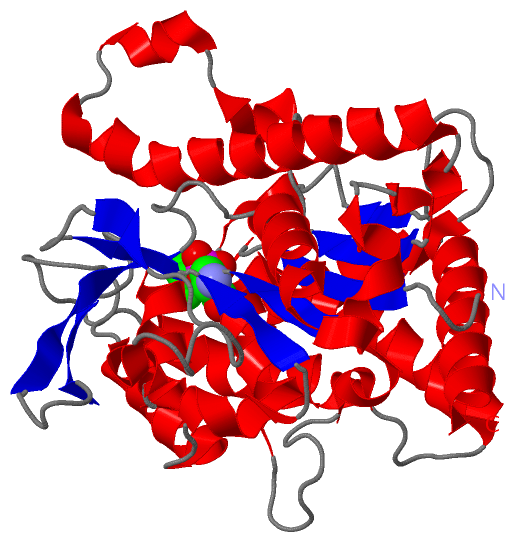

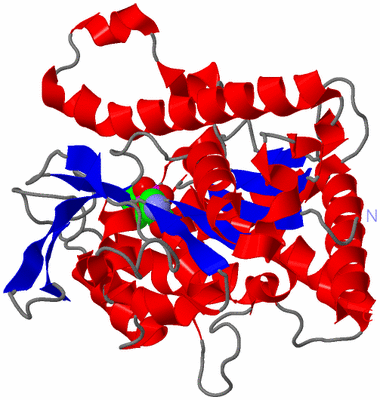

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

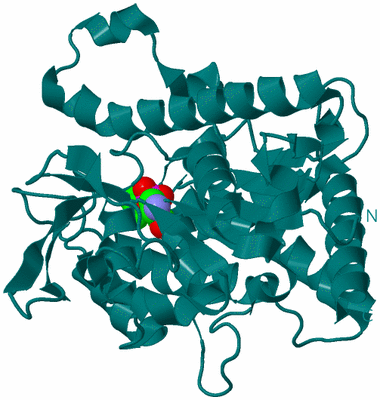

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

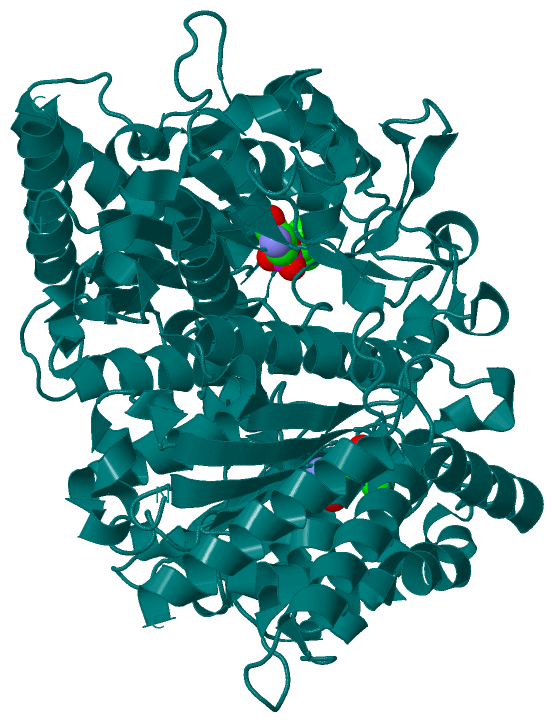

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PATATIN AGED WITH DIISOPROPYLPHOSPHOROFLUORIDATE

Authors :  S. J. Wijeyesakere, R. J. Richardson, J. A. Stuckey
Date :  17 Dec 10  (Deposition) - 01 Oct 14  (Release) - 01 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  X
Biol. Unit 1:  X  (1x)
Biol. Unit 2:  X  (2x)
Keywords :  Alpha/Beta Class Fold With Approximately Three Layers, Serine Hydrolase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. J. Wijeyesakere, R. J. Richardson, J. A. Stuckey
Crystal Structure Of Patatin-17 In Complex With Aged And Non-Aged Organophosphorus Compounds.
Plos One V. 9 08245 2014
PubMed-ID: 25248161  |  Reference-DOI: 10.1371/JOURNAL.PONE.0108245

(-) Compounds

Molecule 1 - PATATIN-17
    Chains: X
    EC Number: 3.1.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24
    Expression System Strain: CD41
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 23-386
    Organism Common: HEARTLEAF NIGHTSHADE
    Organism Scientific: SOLANUM CARDIOPHYLLUM
    Organism Taxid: 160510

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : X
Biological Unit 1 (1x): X
Biological Unit 2 (2x): X

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1MIS1Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1MIS1Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1MIS2Mod. Amino AcidMONOISOPROPYLPHOSPHORYLSERINE

(-) Sites  (0, 0)

(no "Site" information available for 4PKA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4PKA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4PKA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PKA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PKA)

(-) Exons   (0, 0)

(no "Exon" information available for 4PKA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain X from PDB  Type:PROTEIN  Length:357

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee..hhhhhhhhhhhhhhhhhhhhhhh.....hhhhh..eeee.hhhhhhhhhhhh.........hhhhhhhhhhhhhhhhh............hhhhhhhhhhhhh..hhhhh..eeee.eee....ee..........hhhhh.hhhhhhhhhhh.......eeeeee.....eeeeeeee........hhhhhhhhhhhhhhhhhhhhhhh..hhh.eeeeee......hhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhh.eeee.....hhhhhh....hhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4pka X  25 LGEMVTVLSIDGGGIRGIIPATILEFLEGQLQEMDNNADARLADYFDVIGGTsTGGLLTAMISTPNENNRPFAAAKEIVPFYFEHGPQIFNPSGQILGPKYDGKYLMQVLQEKLGETRVHQALTEVVISSFDIKTNKPVIFTKSNLANSPELDAKMYDISYSTAAAPTYFPPHYFVTNTSNGDEYEFNLVDGAVATVADPALLSISVATRLAQKDPAFASIRSLNYKKMLLLSLGTGTTSEFDKTYTAKEAATWTAVHWMLVIQKMTDAASSYMTDYYLSTAFQALDSKNNYLRVQENALTGTTTEMDDASEANMELLVQVGENLLKKPVSEDNPETYEEALKRFAKLLSDRKKLRA 381
                                    34        44        54        64        74  |     84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374
                                                                               77-MIS
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4PKA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4PKA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4PKA)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MIS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 4pka)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4pka)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4pka
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PAT17_SOLCD | Q8LPW4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.1.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PAT17_SOLCD | Q8LPW4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PAT17_SOLCD | Q8LPW4: 1oxw 4pk9 4pkb

(-) Related Entries Specified in the PDB File

1oxw CRYSTAL STRUCTURE OF SEMET PATATIN-17
4pk9 THE CRYSTAL STRUCTURE OF NATIVE PATATIN
4pkb CRYSTAL STRUCTURE OF PATATIN-17 COMPLEXED WITH METHYL ARACHIDONYL FLUOROPHOSPHONATE (MAFP)
