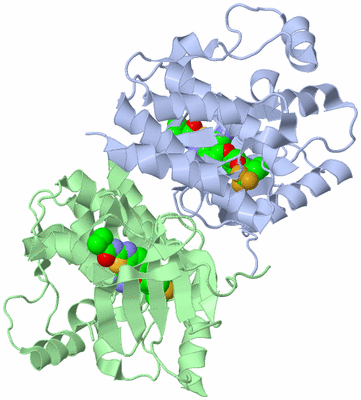

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN B-RAF BOUND TO A DFG-OUT INHIBITOR TAK-632

Authors :  J. K. Yano, O. Masanori
Date :  17 May 13  (Deposition) - 24 Jul 13  (Release) - 04 Sep 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.93
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A  (1x)
Biol. Unit 3:  B  (1x)
Keywords :  Human Serine/Theronine Protein Kinase, Kinase Drug Complex, , Transferase-Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Okaniwa, M. Hirose, T. Arita, M. Yabuki, A. Nakamura, T. Takagi, T. Kawamoto, N. Uchiyama, A. Sumita, S. Tsutsumi, T. Tottori, Y. Inui, B. C. Sang, J. Yano, K. Aertgeerts, S. Yoshida, T. Ishikawa
Discovery Of A Selective Kinase Inhibitor (Tak-632) Targeting Pan-Raf Inhibition: Design, Synthesis, And Biological Evaluation Of C-7-Substituted 1, 3-Benzothiazole Derivatives.
J. Med. Chem. V. 56 6478 2013
PubMed-ID: 23906342  |  Reference-DOI: 10.1021/JM400778D

(-) Compounds

Molecule 1 - SERINE/THREONINE-PROTEIN KINASE B-RAF
    Chains: A, B
    EC Number: 2.7.11.1
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Cell Line: SF9
    Expression System Common: FALL ARMYWORM
    Expression System Plasmid: PFASTBAC
    Expression System Taxid: 7108
    Expression System Vector Type: BACULOVIRUS
    Fragment: UNP RESIDUES 445-726
    Gene: BRAF, BRAF1, P94, RAFB1, V-RAF MURINE SARCOMA VIRAL ONCOGENE HOMOLOG B1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: PROTO-ONCOGENE B-RAF, P94, V-RAF MURINE SARCOMA VIRAL ONCOGENE HOMOLOG B1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (1x): A
Biological Unit 3 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
11SU2Ligand/IonN-{7-CYANO-6-[4-FLUORO-3-({[3-(TRIFLUOROMETHYL)PHENYL]ACETYL}AMINO)PHENOXY]-1,3-BENZOTHIAZOL-2-YL}CYCLOPROPANECARBOXAMIDE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
11SU2Ligand/IonN-{7-CYANO-6-[4-FLUORO-3-({[3-(TRIFLUOROMETHYL)PHENYL]ACETYL}AMINO)PHENOXY]-1,3-BENZOTHIAZOL-2-YL}CYCLOPROPANECARBOXAMIDE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
11SU1Ligand/IonN-{7-CYANO-6-[4-FLUORO-3-({[3-(TRIFLUOROMETHYL)PHENYL]ACETYL}AMINO)PHENOXY]-1,3-BENZOTHIAZOL-2-YL}CYCLOPROPANECARBOXAMIDE
Biological Unit 3 (1, 1)
No.NameCountTypeFull Name
11SU1Ligand/IonN-{7-CYANO-6-[4-FLUORO-3-({[3-(TRIFLUOROMETHYL)PHENYL]ACETYL}AMINO)PHENOXY]-1,3-BENZOTHIAZOL-2-YL}CYCLOPROPANECARBOXAMIDE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREVAL A:470 , ALA A:480 , LYS A:482 , GLU A:500 , LEU A:504 , LEU A:513 , ILE A:526 , THR A:528 , GLN A:529 , TRP A:530 , CYS A:531 , GLY A:533 , HIS A:573 , PHE A:582 , GLY A:592 , ASP A:593 , PHE A:594BINDING SITE FOR RESIDUE 1SU A 901
2AC2SOFTWAREILE B:462 , VAL B:470 , ALA B:480 , LYS B:482 , GLU B:500 , LEU B:504 , ILE B:526 , THR B:528 , GLN B:529 , TRP B:530 , CYS B:531 , LEU B:566 , HIS B:573 , PHE B:582 , GLY B:592 , ASP B:593 , PHE B:594 , HOH B:1008BINDING SITE FOR RESIDUE 1SU B 901

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4KSP)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4KSP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KSP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KSP)

(-) Exons   (0, 0)

(no "Exon" information available for 4KSP)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:257

               SCOP domains d4kspa_ A: automated matches                                                                                                                                                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeee..eeeeeee...eeeeee......hhhhhhhhhhhhhhhh.........eeeee.....eeeee...eeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.......hhh.eeee...eeee.....hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh........hhhhhhhhhhh.....hhhhh....hhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ksp A 447 DDWEIPDGQITVGQRIGSGSFGTVYKGKWHGDVAVKMLNVTAPTPQQLQAFKNEVGVLRKTRHVNILLFMGYSTKPQLAIVTQWCEGSSLYHHLHIIETKFEMIKLIDIARQTAQGMDYLHAKSIIHRDLKSNNIFLHEDLTVKIGDFGGSILWMAPEVIRMQDKNPYSFQSDVYAFGIVLYELMTGQLPYSNINNRDQIIFMVGRGYLSPDLSKVRSNCPKAMKRLMAECLKKKRDERPLFPQILASIELLARSLP 721
                                   456       466       476       486       496       506       516       526       536       546       556       566       576       586       614       624       634       644       654       664       674       684       694       704       714
                                                                                                                                                                              595|
                                                                                                                                                                               614


Chain B from PDB  Type:PROTEIN  Length:256

               SCOP domains d4kspb_ B: automated matches                                                                                                                                                                                                                                     SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeee..eeeeeee...eeeeee......hhhhhhhhhhhhhhhh.........eeeee.....eeeee...eeehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.......hhh.eeee...eeee......hhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh........hhhhhhhhhhh.....hhhhh....hhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ksp B 447 DDWEIPDGQITVGQRIGSGSFGTVYKGKWHGDVAVKMLNVTAPTPQQLQAFKNEVGVLRKTRHVNILLFMGYSTKPQLAIVTQWCEGSSLYHHLHIIETKFEMIKLIDIARQTAQGMDYLHAKSIIHRDLKSNNIFLHEDLTVKIGDFGLGSILWMAPEVIRMQDKNPYSFQSDVYAFGIVLYELMTGQLPYSNINNRDQIIFMVGRGYLSPDLSKVRSNCPKAMKRLMAECLKKKRDERPLFPQILASIELLARS 719
                                   456       466       476       486       496       506       516       526       536       546       556       566       576       586       596|      623       633       643       653       663       673       683       693       703       713
                                                                                                                                                                               596|
                                                                                                                                                                                614
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KSP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KSP)

(-) Gene Ontology  (64, 64)

Asymmetric Unit(hide GO term definitions)
