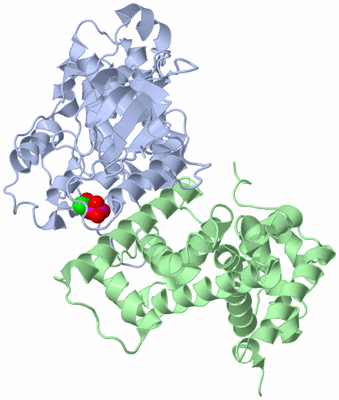

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF FULL LENGTH CDK9 IN COMPLEX WITH CYCLINT AND DRB

Authors :  S. Baumli, A. J. Hole, J. A. Endicott
Date :  26 Mar 12  (Deposition) - 12 Sep 12  (Release) - 22 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.60
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Cyclin Dependend Kinase, Cyclin, Transferase-Protein Binding Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Baumli, A. J. Hole, L. Z. Wang, M. E. Noble, J. A. Endicott
The Cdk9 Tail Determines The Reaction Pathway Of Positive Transcription Elongation Factor B.
Structure V. 20 1788 2012
PubMed-ID: 22959624  |  Reference-DOI: 10.1016/J.STR.2012.08.011

(-) Compounds

Molecule 1 - CYCLIN-DEPENDENT KINASE 9
    Chains: A
    EC Number: 2.7.11.22, 2.7.11.23
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Taxid: 7108
    Gene: CDK9, CDC2L4, TAK
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: C-2K, CELL DIVISION CYCLE 2-LIKE PROTEIN KINASE 4, CELL DIVISION PROTEIN KINASE 9, SERINE/THREONINE-PROTEIN KINASE PITALRE, TAT-ASSOCIATED KINASE COMPLEX CATALYTIC SUBUNIT

Molecule 2 - CYCLIN-T1
    Chains: B
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Taxid: 7108
    Fragment: CYCLIN T, CYCLIN DOMAIN (UNP RESIDUES 2-259)
    Gene: CCNT1
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: CYCT1, CYCLIN-T

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1TPO1Mod. Amino AcidPHOSPHOTHREONINE

(-) Sites  (0, 0)

(no "Site" information available for 4EC8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4EC8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4EC8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4EC8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4EC8)

(-) Exons   (0, 0)

(no "Exon" information available for 4EC8)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:326

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhh.eeeeeeee......eeeeee.....eeeeee..........hhhhhhhhhhhhhh.......eeeee.......eeeee...eehhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eee.....eee......ee......................hhhhhh......hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh........hhhhh..............hhhhhhhh...hhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhh......hhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ec8 A   6 DSVECPFCDEVSKYEKLAKIGQGTFGEVFKARHRKTGQKVALKKVLMENEKEGFPITALREIKILQLLKHENVVNLIEICRTKKGSIYLVFDFCEHDLAGLLSNVLVKFTLSEIKRVMQMLLNGLYYIHRNKILHRDMKAANVLITRDGVLKLADFGLARAFSLAKNSQPNRYtNRVVTLWYRPPELLLGERDYGPPIDLWGAGCIMAEMWTRSPIMQGNTEQHQLALISQLCGSITPEVWPNVDNYELYEKLELVKGQKRKVKDRLKAYVRDPYALDLIDKLLVLDPAQRIDSDDALNHDFFWSDPMPSDLKGMLSTHLTSMFEY 338
                                    15        25        35        45        55        65        75        85  ||   102       112       122       132       142       152       162       172       182   |   192       202       212       222       232       242       252       262       272       282       292       302       312       322       332
                                                                                                             88|                                                                                       186-TPO
                                                                                                              96


Chain B from PDB  Type:PROTEIN  Length:252

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhh..hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh..........hhhhhh....hhhhhhhhhhhhhhhhhhh..hhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4ec8 B   8 NNKRWYFTREQLENSPSRRFGVDPDKELSYRQQAANLLQDMGQRLNVSQLTINTAIVYMHRFYMIQSFTRFPGNSVAPAALFLAAKVEGQPKKLEHVIKVAHTCLHPQESLPDTRSEAYLQQVQDLVILESIILQTLGFELTIDHPHTHVVKCTQLVRASKDLAQTSYFMATNSLHLTTFSLQYTPPVVACVCIHLACKWSNWEIPVSTDGKHWWEYVDATVTLELLDELTHELLQILEKTPNRLKRIWNWR 259
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4EC8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4EC8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4EC8)
