(-) Description

Title :  CRYSTAL STRUCTURE OF THE OPRM CHANNEL IN A NON-SYMMETRICAL SPACE GROUP

Authors :  G. Phan, I. Broutin, A. Ducruix
Date :  16 May 08  (Deposition) - 02 Jun 09  (Release) - 18 Apr 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Membrane Protein, Channel, Beta-Alpha-Barrel, Antibiotic Resistance, Lipoprotein, Membrane, Outer Membrane, Palmitate, Transmembrane, Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Phan, H. Benabdelhak, M. B. Lascombe, P. Benas, S. Rety, M. Picard, A. Ducruix, C. Etchebest, I. Broutin
Structural And Dynamical Insights Into The Opening Mechanis Of P. Aeruginosa Oprm Channel.
Structure V. 18 507 2010
PubMed-ID: 20399187  |  Reference-DOI: 10.1016/J.STR.2010.01.018

(-) Compounds

Molecule 1 - OUTER MEMBRANE PROTEIN OPRM
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBAD33
    Expression System Strain: C43
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: OPRM, OPRK, PA0427
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287
    Strain: PAO1
    Synonym: OPRM

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 13)

Asymmetric/Biological Unit (3, 13)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2NA9Ligand/IonSODIUM ION
3SCY3Mod. Amino AcidS-ACETYL-CYSTEINE

(-) Sites  (10, 10)

Asymmetric Unit (10, 10)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLN A:367 , ASP A:371 , GLN C:229BINDING SITE FOR RESIDUE NA A 475
02AC2SOFTWARETRP A:40 , GLN A:154 , TRP A:450BINDING SITE FOR RESIDUE NA A 476
03AC3SOFTWAREARG B:194 , LEU B:256 , LEU B:257 , ARG B:432BINDING SITE FOR RESIDUE CL B 475
04AC4SOFTWAREALA B:228 , ASN B:232 , TYR C:24BINDING SITE FOR RESIDUE NA B 476
05AC5SOFTWAREARG B:45 , ASP B:46 , LEU B:256BINDING SITE FOR RESIDUE NA B 477
06AC6SOFTWAREALA B:66 , THR B:146 , GLN B:150 , HOH B:513BINDING SITE FOR RESIDUE NA B 478
07AC7SOFTWARETRP B:40 , GLN B:154 , TRP B:450BINDING SITE FOR RESIDUE NA B 479
08AC8SOFTWARETYR B:185 , GLN B:418 , HOH B:544BINDING SITE FOR RESIDUE NA B 480
09AC9SOFTWAREGLY C:29 , GLY C:263 , HOH C:478BINDING SITE FOR RESIDUE NA C 475
10BC1SOFTWAREARG C:272 , ASP C:274 , ALA C:361BINDING SITE FOR RESIDUE NA C 476

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3D5K)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3D5K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3D5K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3D5K)

(-) Exons   (0, 0)

(no "Exon" information available for 3D5K)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:455
 aligned with OPRM_PSEAE | Q51487 from UniProtKB/Swiss-Prot  Length:485

    Alignment length:455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467
           OPRM_PSEAE    18 CSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 472
               SCOP domains d3d5ka_ A: Outer membrane protein OprM                                                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains -------------------------------------------------------------------------------------3d5kA02 A:86-126,A:297-338               --------------------------------------------------------------------------------------------------------------------------------------------------------------------------3d5kA02 A:86-126,A:297-338                --------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......................................hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeeee..........eeeeeeeeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeeee...........eeeeeeeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3d5k A   1 cSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 455
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450
                            |
                            1-SCY


Chain B from PDB  Type:PROTEIN  Length:455
 aligned with OPRM_PSEAE | Q51487 from UniProtKB/Swiss-Prot  Length:485

    Alignment length:455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467
           OPRM_PSEAE    18 CSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 472
               SCOP domains d3d5kb_ B: Outer membrane protein OprM                                                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains -------------------------------------------------------------------------------------3d5kB02 B:86-126,B:297-338               --------------------------------------------------------------------------------------------------------------------------------------------------------------------------3d5kB02 B:86-126,B:297-338                --------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .................................hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeeee..........eeeeeeeeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeeee.hhhhh.....eeeeeeeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3d5k B   1 cSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 455
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450
                            1-SCY


Chain C from PDB  Type:PROTEIN  Length:455
 aligned with OPRM_PSEAE | Q51487 from UniProtKB/Swiss-Prot  Length:485

    Alignment length:455
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467
           OPRM_PSEAE    18 CSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 472
               SCOP domains d3d5kc_ C: Outer membrane protein OprM                                                                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains -------------------------------------------------------------------------------------3d5kC02 C:86-126,C:297-338               --------------------------------------------------------------------------------------------------------------------------------------------------------------------------3d5kC02 C:86-126,C:297-338                --------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .................................hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeeee..........eeeeeeeeeeeeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.hhhhh.....eeeeeeeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3d5k C   1 cSLIPDYQRPEAPVAAAYPQGQAYGQNTGAAAVPAADIGWREFFRDPQLQQLIGVALENNRDLRVAALNVEAFRAQYRIQRADLFPRIGVDGSGTRQRLPGDLSTTGSPAISSQYGVTLGTTAWELDLFGRLRSLRDQALEQYLATEQAQRSAQTTLVASVATAYLTLKADQAQLQLTKDTLGTYQKSFDLTQRSYDVGVASALDLRQAQTAVEGARATLAQYTRLVAQDQNALVLLLGSGIPANLPQGLGLDQTLLTEVPAGLPSDLLQRRPDILEAEHQLMAANASIGAARAAFFPSISLTANAGTMSRQLSGLFDAGSGSWLFQPSINLPIFTAGSLRASLDYAKIQKDINVAQYEKAIQTAFQEVADGLAARGTFTEQLQAQRDLVKASDEYYQLADKRYRTGVDNYLTLLDAQRSLFTAQQQLITDRLNQLTSEVNLYKALGGGWNQQTV 455
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450
                            1-SCY
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3D5K)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (OPRM_PSEAE | Q51487)
molecular function
    GO:0015238    drug transmembrane transporter activity    Enables the directed movement of a drug from one side of a membrane to the other. A drug is any naturally occurring or synthetic substance, other than a nutrient, that, when administered or applied to an organism, affects the structure or functioning of the organism; in particular, any such substance used in the diagnosis, prevention, or treatment of disease.
    GO:0008289    lipid binding    Interacting selectively and non-covalently with a lipid.
    GO:0005215    transporter activity    Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
    GO:0006855    drug transmembrane transport    The process in which a drug is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SCY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3d5k)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3d5k
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OPRM_PSEAE | Q51487
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP

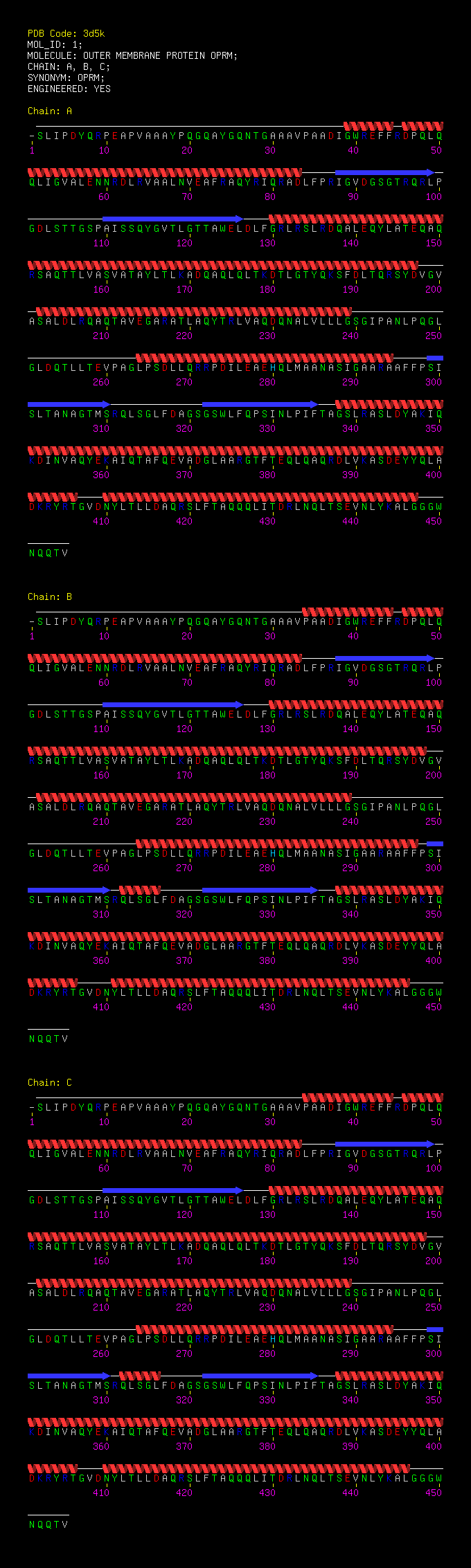

    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  OPRM_PSEAE | Q51487
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        OPRM_PSEAE | Q51487: 1wp1 4y1k
